Jeff Taylor's RX-7 FD3s

1993 Mazda RX-7 Touring Model

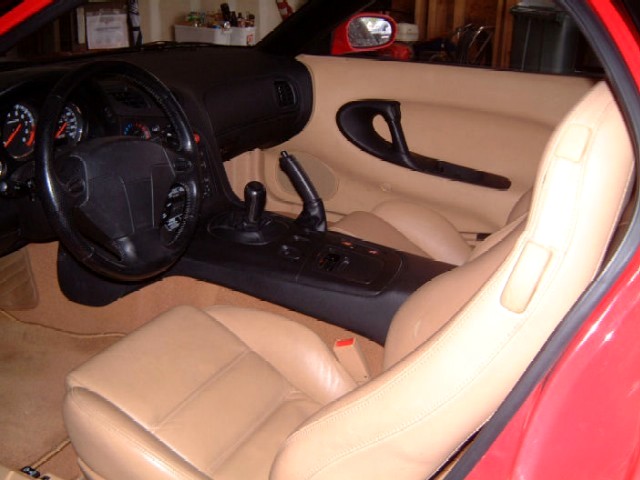

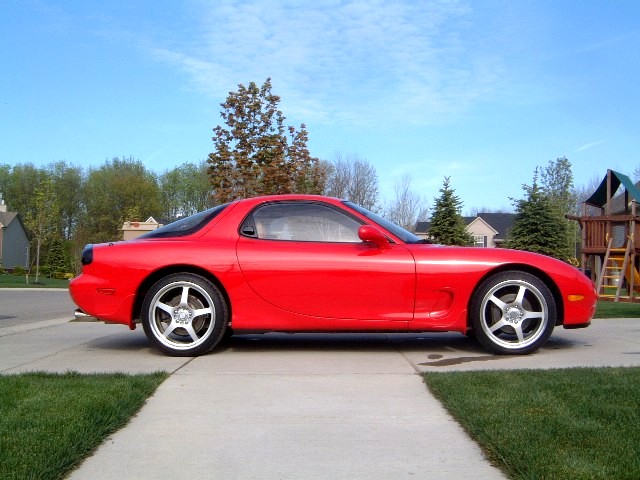

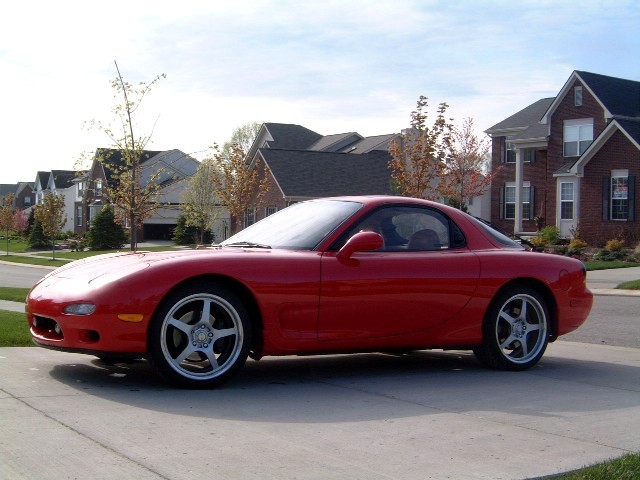

	Car was purchased in 2004 from a collector in stock condition. Vintage Red with Tan leather Interior. Car is exceptionally clean and located in Michigan. Mods List * Magnecore 10mm Plug Wires * AirNX Intake * Walbro 255 lph Fuel Pump * Autometer Boost Gauge * HKS Downpipe * Resonated Midpipe: RX7 Store. * Racing Beat Dual Tip Catback Exhaust * APEXi Power FC *Roja 18" Formula 5 Wheels with new Toyo Tires *Everything professionally installed and tuned.

Click on images for larger view

Staged Modifications

Jeff & Jeff Taylor (father & son) purchased their 1993 Vintage Red FD in the summer of 2004. The odometer showed just under 9,000 original miles! They contacted Banzai Racing and requisitioned us to develop a Staged Modification Plan that would ensure reliability while simultaneously upgrading performance and increasing HP.

Stage 1. Early September '04 (OD 9,951); initial work and upgrades included:

• AST Elimination
• HKS Downpipe

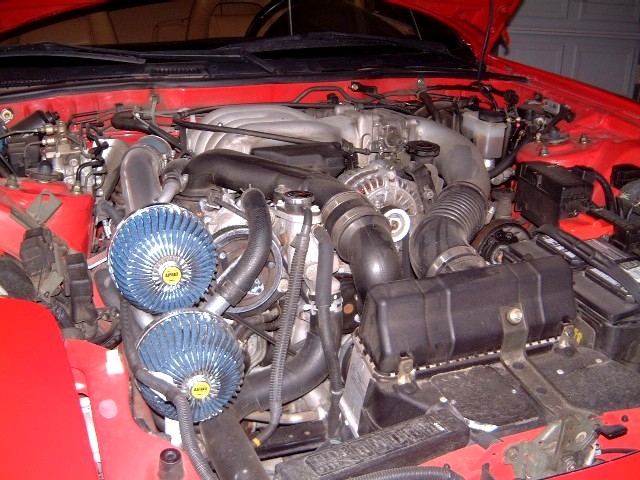

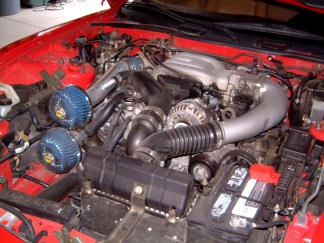

• Greddy Airinx Intake kit
• Upgraded Walboro 255LPH HP Fuel Pump
• Autometer Boost Gauge
• New NGK Spark Plugs
• Magnacor 10mm Plug Wires
• Differential & Transmission fluids flush & fill (Red Line MT-90)
• Radiator flush & fill
• Broken/cracked vacuum lines replacement (Hose Techniques Silicone Hose)
• Slave Cylinder rebuild
• Upgraded stainless steel Clutch Lines

Stage 2. Late March '05 (OD 12,408); We performed the following upgrades:

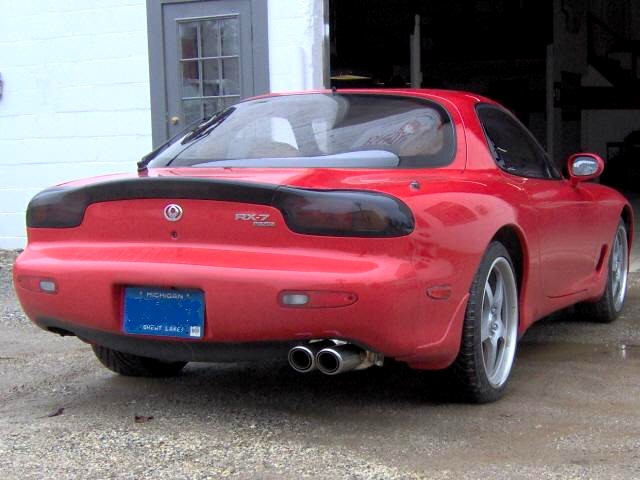

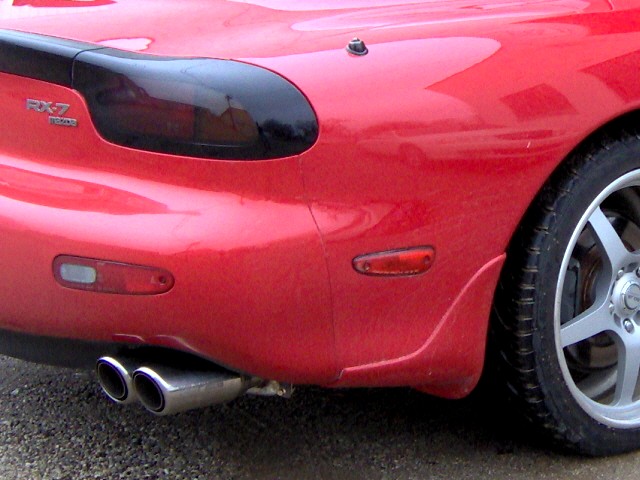

• Racing Beat Dual Tip Catback
• Resonated Midpipe
• Apexi Power FC
• Tuned to 13 psi
