Bobby's RX-7 13B-REW Engine Installation
Photographs of Rebuilt Engine taken before & during installation
 |
 |
 |
 |
|
Engine

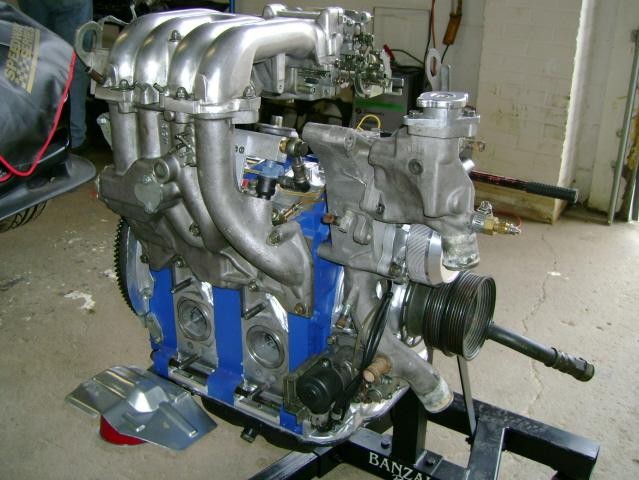

Long Block #1
|
Engine

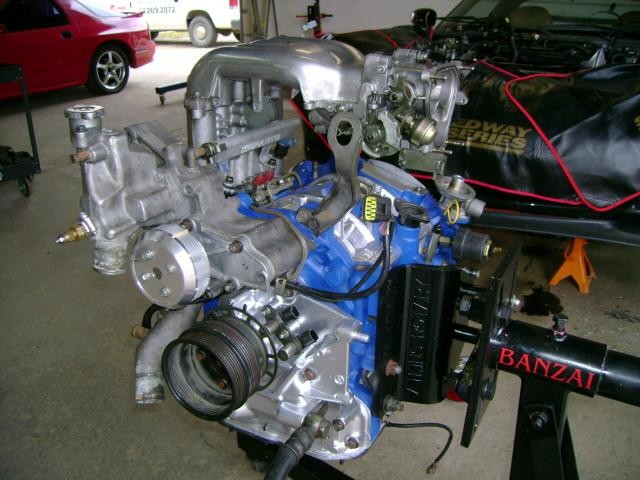

Long Block #2
|
Engine

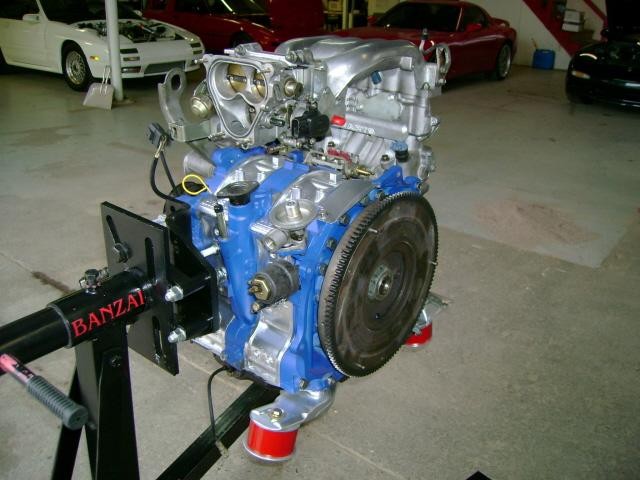

Long Block #3
|
Engine

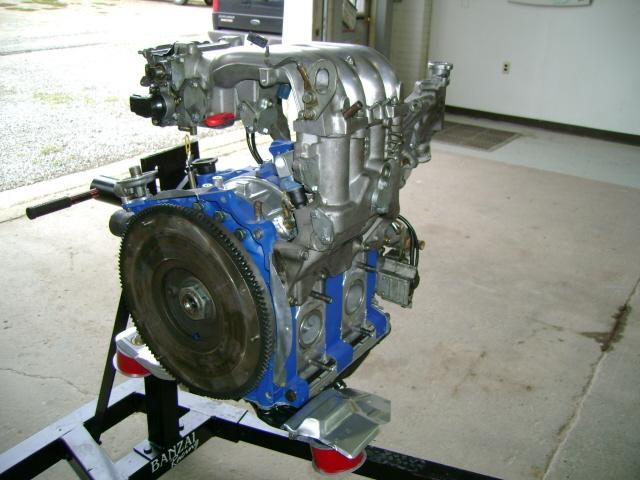

Long Block #4
|

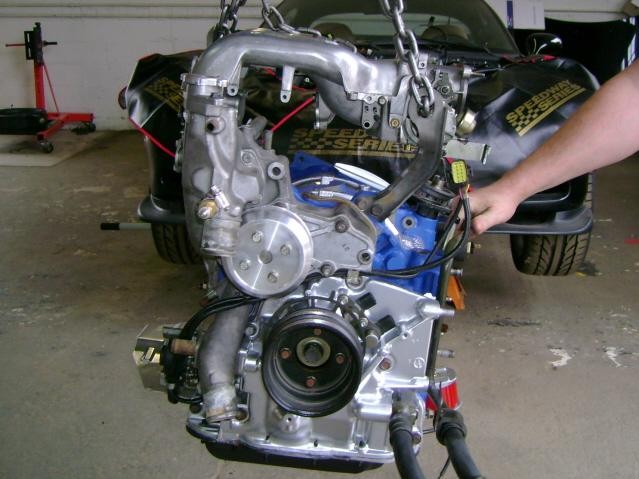

Photographs taken during engine installation
 |
 |
 |
 |
 |
|
Installation
#1
|

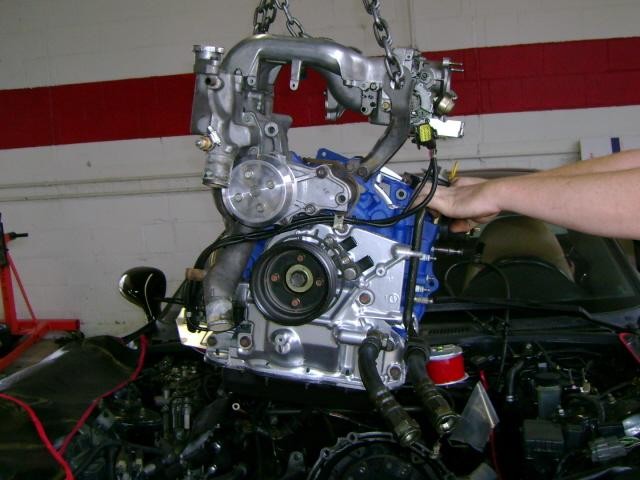

Installation
#2
|

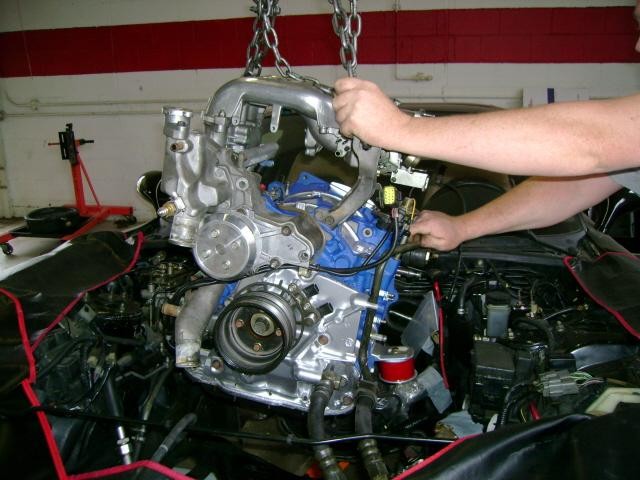

Installation #3
|

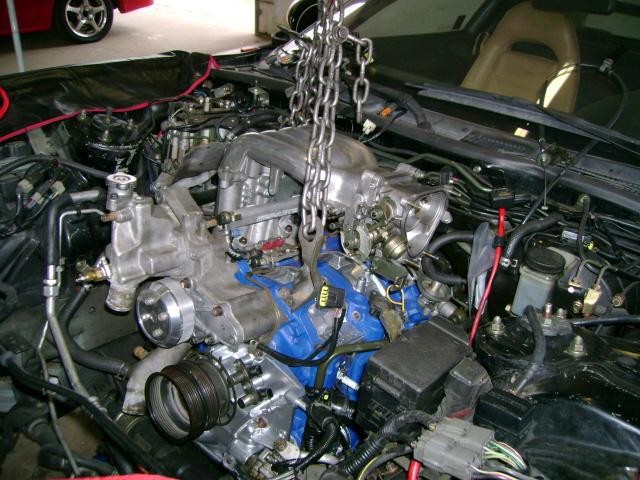

Installation
#4
|

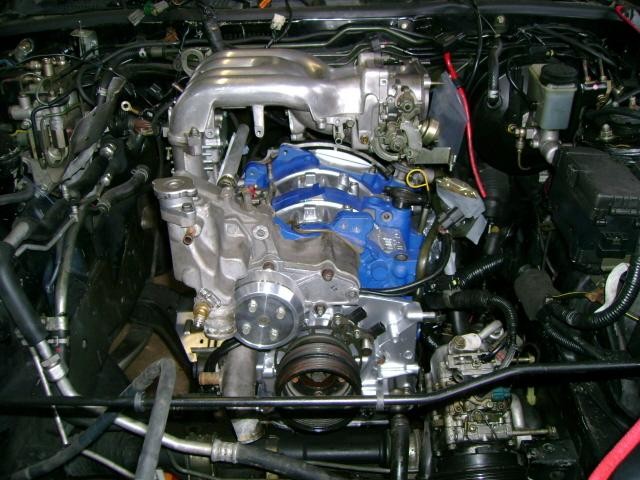

Installation #5
|
List of upgraded components & modifications;
- Banzai Racing Streetported Engine w/Super Seal Upgrade & New Rotor Housings
- Banzai Racing Oil Pan Brace Kit
- Banzai Racing Polyurethane Motor Mounts
- Banzai Racing Fuel Kit w/ 1600 cc Secondary Injectors
- Replacement Fuel Filter
- Replacement Sensors & Oil Metering Lines
- Vacuum line Simplification w/Hose Techniques Silicone Hose
- Replacement Fans
- SS Radiator Hoses
- Garrett T04Z Turbo
- SS Turbo Oil & Coolant Lines
- Replacment Engine Harness
- Aftermarket WP & Alternator Pulley Kit
- Unborthodix Racing Power Pulley
- Replacment Belts
- GReddy Elbow & Custom I/C Piping
- 4-Ply Silicone Couplers & Reducer
- Optima Yellow Top Battery
- Banzai Racing GM 3-Bar Map Sensor & Adapter Kit
- Banzai Racing Differential Brace
Photographs of Turbo
 |
 |
 |
 |
 |
|

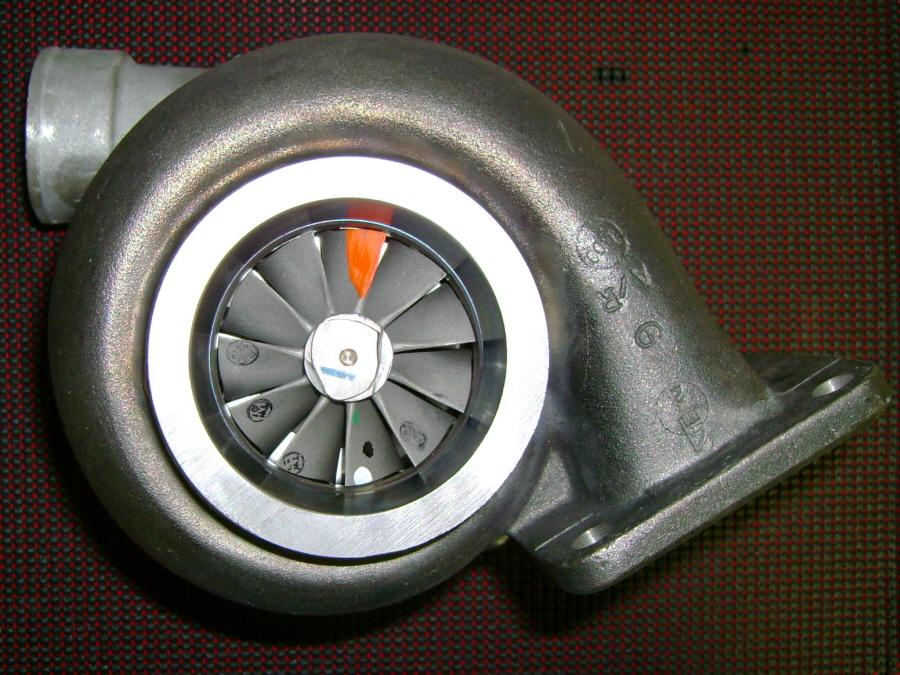

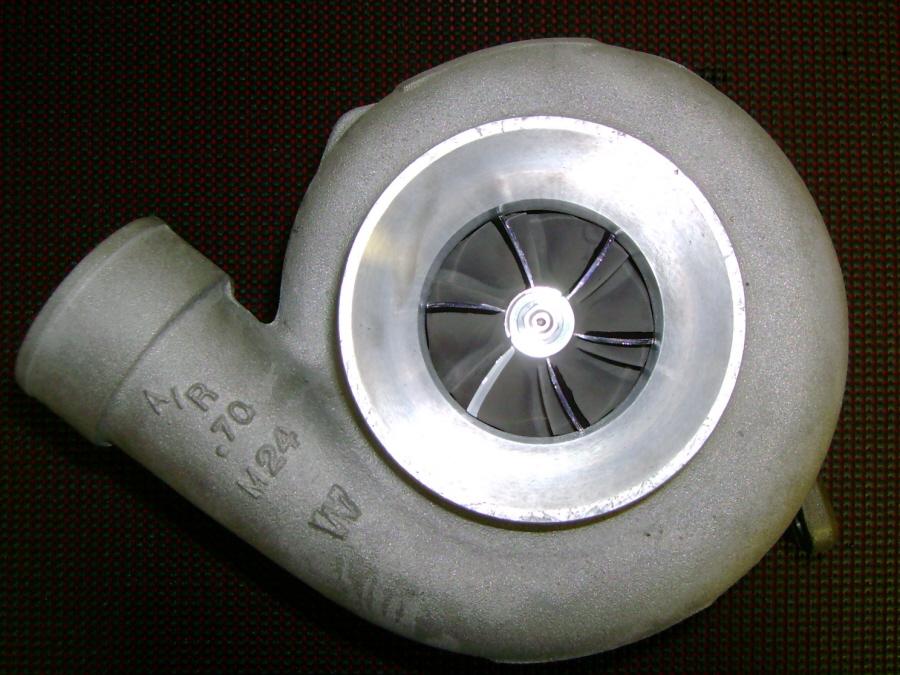

Turbo
#1
|

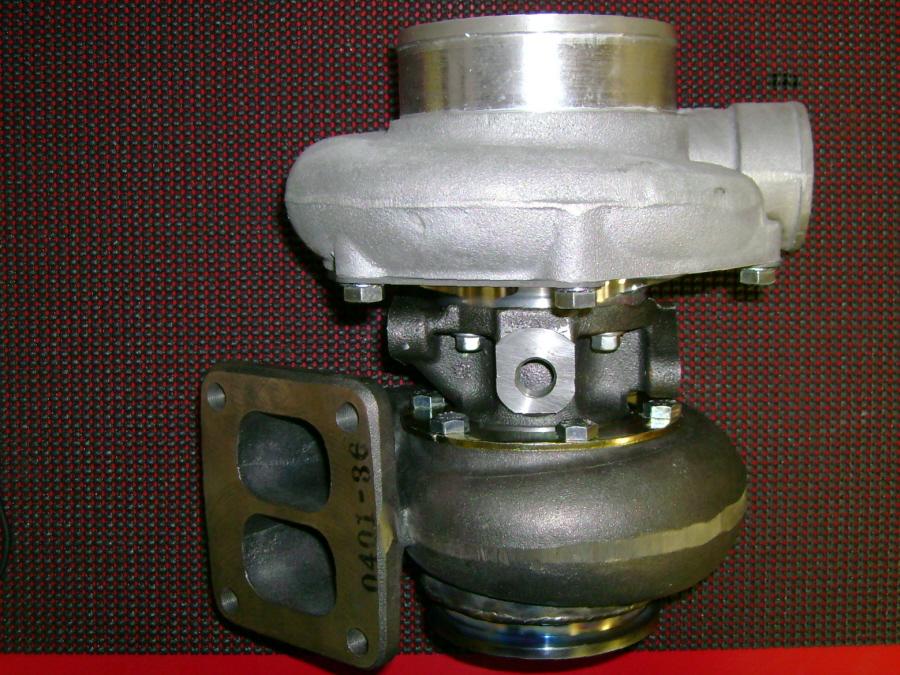

Turbo #2
|
Turbo
#3
|

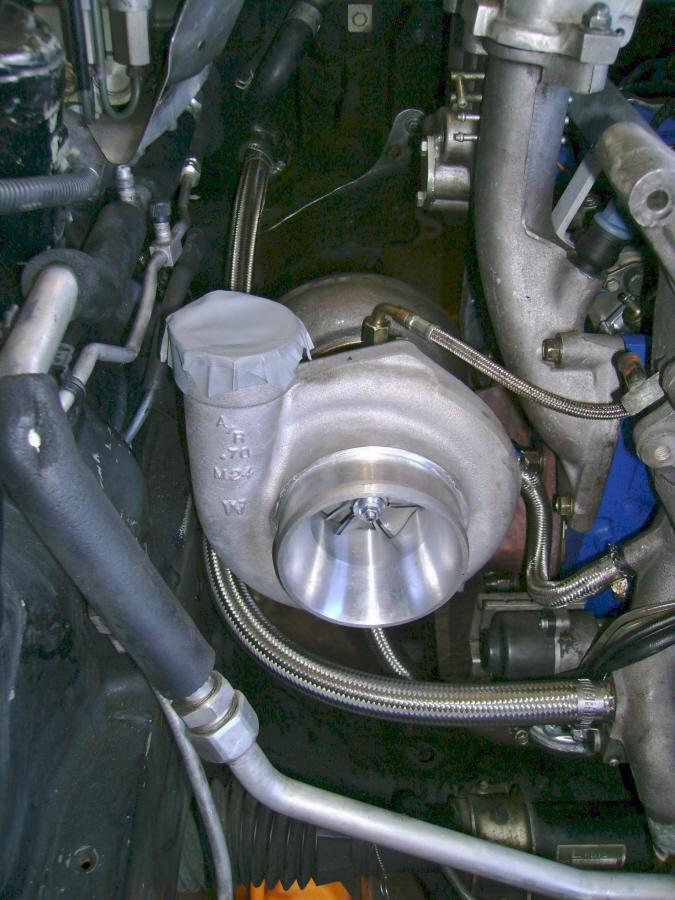

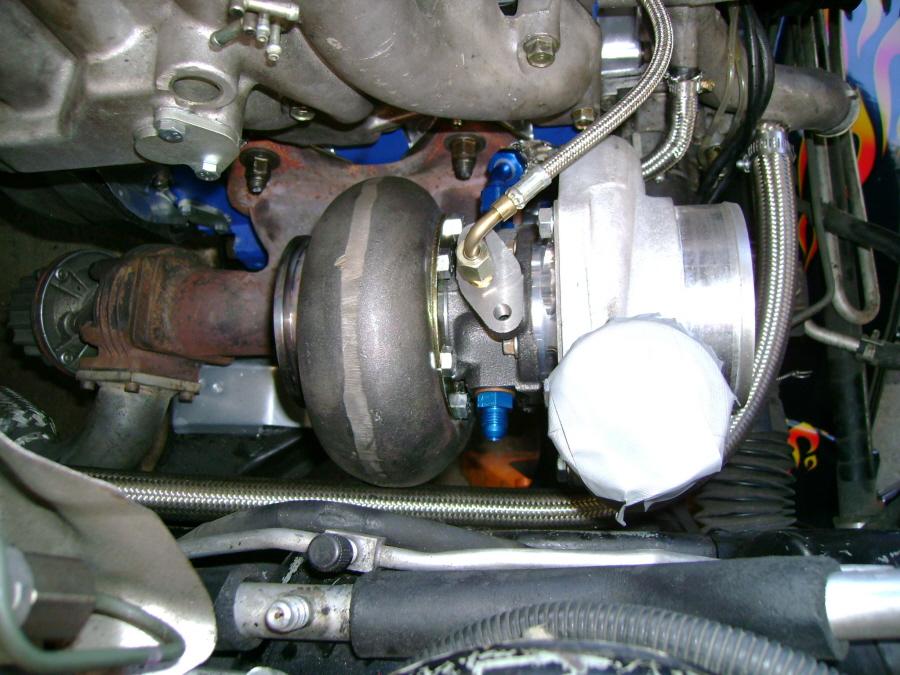

Turbo Installed
|
I nstalled #2
|
Photographs of Upgraded Parts
 |
 |
 |
 |
 |
|

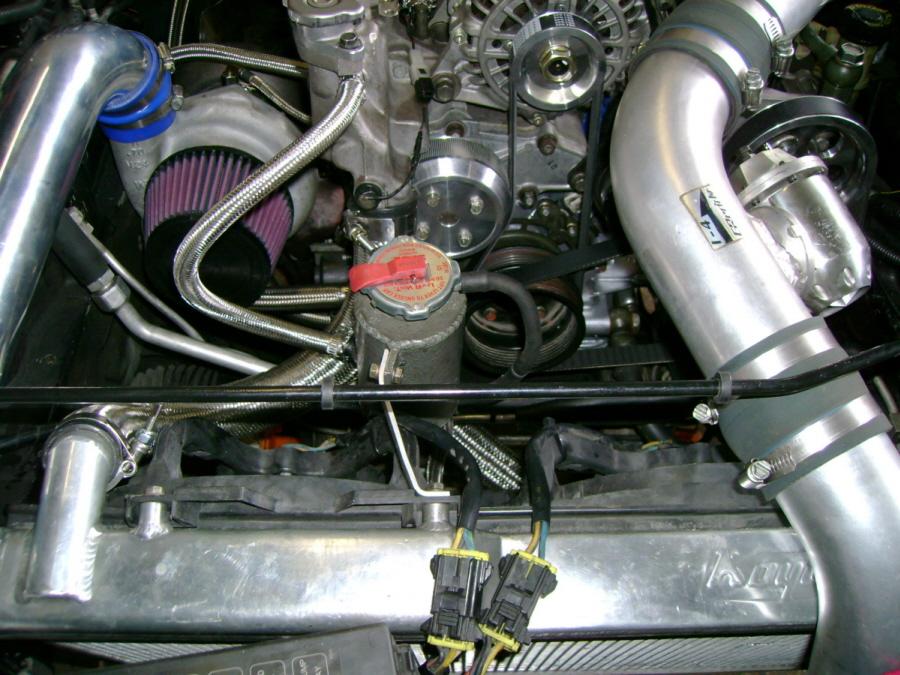

SS
Lines
|

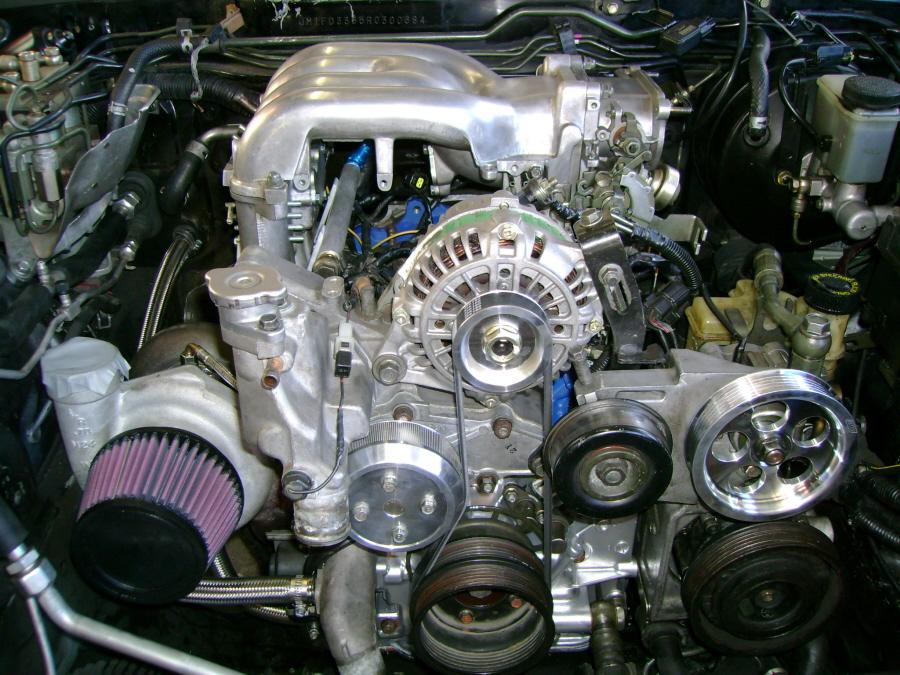

Pulleys
Installed
|
Fuel

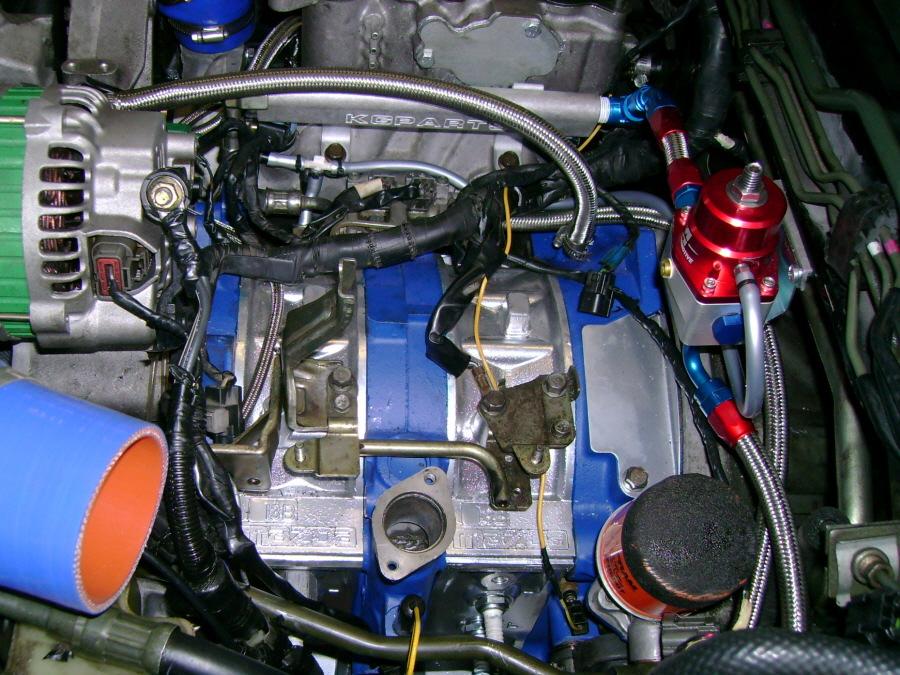

Kit Installed Side View
|

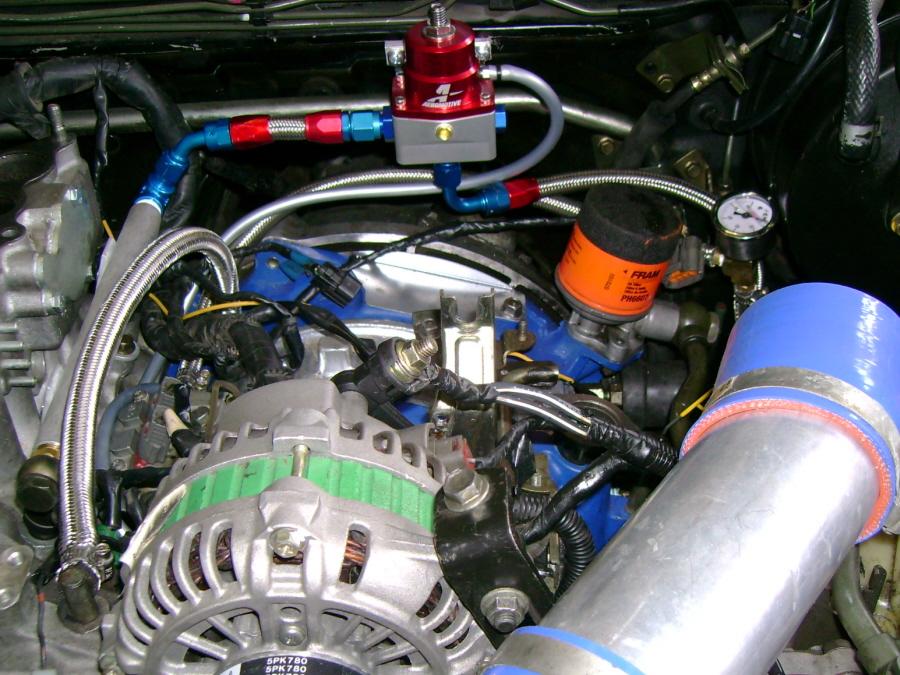

Fuel
Kit Installed Front View
|

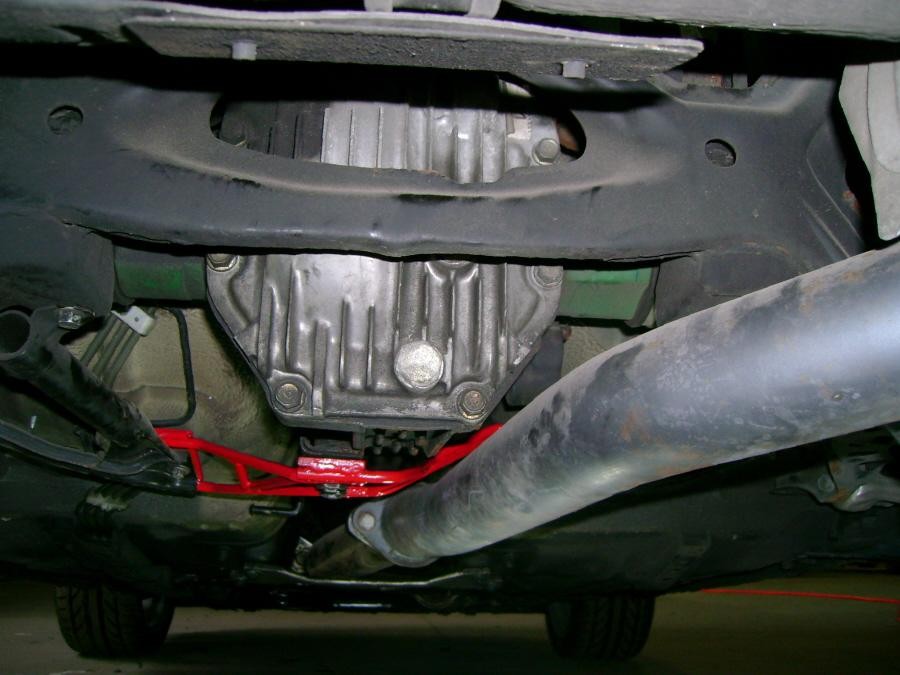

Diff
Brace Installed
|

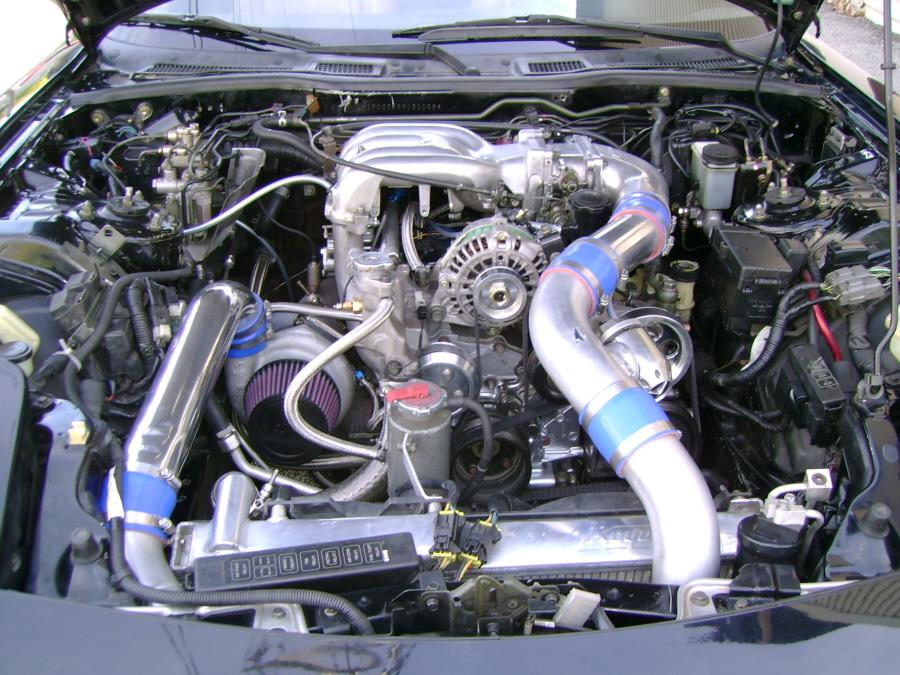

Final Engine Bay Pictures
 |
 |
 |
|

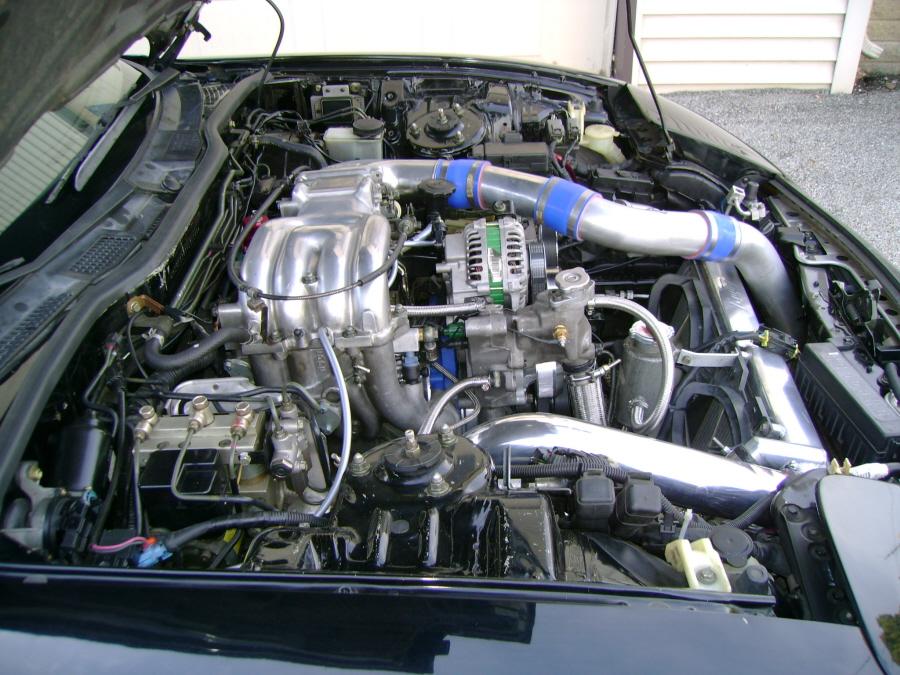

Passenger
Side View
|
Front
View
|

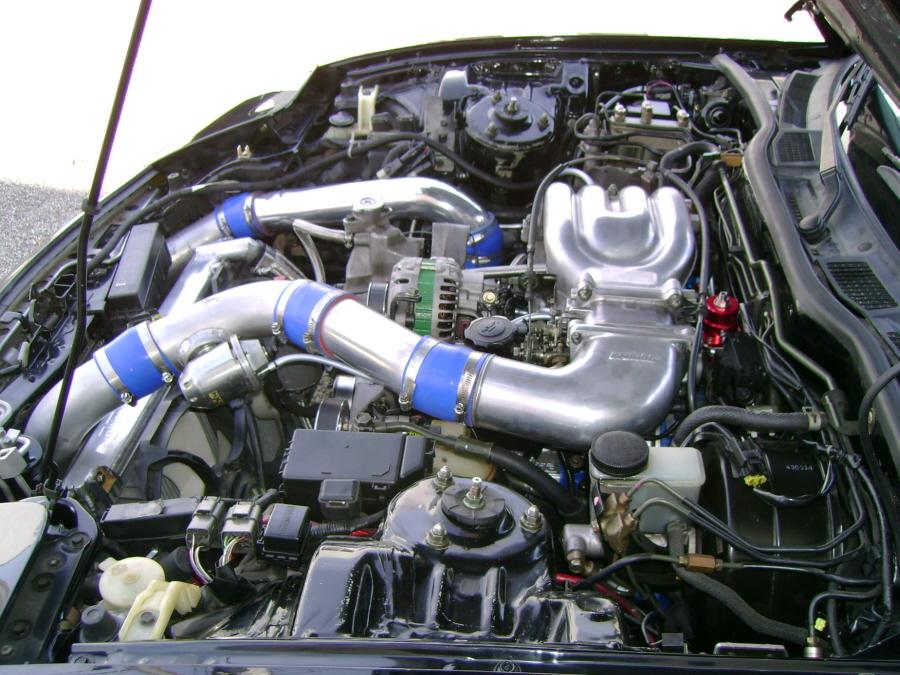

Driver Side View
|
October 17th, 2007
