Stan's RX-7 Staged Modifications Plan

1994 Mazda RX-7 FD3s

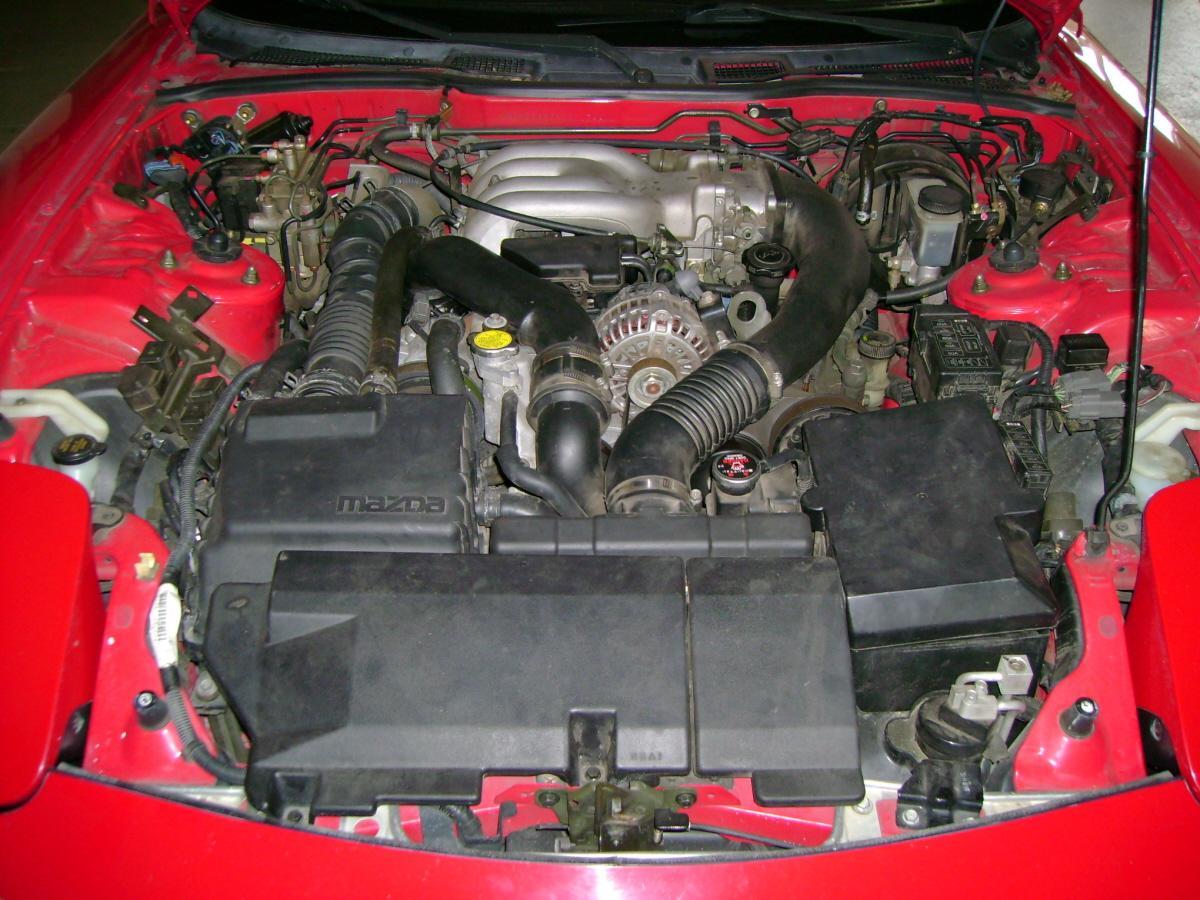

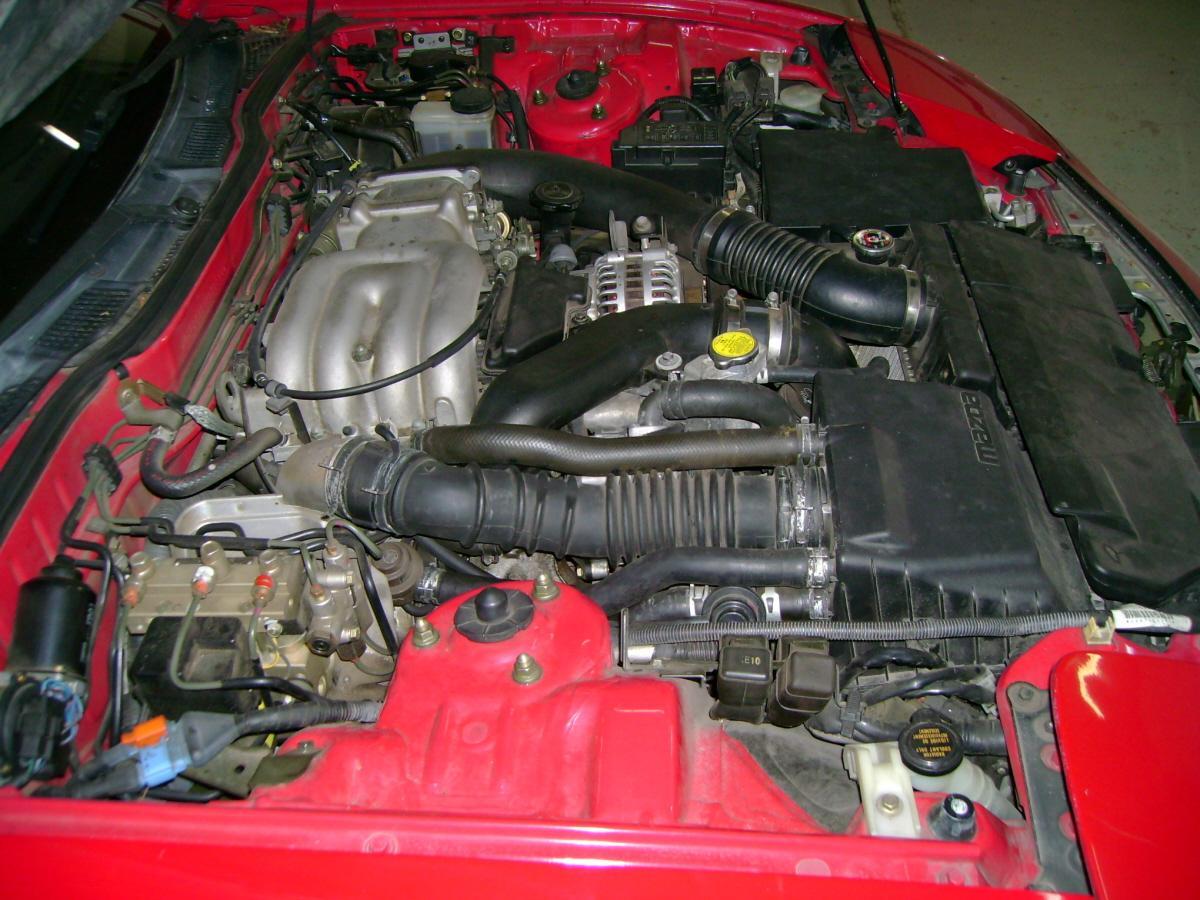

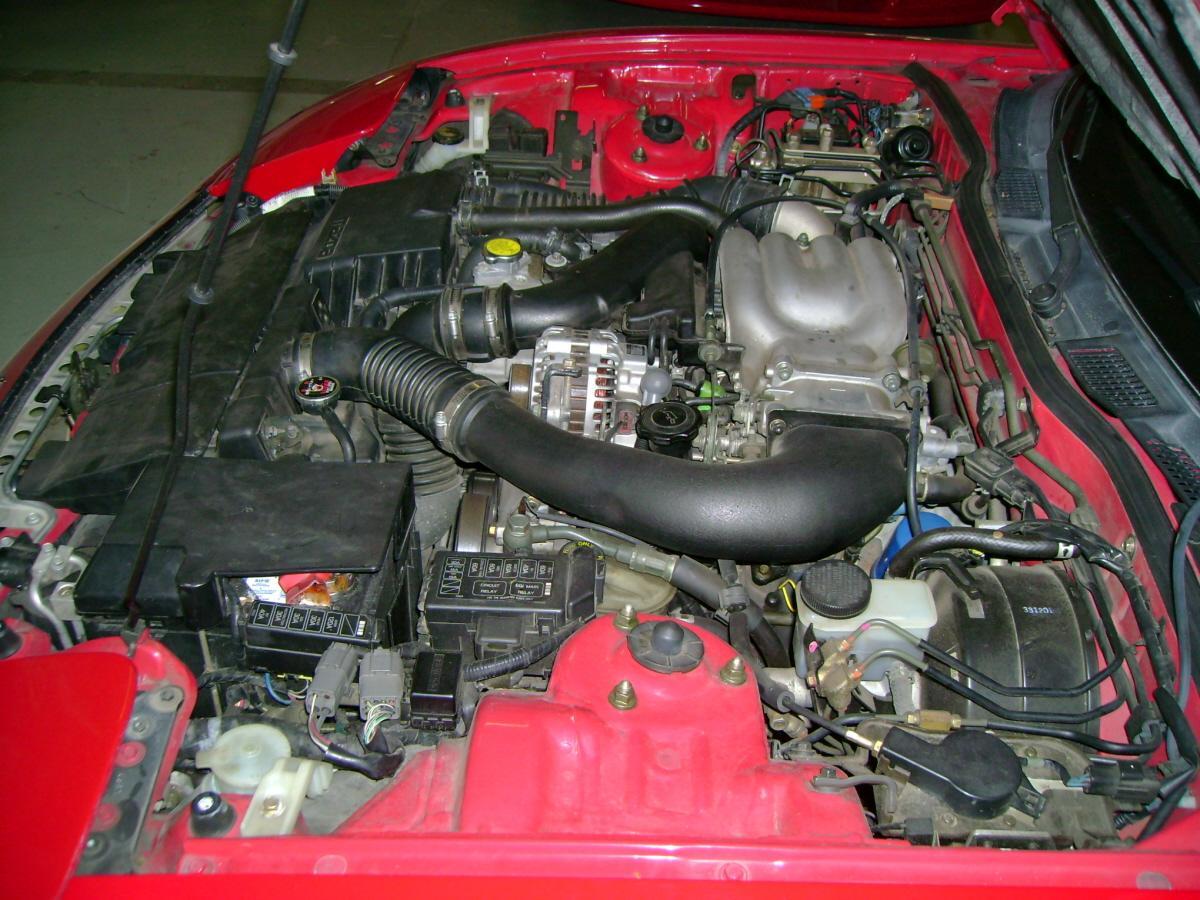

Photographs of the engine bay prior to modifications & upgrades

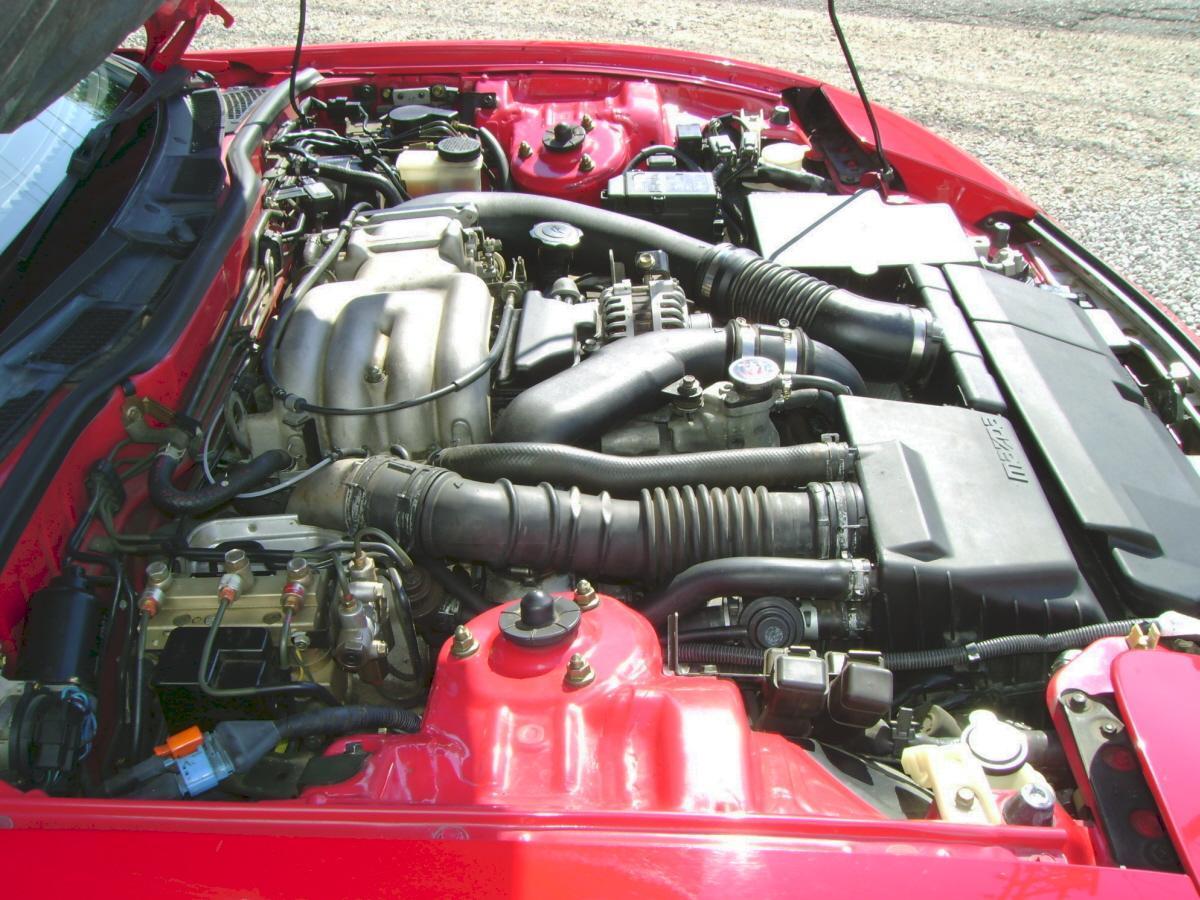

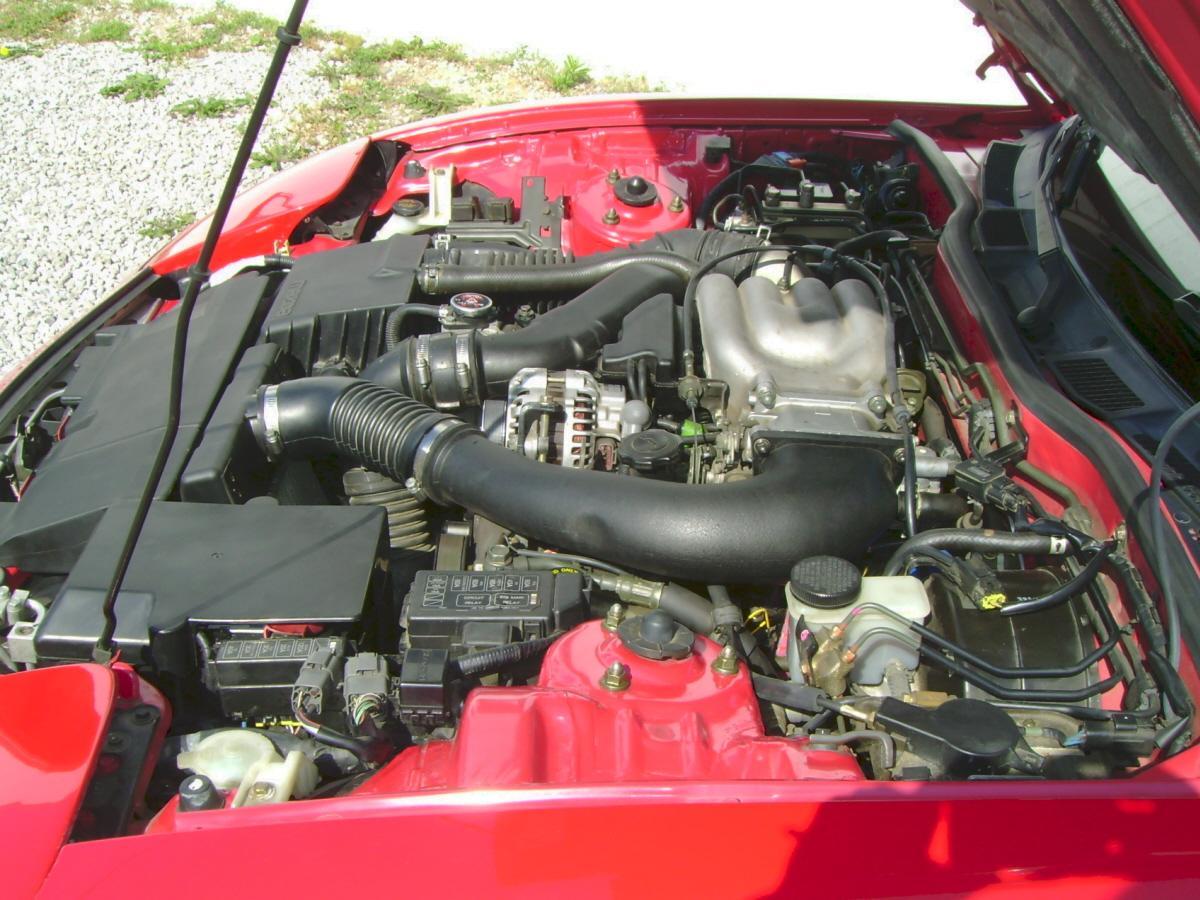

Passenger Side View	Front View	Driver Side View

Stage 1: Stan brought his completely stock FD to us in June '07 for some reliability modifications and upgrades including;

• Racing Beat Dual Tipped Exhaust
• Pettit Racing Downpipe
• Walbro 255 Fuel Pump Kit
• Koyo Radiator & Hoses
• Sportcomp Boost Gauge & Pod
• Magnecor Plug Wires
• K&N Air Filter
• FC Thermoswitch
• Pulley Kit
• Fuel Filter
• O2 Sensor & Spark Plugs

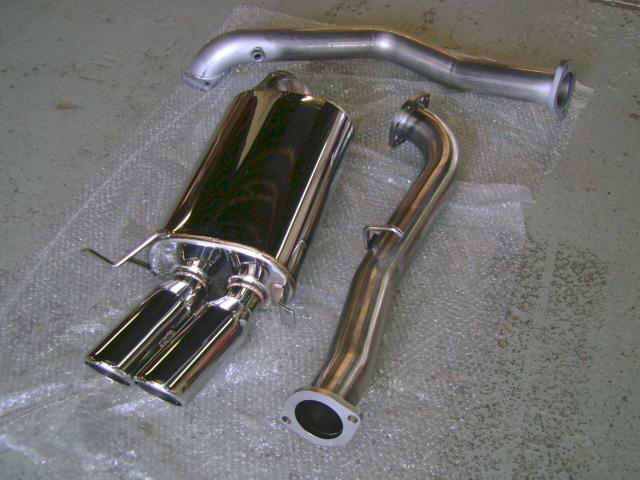

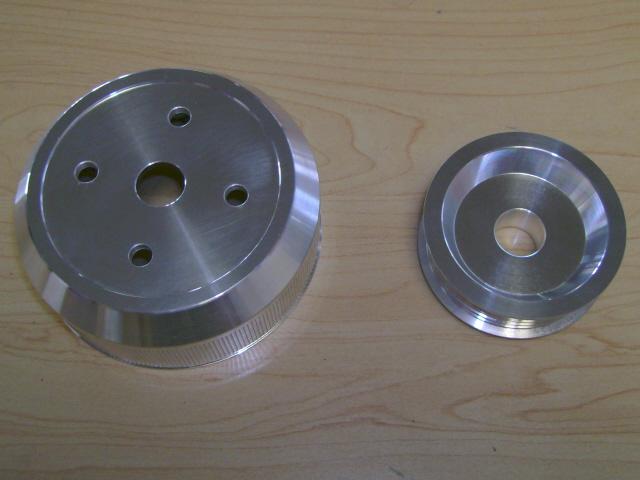

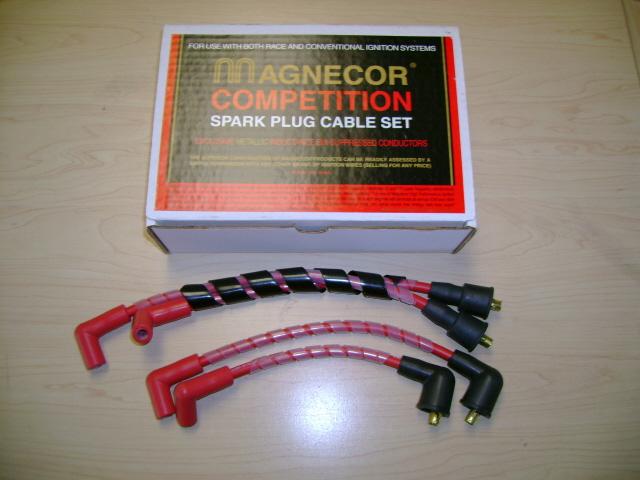

Exhaust & Downpipe	Pulleys	Plug Wires

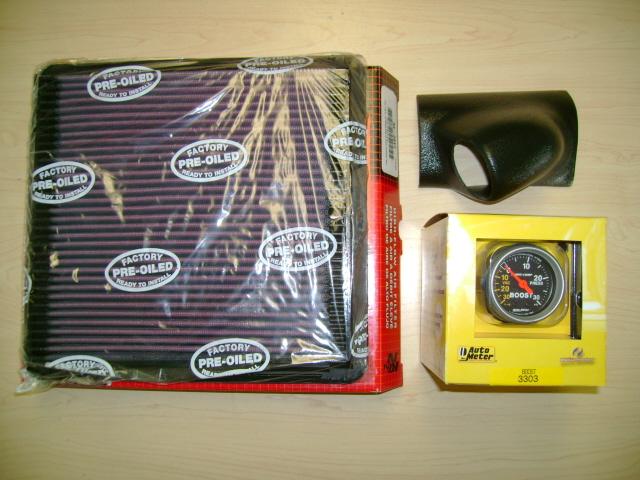

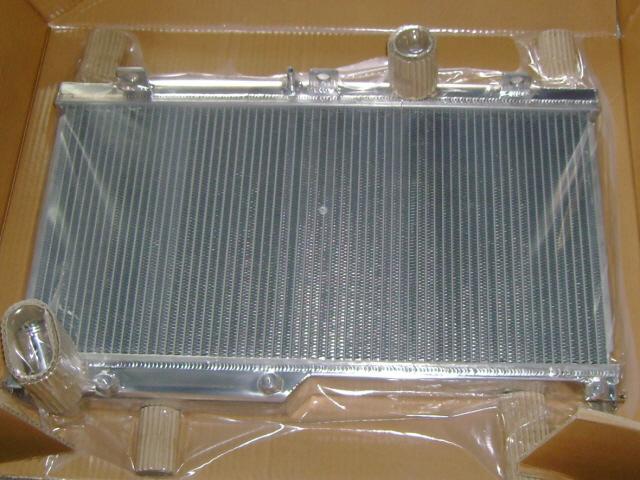

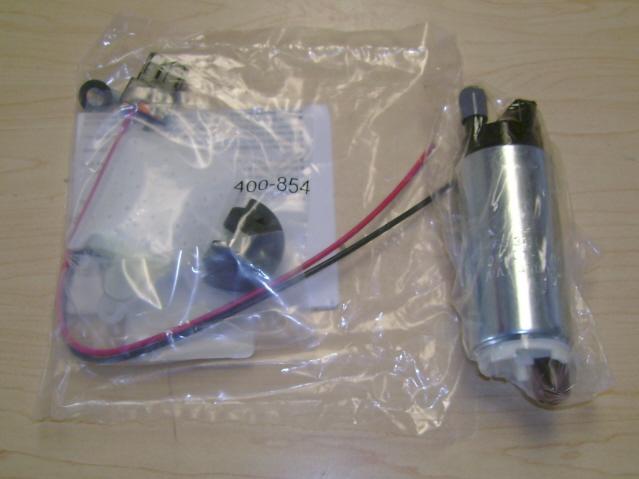

Radiator	Fuel Pump	Filter, Boost Gauge & Pod

Comparison Photographs

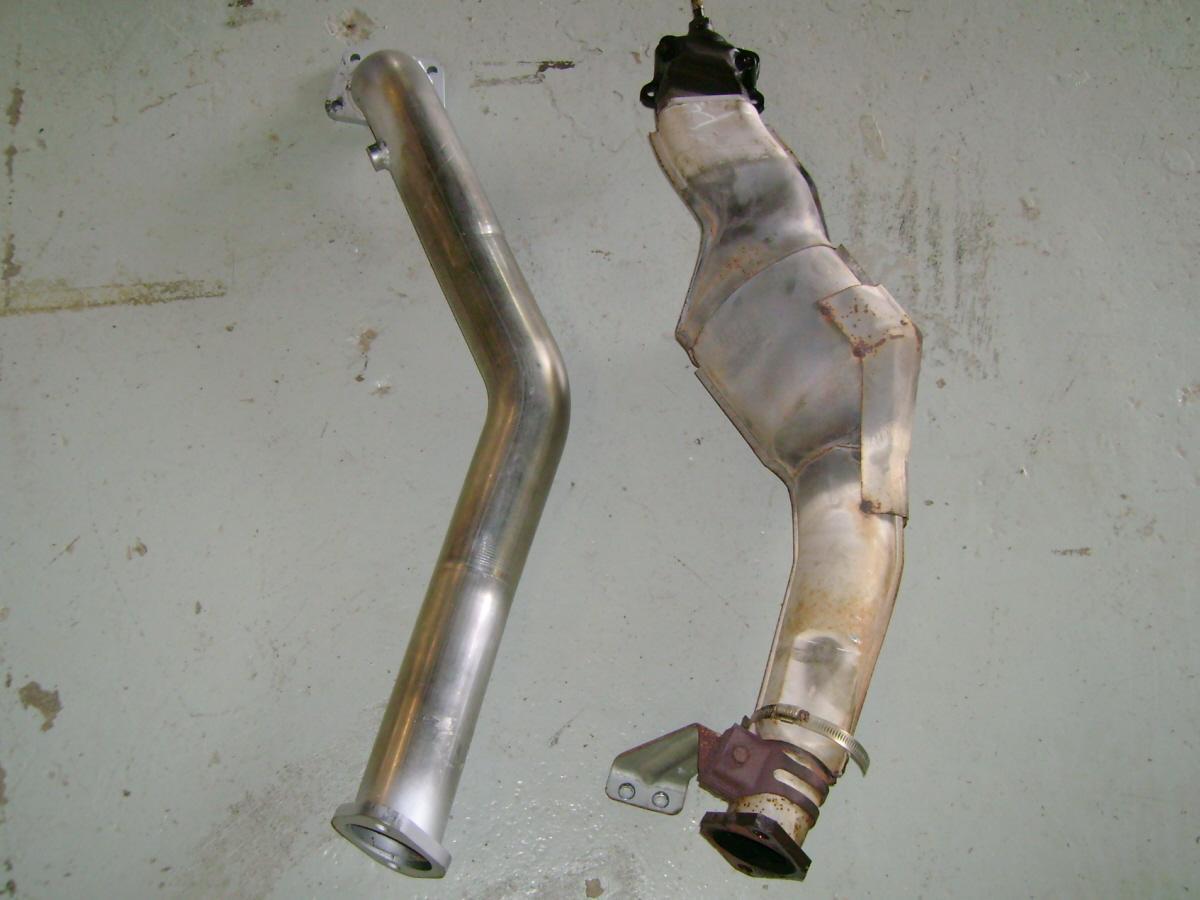

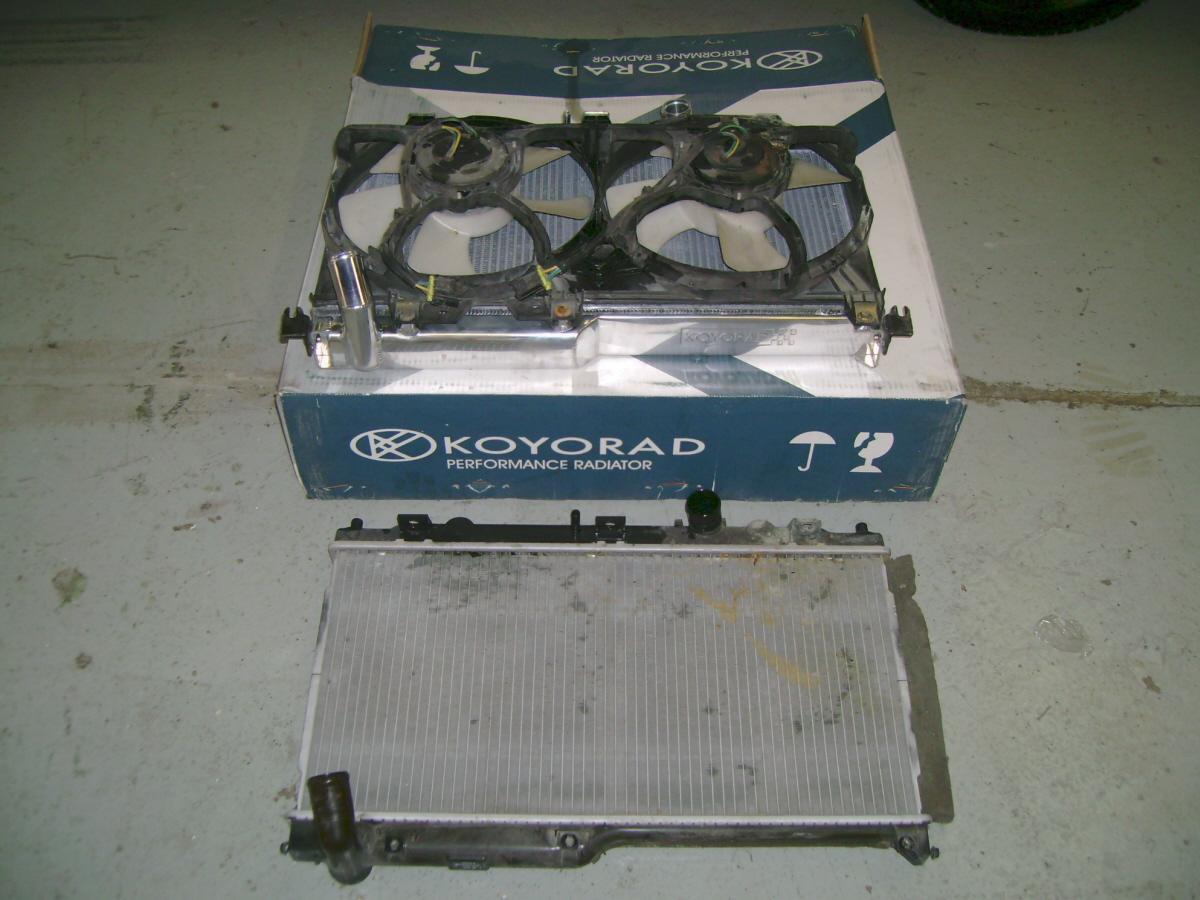

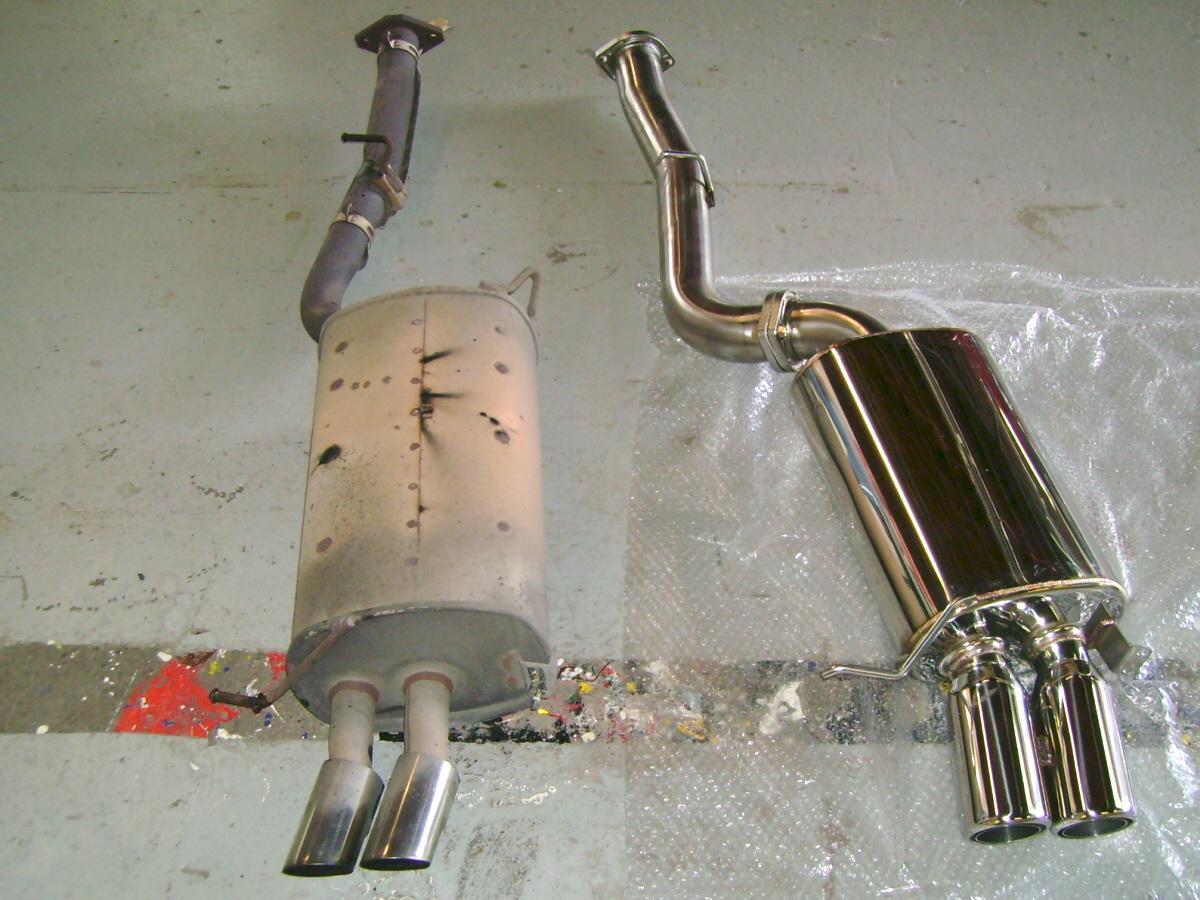

Exhaust	Downpipe	Radiator #1	Radiator #2

Photographs of Parts Installed

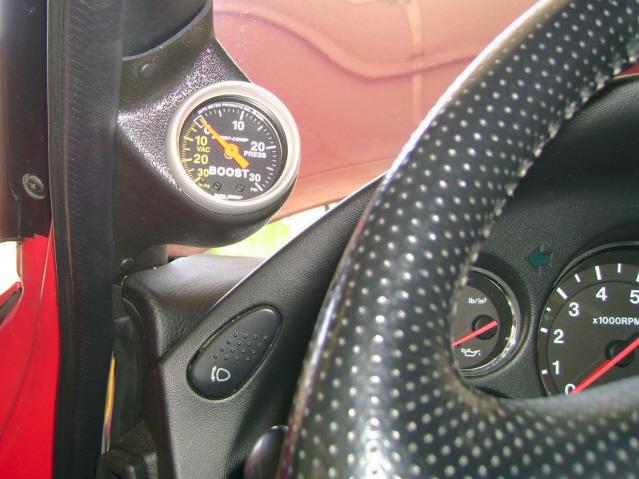

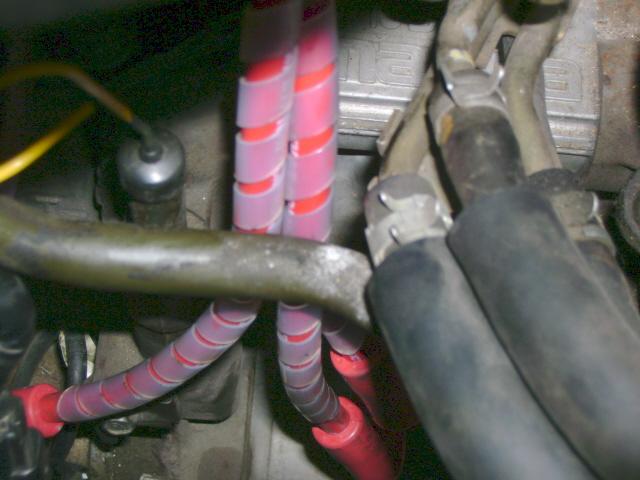

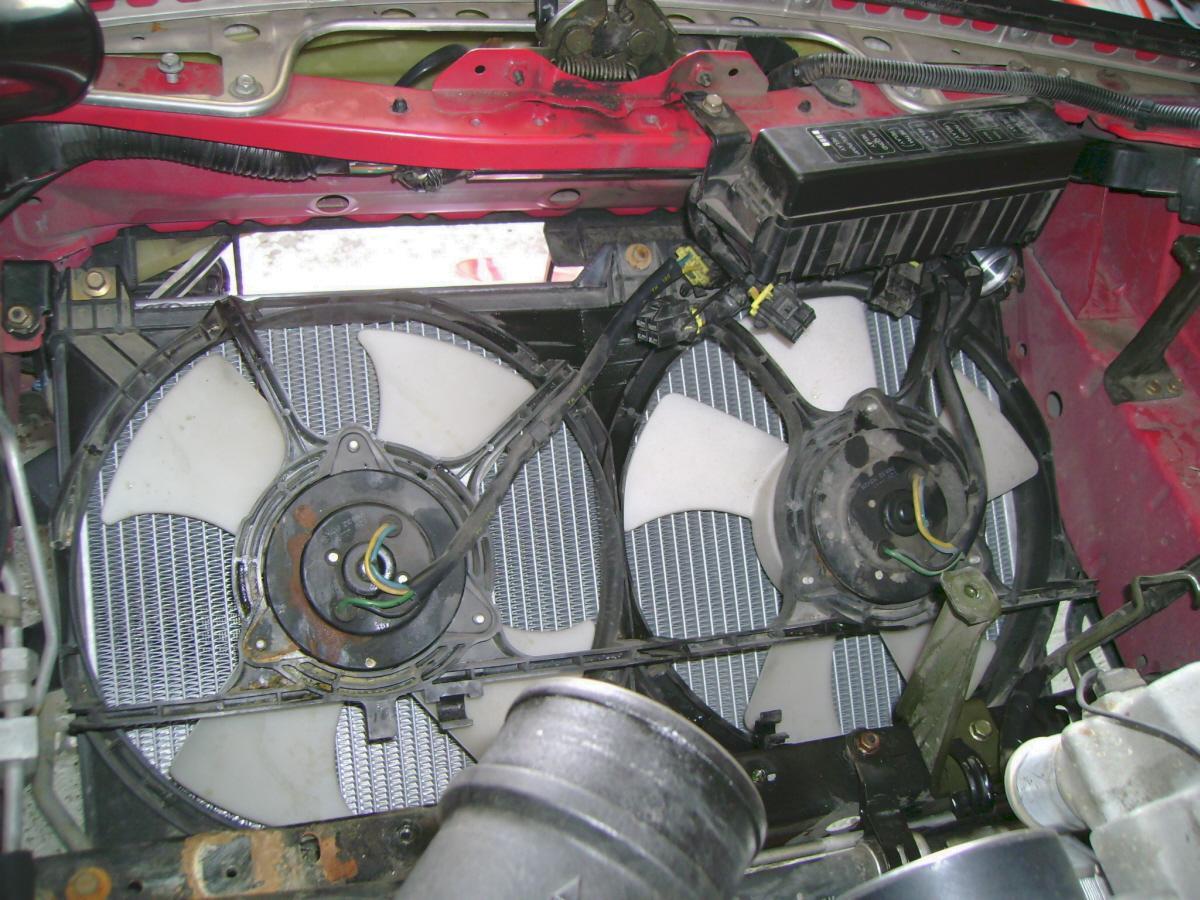

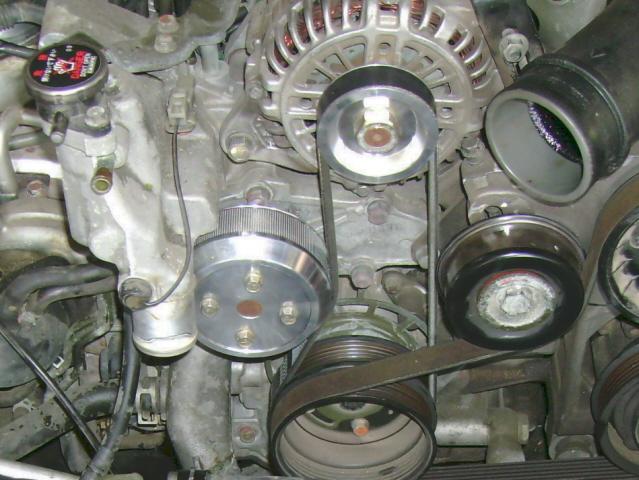

Exhaust	Radiator	Pulleys	Plug Wires	Boost Gauge & Pod

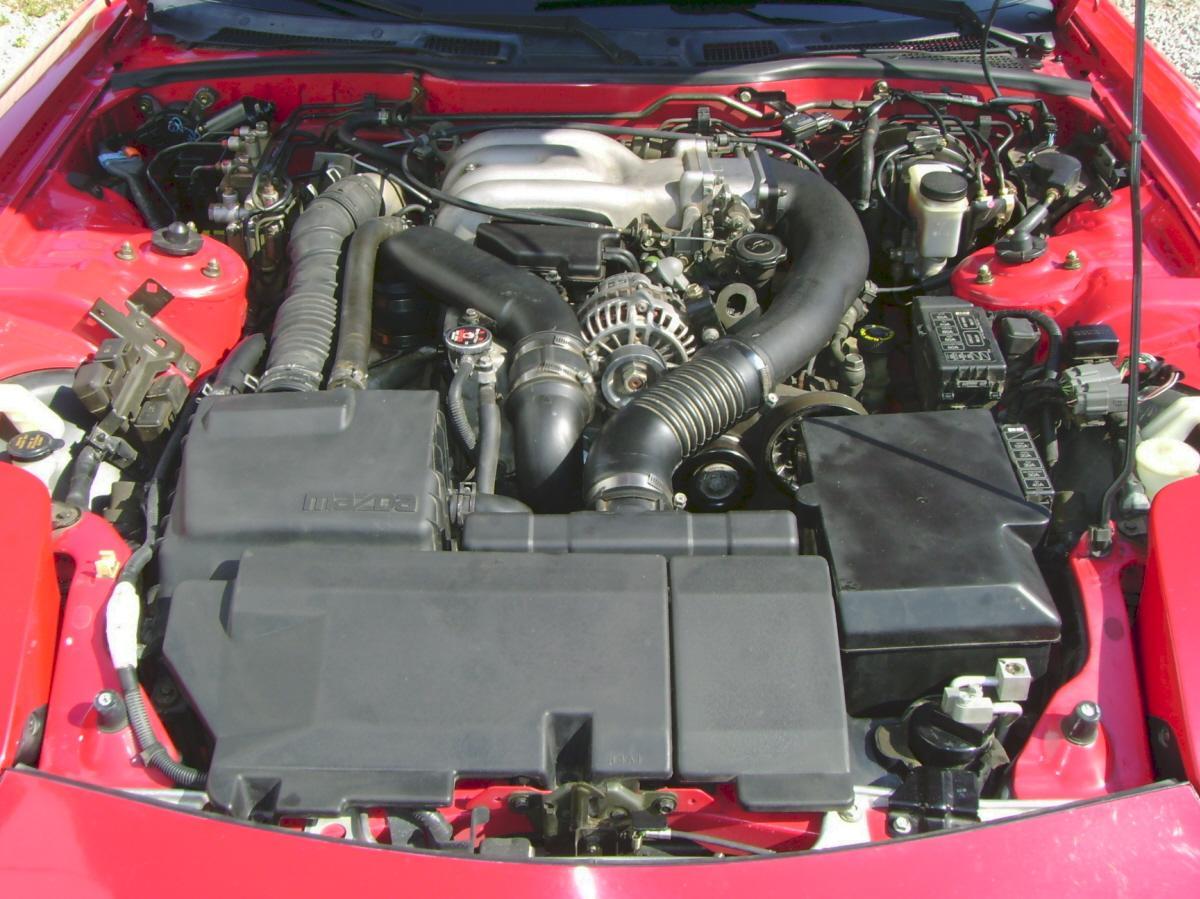

Photographs of the engine bay after modifications & upgrades

Passenger Side View	Front View	Driver Side View

Stage 2: March 2010 we rebuilt Stan's Engine. Check out the links below.

Stage 3: may 2011 Stan returned for some troubleshooting and other upgrades including;

• APEXi Power FC
• NGK Platinum Spark Plugs
• PD Replacement
• Oil Injectors Replacement
• Solenoid Replacement
• Gasket Replacement
• Basic PFC Tuning

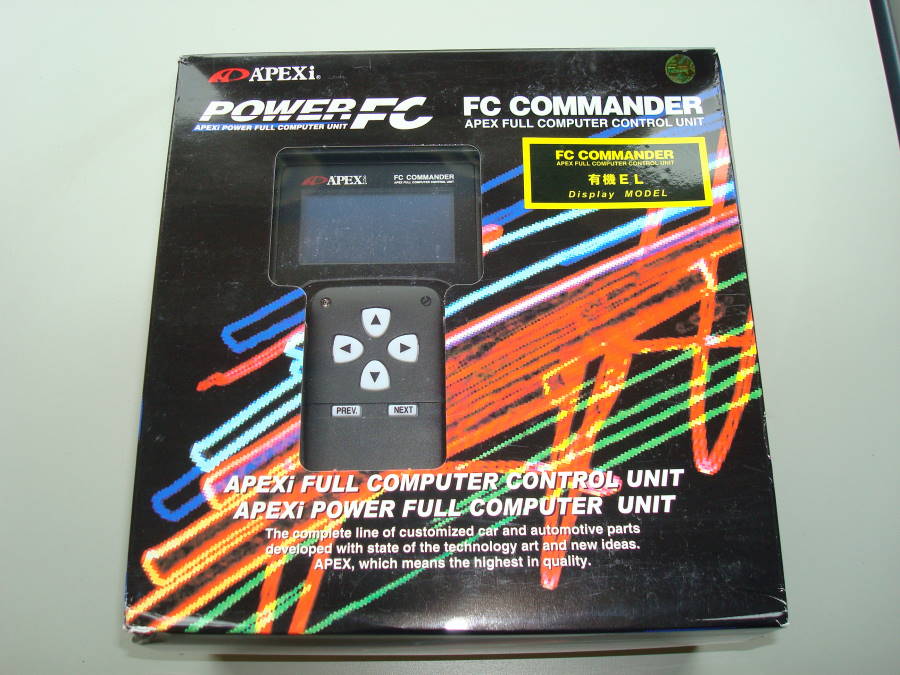

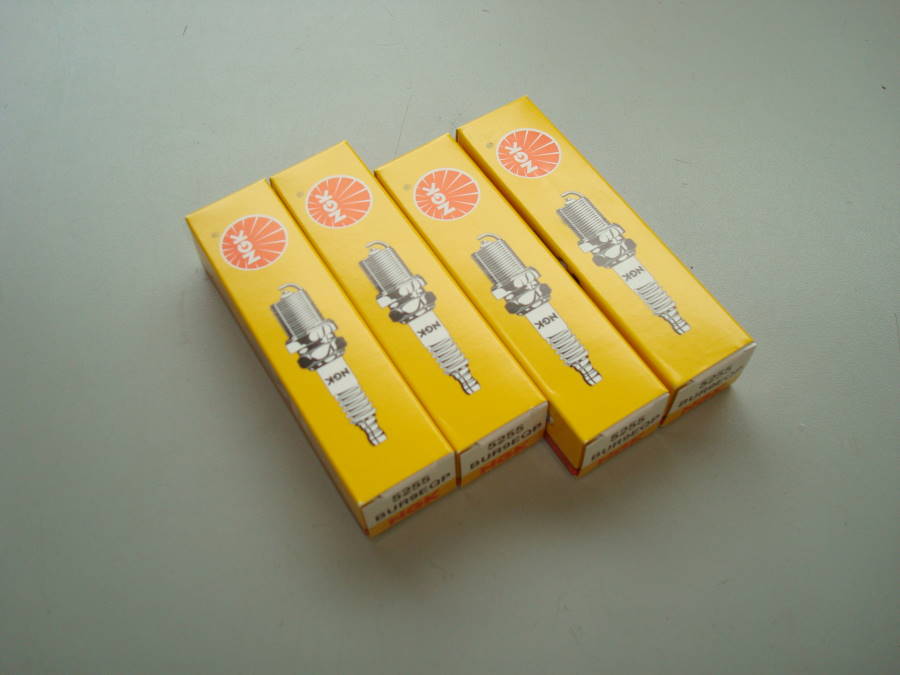

APEXi Power FC	Spark Plugs

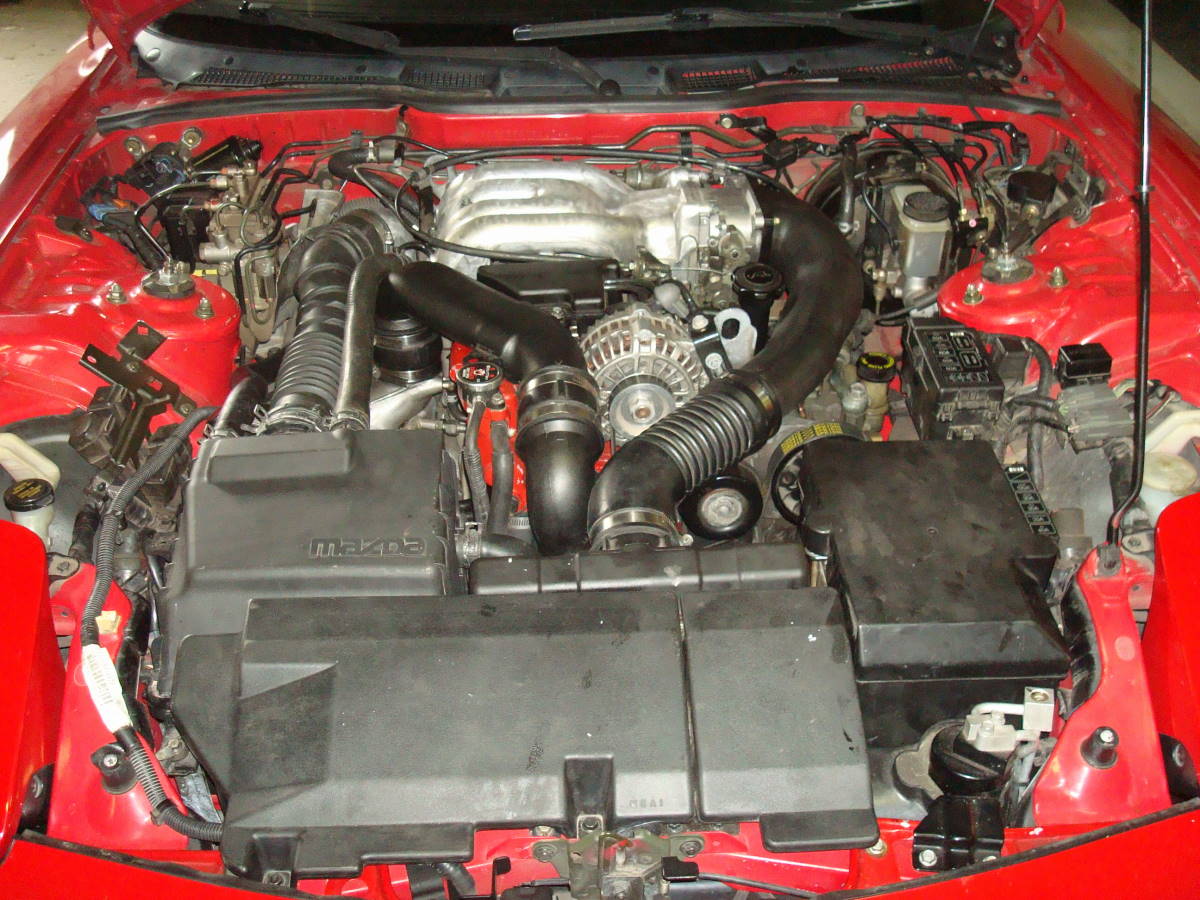

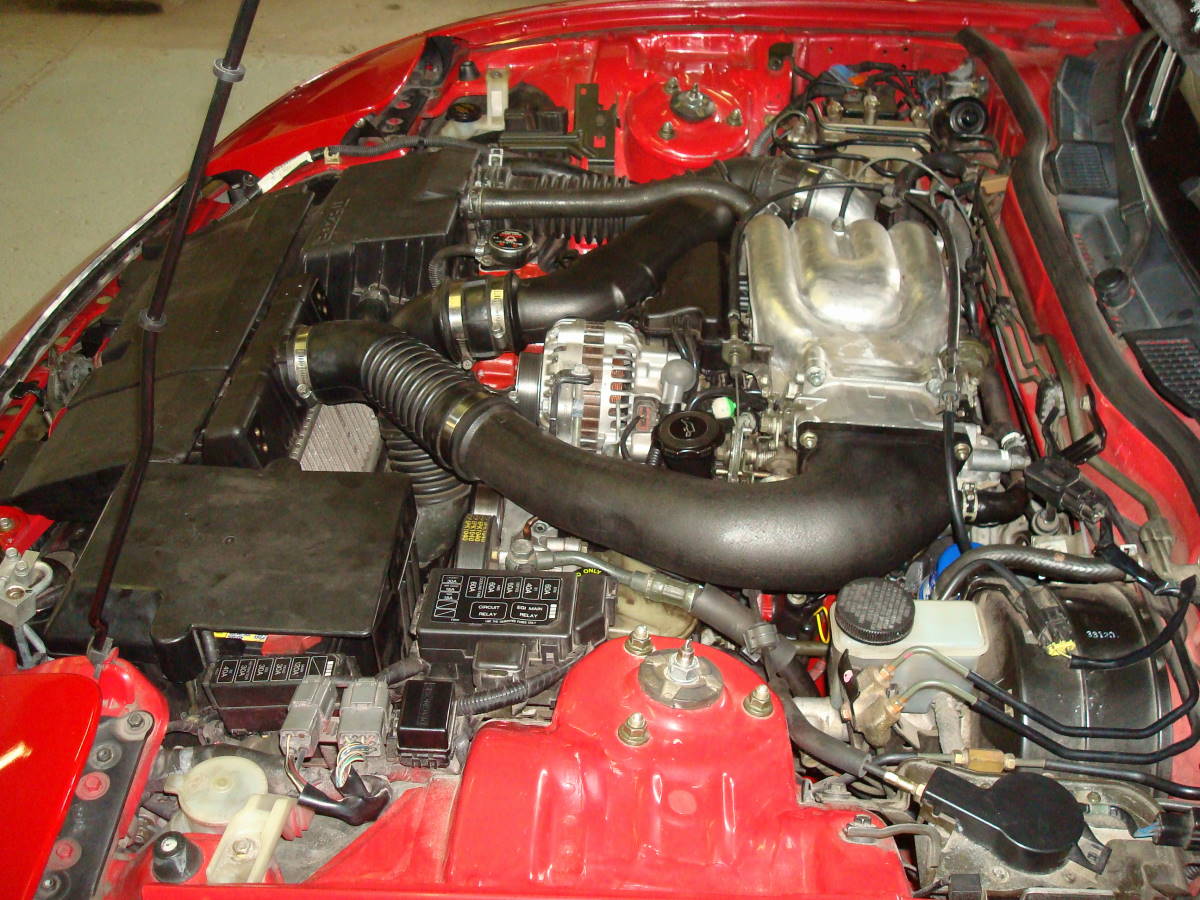

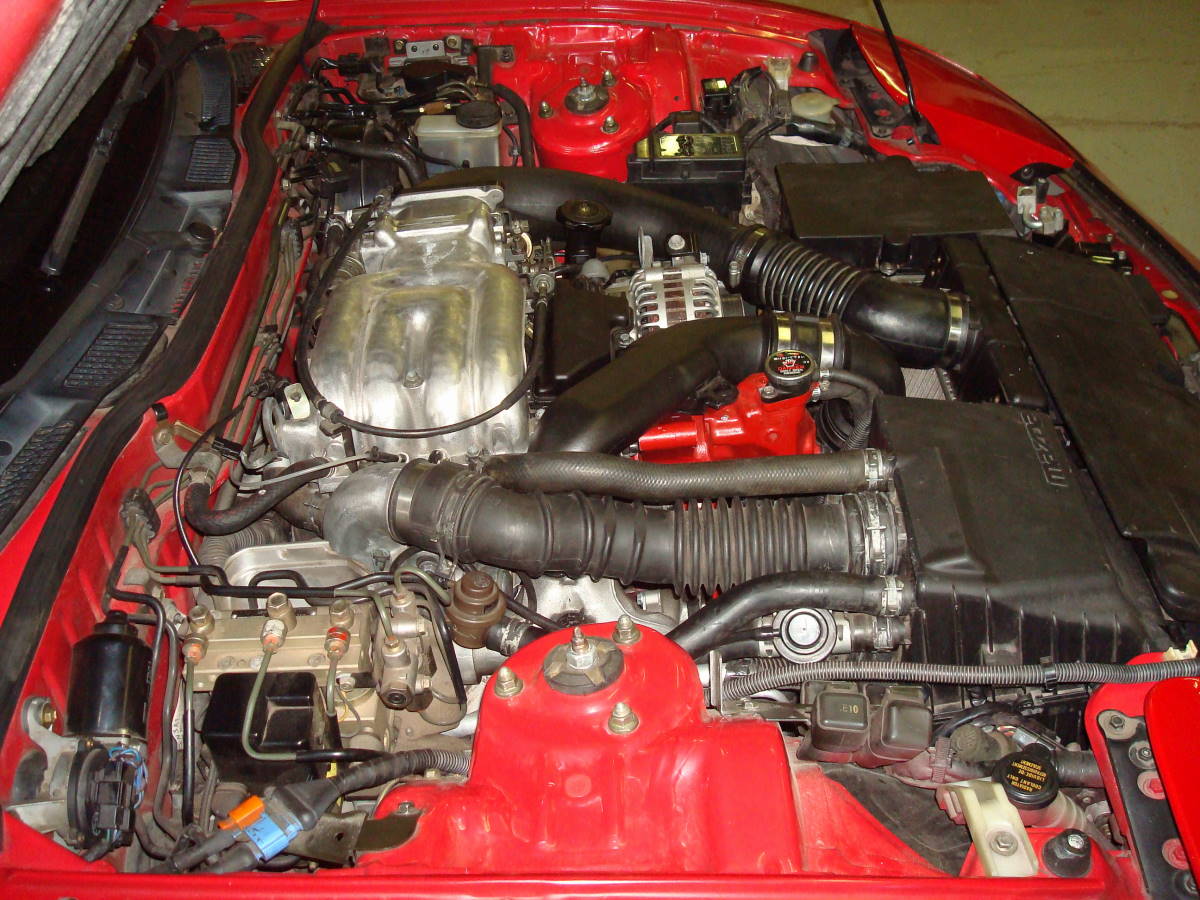

Photographs of the engine bay May 2011

Passenger Side View	Front View	Driver Side View
