Philip's RX-7 13B-REW Engine Installation & Modifications

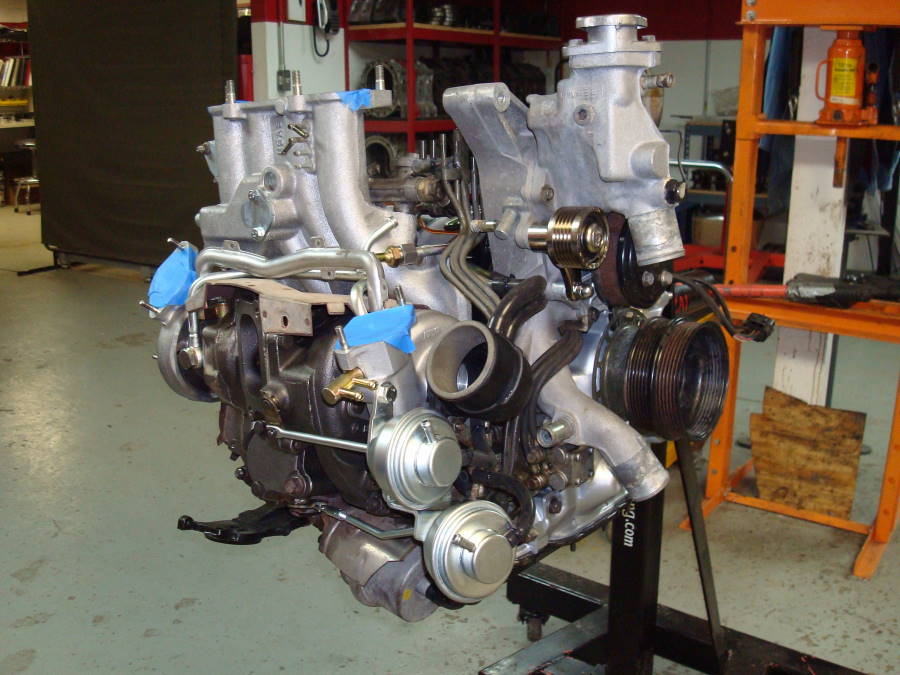

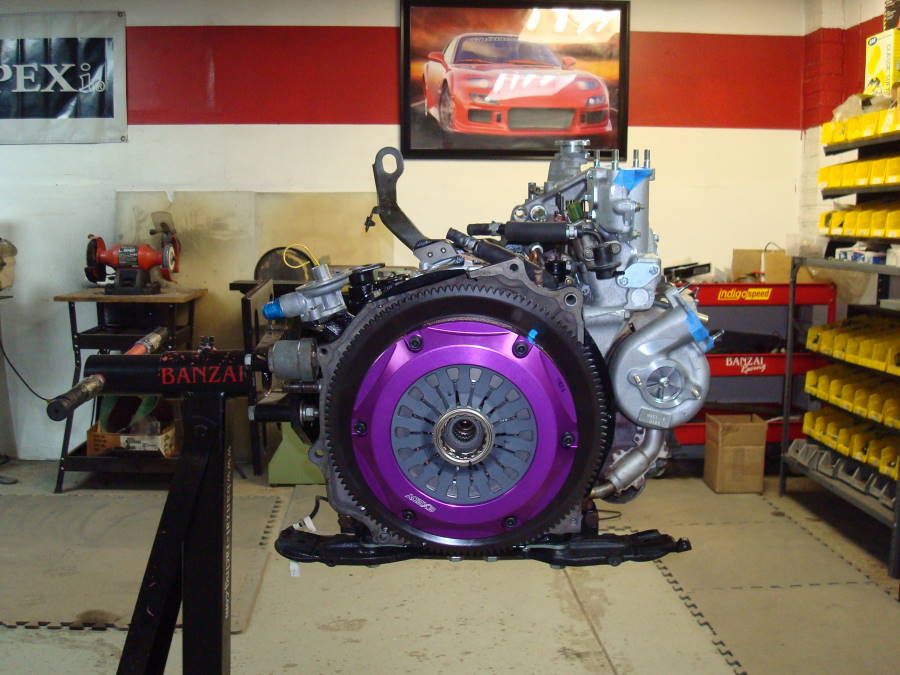

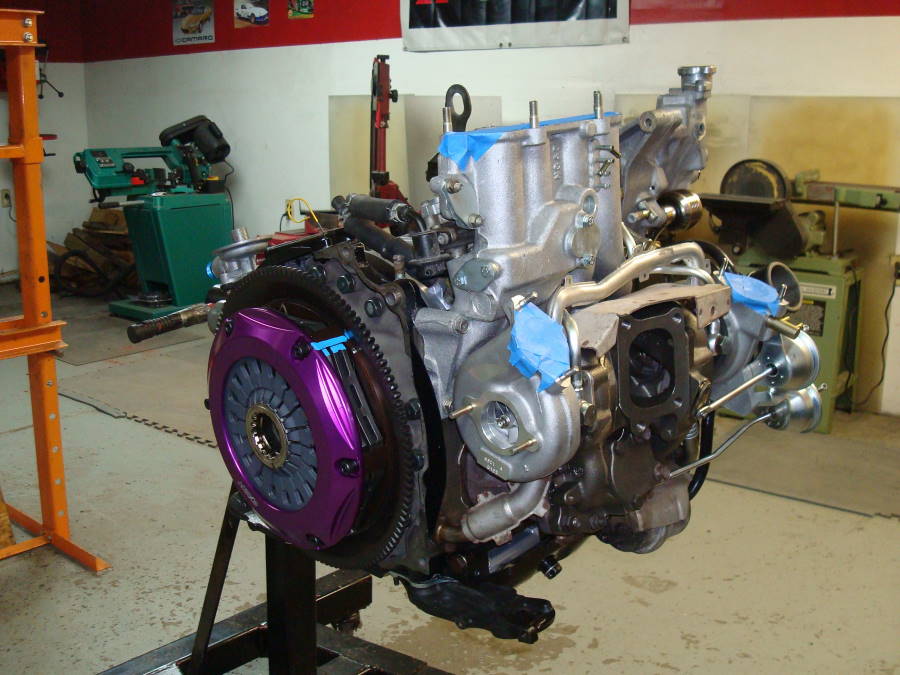

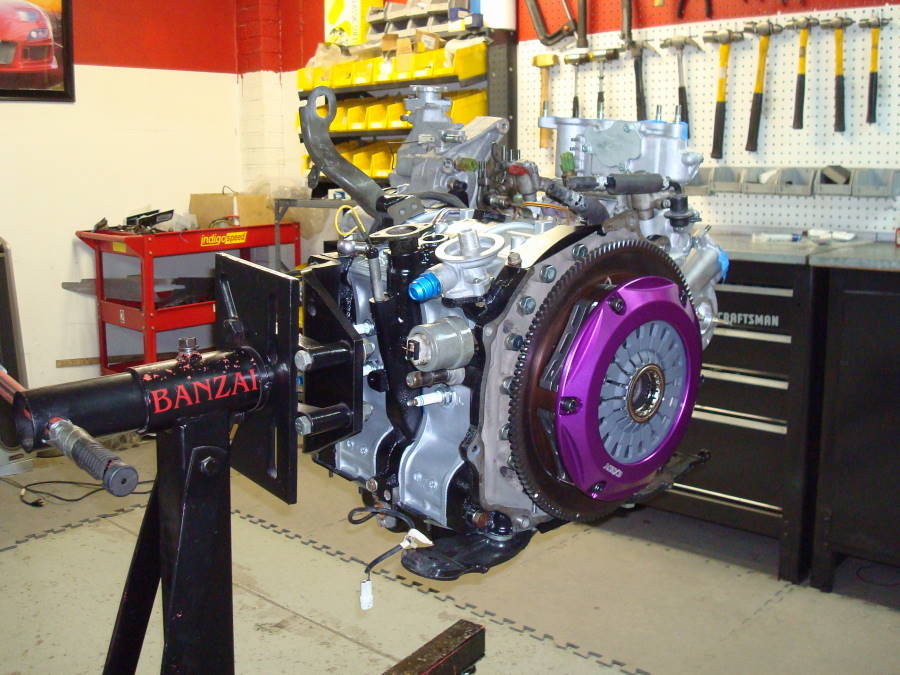

Photographs of Rebuilt Engine taken before & during installation

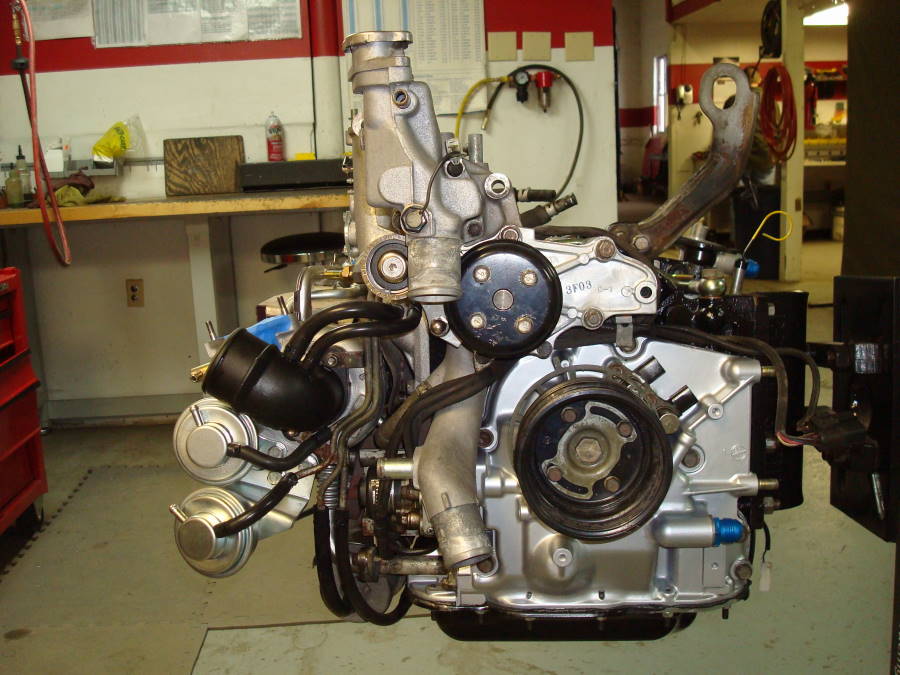

Engine Long Block #1	Engine Long Block #2	Engine Long Block #3	Engine Long Block #4	Engine Long Block #5

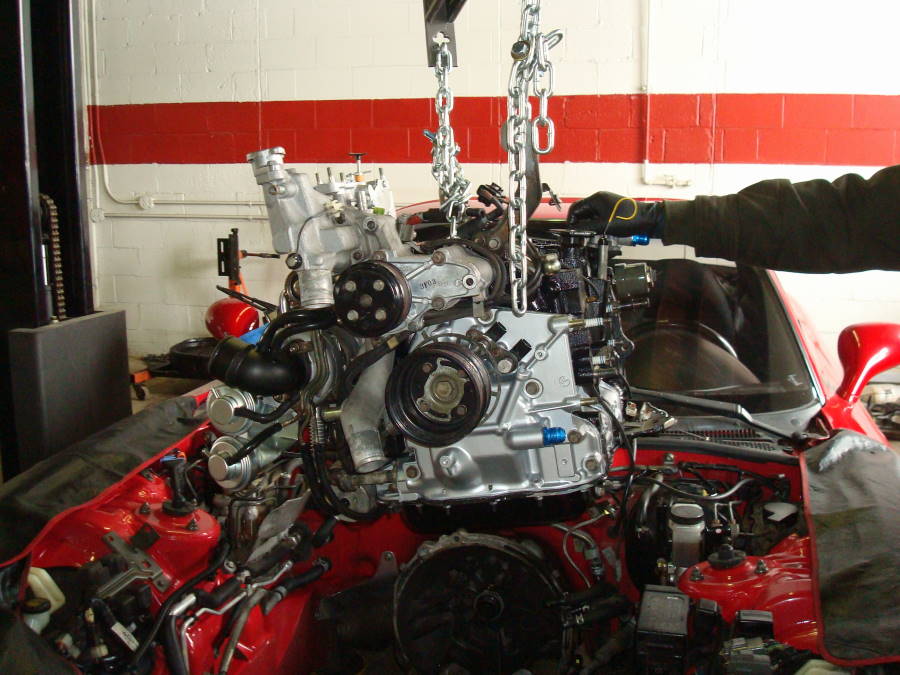

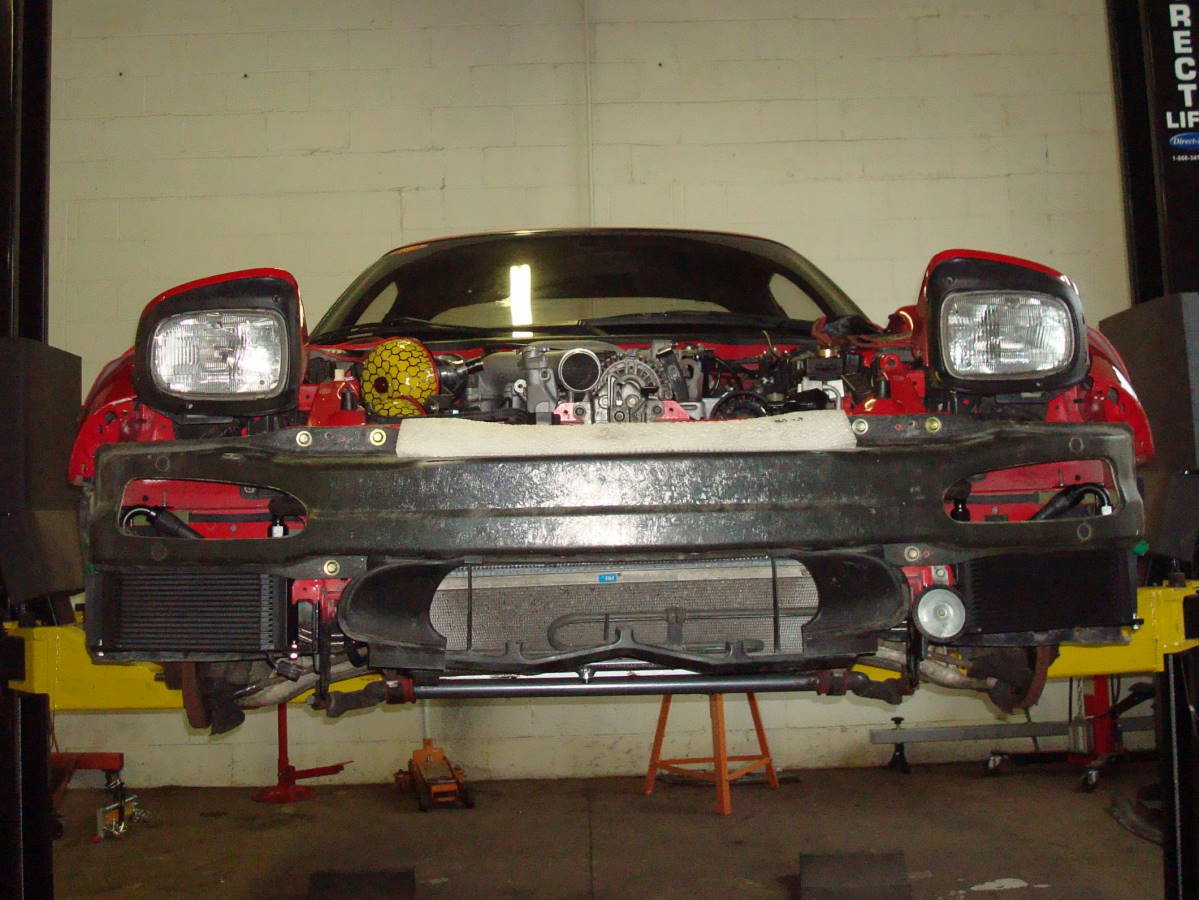

Photographs taken during engine installation

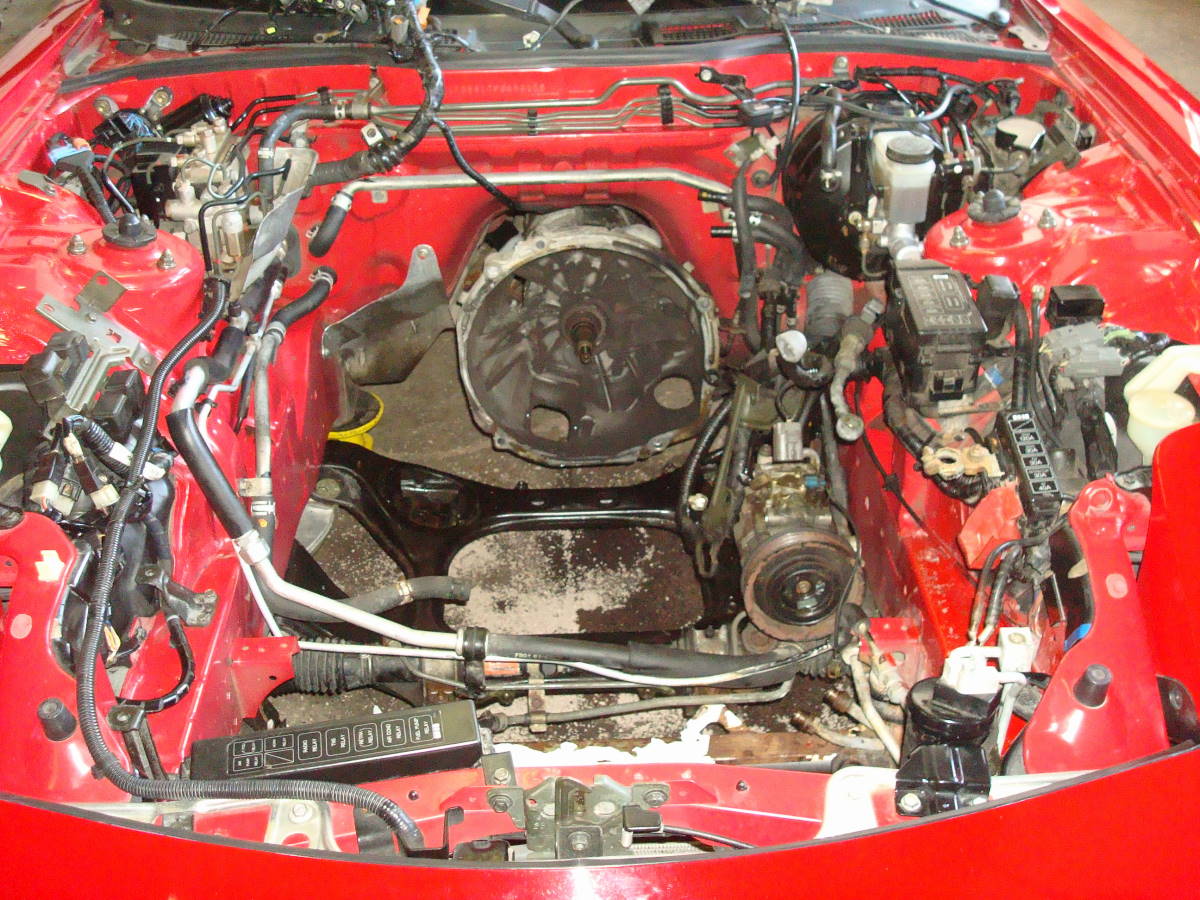

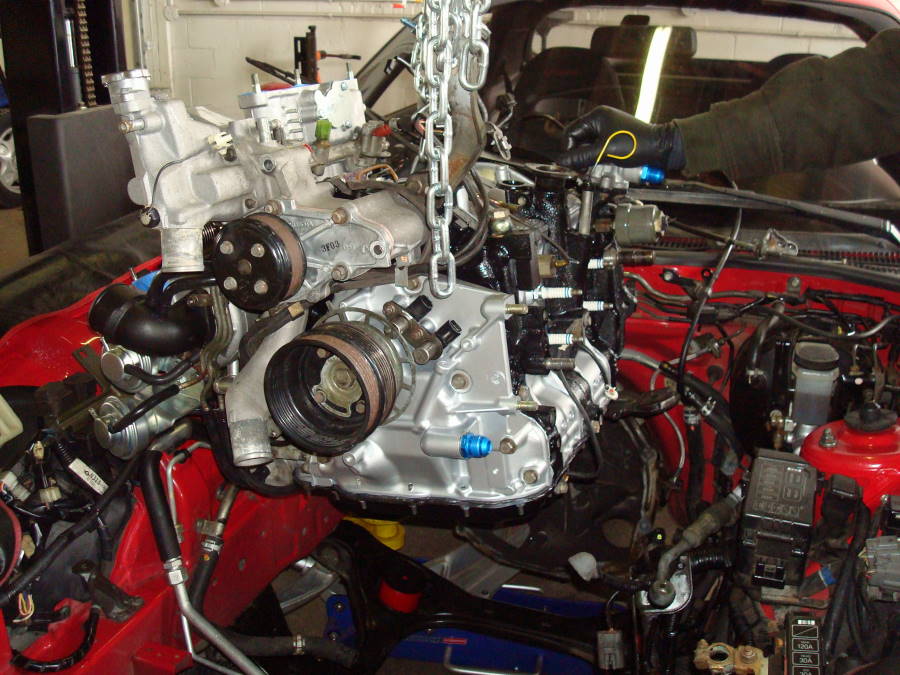

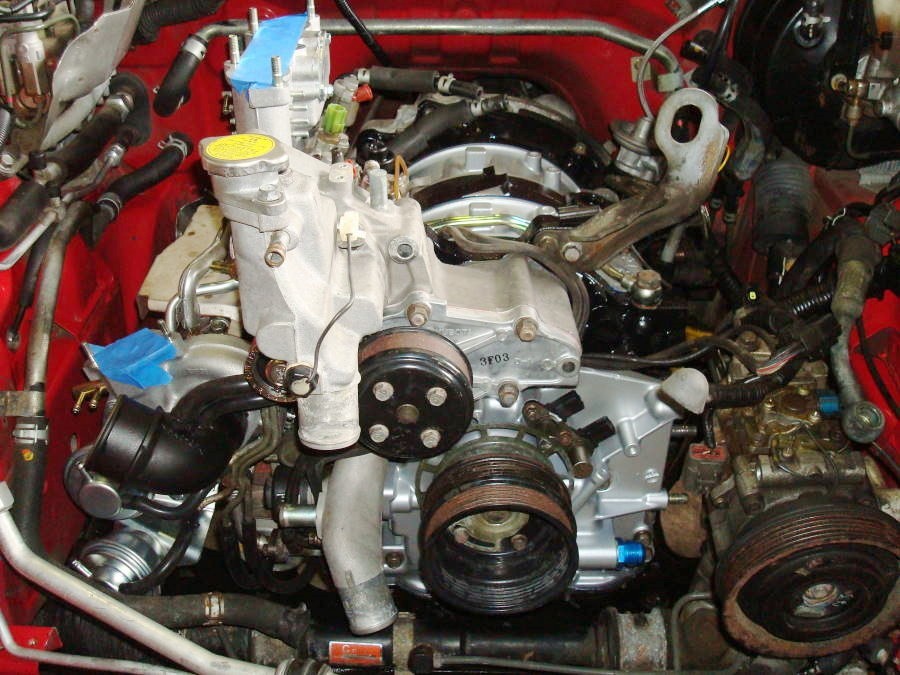

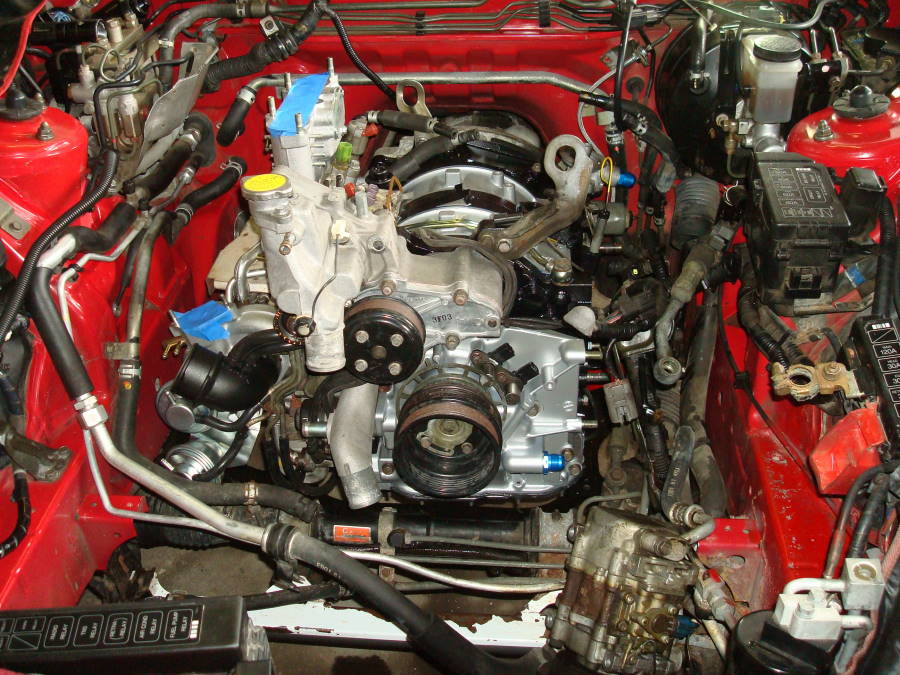

Installation #1	Installation #2	Installation #3	Installation #4	Installation #4

List of upgraded components & modifications;

• Banzai Racing Level 1 Rebuilt Engine
• Banzai Racing FD Oil Pan Brace Kit
• Banzai Racing FD Polyurethane Motor Mounts
• EXEDY Twin Disc Clutch Kit & Counterweight
• SS Clutch Line
• SS Resonated Mid-Pipe
• Wrapped & Downpipe
• Koyo N-Flo Radiator
• Mishimoto Racing Thermostat
• OEM Radiator Hoses
• MazMart Water Pump

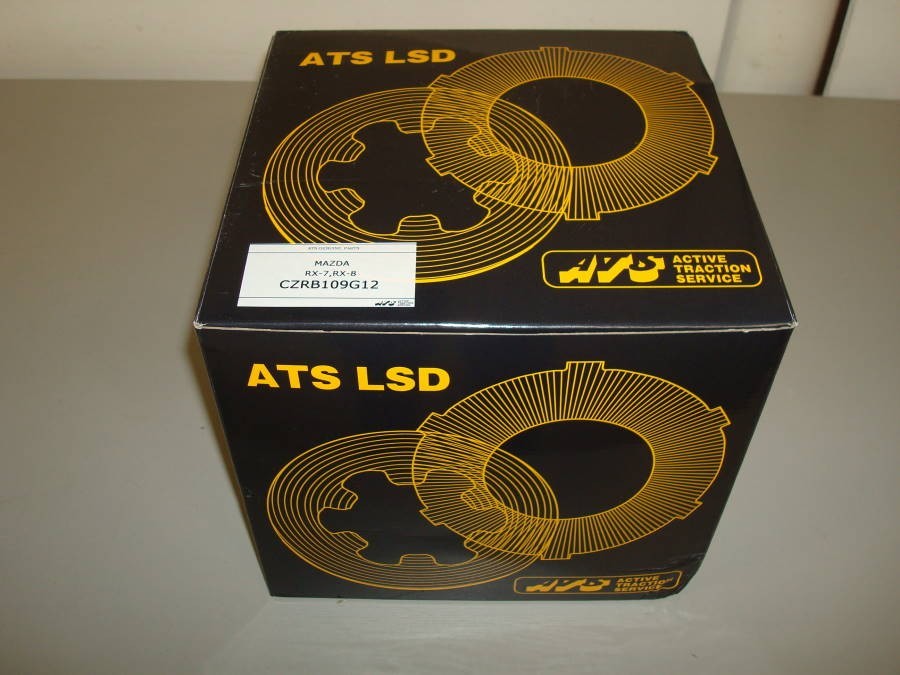

• ATS Carbon LSD
• Powerflex Differential Bushings
• OEM Differential Bearings & Seals
• Royal Purple Max-Gear Oil
• PR Idler Pulley Kit w/ 42" Belt
• Walbro 255 Fuel Pump
• 1300cc Secondary Injector Modification
• OEM Pulsation Damper

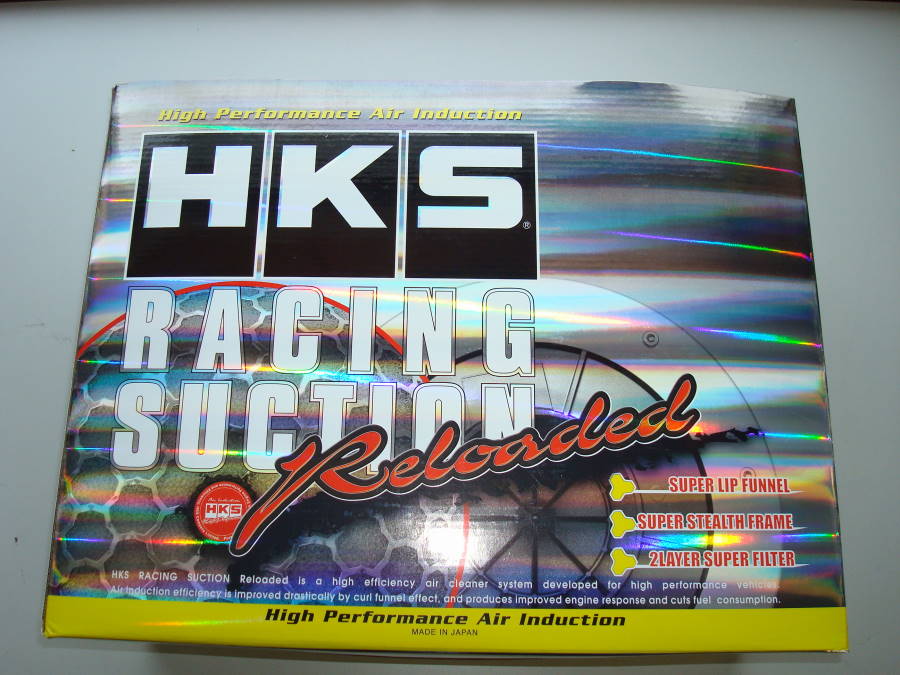

• HKS Suction Reloaded Intake Kit

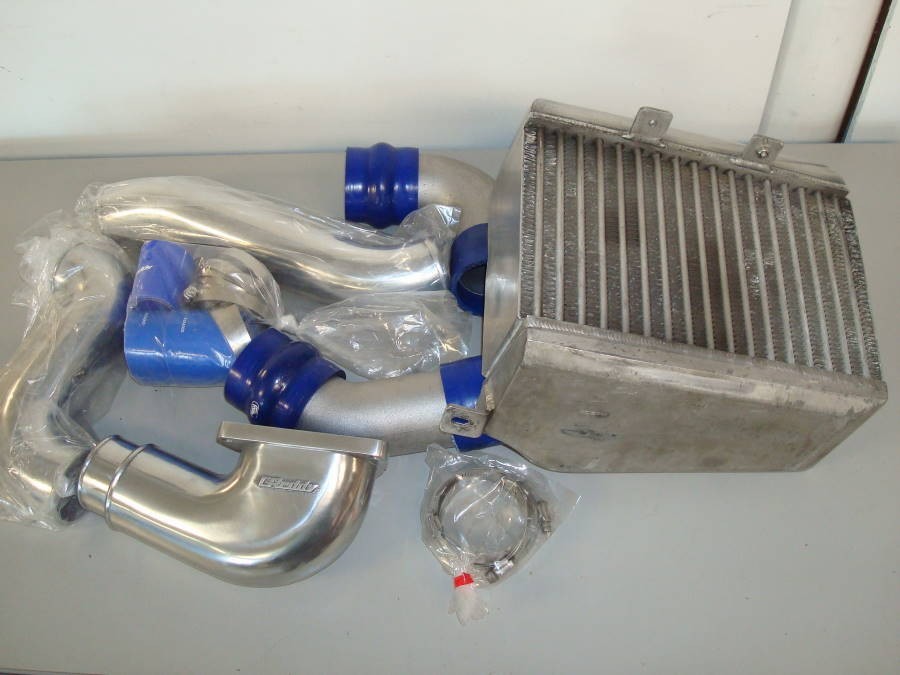

• Re Amemiya I/C Kit
• Efini Y-Pipe Kit
• OEM '95 Turbos
• HKS Twin Power & Installation Harness
• Magnecor 10mm Plug Wires
• NGK Platinum Spark Plugs
• AEM V2 Water / Methanol Injection Kit, Filter & Failsafe
• Glowshift Oil Filter Sandwich Adapter
• Mishimoto 19-Row Dual Oil Cooler System Upgrade
• APEXi Power FC & Commander
• Banzai Racing FD Commander Holder
• Defi Link Advance CR Gauges & Control Unit ; Oil Pressure & Temperature and Fuel Pressure.
• ProSport Triple Gauge Pod
• Banzai Racing 3-Bar Map Sensor & Adapter Kit w/ Bracket
• OEM Brake Booster Hose Recall Kit

Upgrades & Modifications Photographs

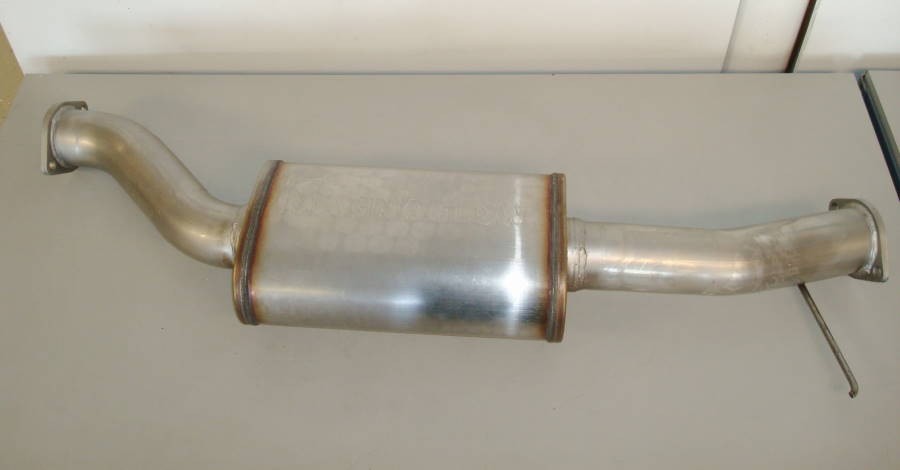

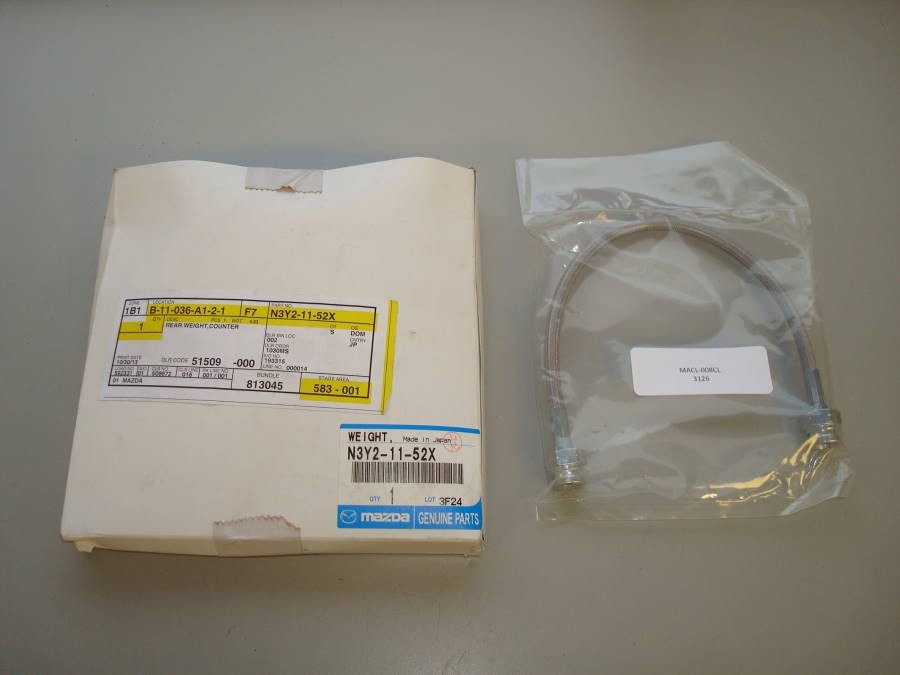

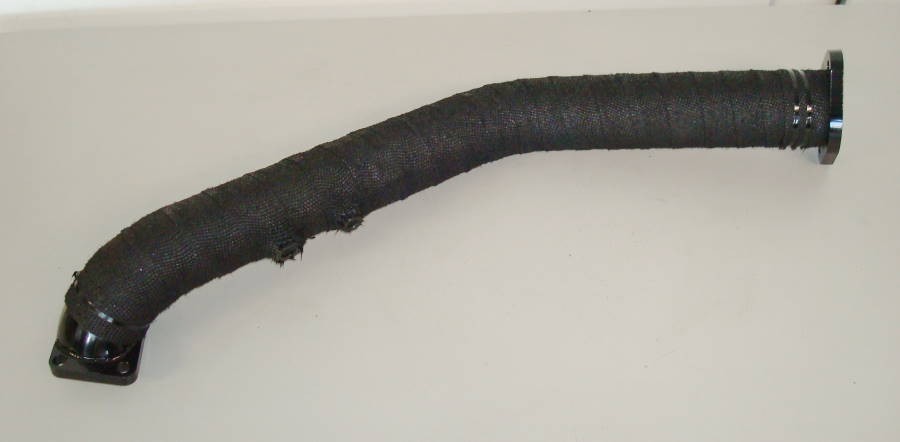

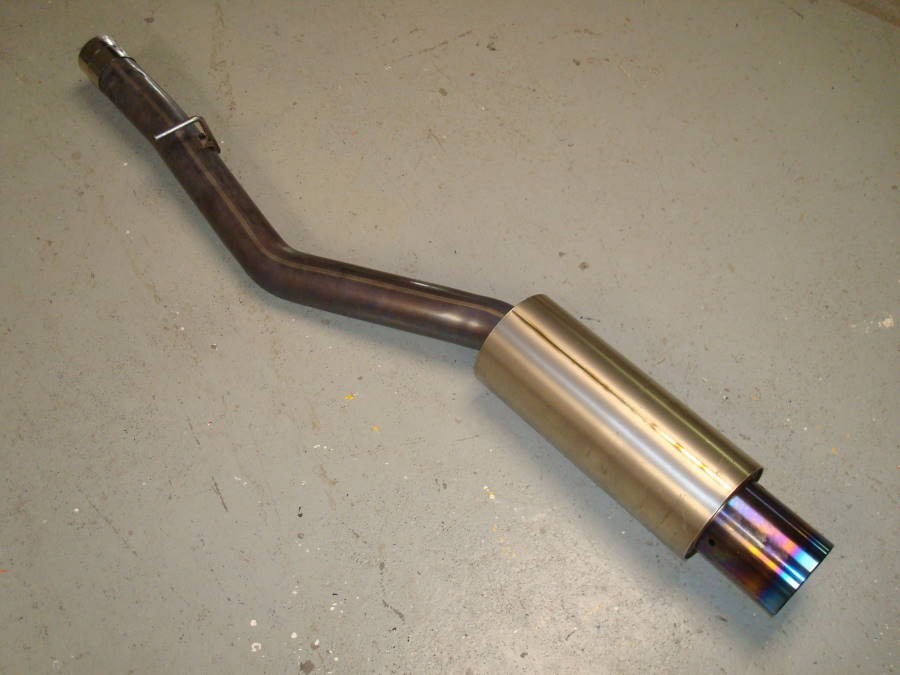

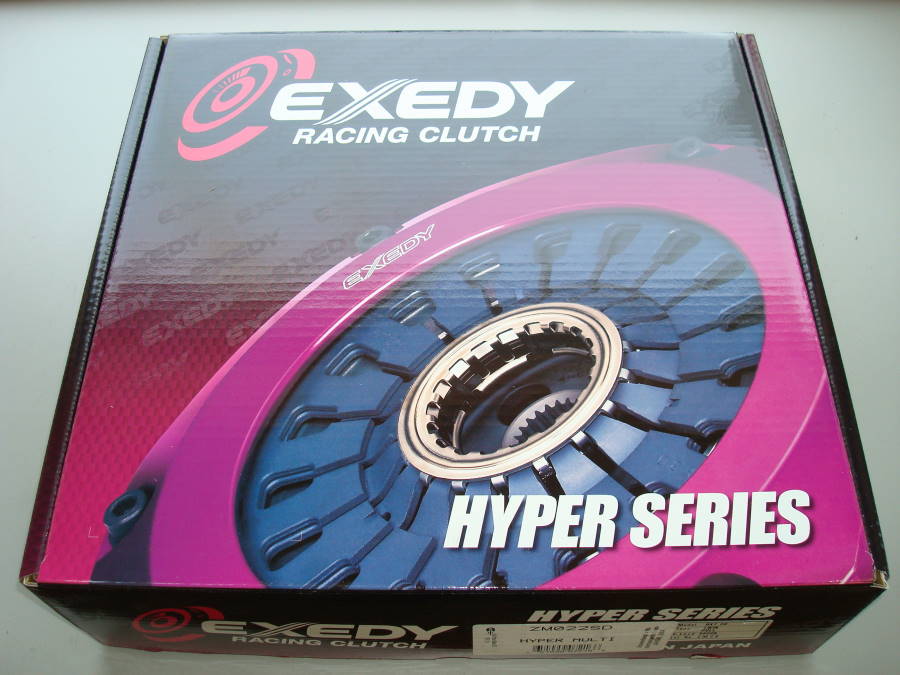

Clutch Kit	CW & SS Line	Midpipe	Wrapped Downpipe	Exhaust

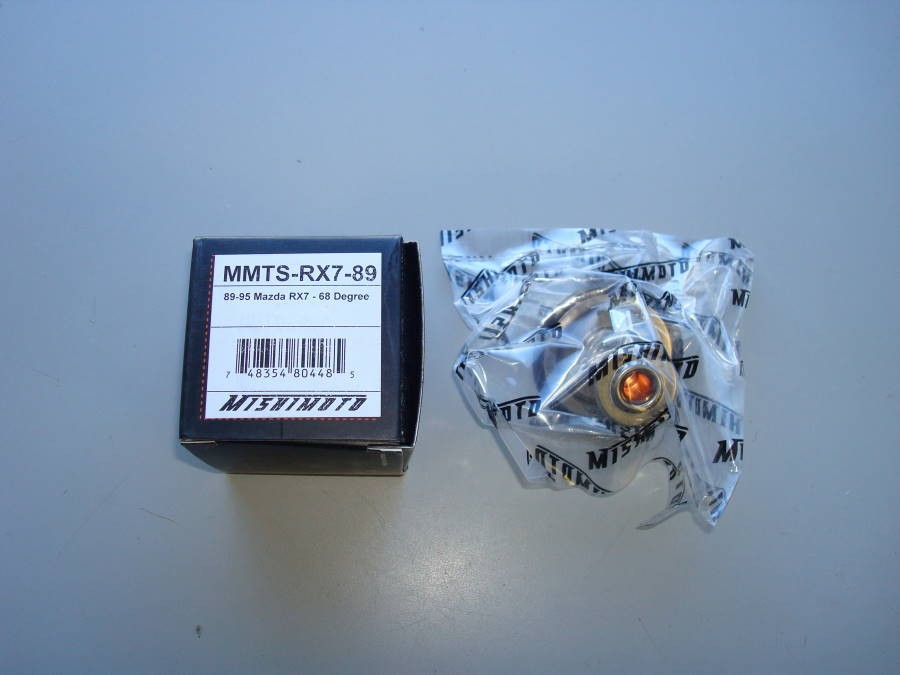

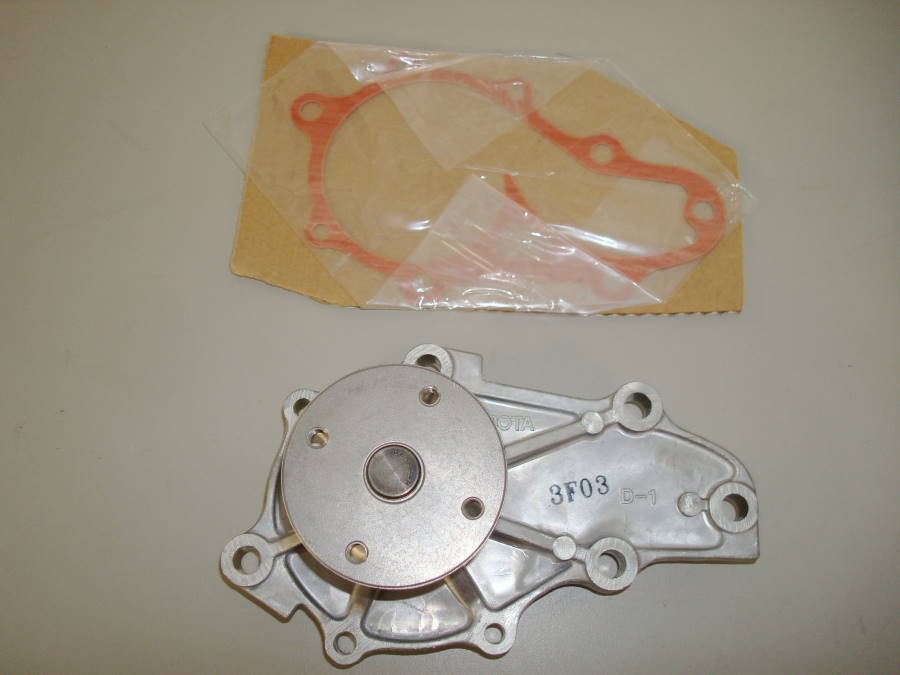

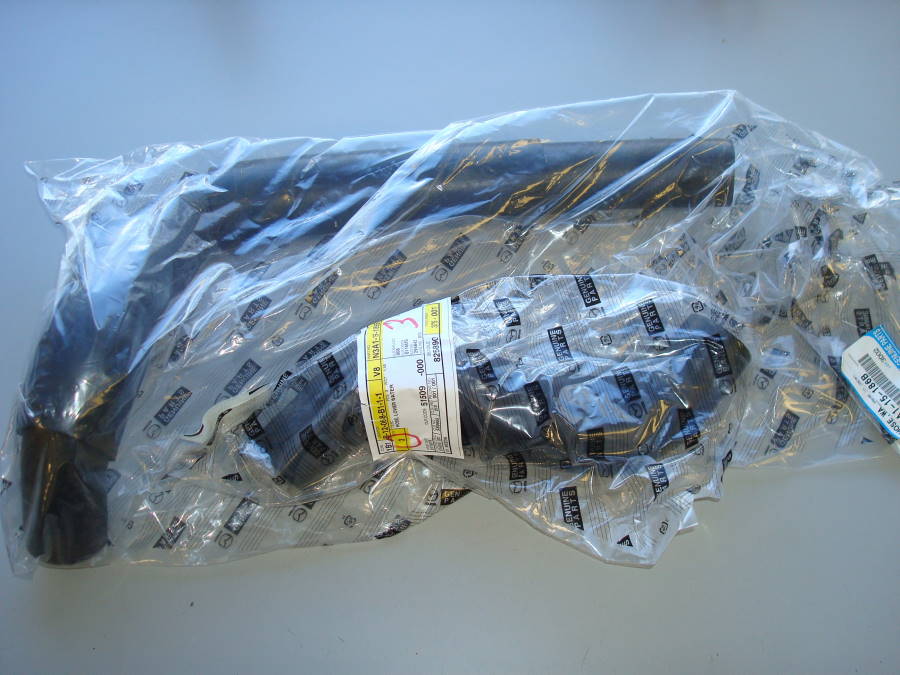

Radiator	Thermostat	OEM Hoses	Water Pump	LSD

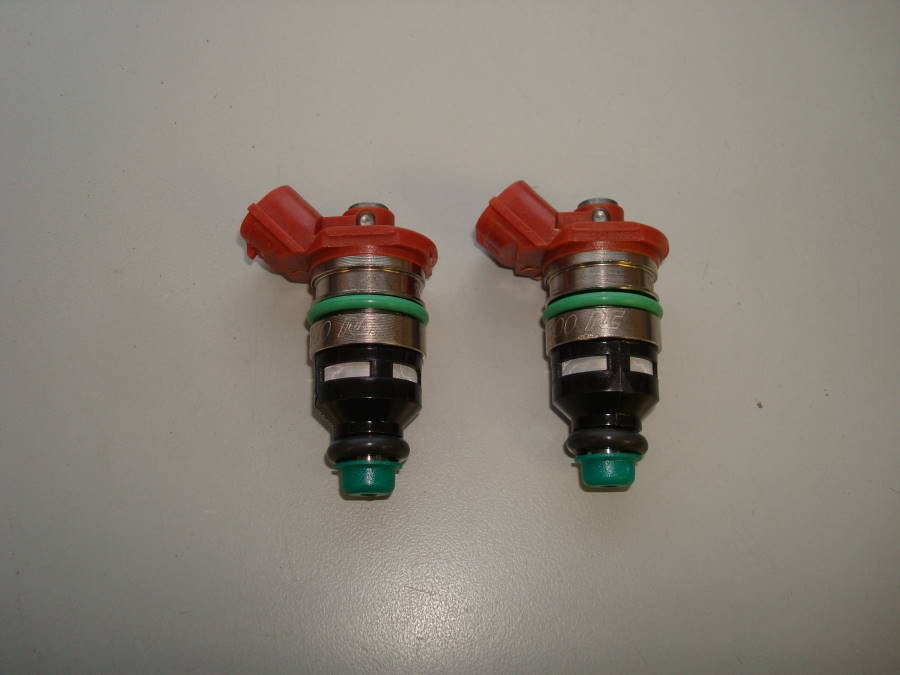

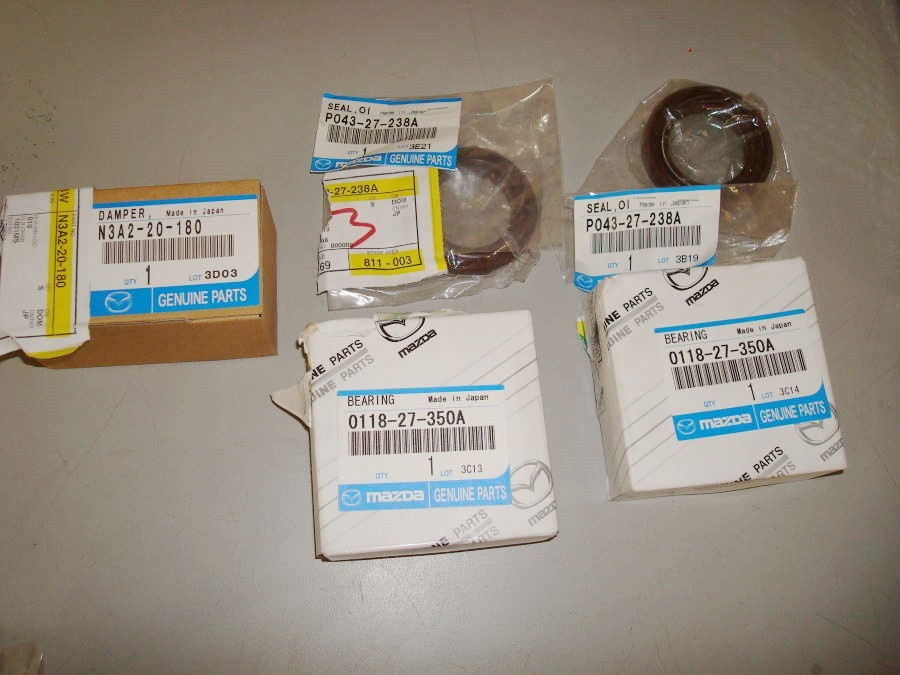

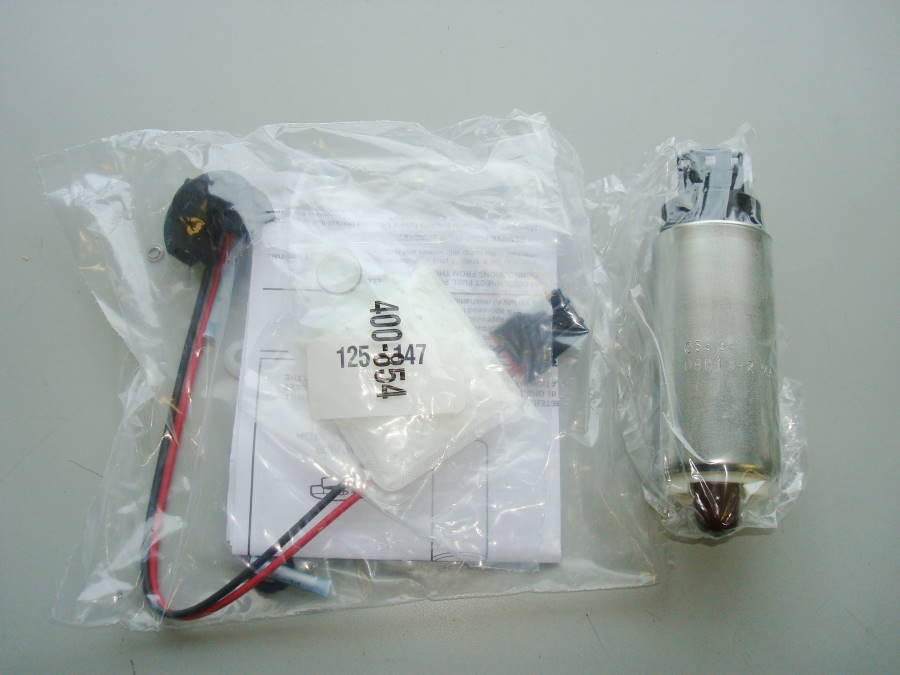

Diff Bushings	OEM PD, Bearings & Seals	Idler Pulley Kit	Fuel Pump	1300cc Injectors

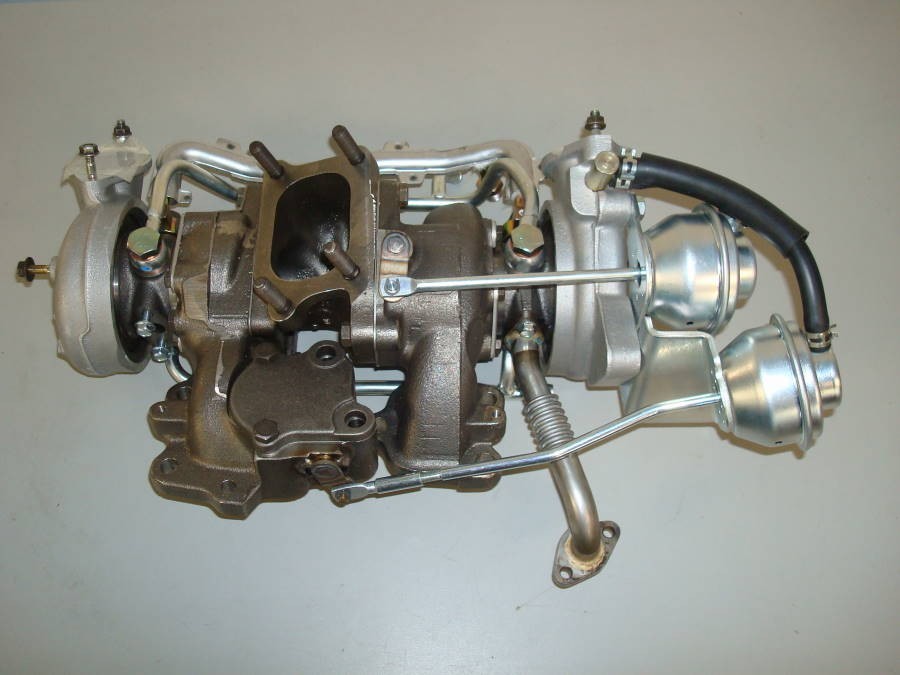

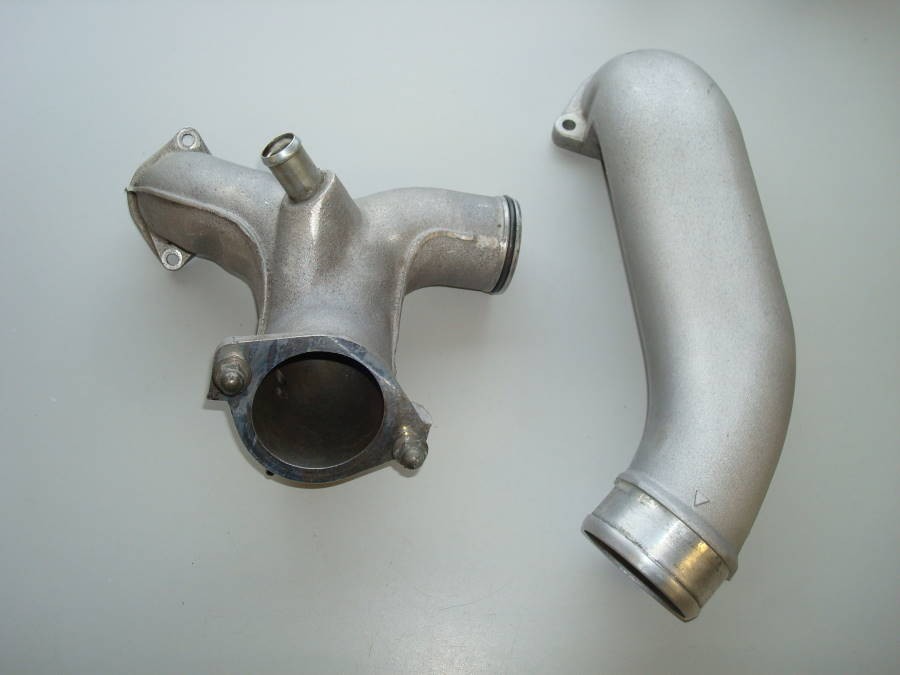

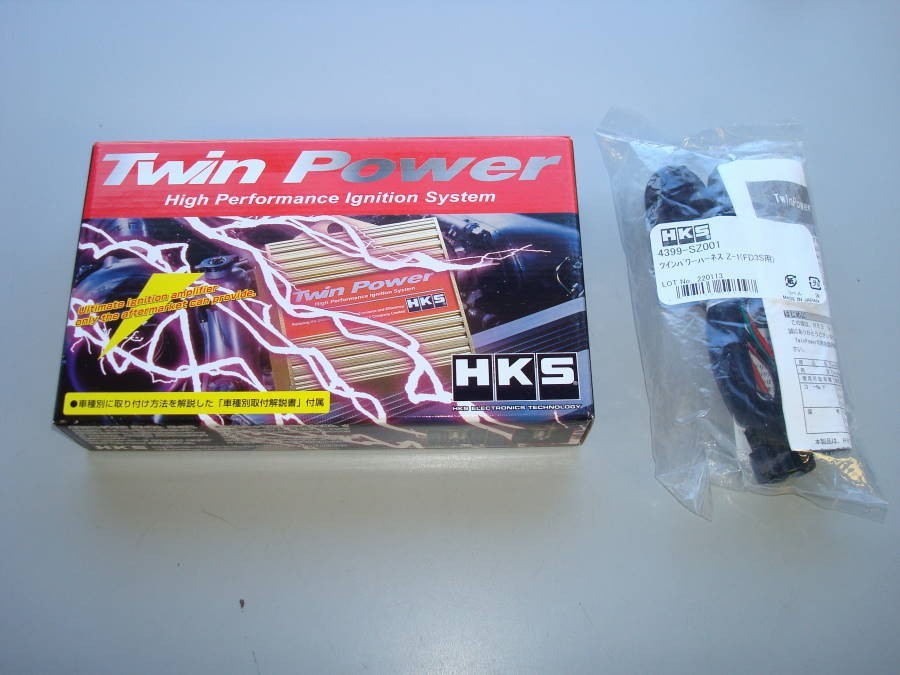

Intake	I/C Kit	Efini Y-Pipe	Turbos	Twin Power

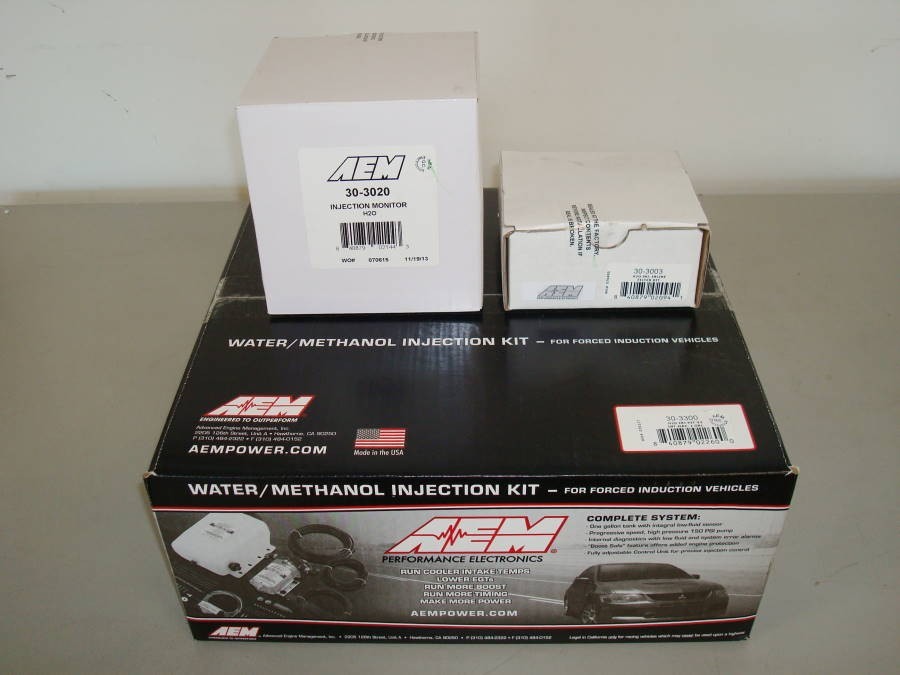

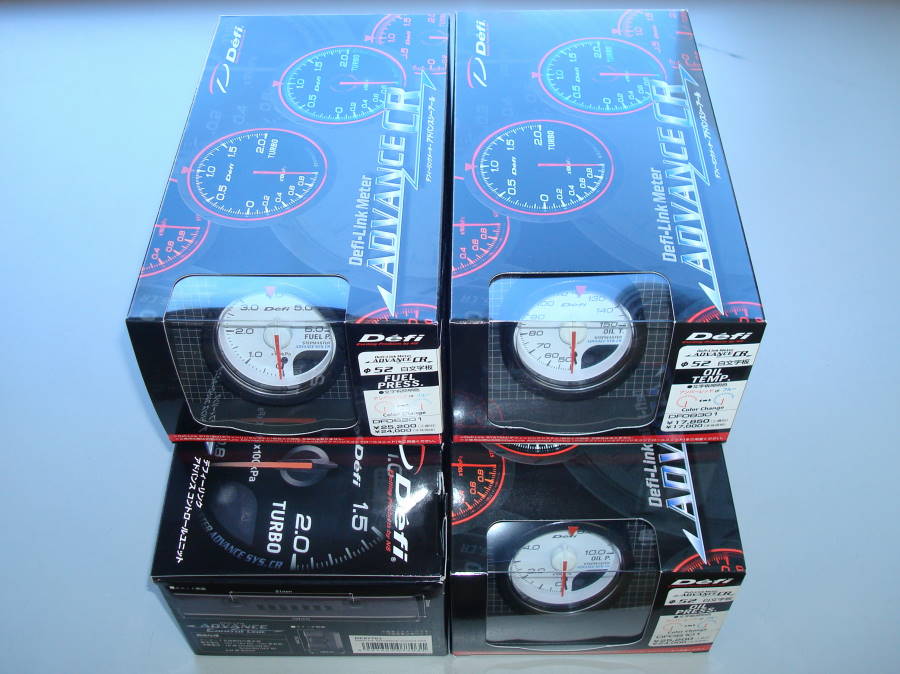

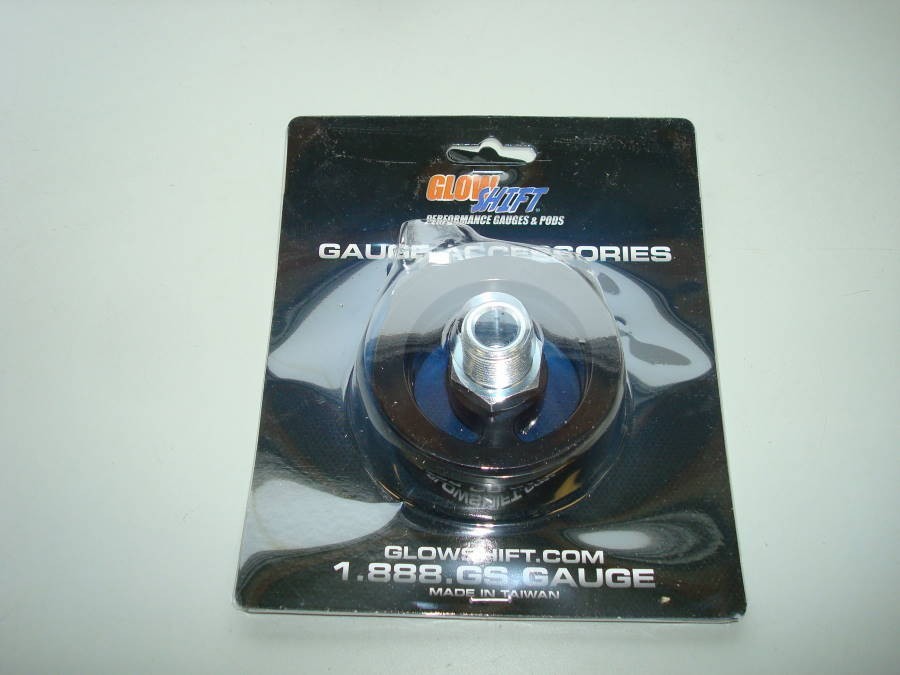

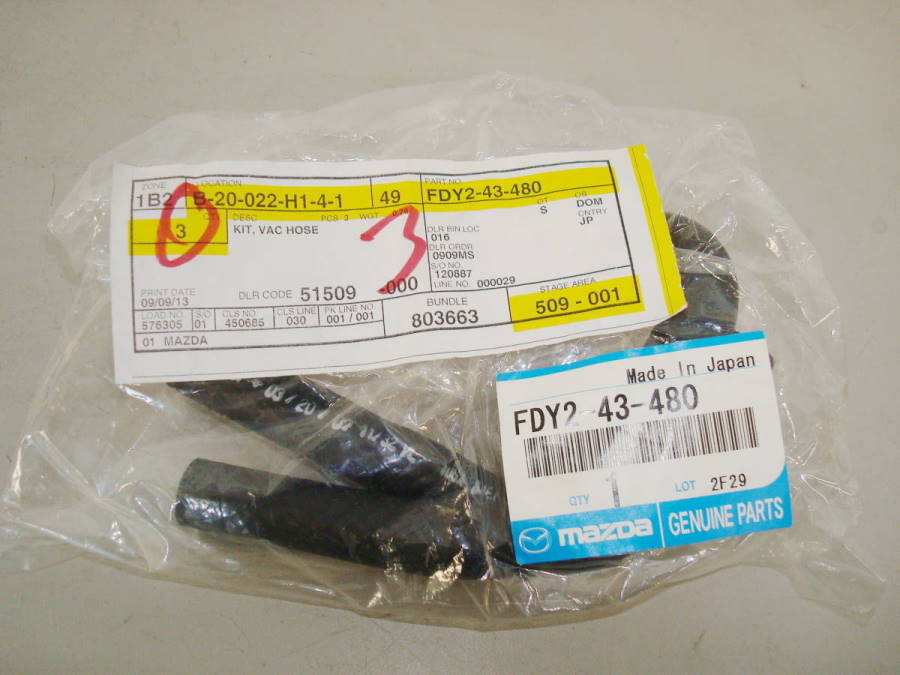

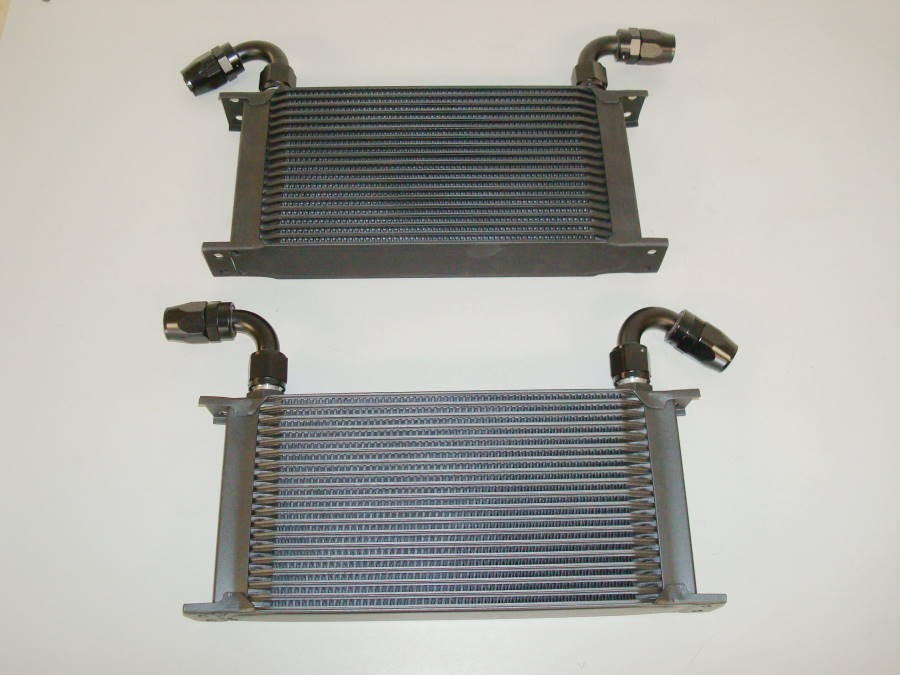

A/I System Parts	Oil Filter Adapter	Oil Coolers & Fittings	OEM BBH Recall Kit	Gauges & Control Unit

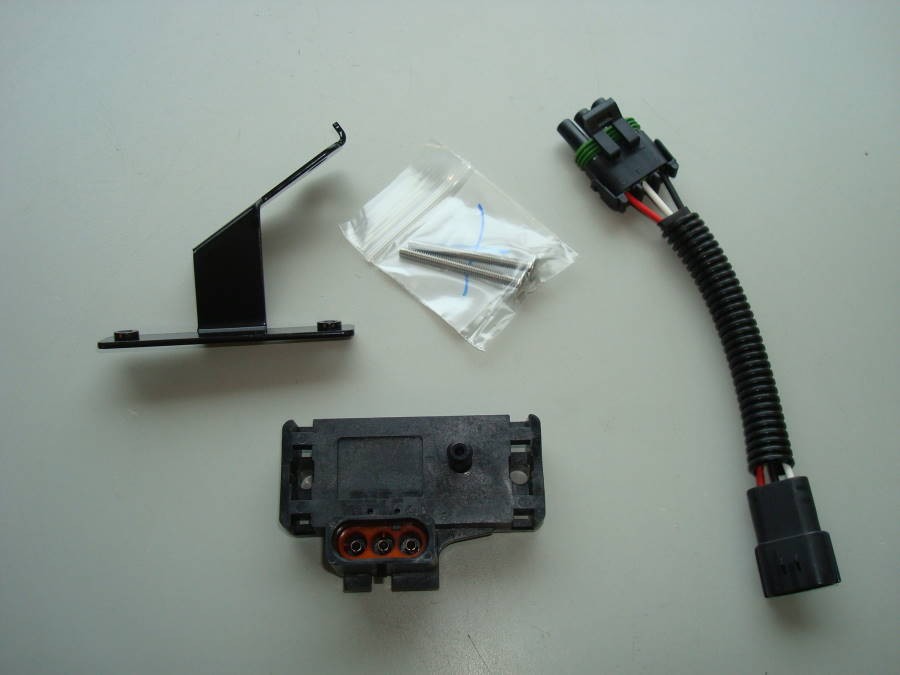

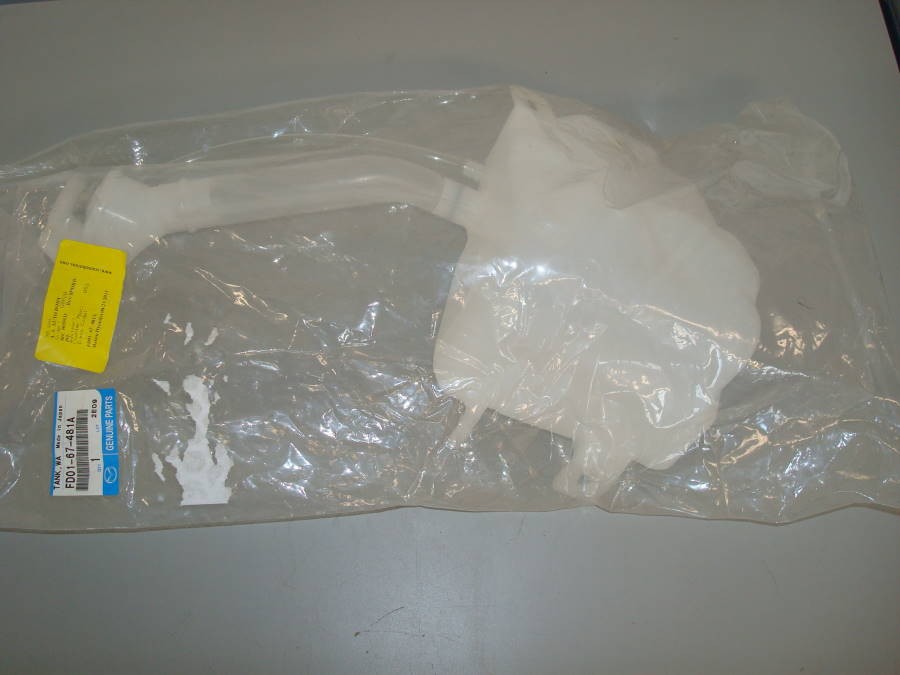

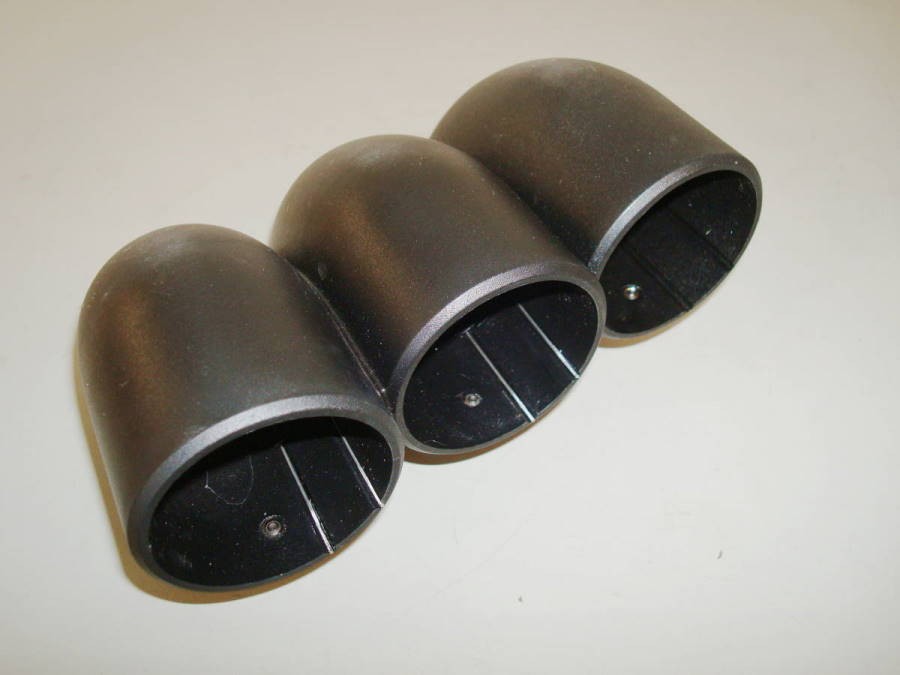

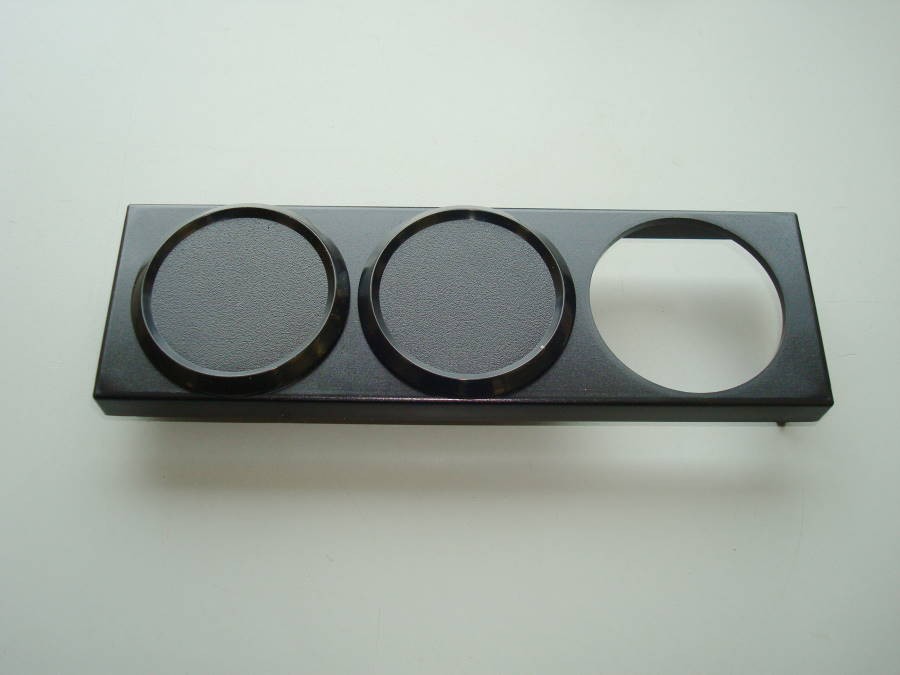

Gauge Pod	Din Panel	3-Bar Map Sensor Kit	OEM BBH Recall Kit	Reservoir

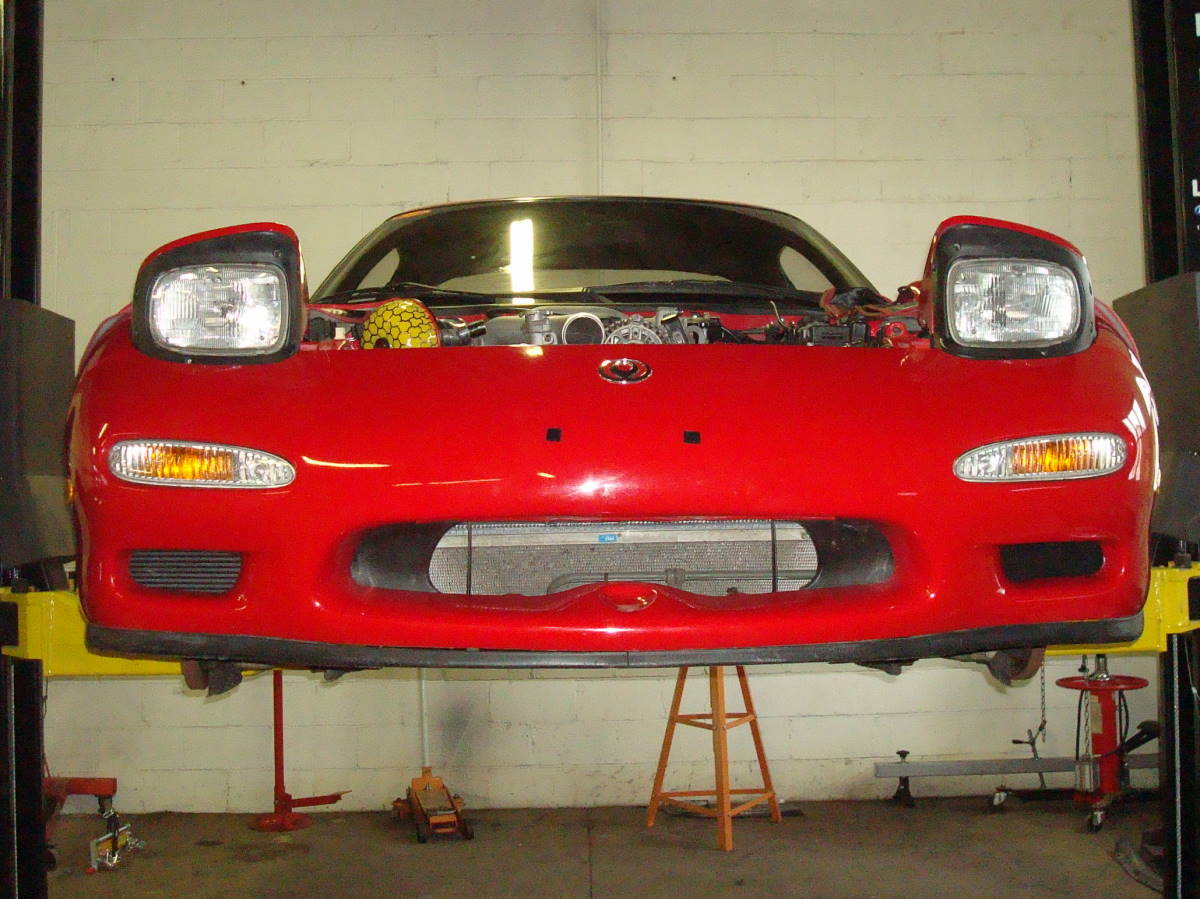

Photographs of upgraded parts installed

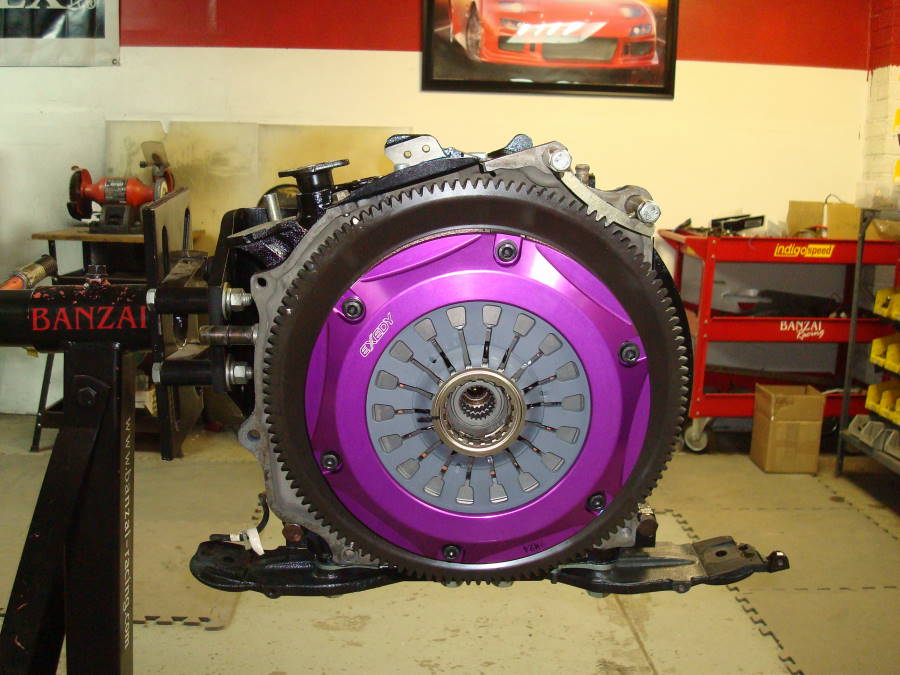

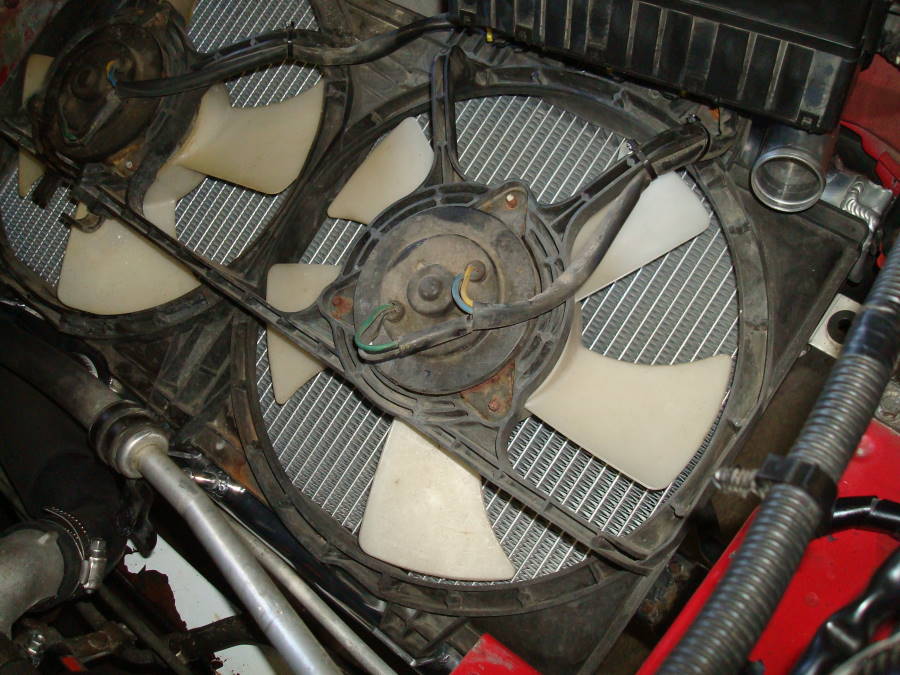

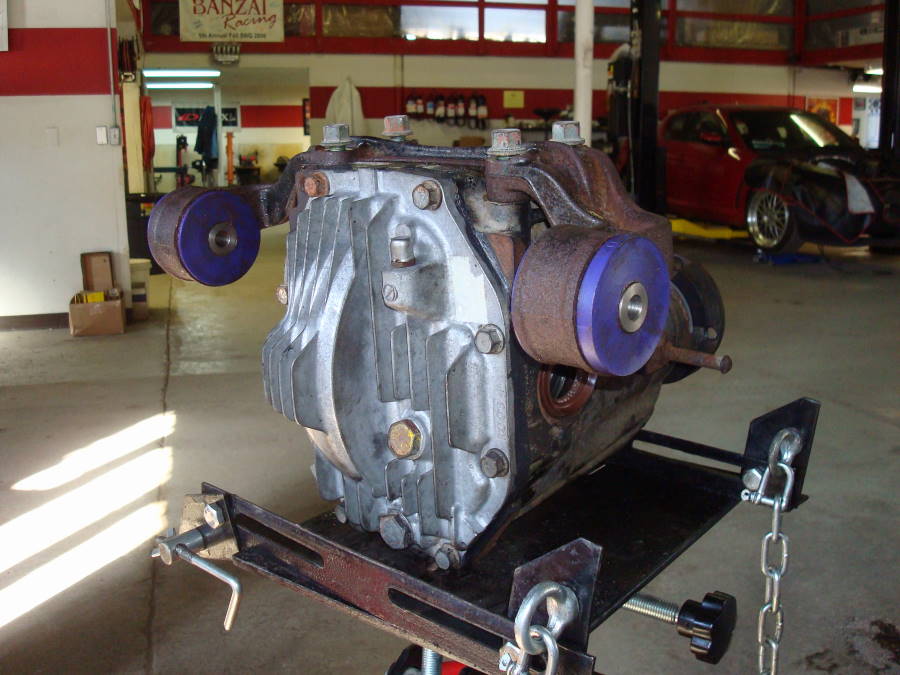

Clutch	Differential	Radiator	Downpipe & Midpipe

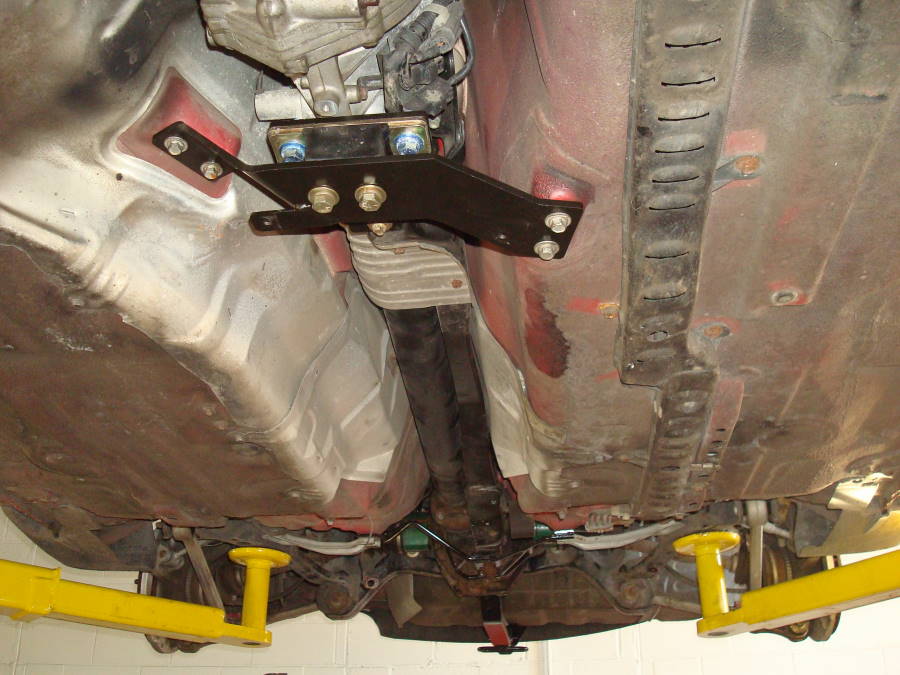

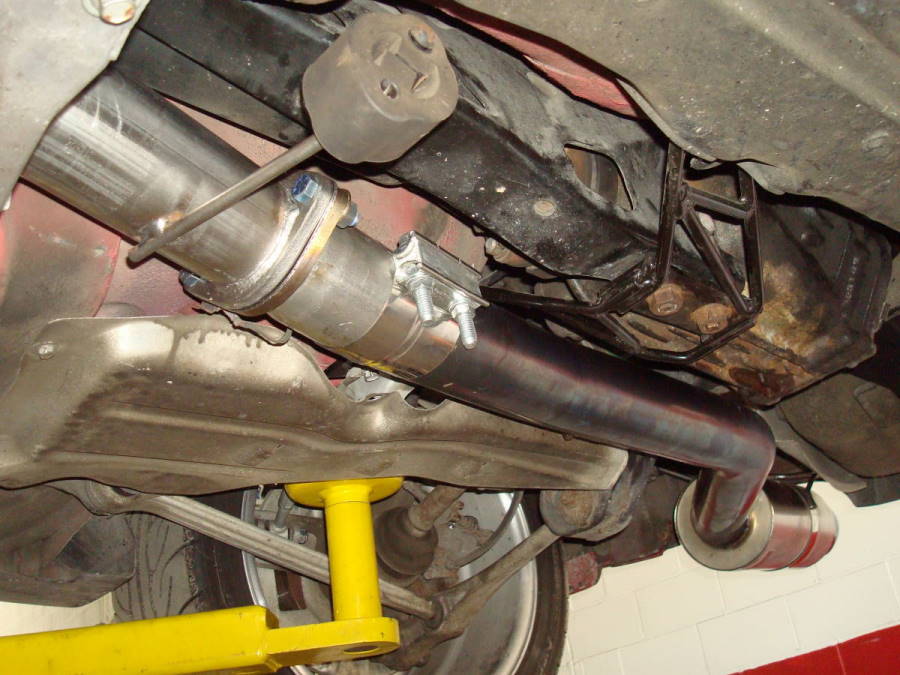

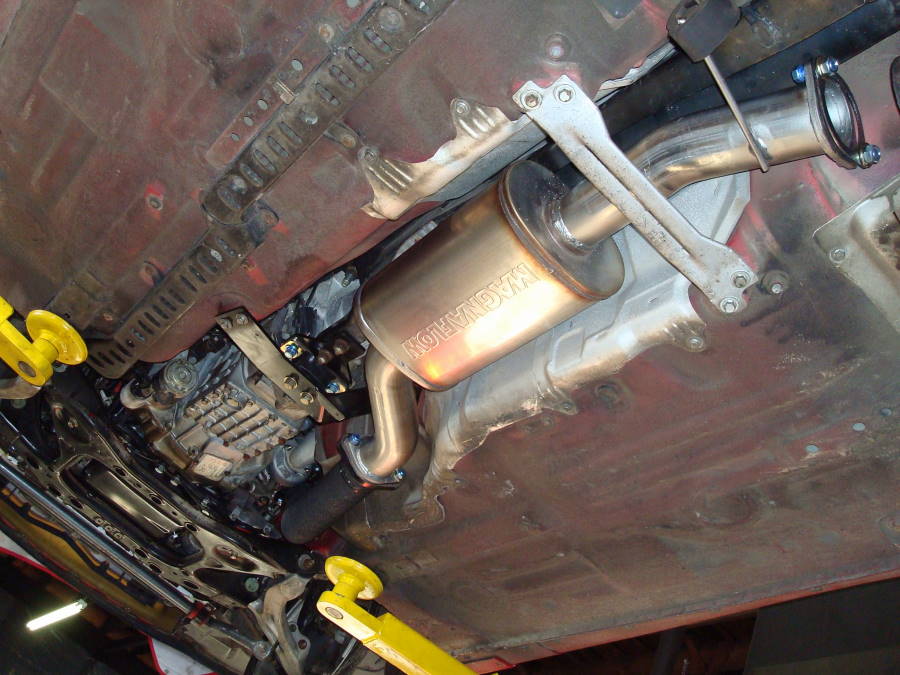

Crossmember & Diff Brace	Exhaust	Oil Coolers	Bumper Installed

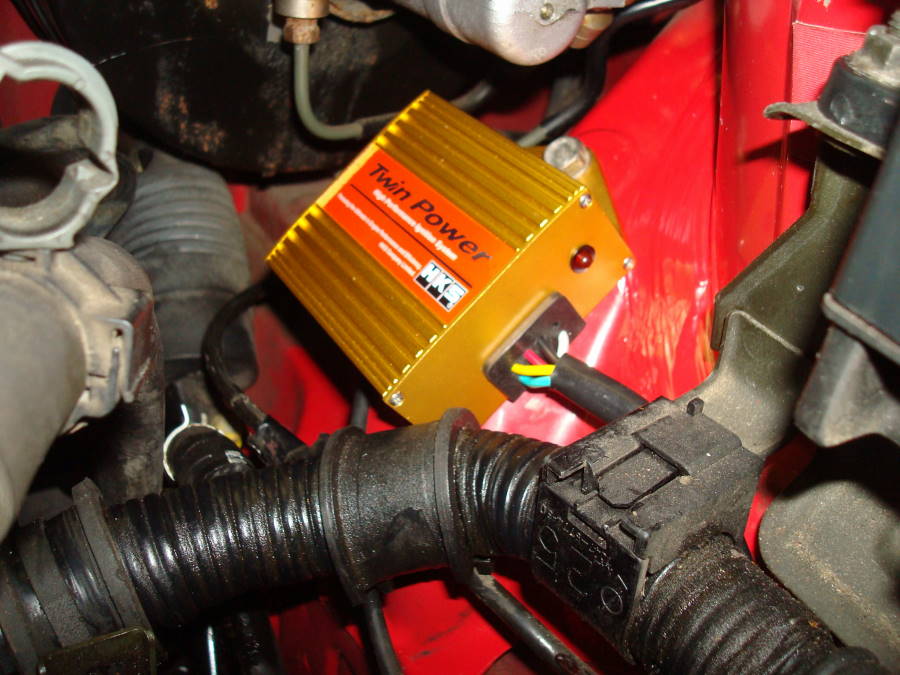

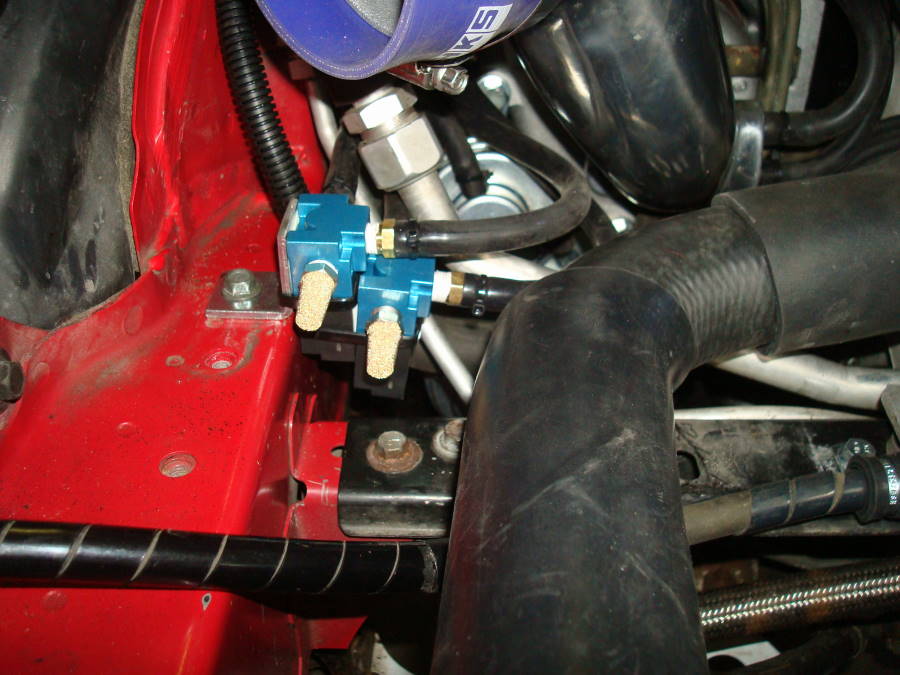

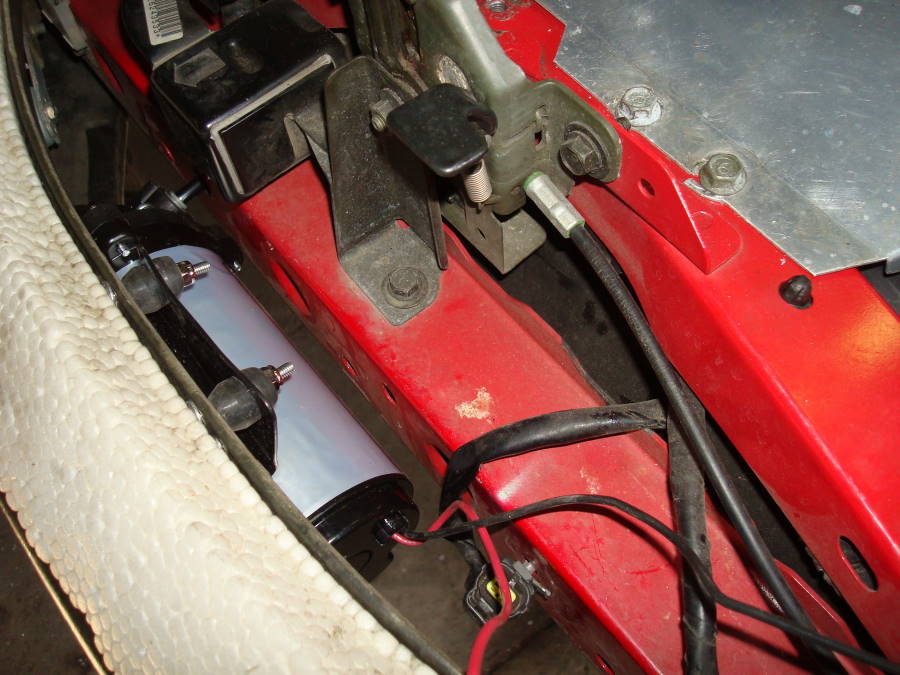

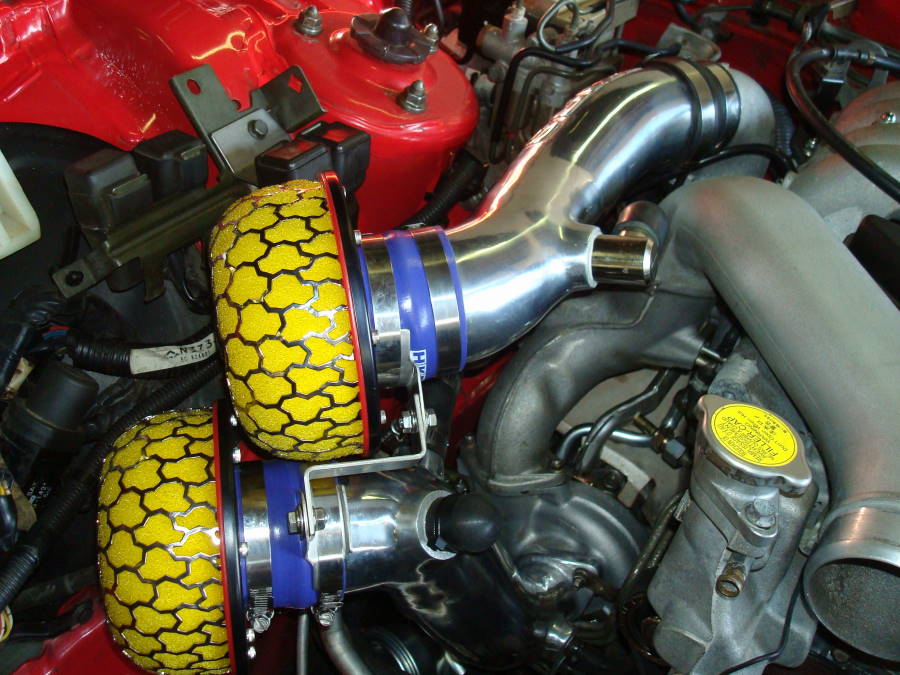

Twin Power	Intake	A/I Pump	Boost Control Solenoids

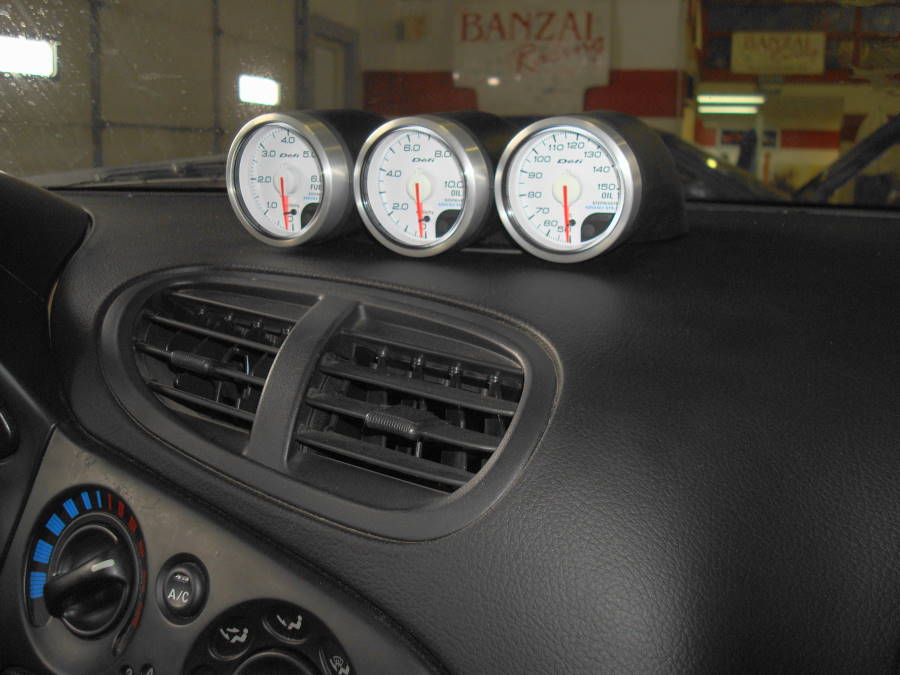

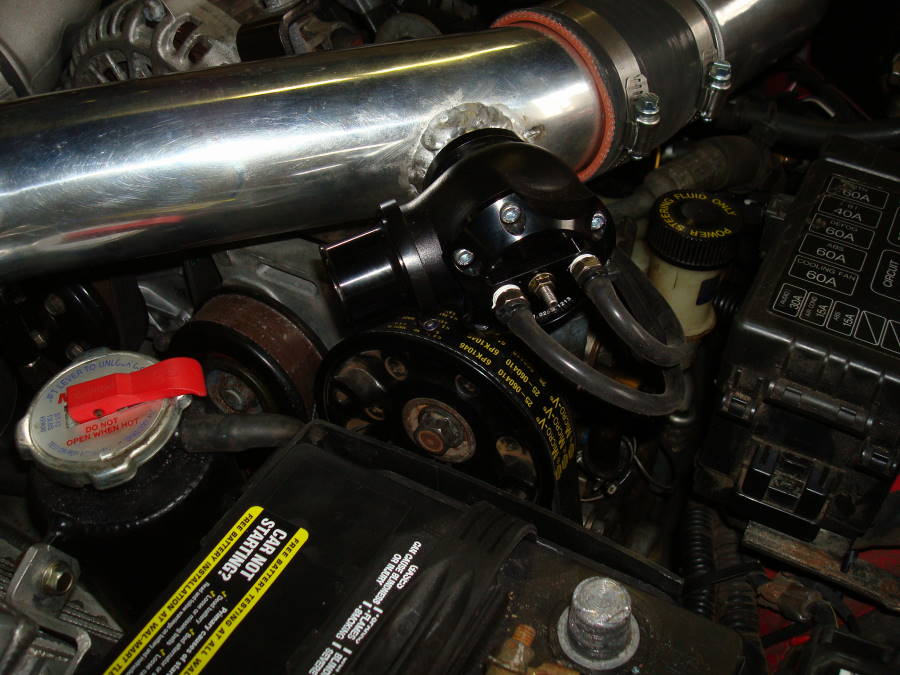

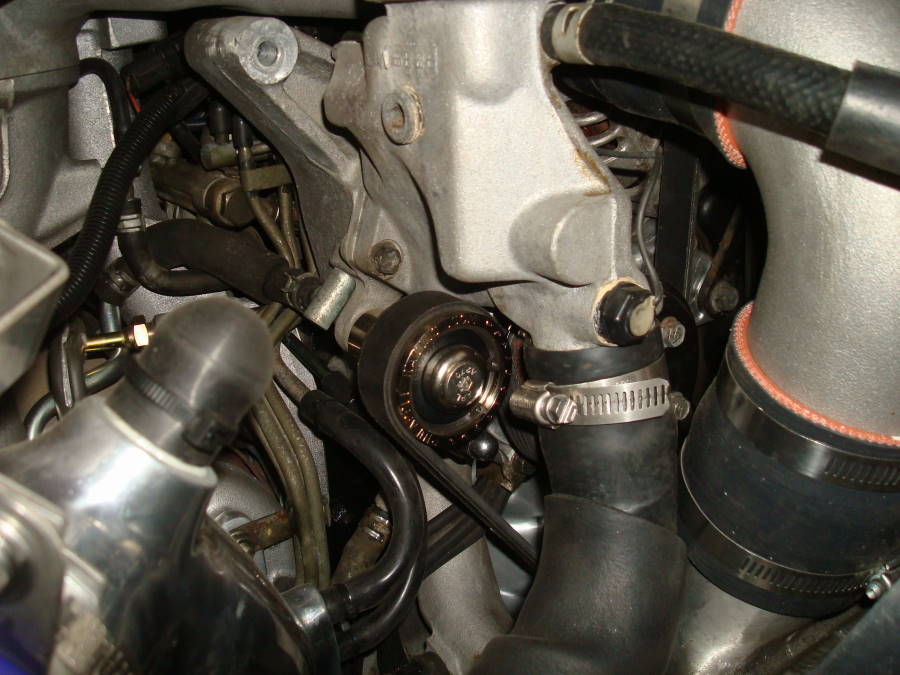

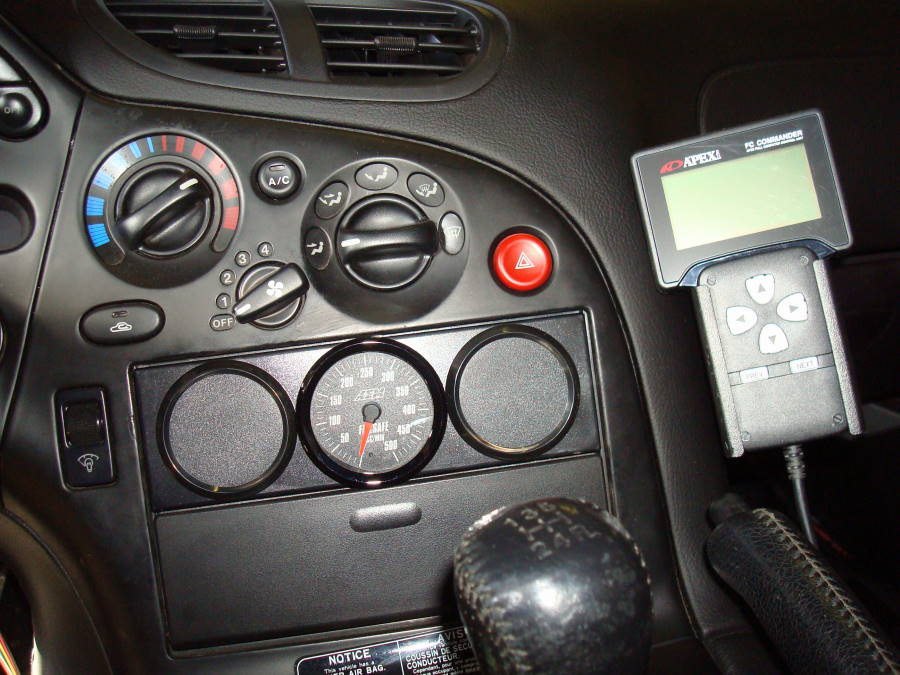

Idler Pulley	BOV	Triple Pod & Gauges	Din Panel & Gauge

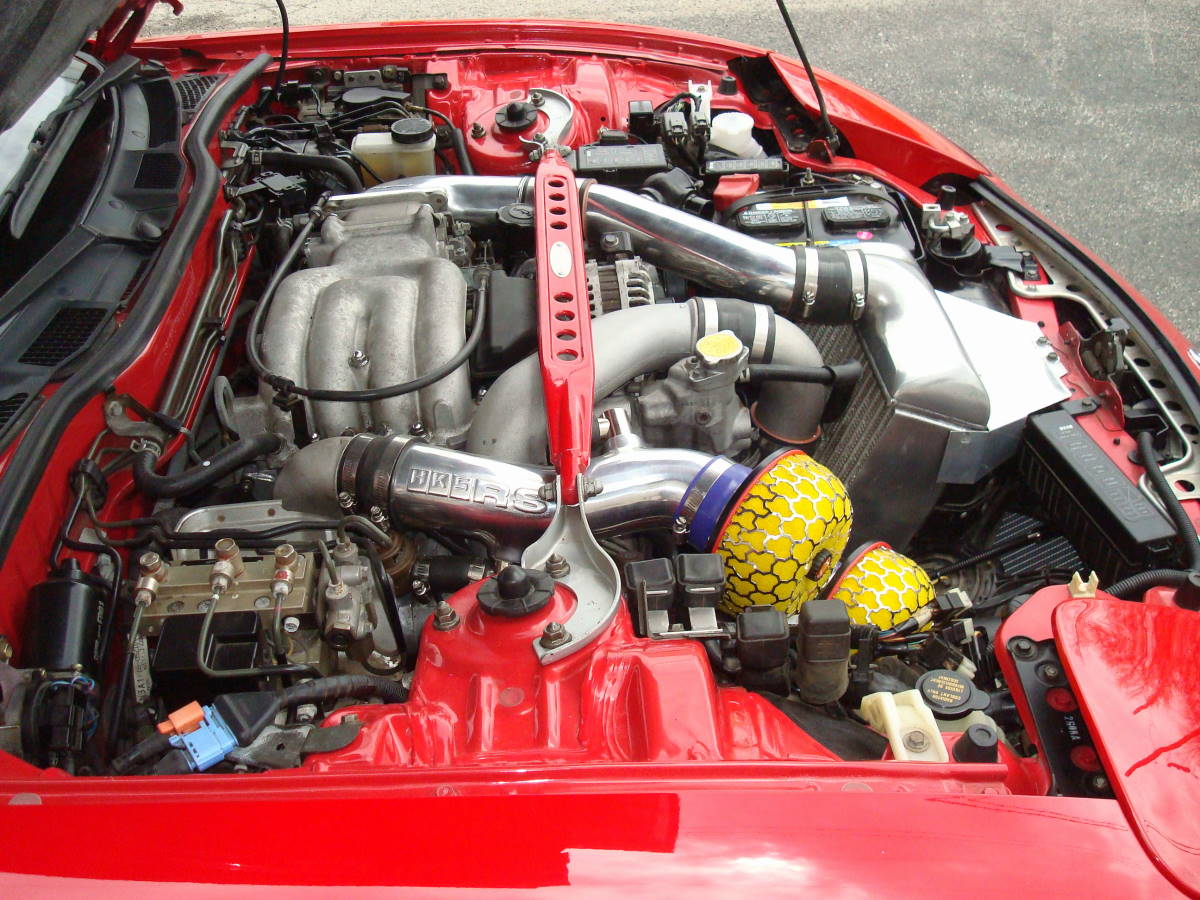

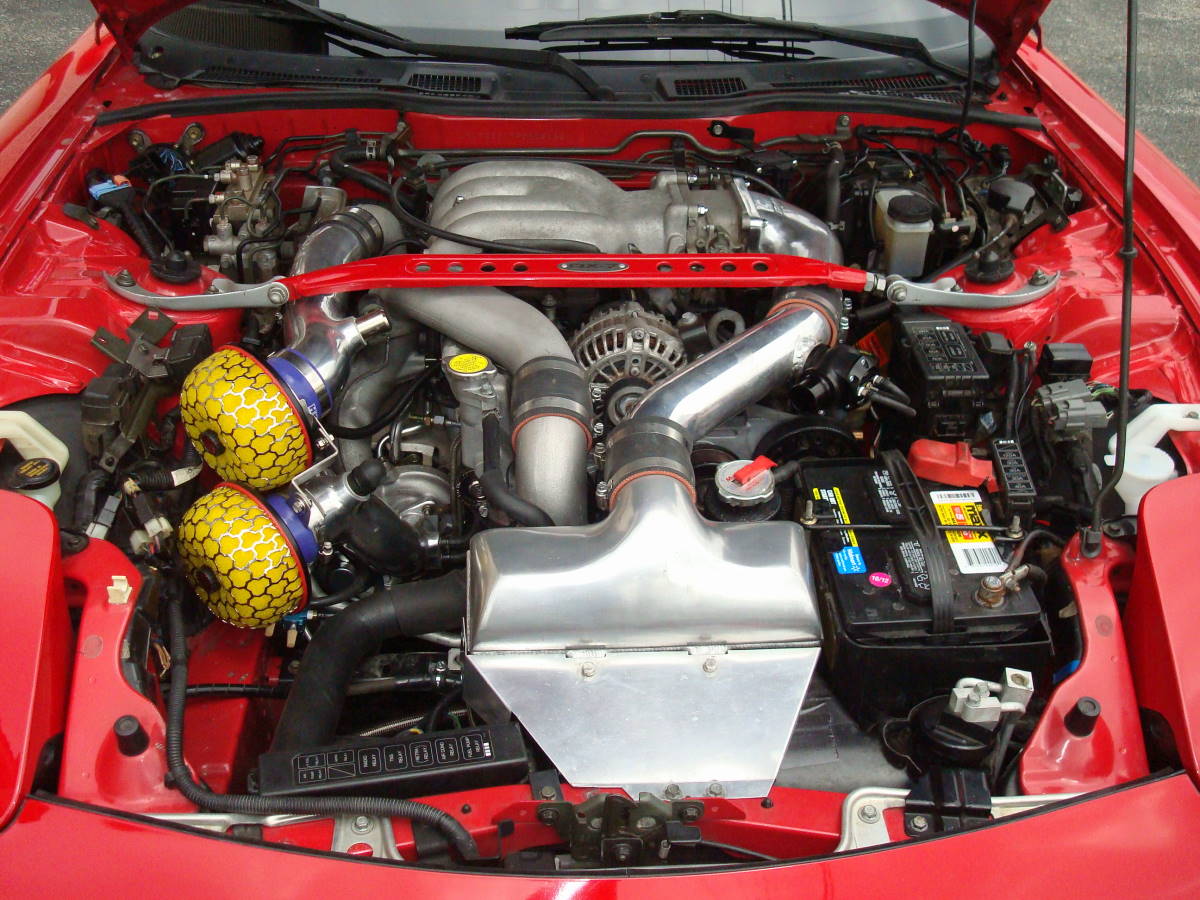

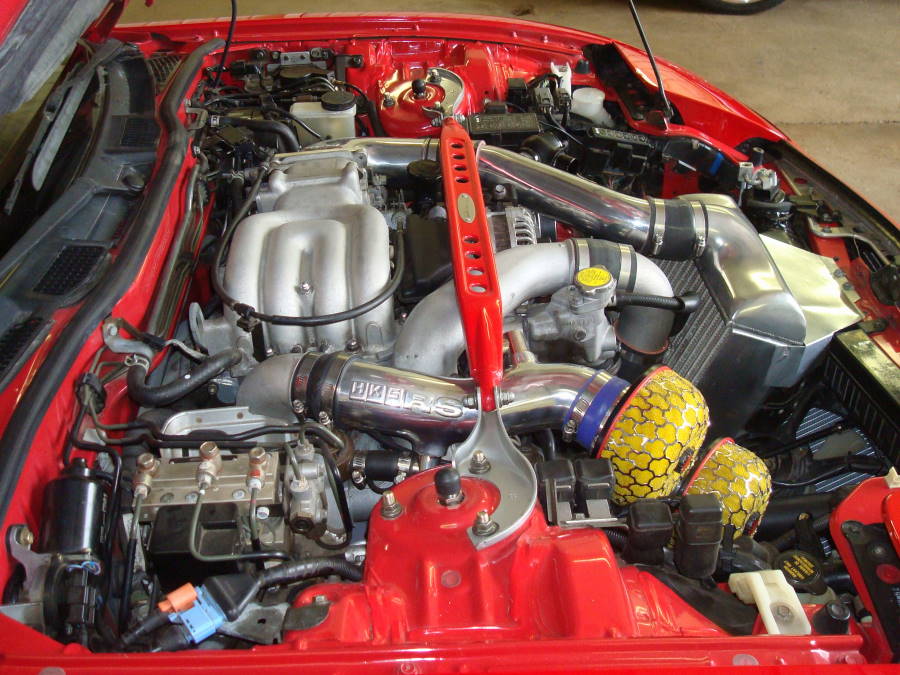

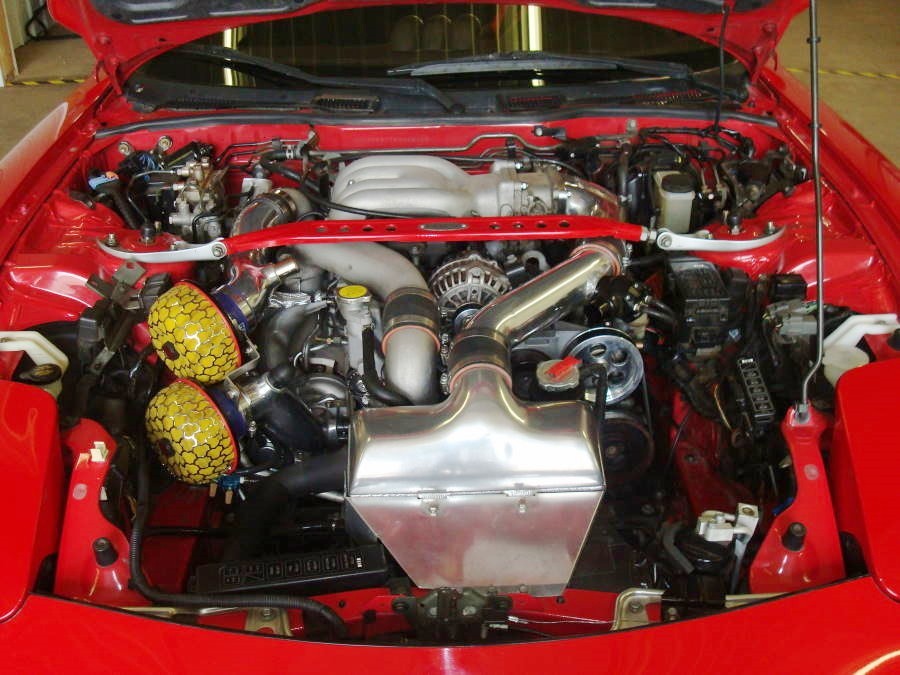

Final Engine Bay Photographs May 2013

Passenger Side View	Front View	Driver Side View

Stage 2 (OD: 41512): Fall 2014 we performed the following work:

• Aluminum Alternator, Power Steering and Main Pulley Installation w/41" Belt & FD Belt #7)

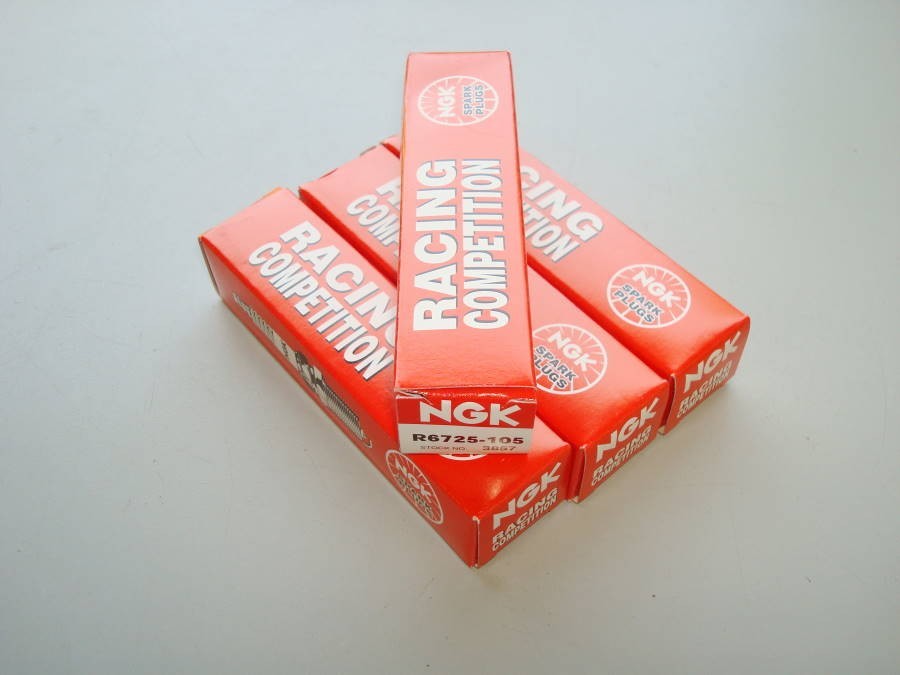

• NGK Racing Competition 10.5 Spark Plugs
• Dyno Tuning to 372 RWHP @ 14.7 psi

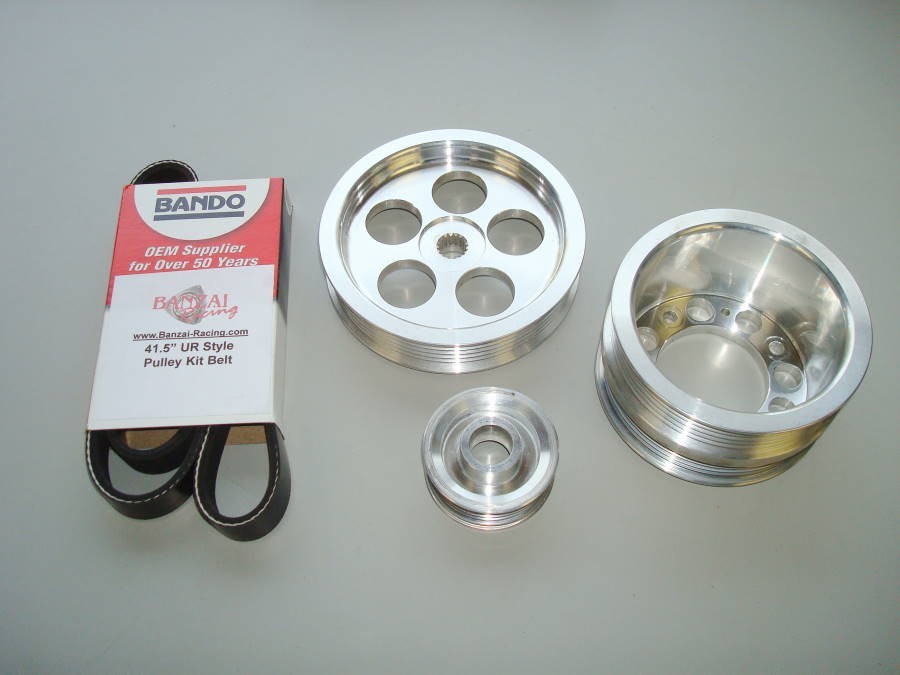

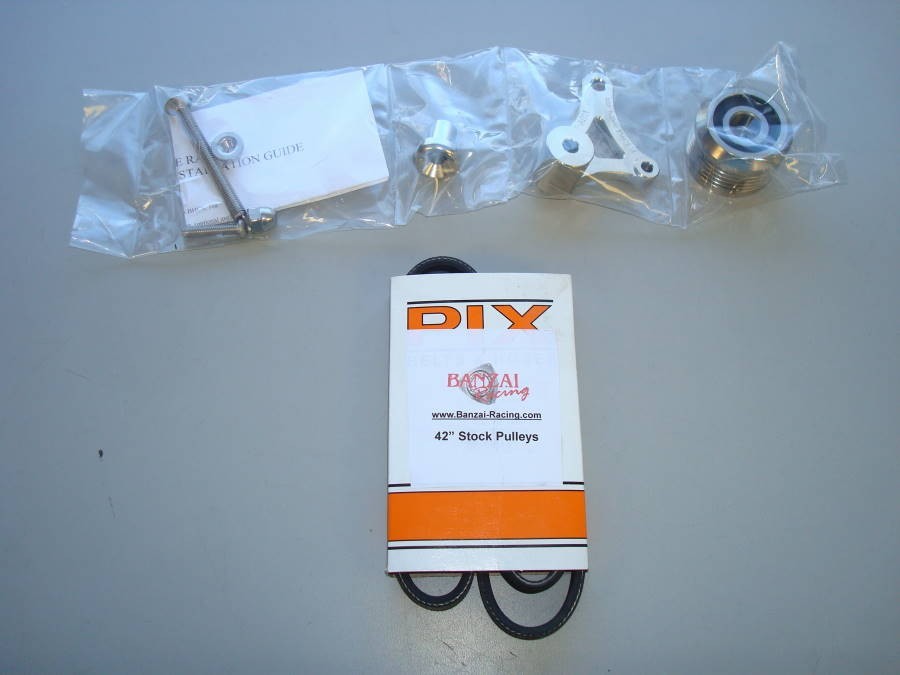

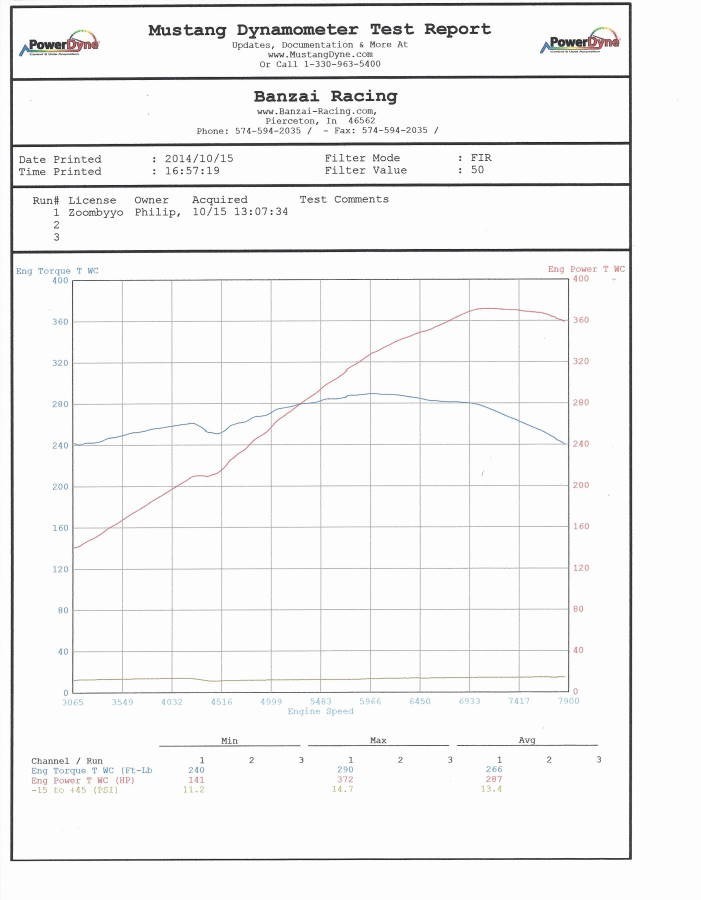

Pulley Kit	Racing Plugs	Dyno Sheet

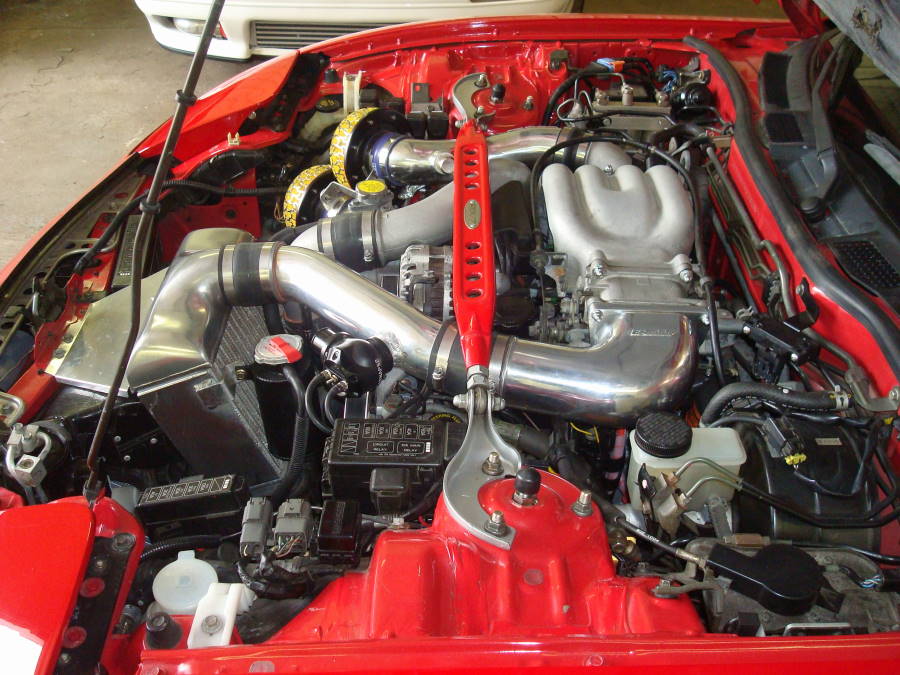

Engine Bay Photographs October 2013

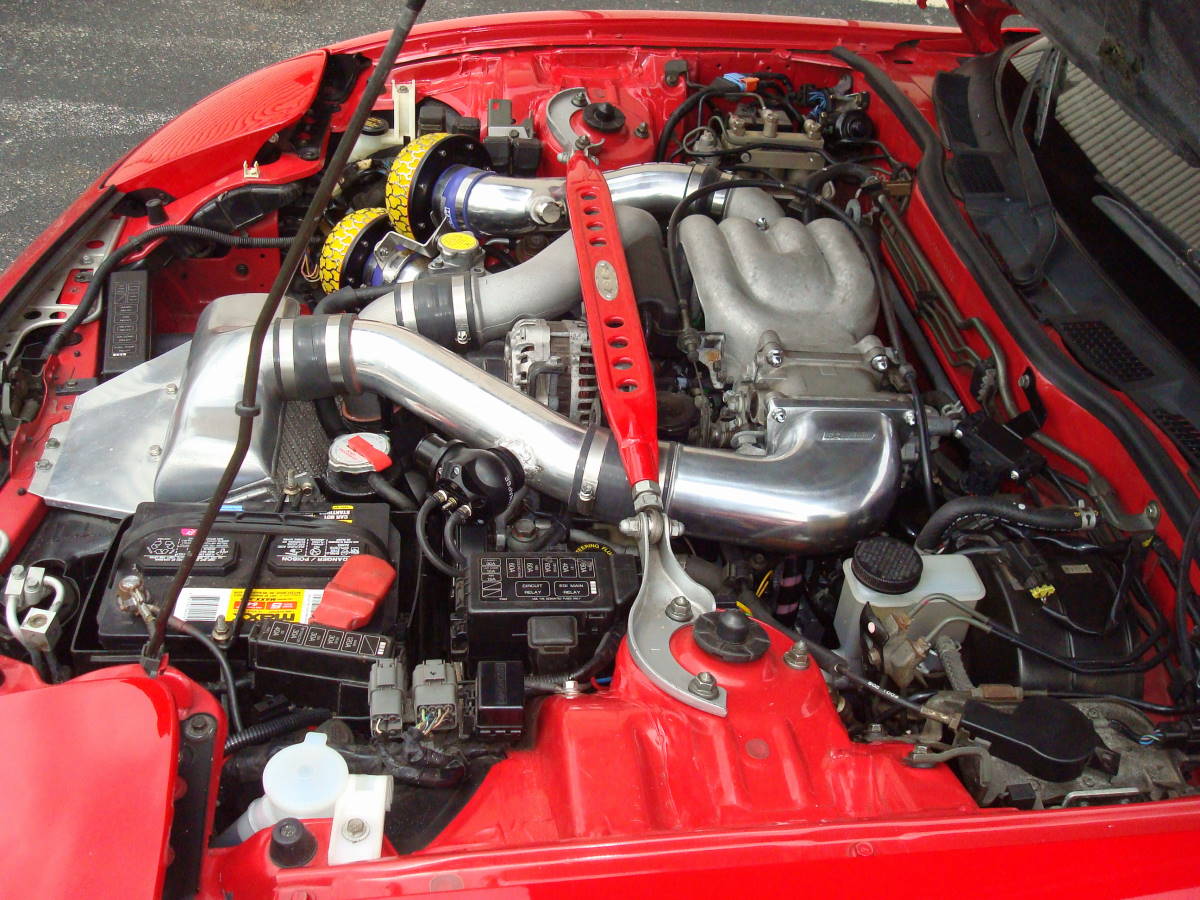

Passenger Side View	Front View	Driver Side View
