Joe's RX-7 13B-REW SMP

Click on images for larger view

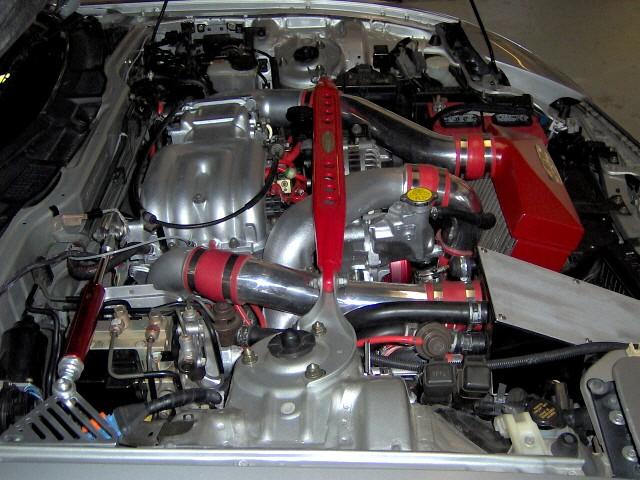

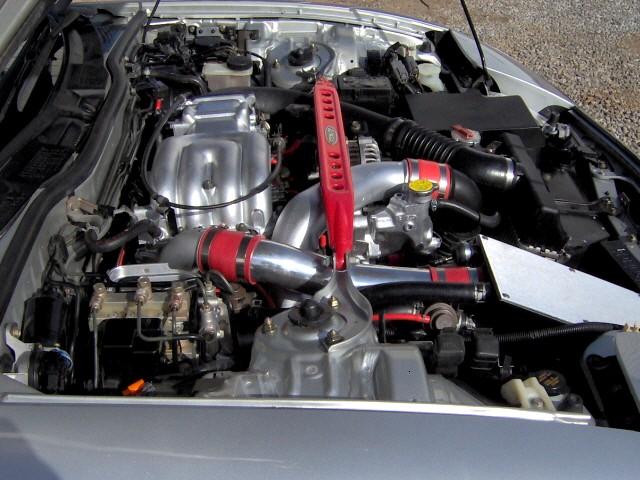

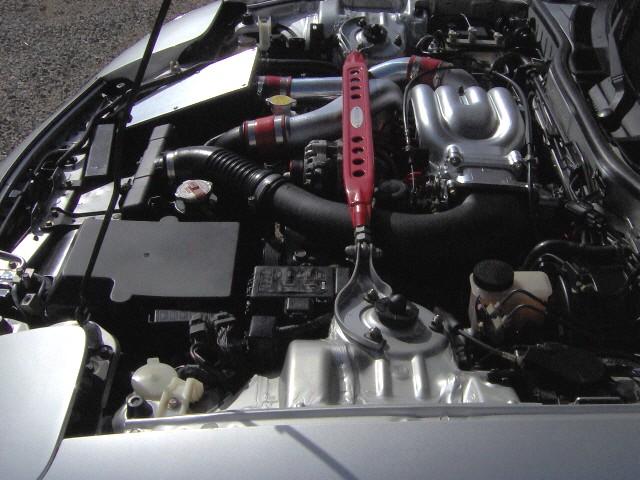

Passenger Side View	Front View	Driver's Side View

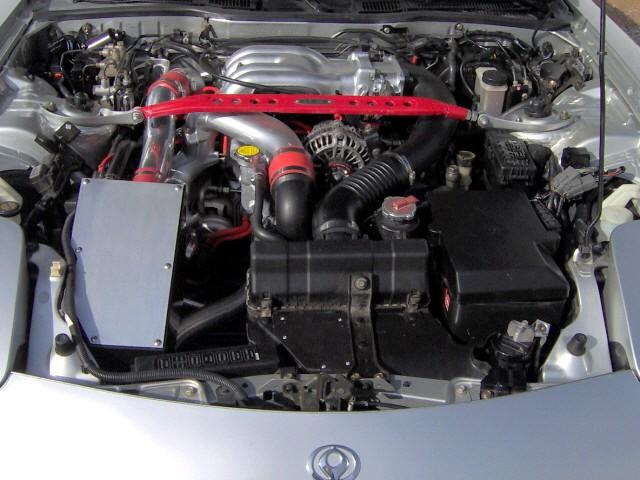

Engine bay after engine rebuild & installation completed March 16th, 2006

Stage 2: May '06 (OD 64830):- Post Engine Break-in

• Inspection & Tune-up
• Wideband PFC Tuning

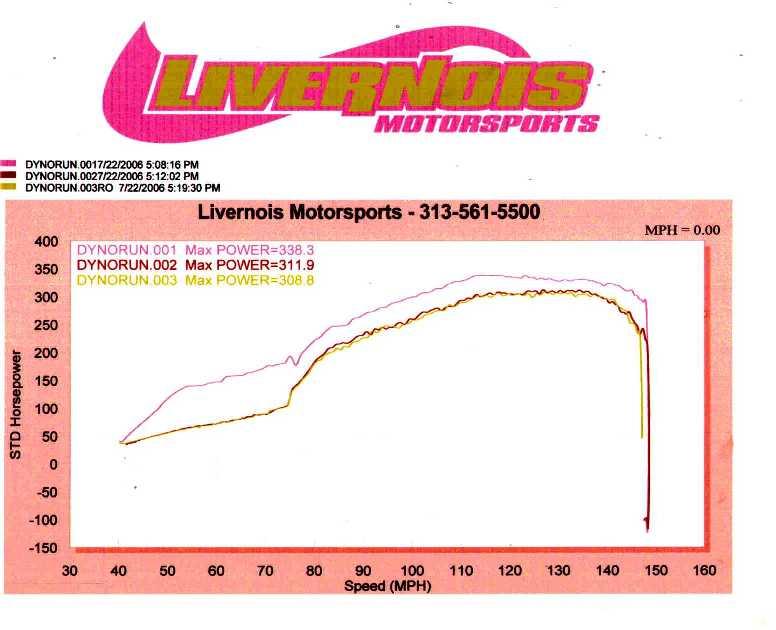

Dyno Run achieved 338 @ 120 mph on the first pull on July 22nd, 2006 with current modifications. The second two runs were lower due to excessive intake air temperatures.

Click for Enlarged View

Stage 3: Nov '06 (OD 68830):- Performance Upgrades & Tune-up;

• GReddy Intercooler & Piping Installation
• GReddy Elbow
• LW Flywheel
• Coil
• Pilot & Throwout Bearings
• Spark Plugs
• O2 Sensor
• SS Lines
• EGI Relay
• Wideband Tuning

Passenger Side View	Front View	Driver Side View

Stage 4: May '07 (OD 69720):- Performance Upgrades & Modifications;

• HKS Twin Power Installation
• Customized Radiator Cover
• Wideband Tuning

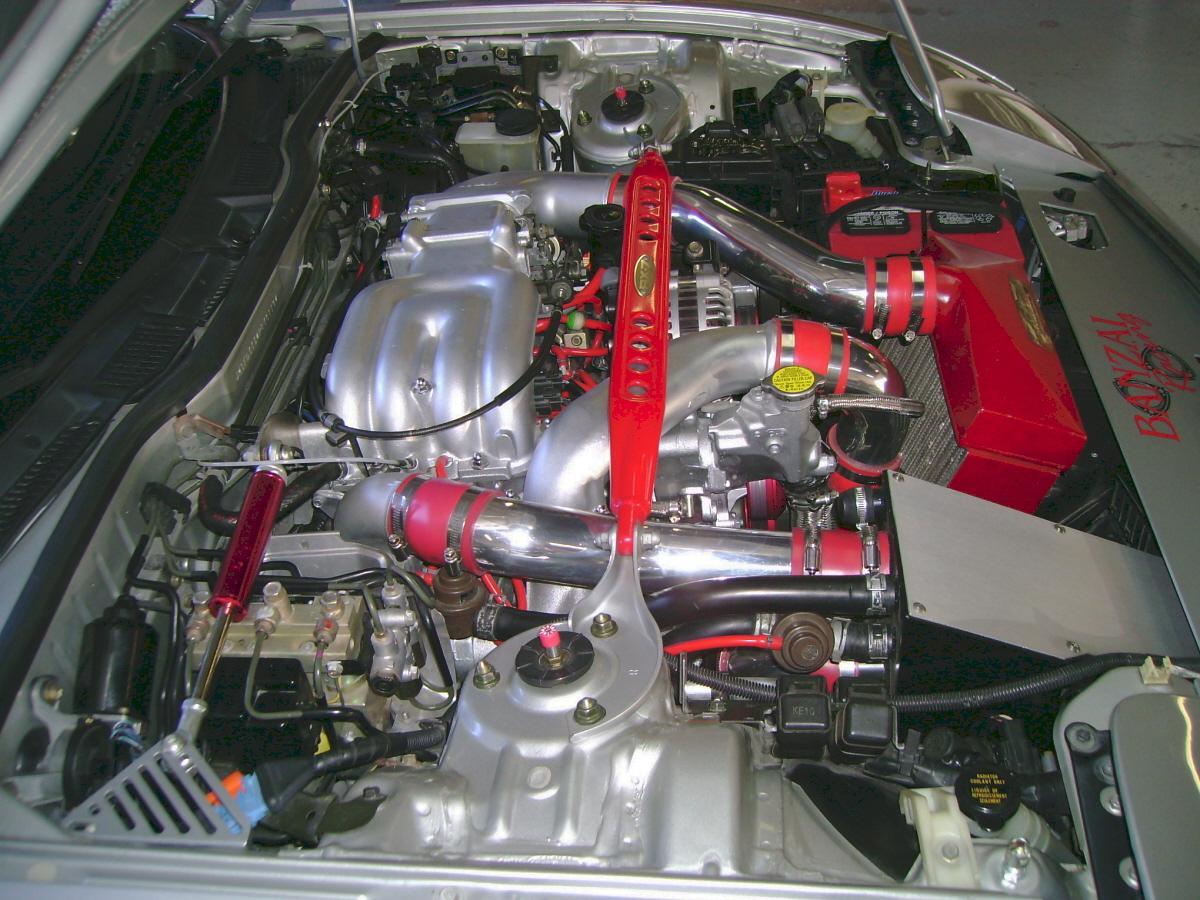

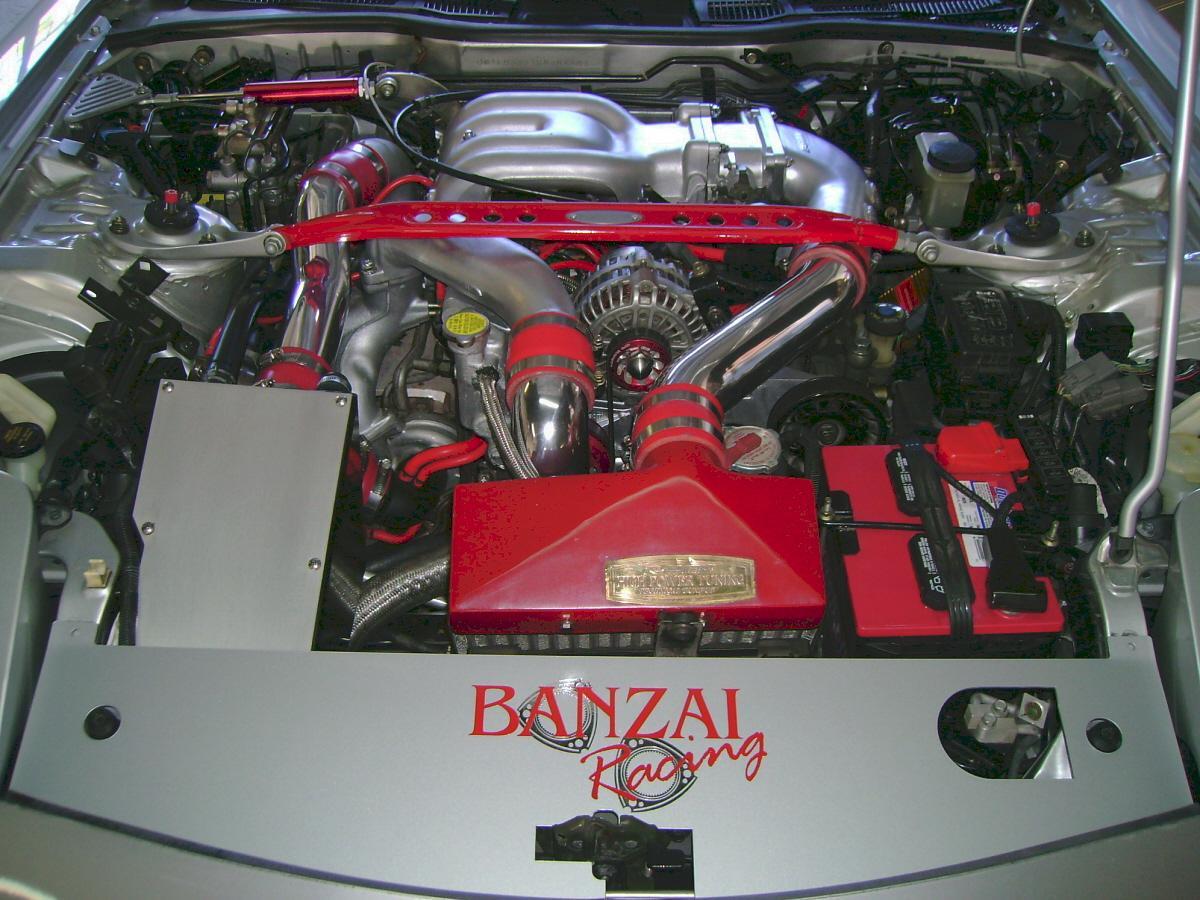

Passenger Side View	Front View	Driver Side View

Stage 5: July '07 (OD 73607):- Performance Upgrades & Modifications;

• Peter Farrell Intercooler Installation
• Wideband Tuning

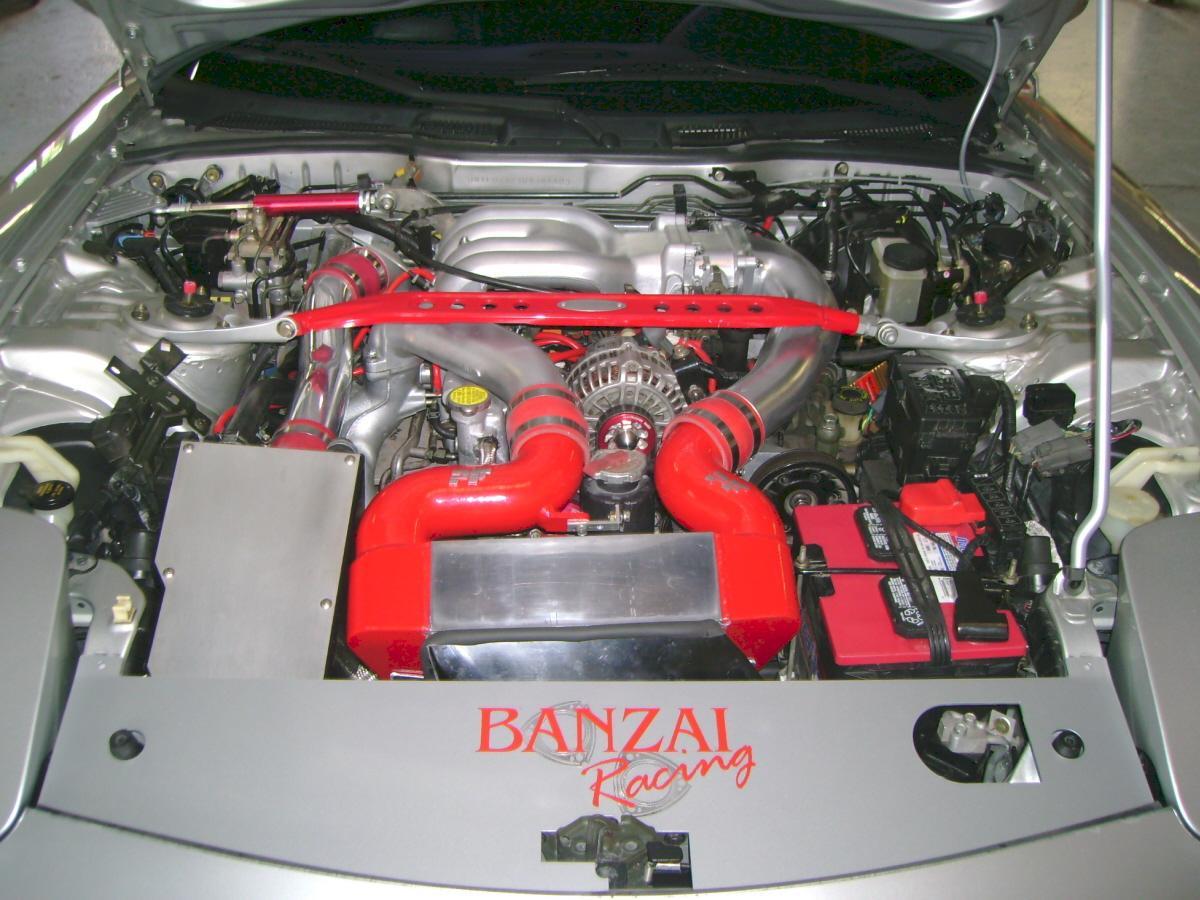

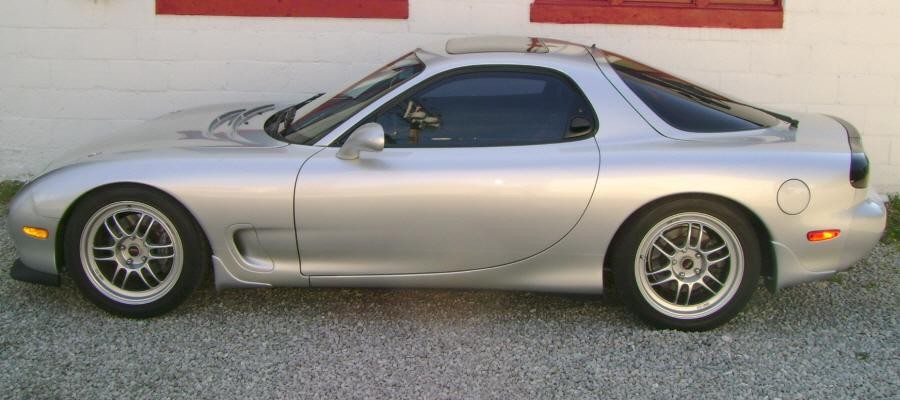

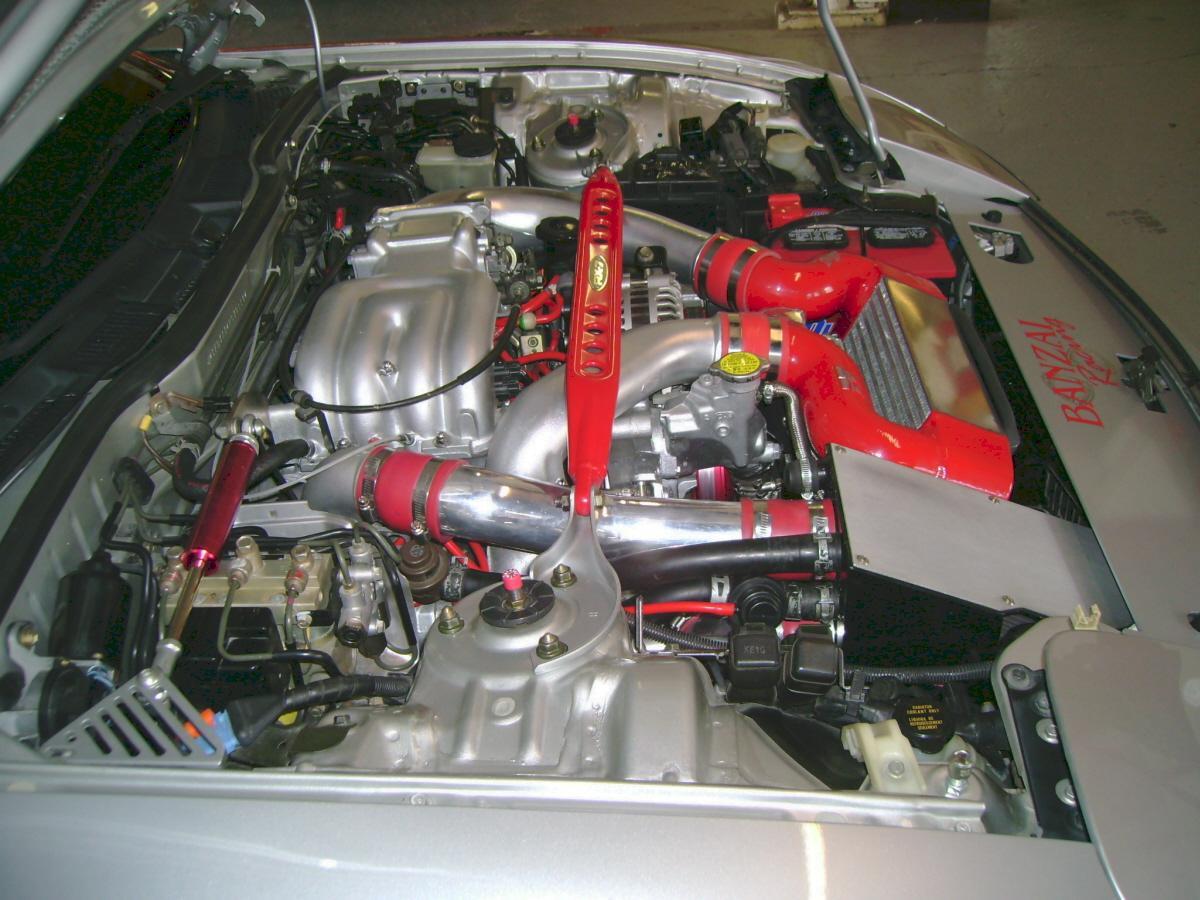

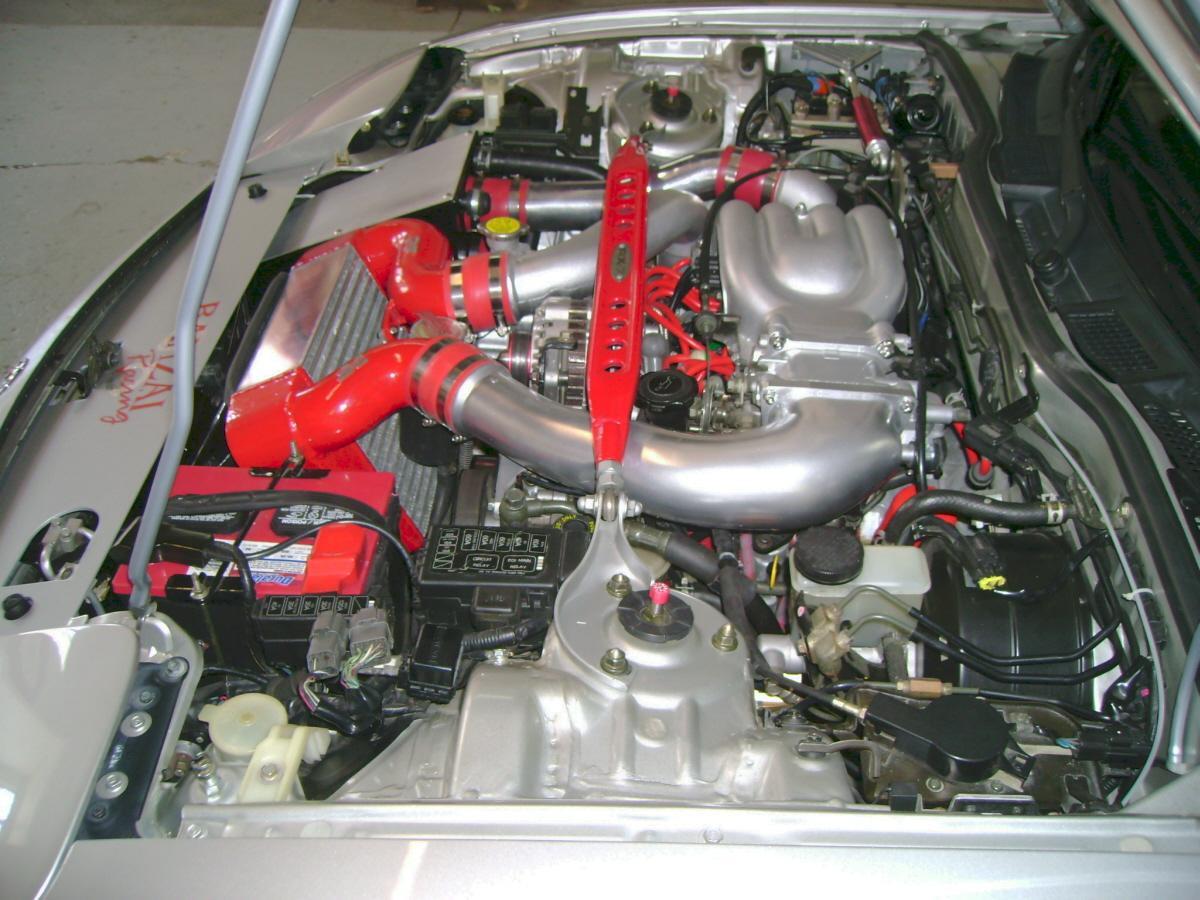

Passenger Side View	Front View	Driver Side View

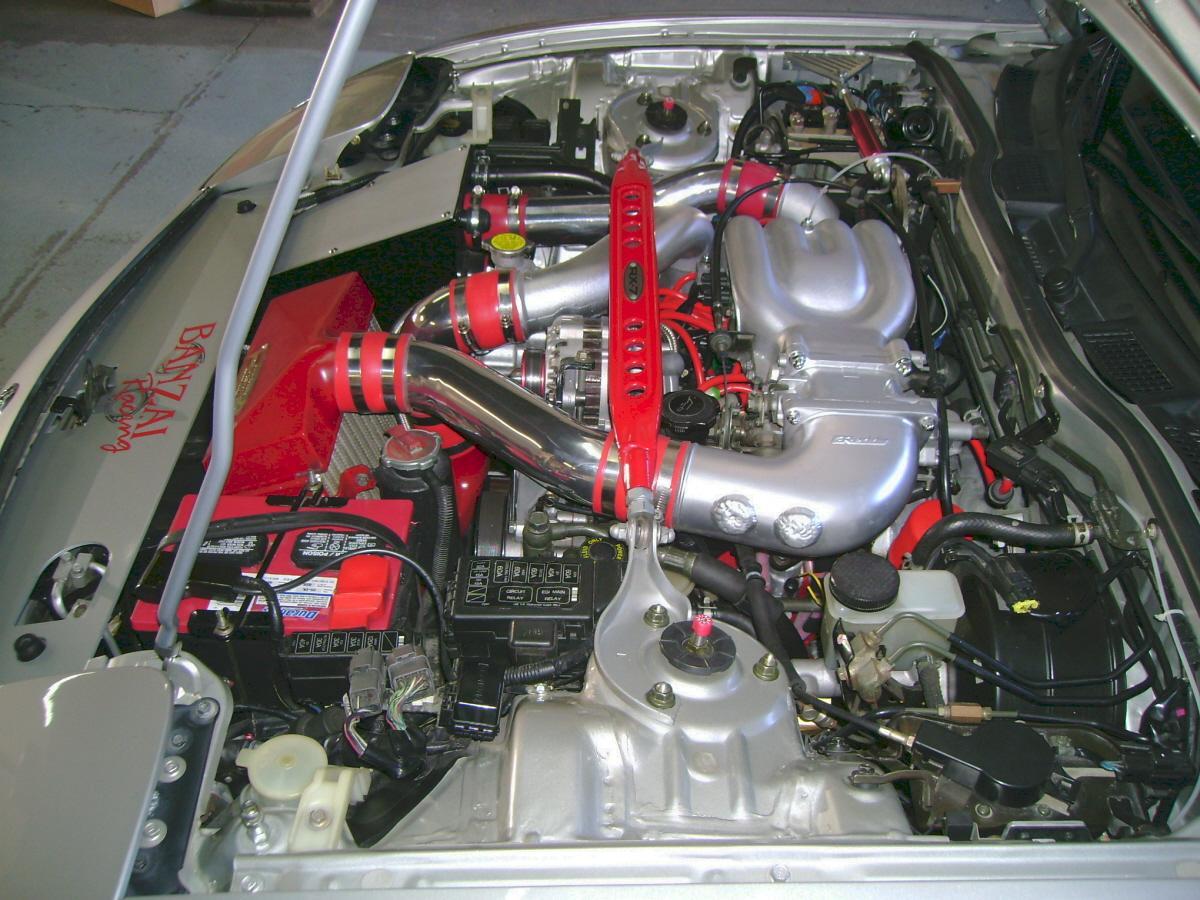

Stage 6: October '07 (OD 75994):- Performance Upgrades & Modifications;

• BNR Twin Turbos
• 1300cc Secondary Injectors
• Aftermarket Power Steering Pulley
• AEM Boost Controller
• Fuel Pressure & Oil Temp Gauges
• Custom Dual Gauge Vent Pod
• Downpipe & Midpipe Heatwrap
• Wideband Tuning to 15 psi

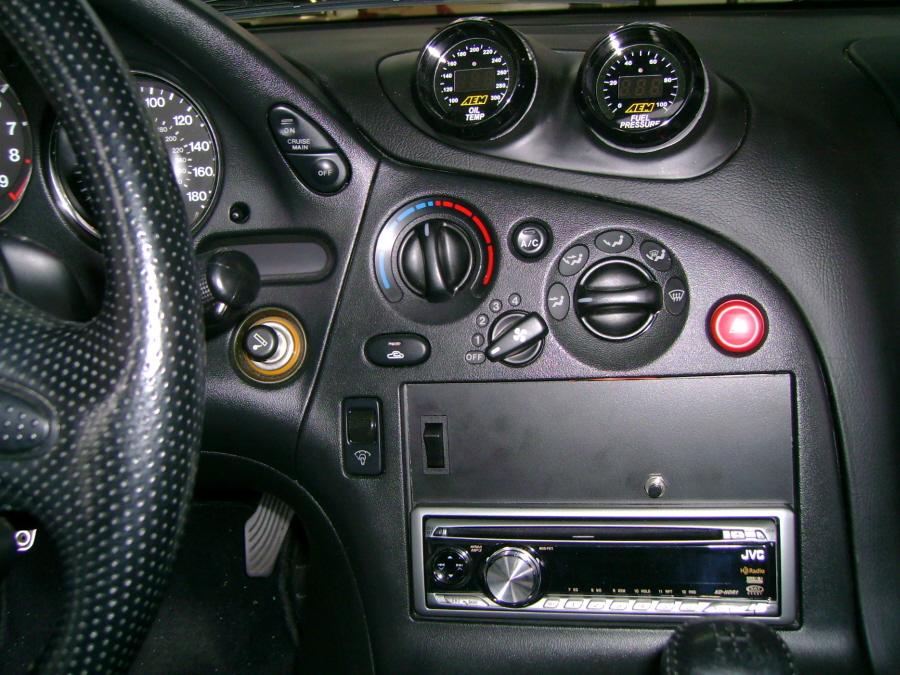

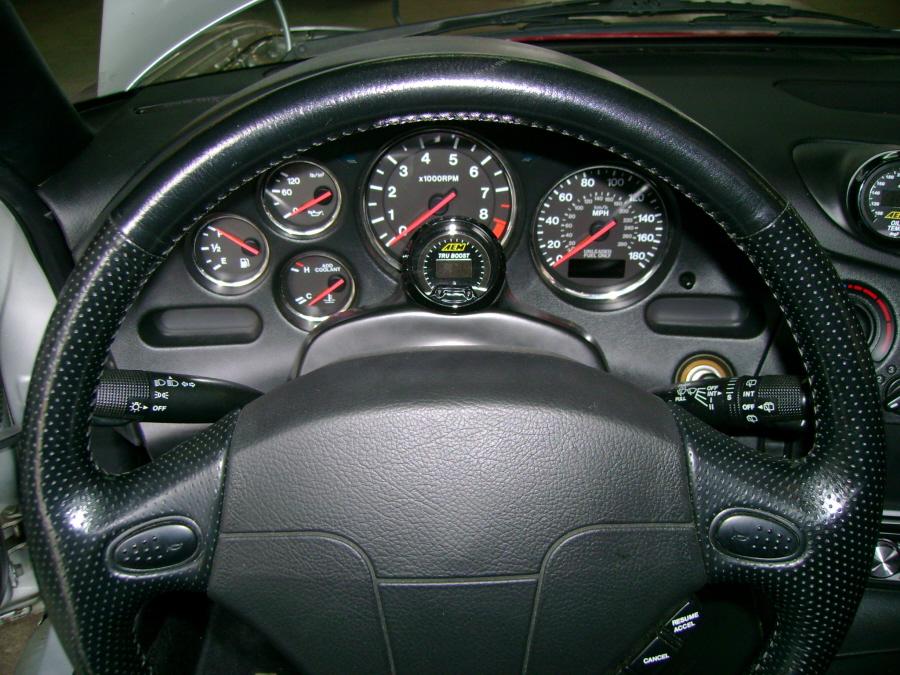

AEM Boost Gauge	Dual Gauge Vent Pod



Stage 7: March '10 (OD 77922):- Performance Upgrades and Modifications;

• Efini 99 Spec Twin Turbos
• Oil Catch Can w/ K&N Breather Filter
• Banzai Racing Dual Oil Coolers System
• Mocal Oil Thermostat
• Samco Radiator Hoses
• Dyno tuned to 402 RWHP at 17 psi

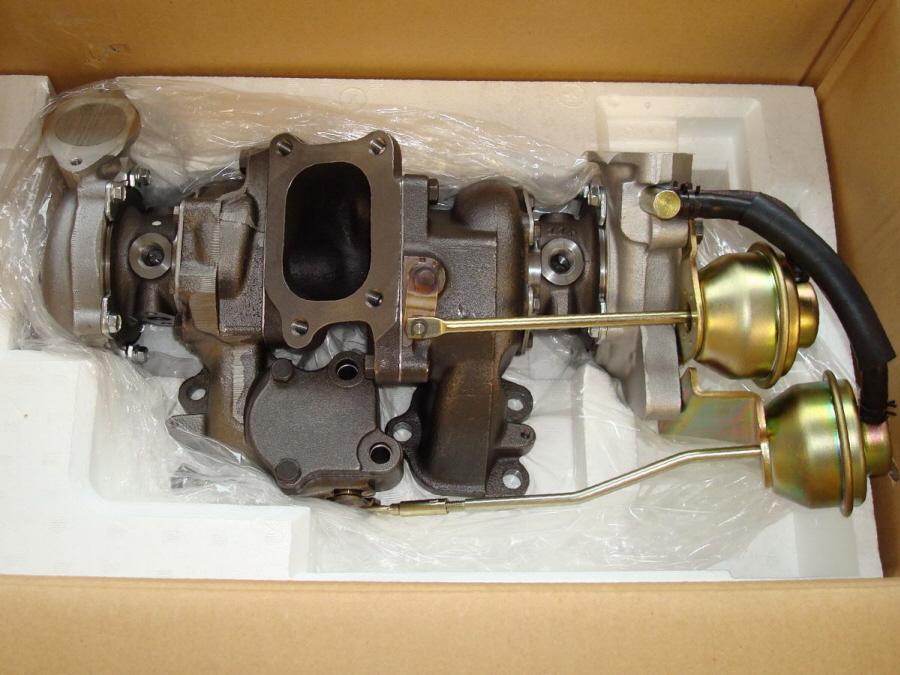

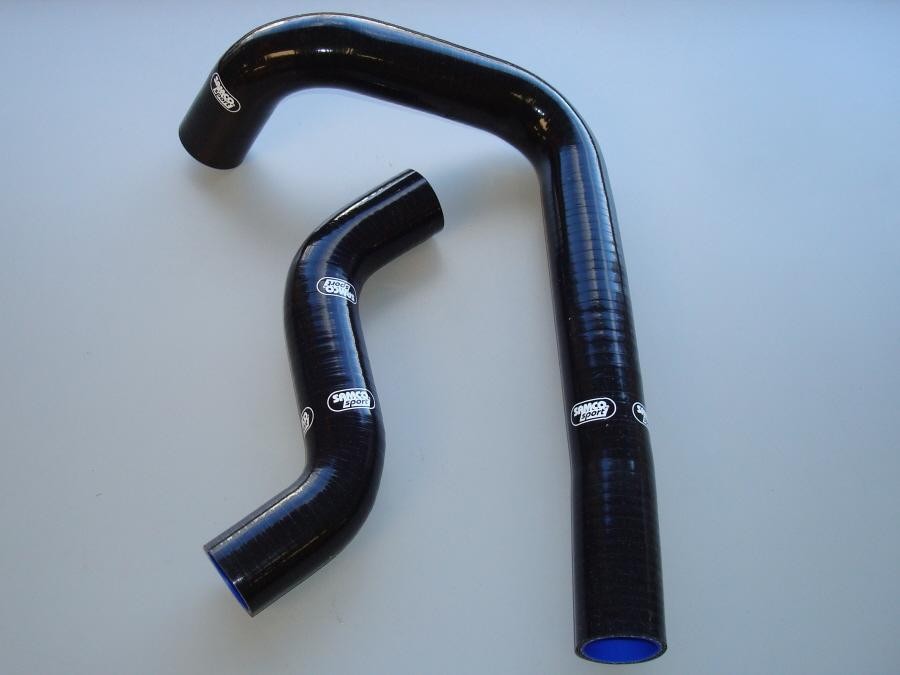

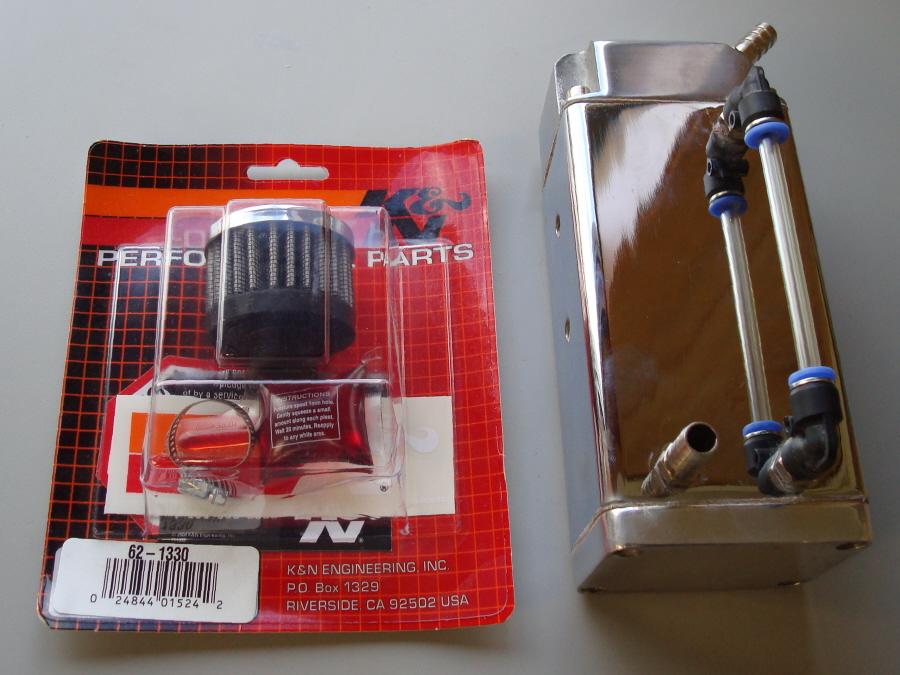

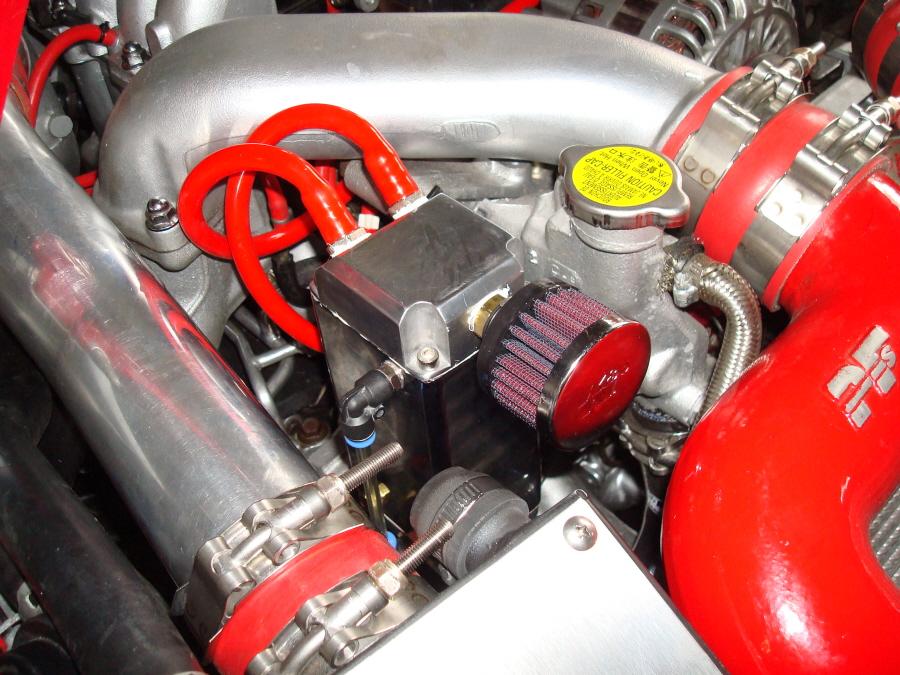

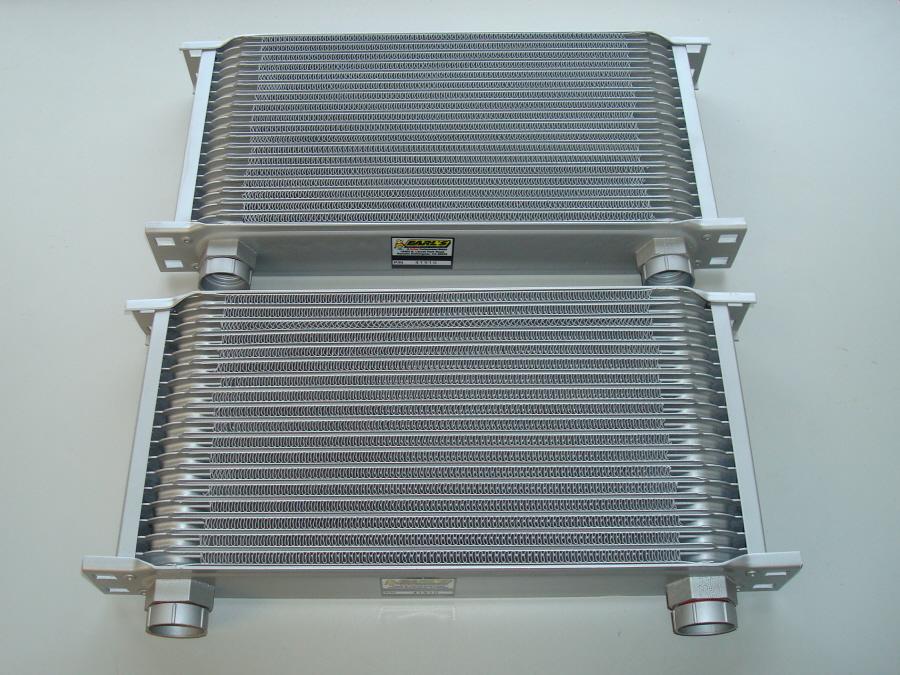

Efini Turbos #1	Earls Oil Coolers	Oil Catch Can	Samco Hoses	Oil Catch Can Installed

Dual Oil Coolers Installation Photographs

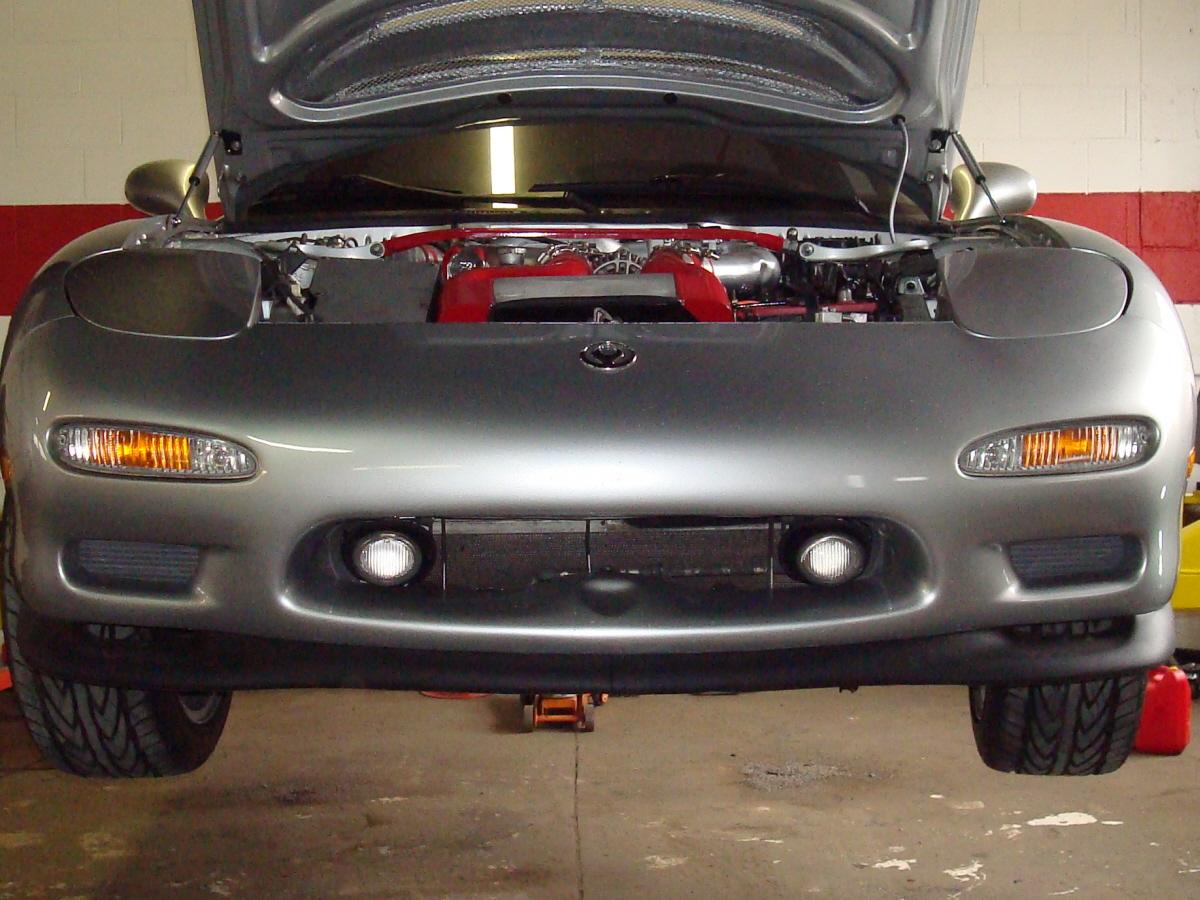

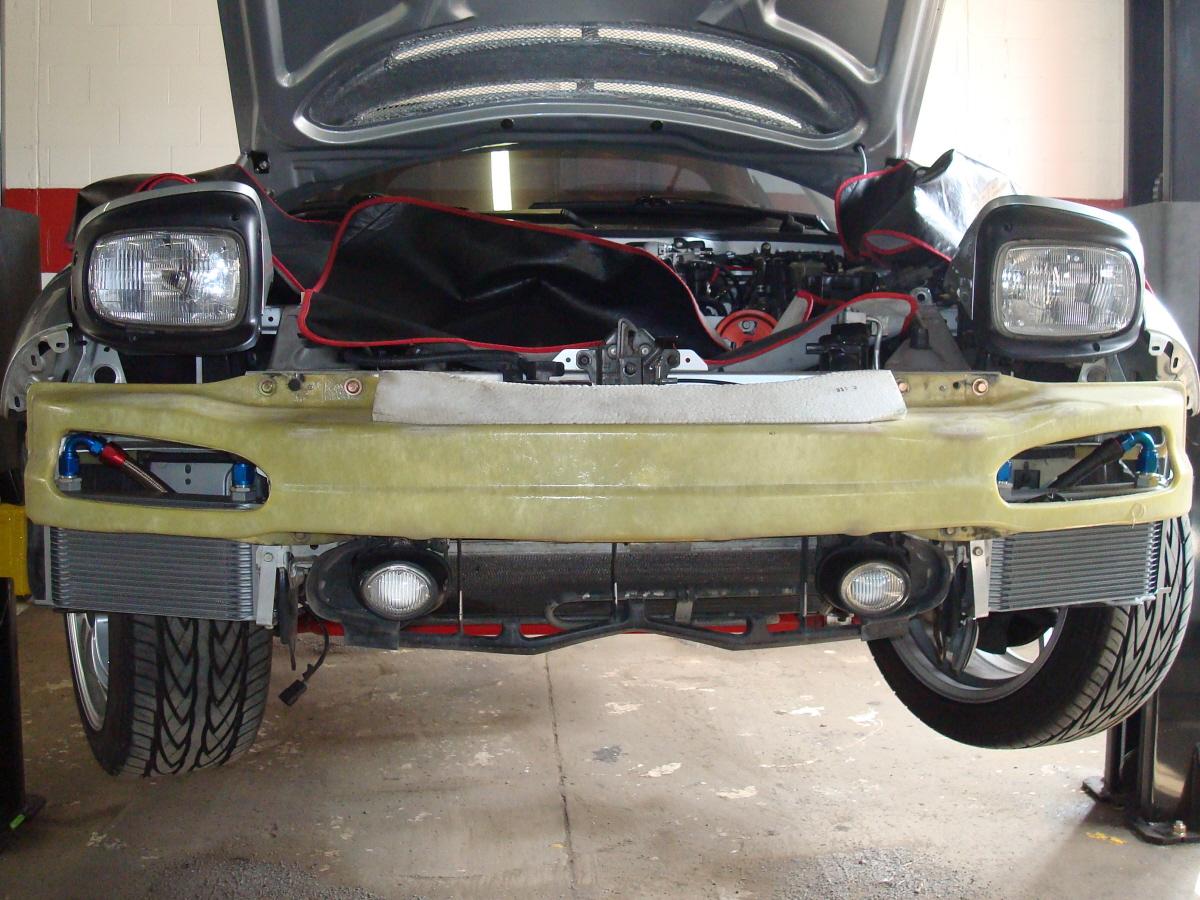

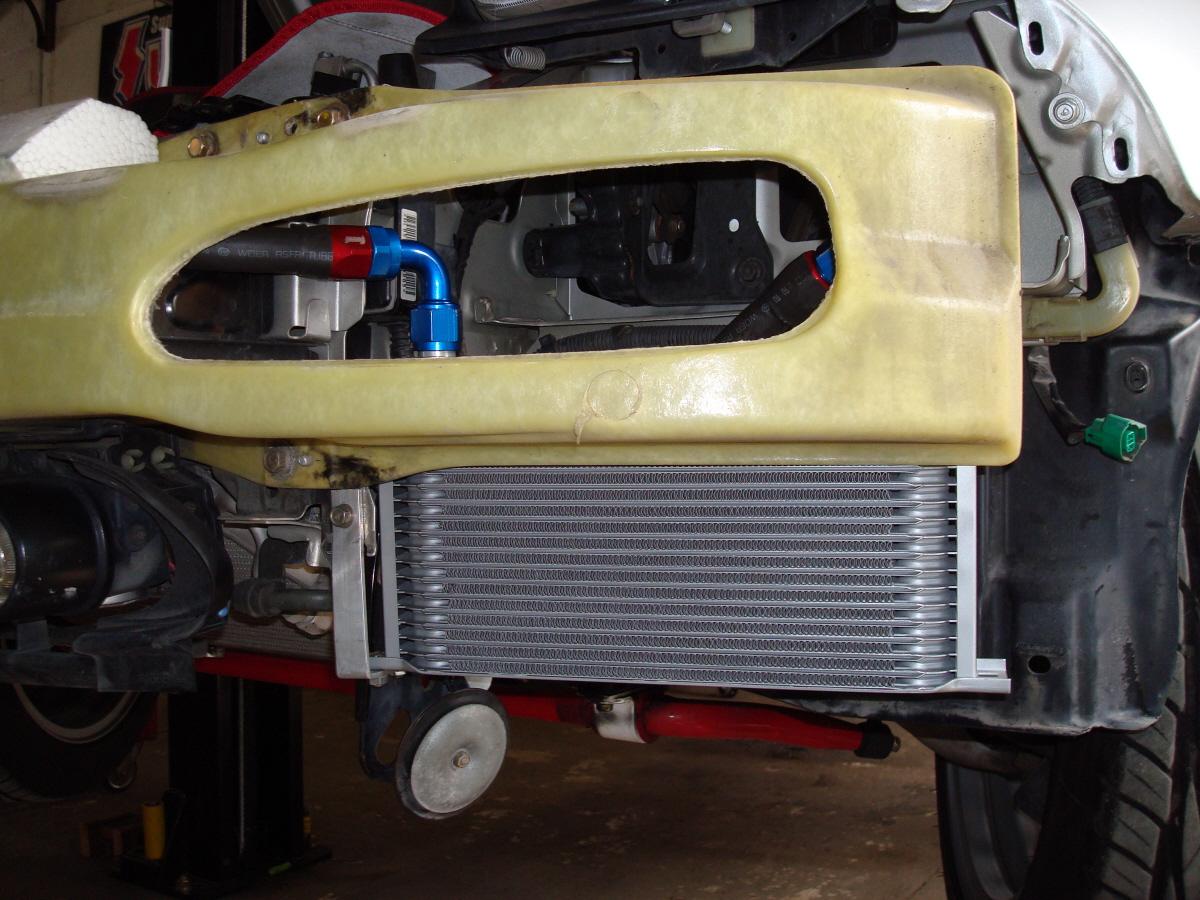

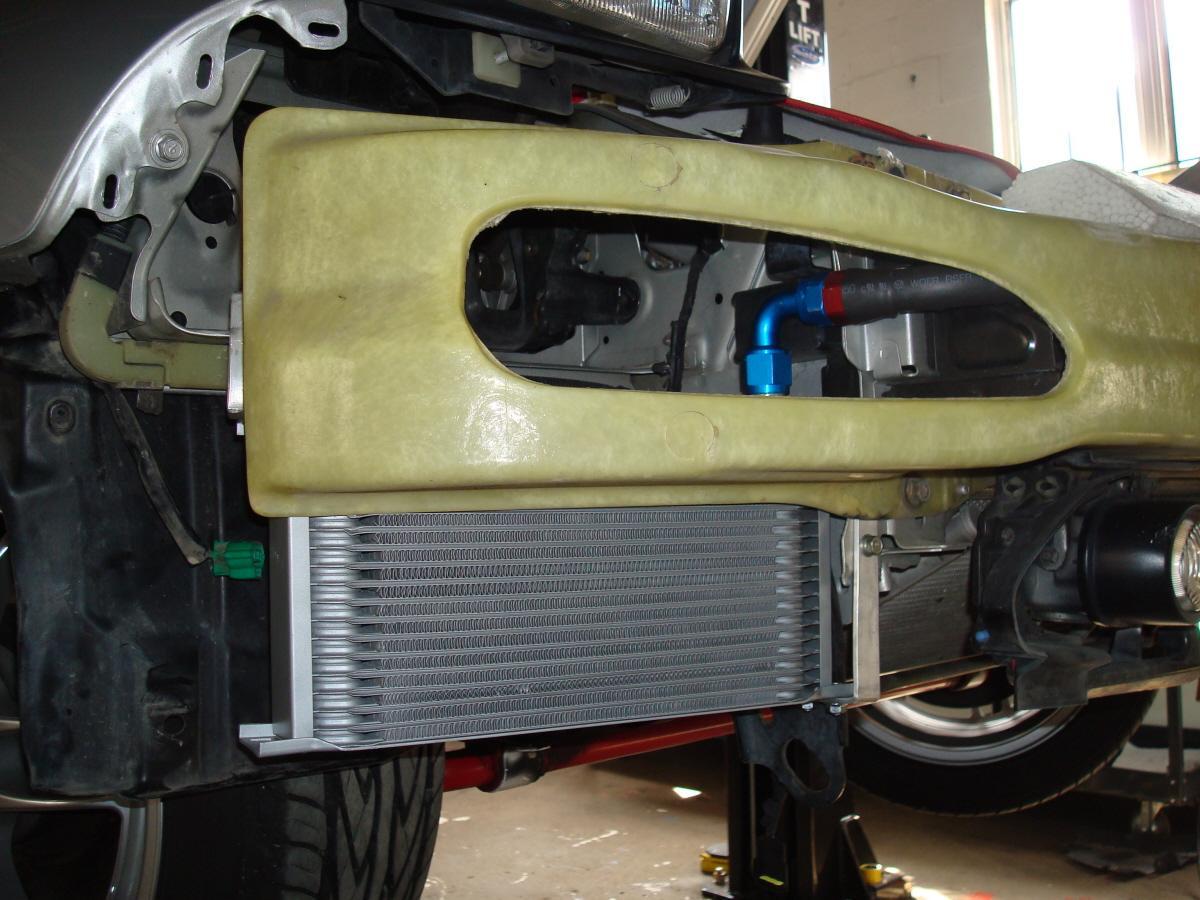

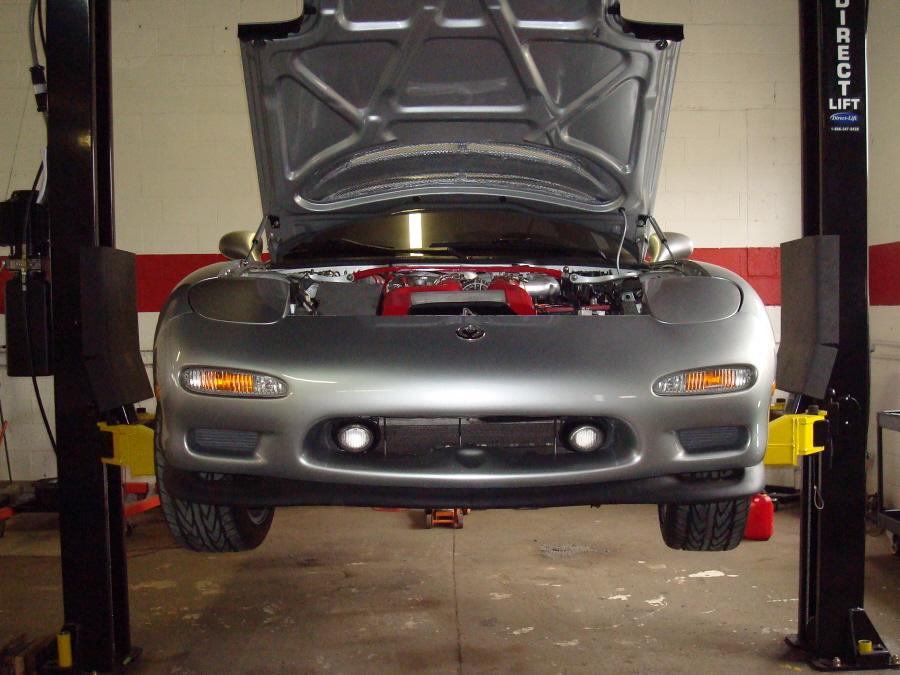

Passenger Side View	Front View	Driver Side View	Oil Coolers Installed	Bumper Installed Close-Up

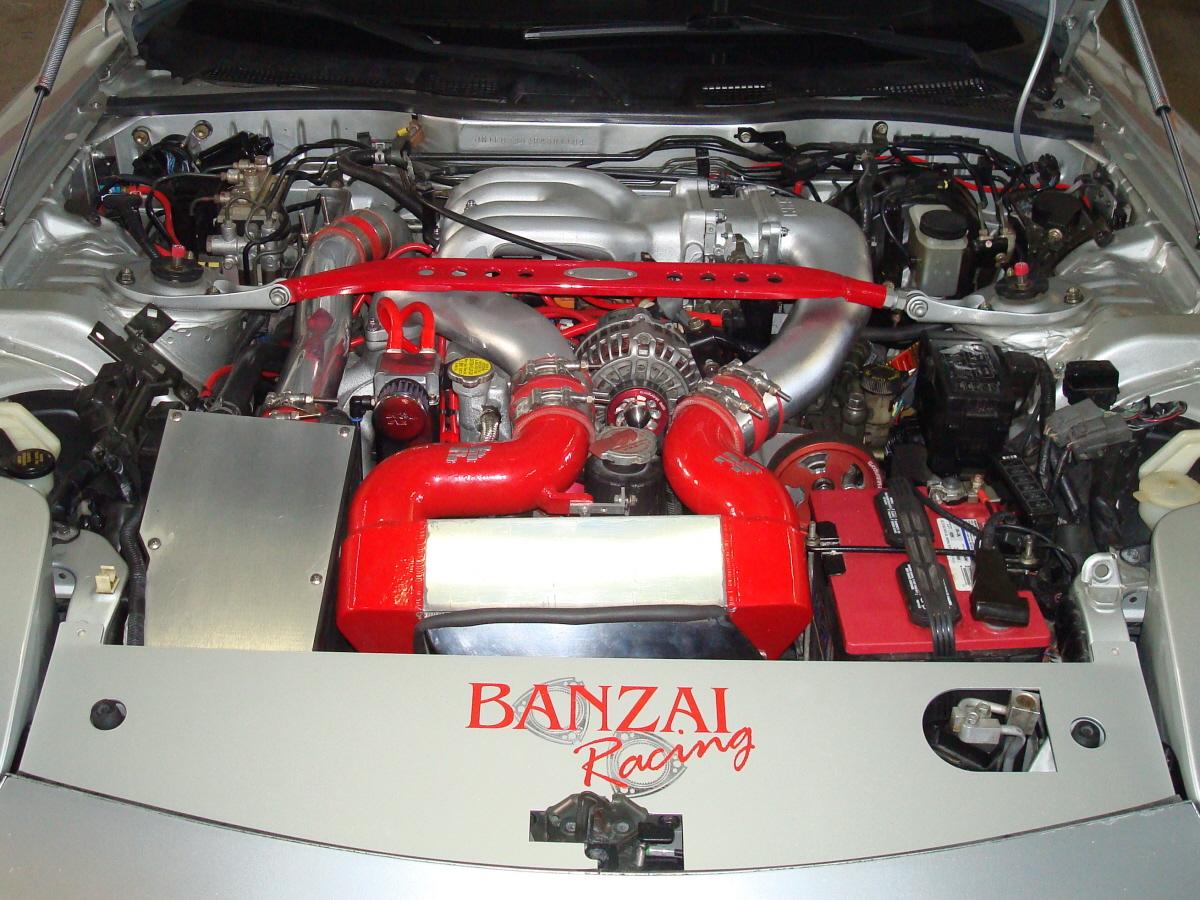

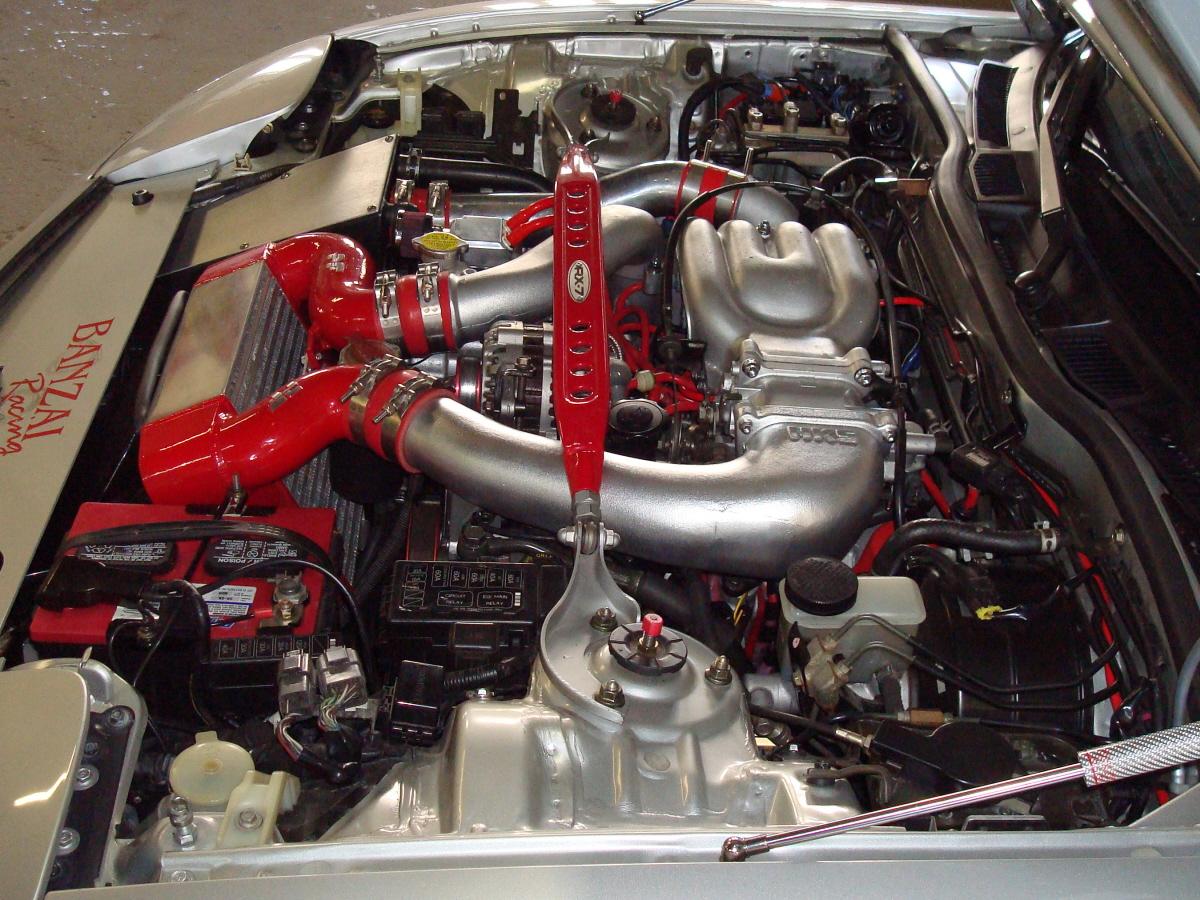

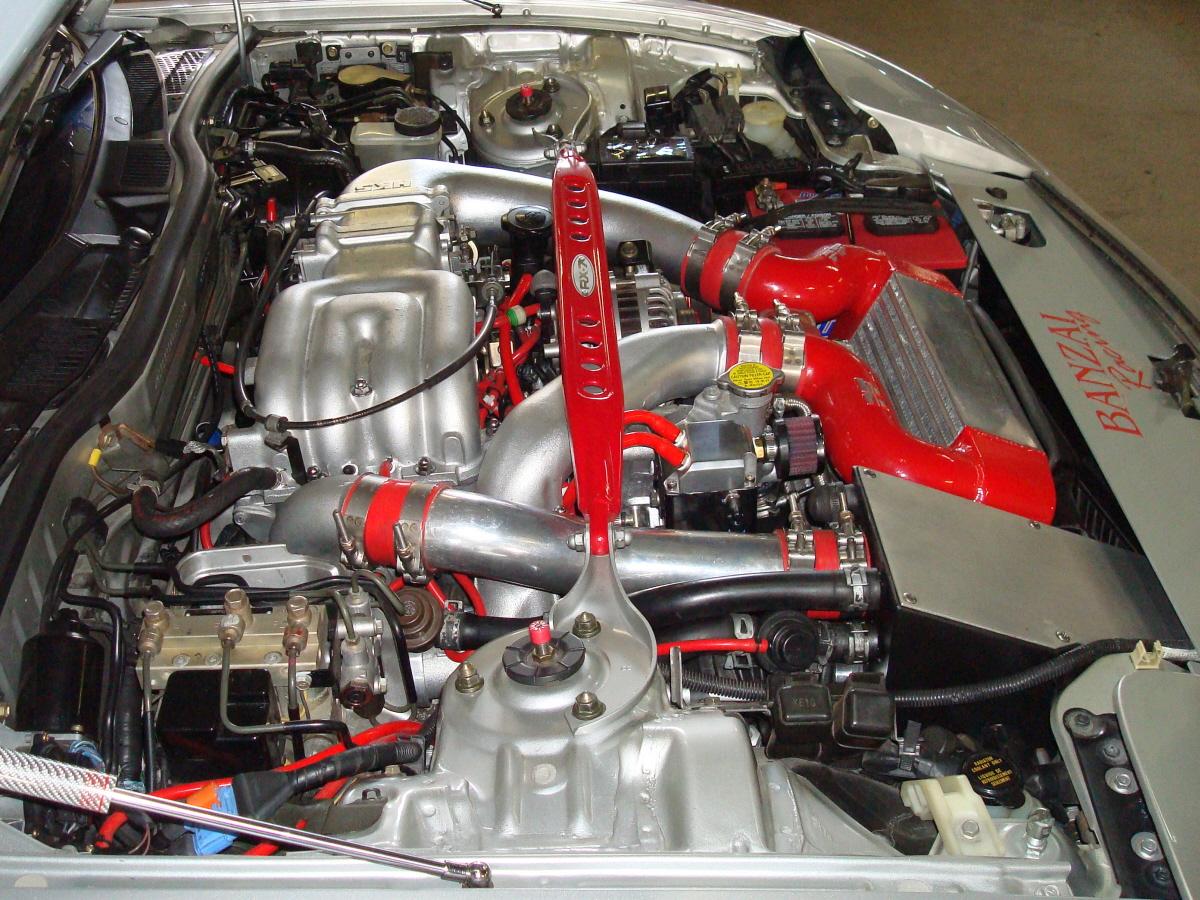

Photographs of Engine Bay March 2010

Passenger Side View	Front View	Driver-Side View

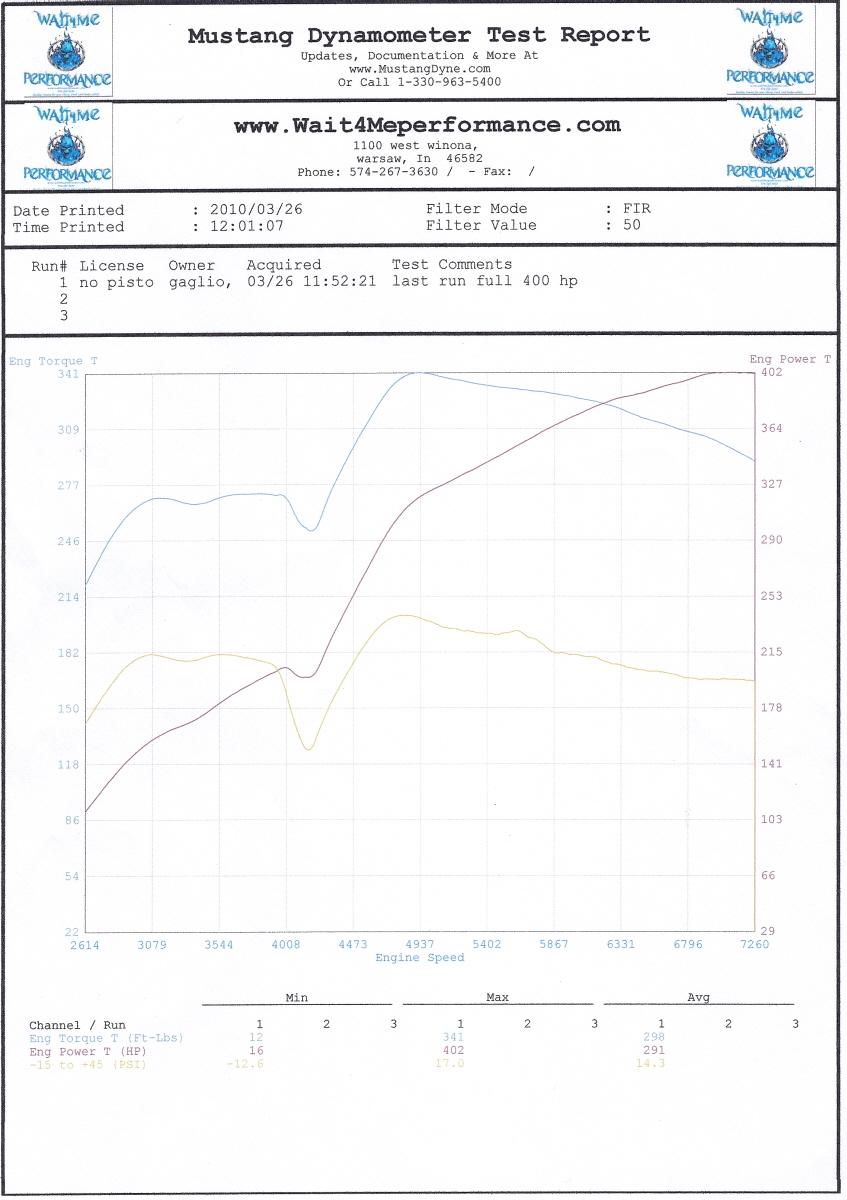

Dyno Chart 402 RWHP @ 17 psi

03/26/10

Stage 8: August '10 (OD 78790):- Performance Upgrades and Modifications;

• Mazdaspeed LSD Upgrade
• Banzai Racing Transmission Brace
• Fuel Filter Replacement

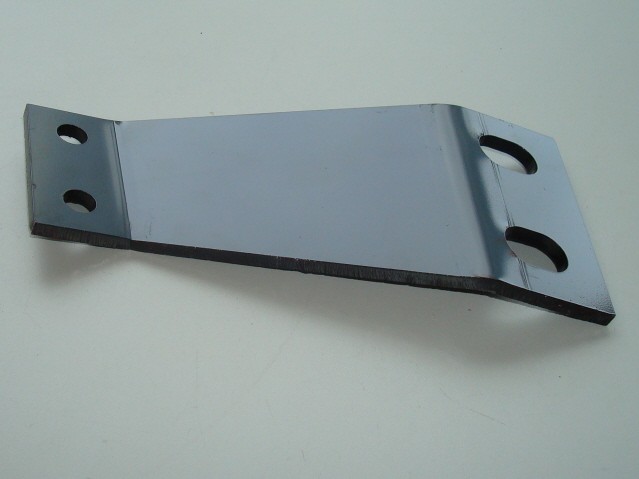

Transmission Brace	Brace Installed

Stage 9: Spring '12 (OD81045):- Performance Upgrades and Modifications;

• DEFI Racer 52mm Boost Gauge
• AEM Alcohol Injection System
• HKS Filters
• NGK Race Plugs 10's
• ACT Performance Streetstrip Clutch Disc
• JDM Transmission
• Banzai Racing Transmission Crossmember
• Redline MT-90 Transmission Fluid
• RE Short Shifter
• Banzai Racing 3-Bar Map Sensor Kit & Bracket
• 850cc Injectors
• Dyno Tuned to 413 RWHP @ 17.7 psi

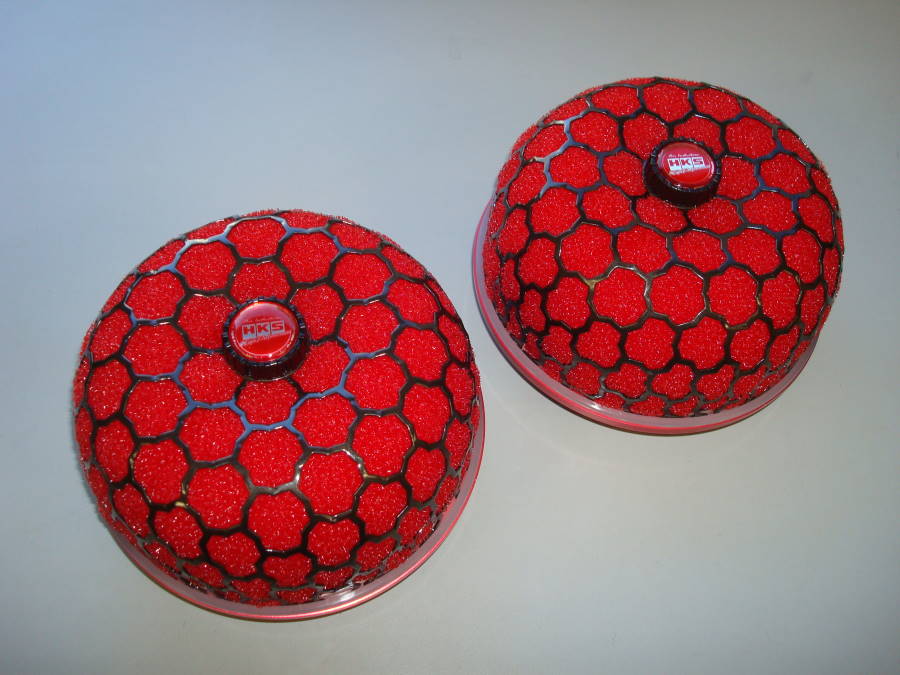

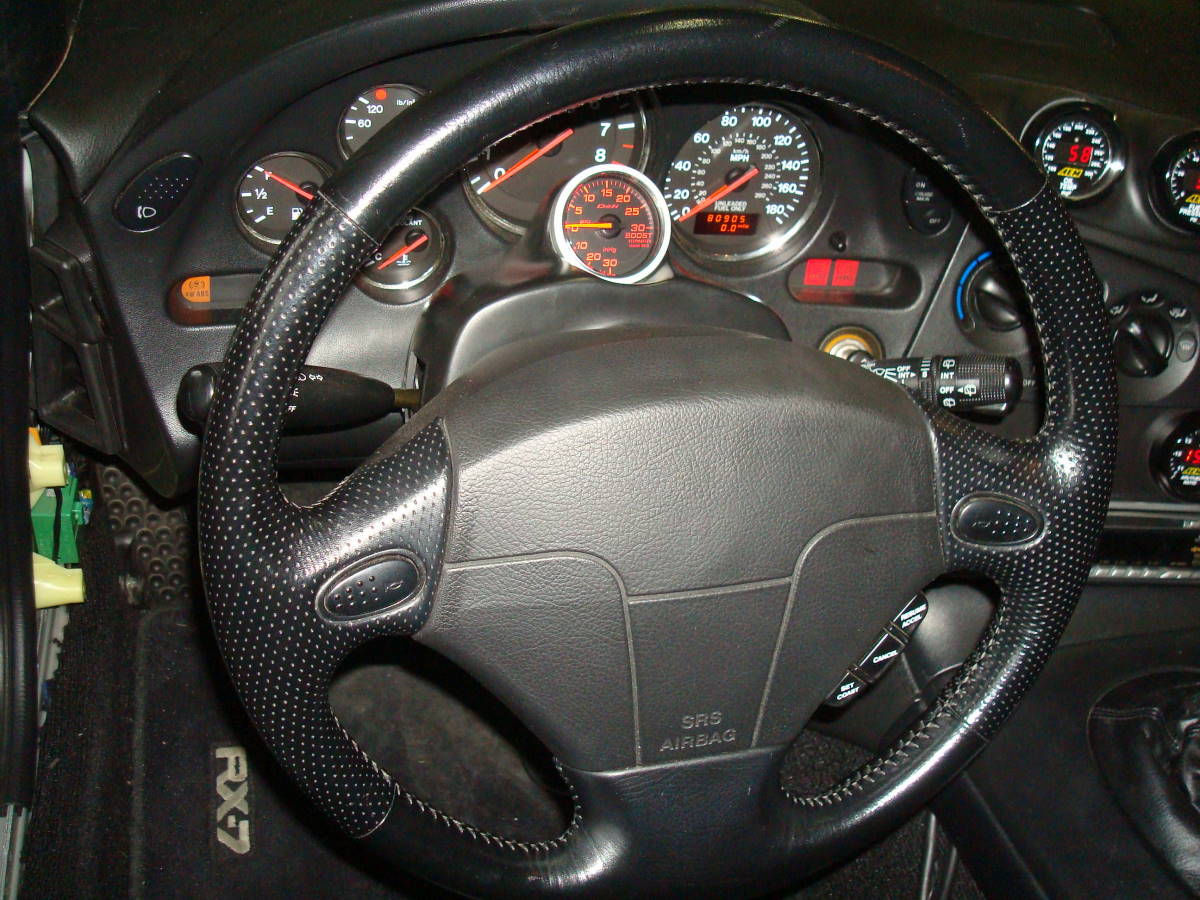

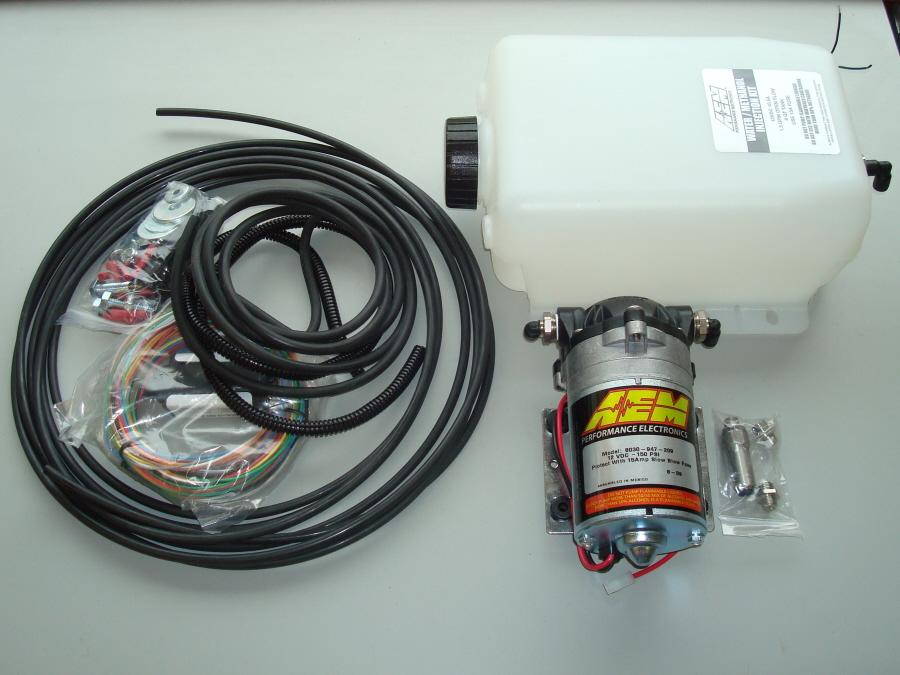

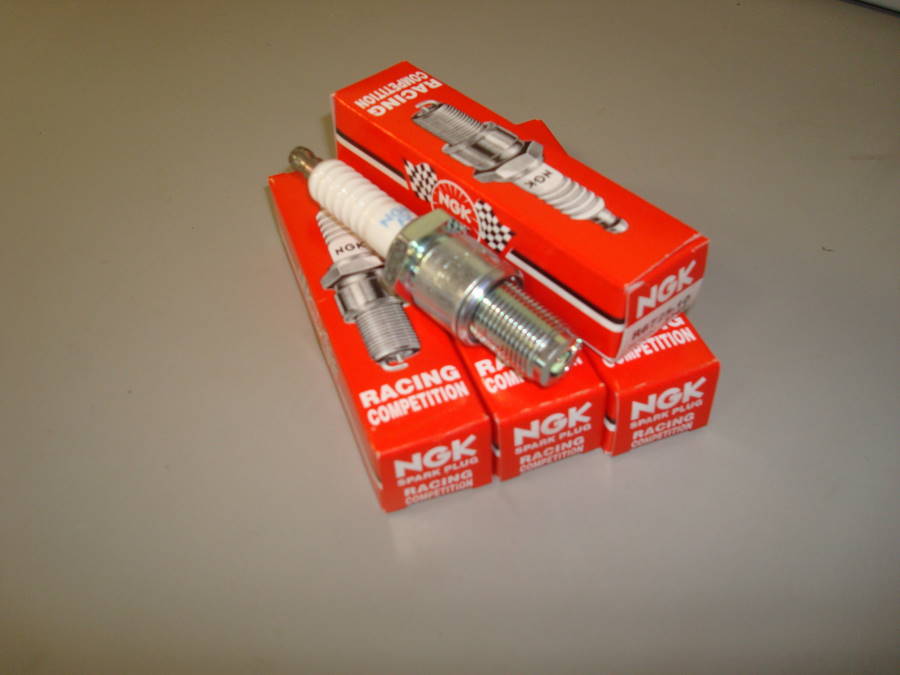

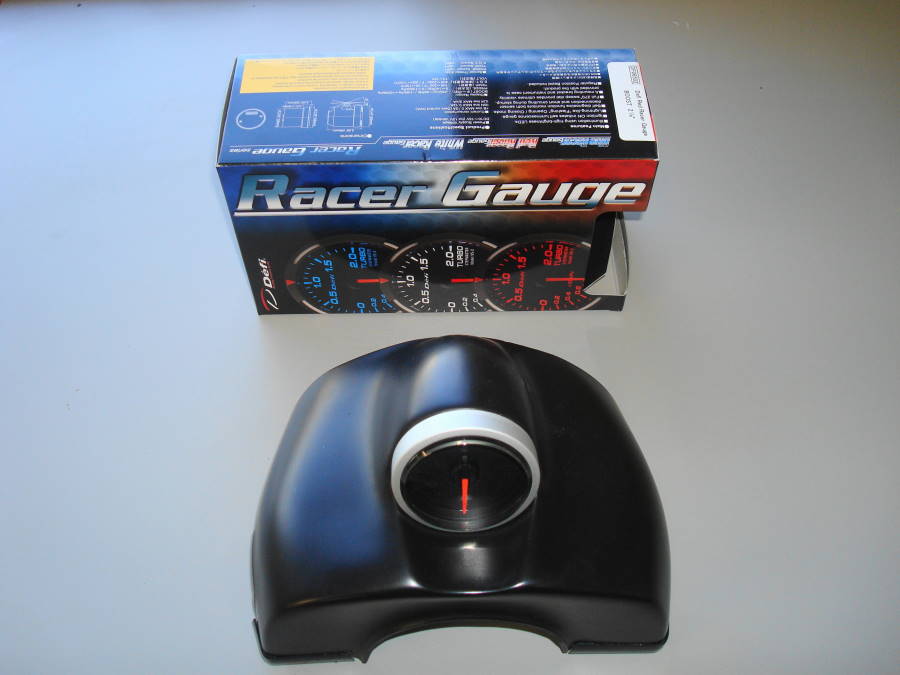

Boost Gauge & Pod	AEM A/I Kit	Boost Gauge Installed	Filters	Race Plugs

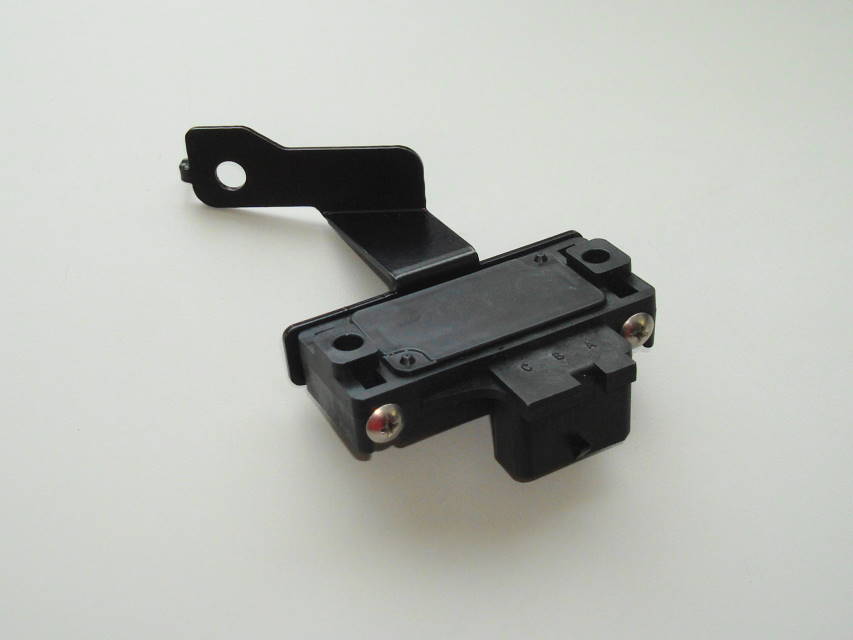

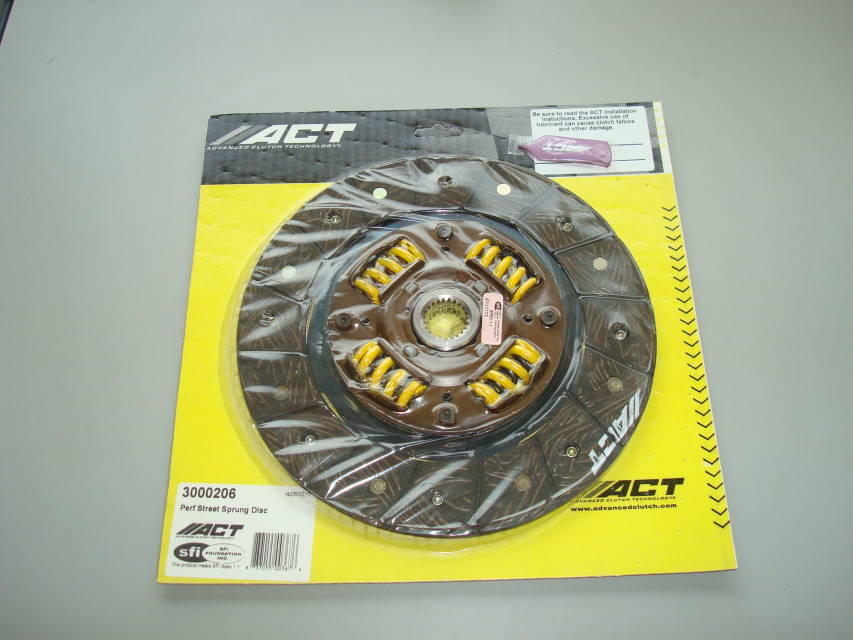

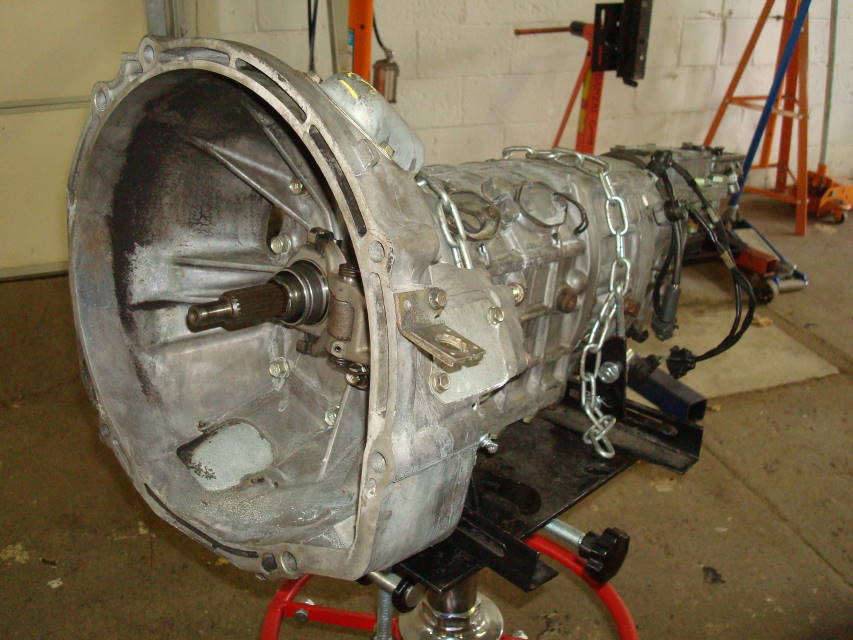

ACT Clutch Disc	JDM Transmission	Transmission Crossmember Kit	3-Bar Map Sensor Kit	3-Bar Map Sensor Kit

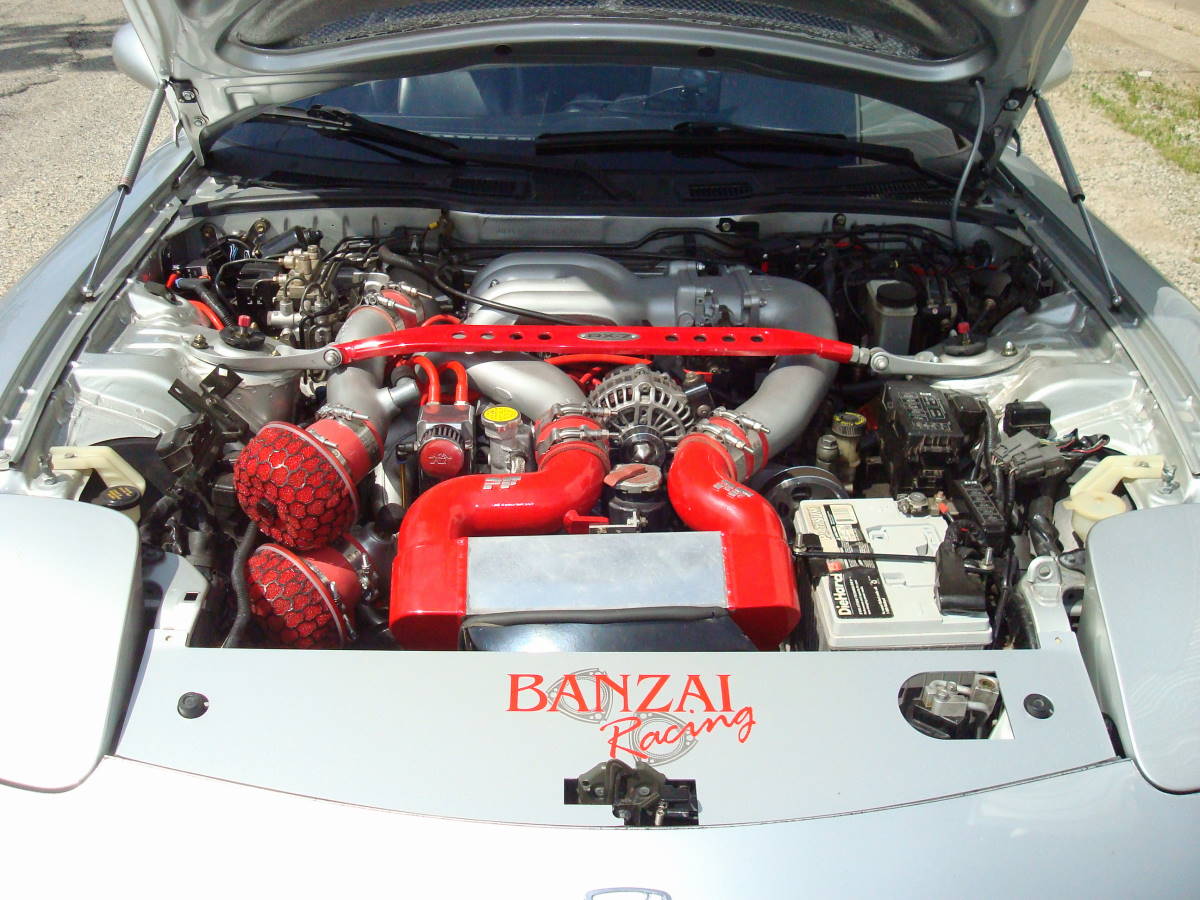

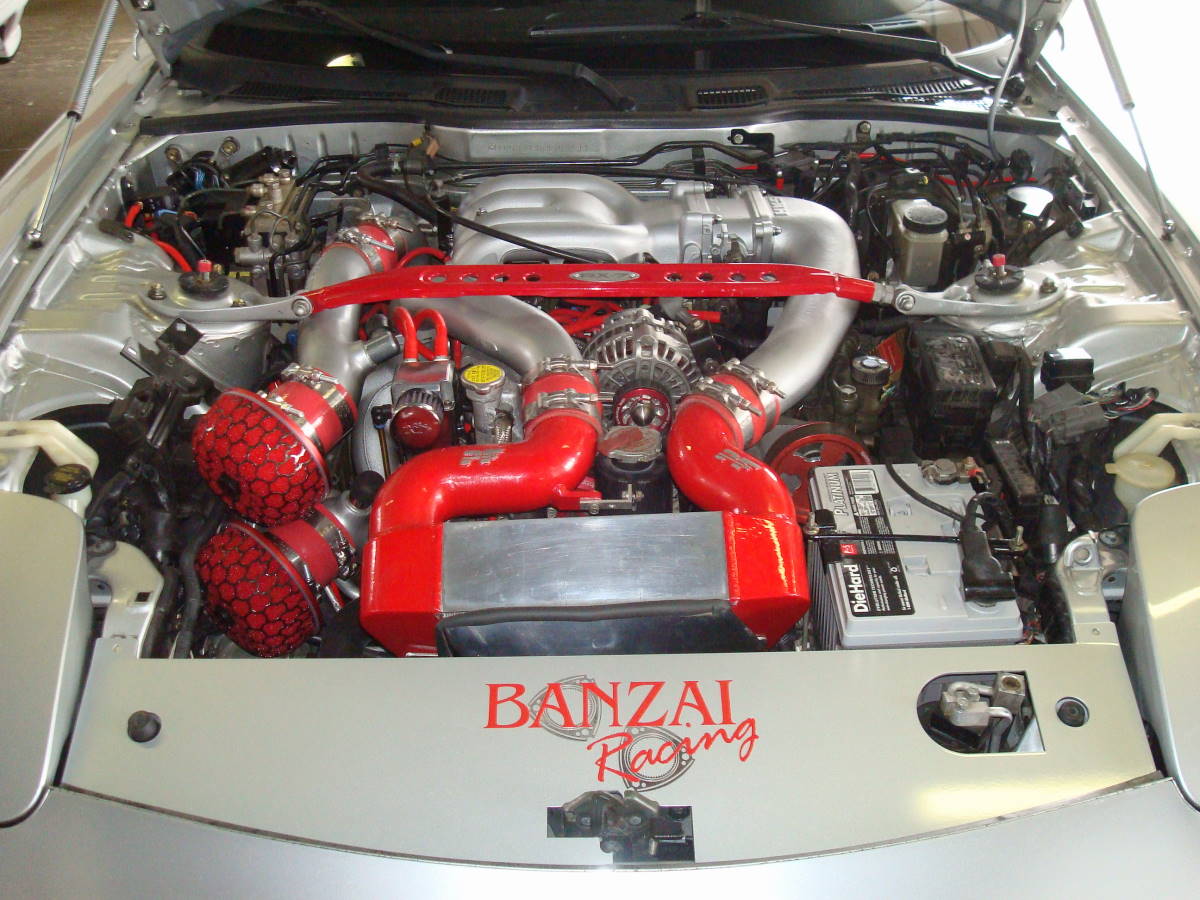

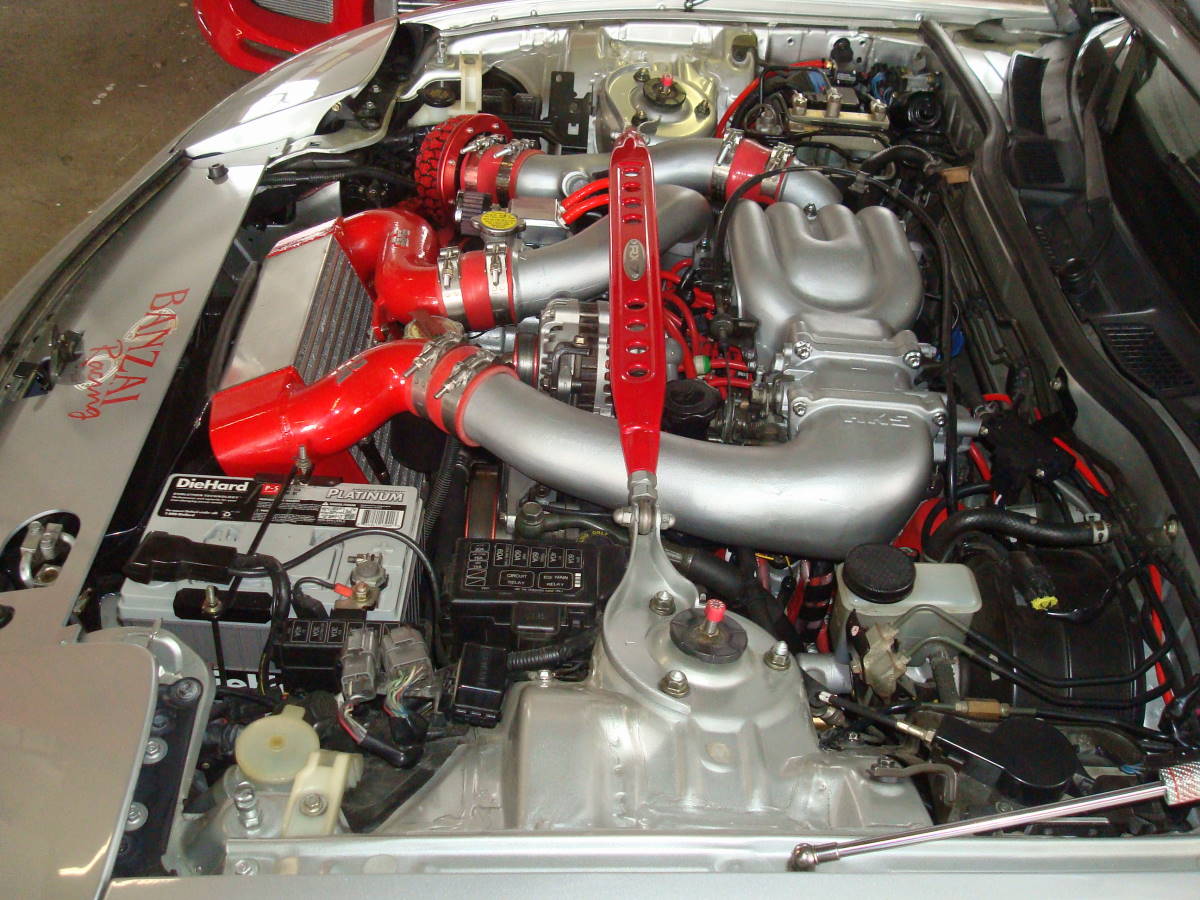

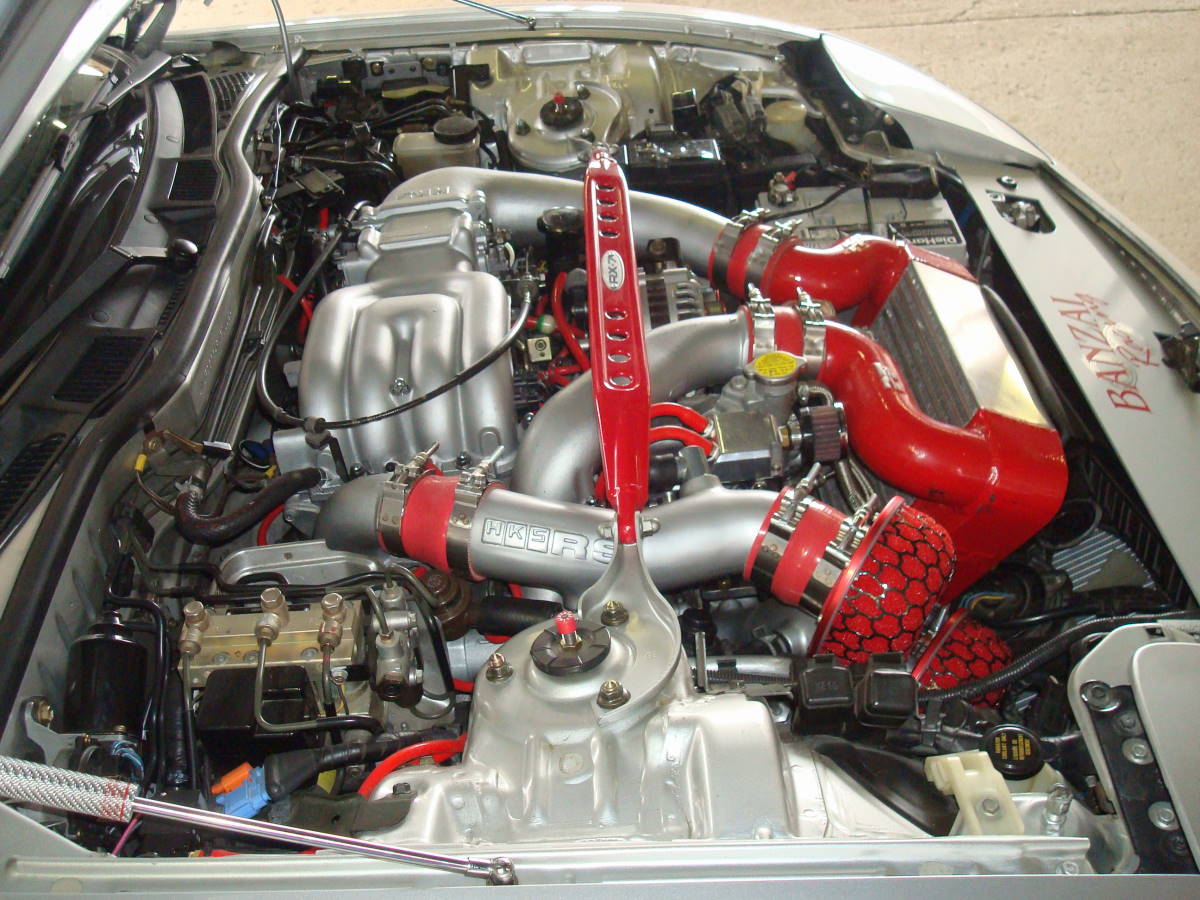

Engine Bay Photographs

Passenger Side View	Front View	Driver's Side View

Dyno Chart

413 RWHP @ 17.7 psi

Stage 10: Spring '13 (OD 81968):- We performed additional fine tuning

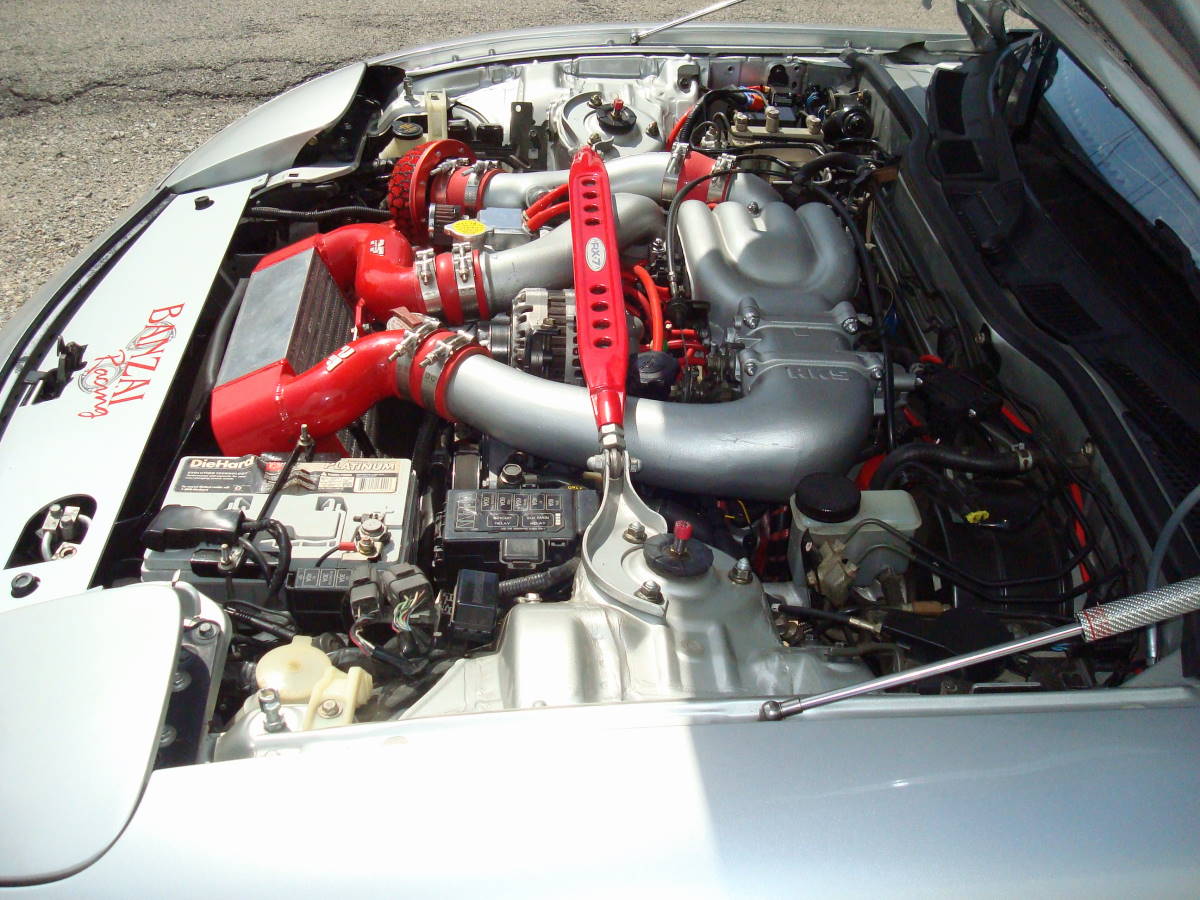

Engine Bay Photographs

Passenger Side View	Front View	Driver's Side View

Stage 11: Summer '14 (OD 83797):- We installed coilovers

• APEXi N1 EXV Damper System

Coilover Photographs

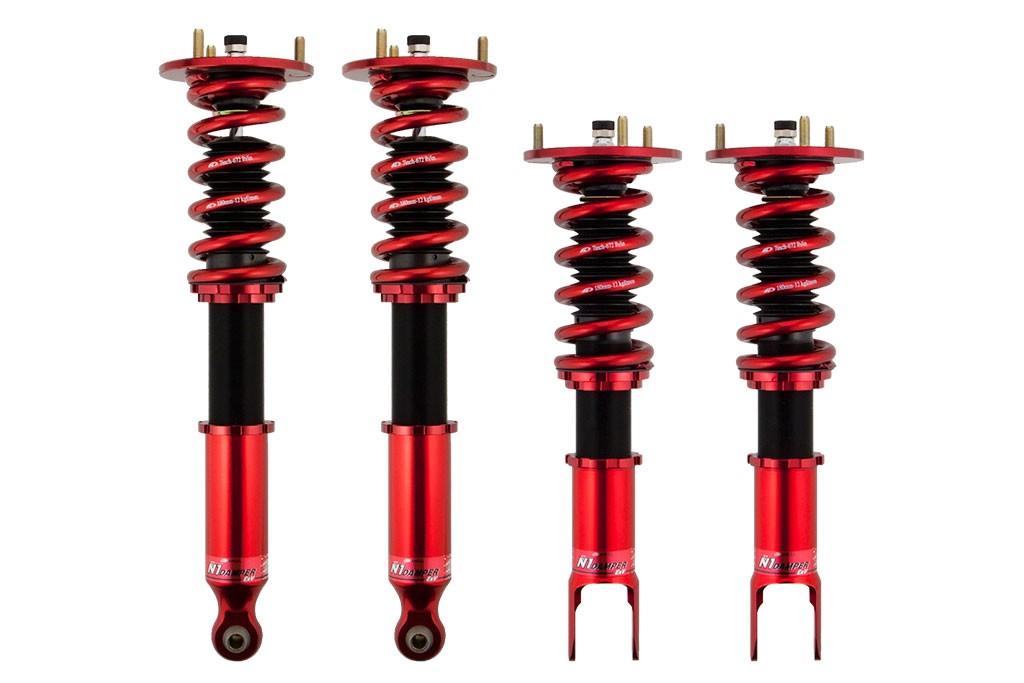

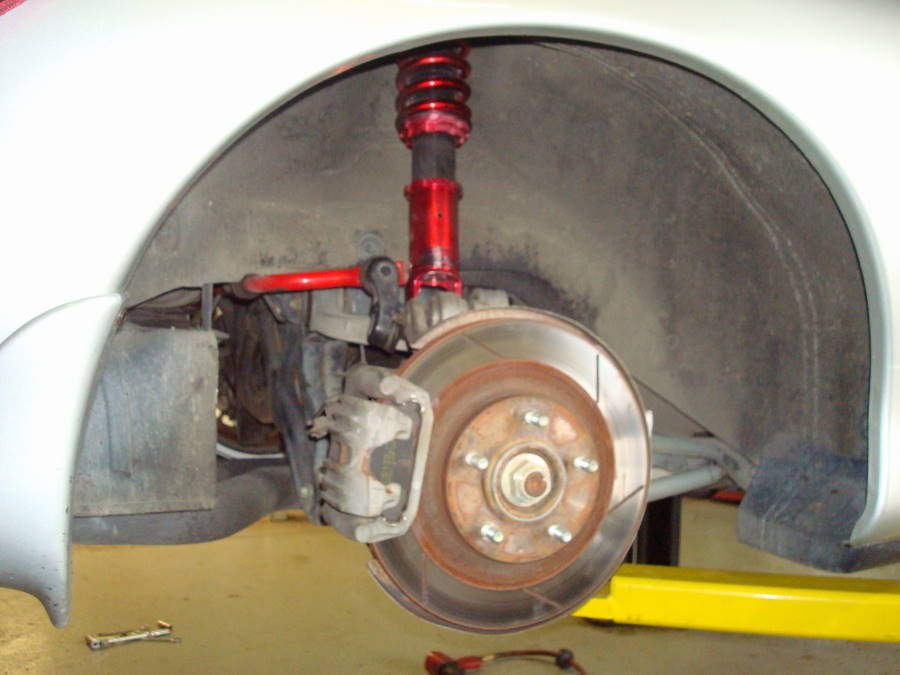

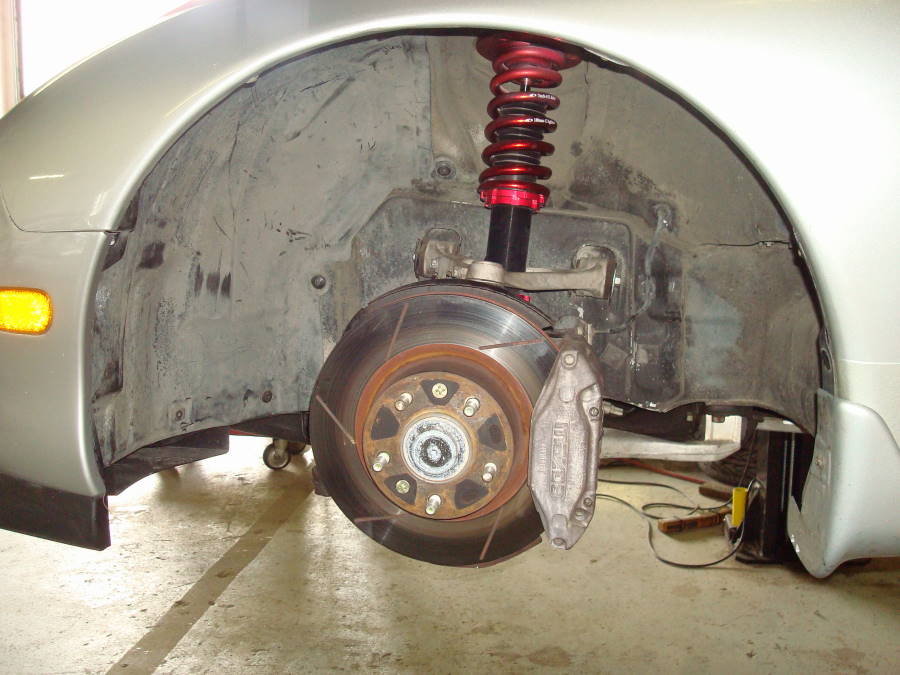

APEXi Coilovers	Installed Front	Installed Rear

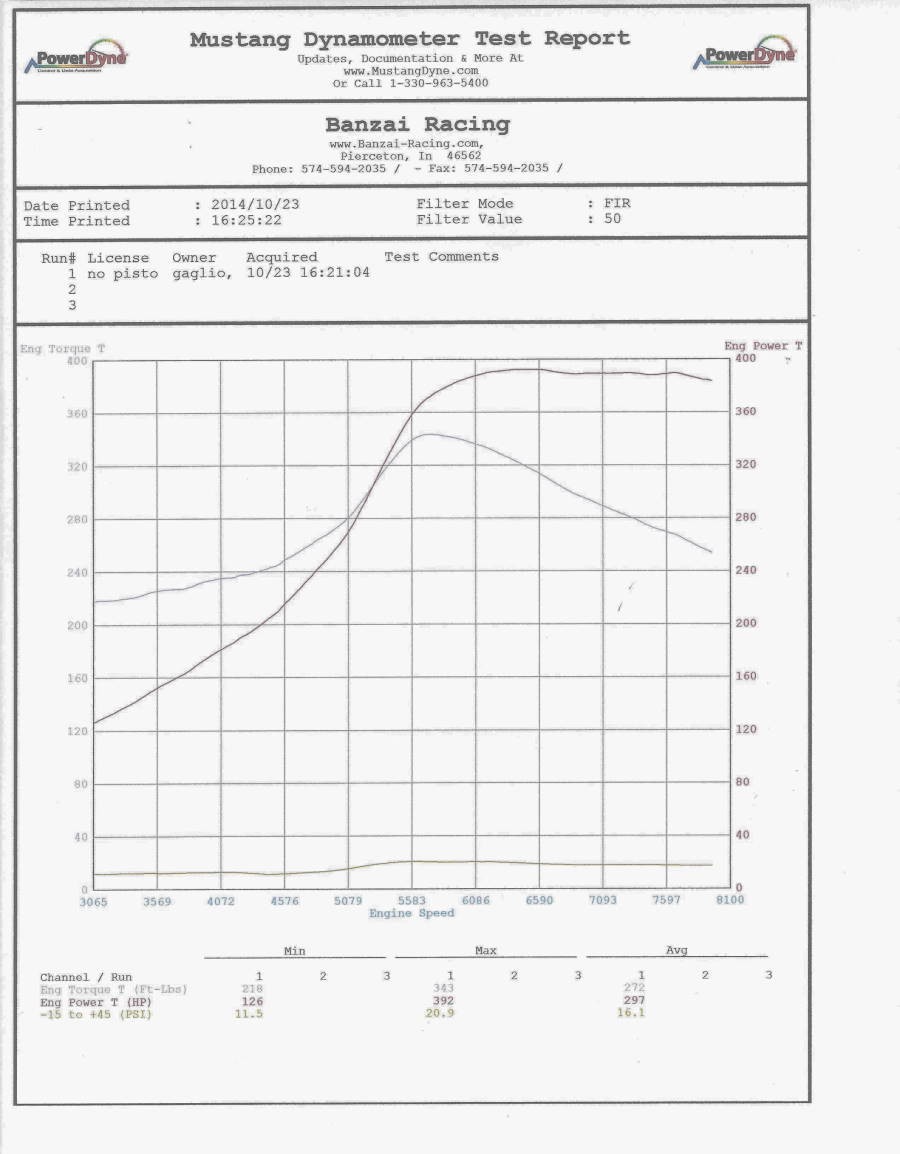

Stage 12: Fall '14 (OD 84404):- Dyno tuned on Banzai Racing Dynamometer

392 RWHP @ 20.9 psi

Stage 13: Winter '16 (OD 84743):- Clutch replacement

• EXEDY Twin Disc Clutch kit
• ACT Monoloc Wedge Collar
• AEM Water / Methanol Injection Failsafe Device
• Dyno tuned to 400 RWHP @ 21.5 psi !!!!!!!

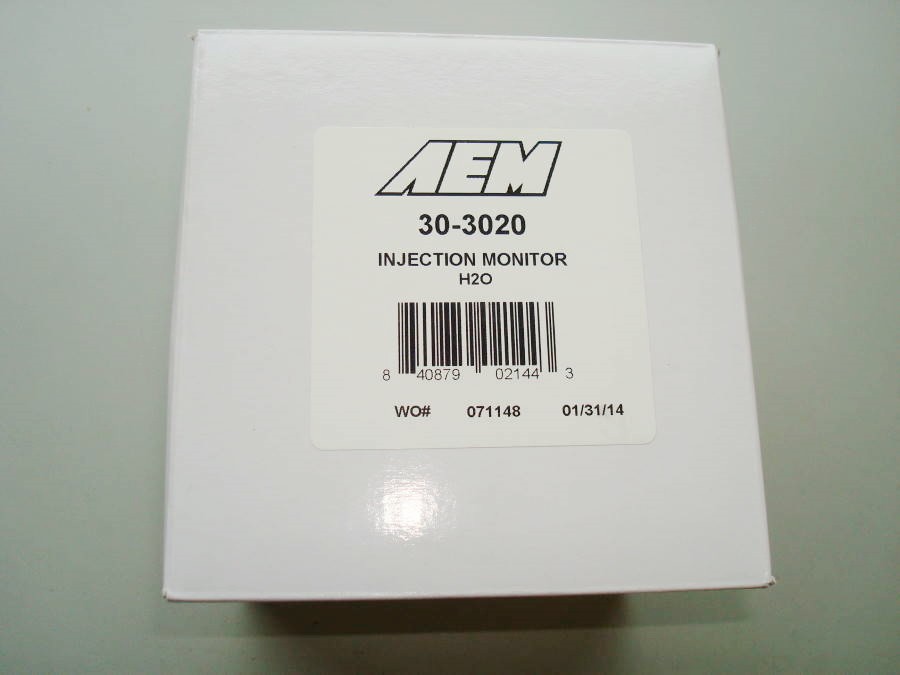

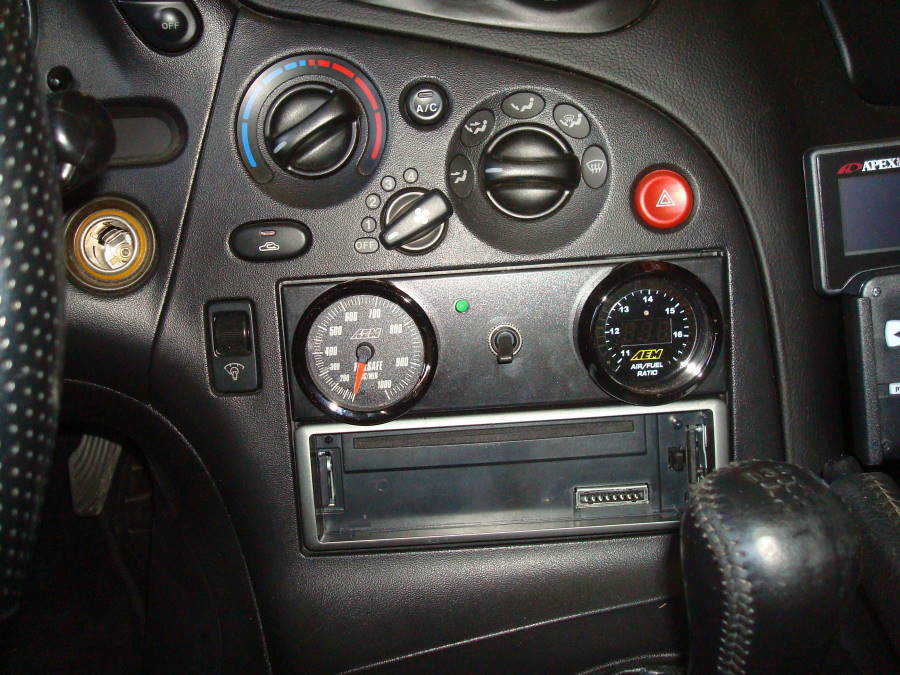

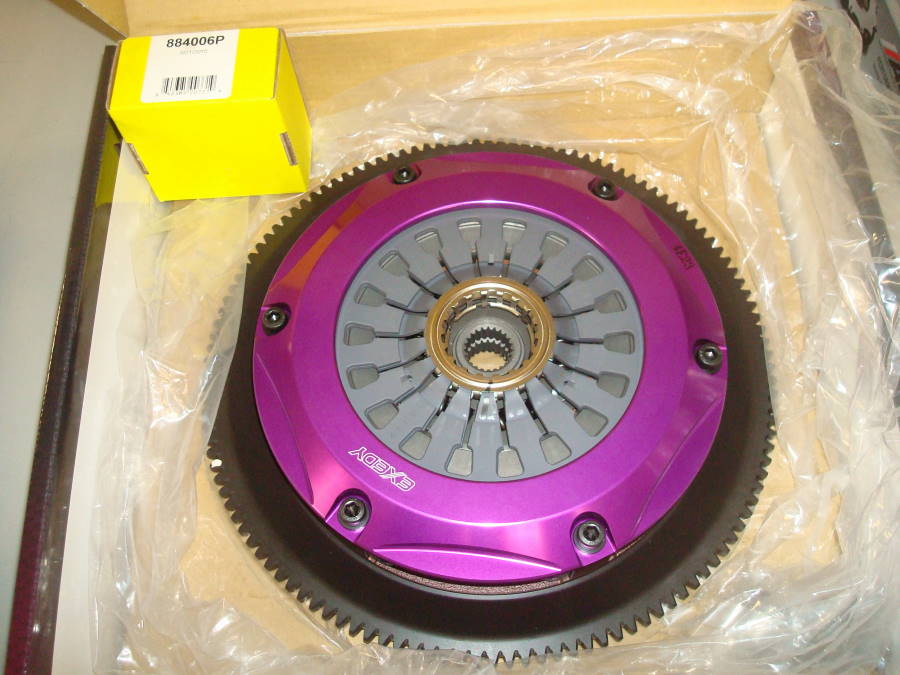

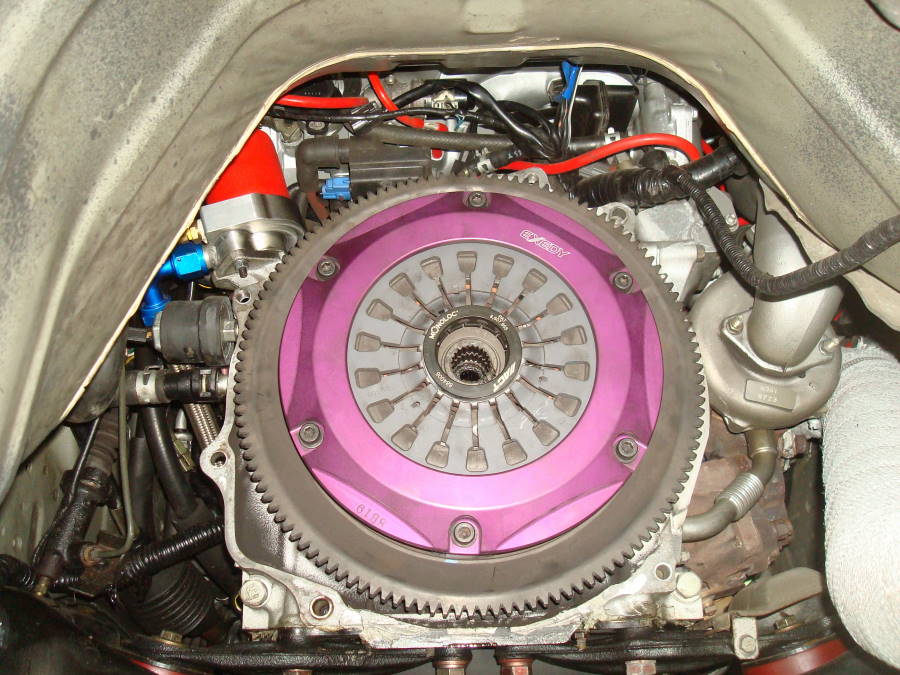

Clutch Kit & wedge Collar	Clutch Installed	Failsafe	Failsafe Gauge

Dyno chart January 2016

400 RWHP @ 21.5 psi
