Banzai Racing Mazda RX-7 Project FD3s

Dual Oil Cooler Modification

Dual Oil Cooler Modification Parts List
# Required
Part #
Item
Description
Price EA
Total Price
1
AER-FBM2980
 90 Female Flare Swivel -10 Fitting, Coupler, 90 Degree, Female -10 AN to Female -10 AN
$23.25
$23.25
1
AER-FBM3157
 Alum 90 Male/Female Flare 10 AN Fitting, Coupler, 90 Degree, -10 AN Female to -10 AN Male
$40.99
$40.99
2
EAR-41910ERL
 Oil Cooler -10AN Fittings Earl's Temp-A-Cure Fluid Cooler, Plate-Type, Aluminum, Natural, 5 7/8 in. x 13 in. x 2 in.
$135.75
$271.50
2
AER-FBM2245
 Metric Adapter #10 X 18mm 1.5 Fitting, Straight, Flare to Metric -10 AN to 18mm x 1.5 Male
$9.95
$19.90
1
RUS-670360
 Fuel Pressure Fitting Fitting, Fuel Pressure Take Off, -10 AN Male to -10 AN Female, 1/ 8 in. NPT Gauge Port,
$13.88
$13.88
1
SUM-220086
 -10 45 Hose End Fitting, Hose End, 45 Degree, -10 AN Hose to Female -10 AN,
$16.95
$16.95
5
SUM-220087
 -10 90 Hose End Fitting, Hose End, 90 Degree, -10 AN Hose to Female -10 AN
$16.95
$84.75
2
SUM-220090
 -10 Hose End Single Fitting, Hose End, Straight, -10 AN Hose to Female -10 AN
$8.95
$17.90
1
SUM-230015
 SS Hose -10 15' Hose, Braided Stainless Steel, -10 AN, 15 ft.
$85.95
$85.95
1
*MOC-10AN
 MOCAL Oil Thermostat 10 AN Oil Thermostat 180 degrees
$109.99
$109.99
Total Cost for Parts
$685.06

Above is a complete list of parts that we used for our Dual Oil Coolers modification. All of these parts can be purchased from Summit Racing with exception to the *MOCAL Oil Thermostat. This part was purchased from Racer Parts Wholesale.

Items priced as of August 2009 and do not include shipping & handling.

NOTE: we DO NOT sell this kit. This information is supplied to allow you to purchase the kit components yourself.

Additionally, we fabricated our own custom bracketry to install the oil coolers based on fitment to our Feed Type II front nose configuration.

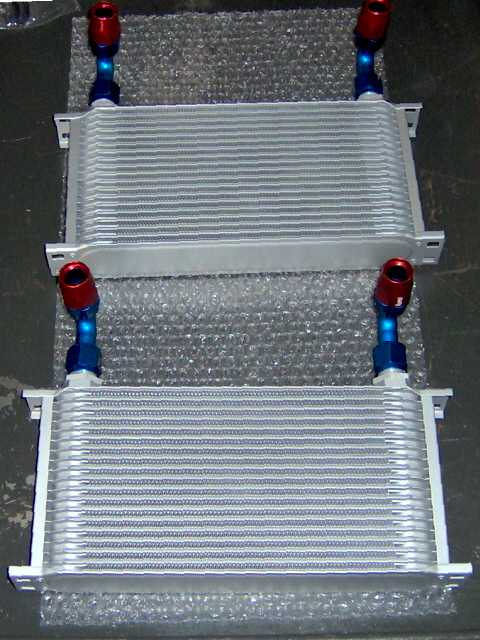

Earl's Oil Coolers

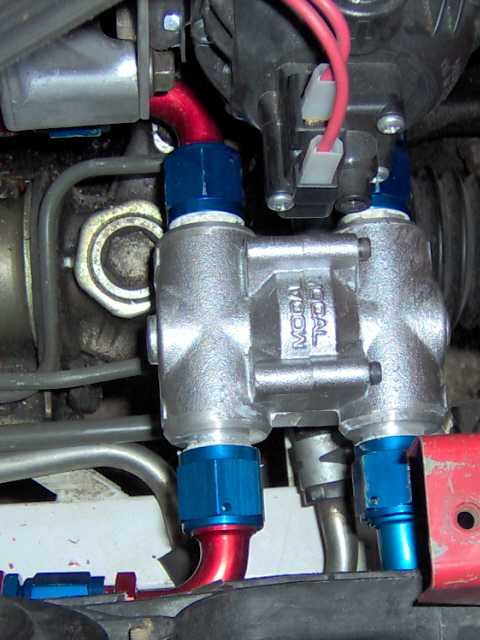

MOCAL Oil Thermostat
