Banzai Racing (Cox Staged Modification Plan)

Adam's FD3s Single Turbo Conversion

1993 MS Mazda RX-7 FD3s

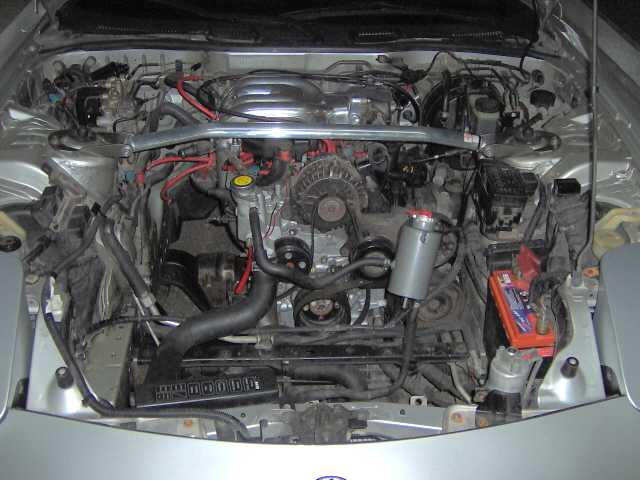

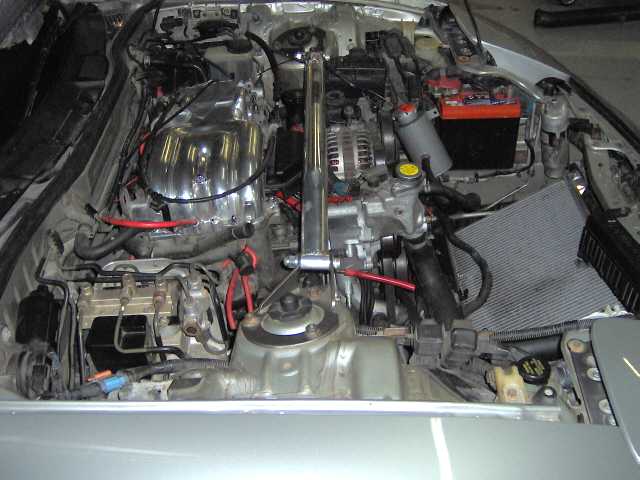

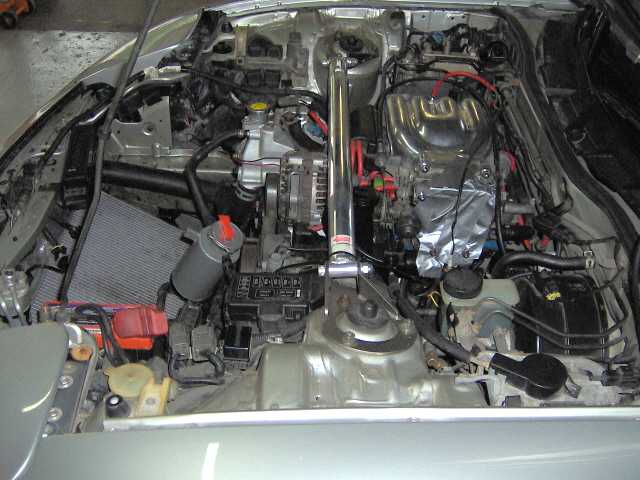

Photographs of the Engine Bay Prior to Conversion


Passenger-Side View	Front View	Driver-Side View

September 18th, 2006

In September '06 (OD TBD) we are performing/installing the following upgrades and modifications;

Customized Turbo Kit:

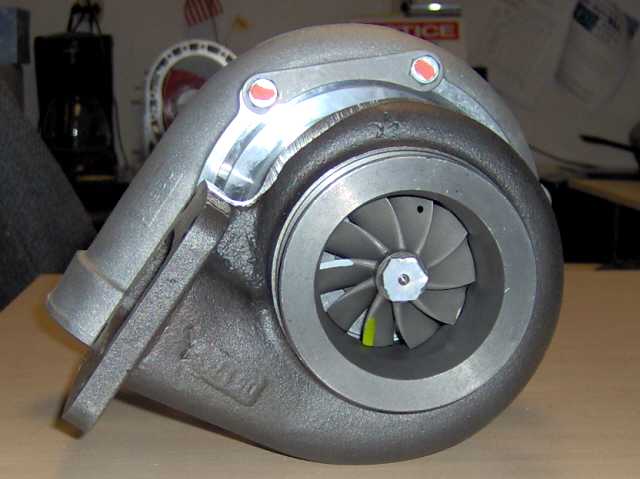

- Garrett Dual Ball Bearing GT35R Turbo:- T4 .82 Hot-Side
- HKS Cast Manifold

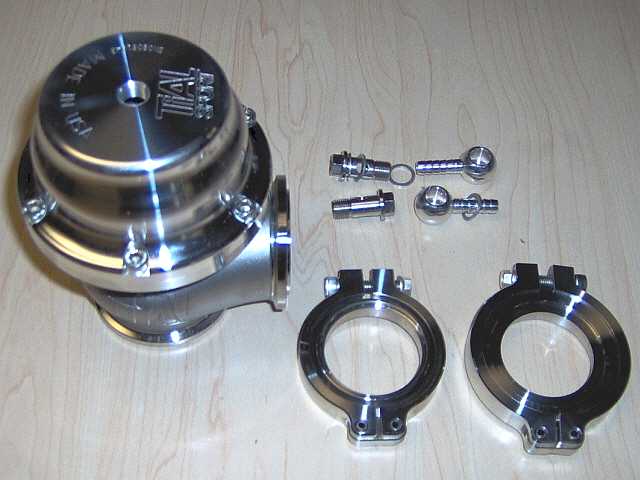

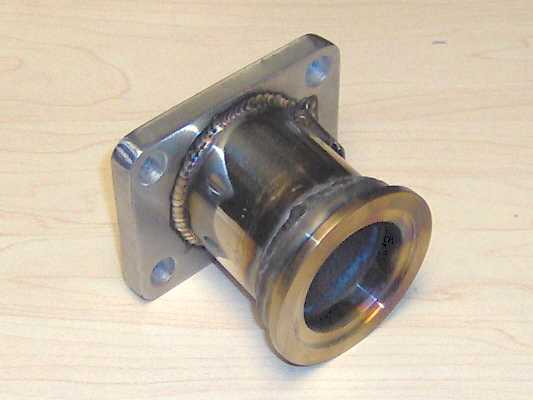

- Tial 44mm Wastegate
- Custom Downpipe
APEXi GT FMIC Kit
Custom I/C Piping
Banzai Racing Custom Fuel Kit
GReddy BOV
GReddy Elbow
GReddy Profec-B Boost Controller
APEXi Power FC
Vacuum Line Simplification
A/C Elimination

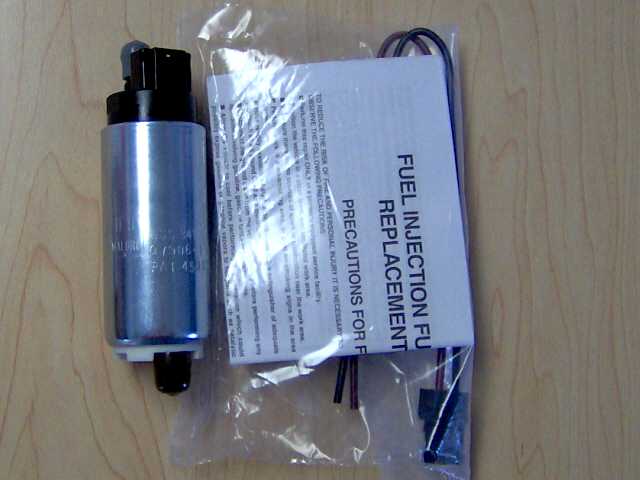

Walbro 255 Fuel Pump

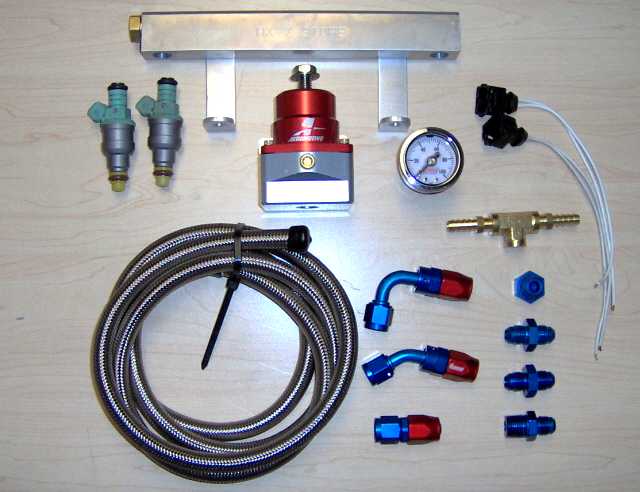

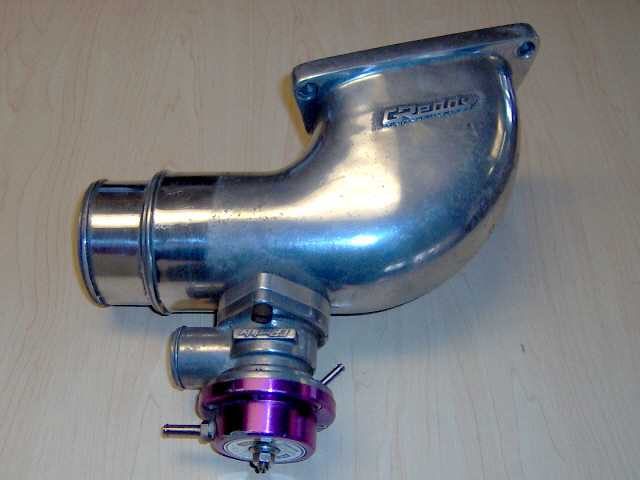

Walbro Fuel Pump, APEXi Power FC, Banzai Racing Custom Fuel Kit and GReddy Elbow & BOV

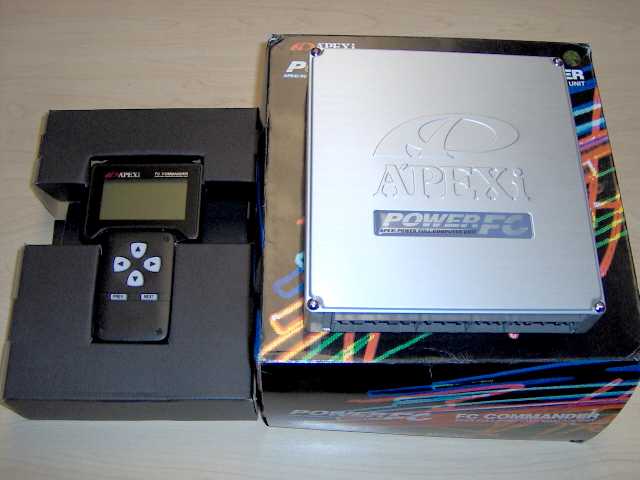

Fuel Pump	Power FC & Commander	Fuel Kit Components	GReddy Elbow & BOV

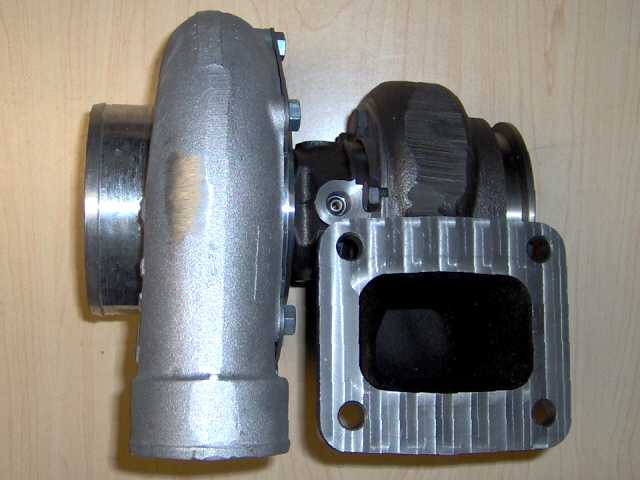

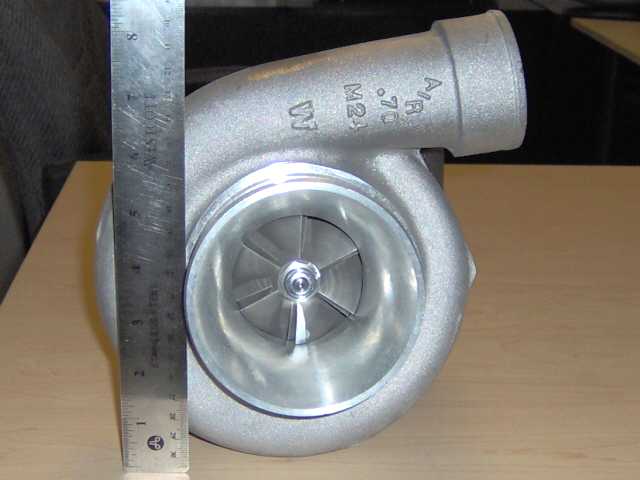

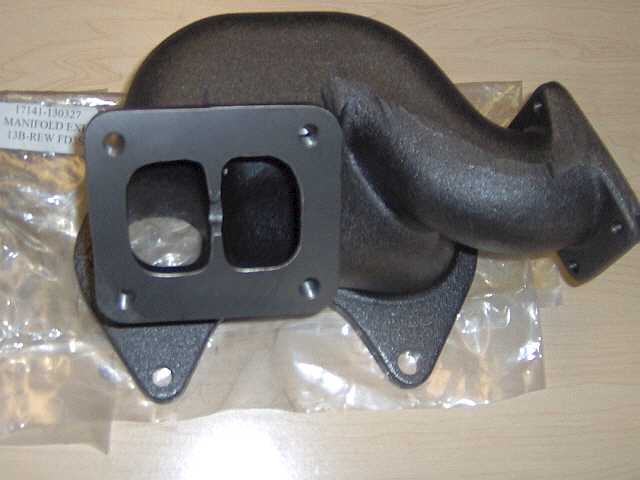

Turbo Kit Components

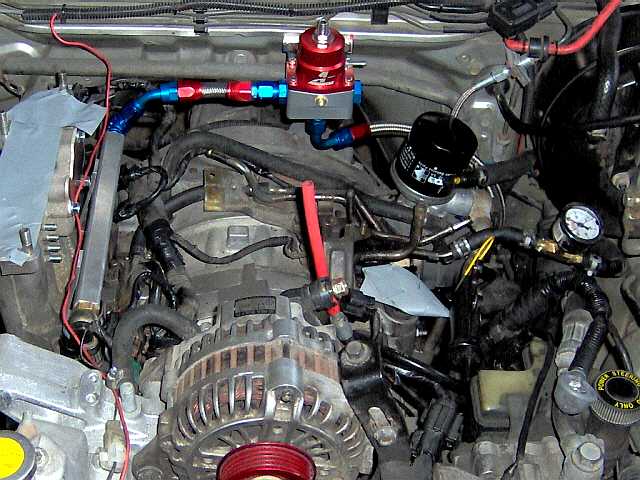

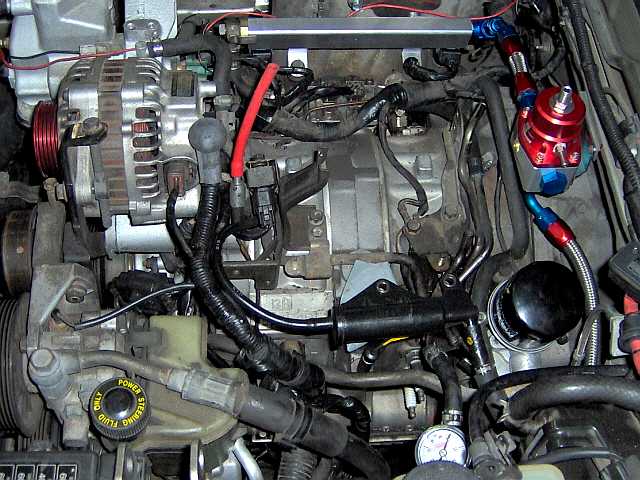

Photographs of engine bay taken after Fuel Kit installation

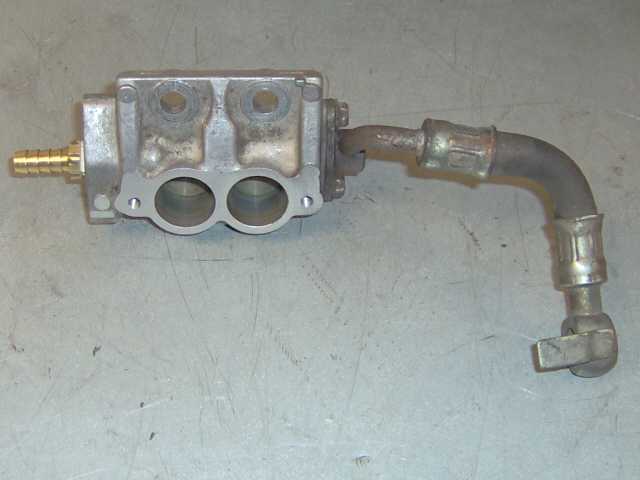

Modified Fuel Rail	Front View 9-21-06	Side View 9-21-06

Click on images for larger view

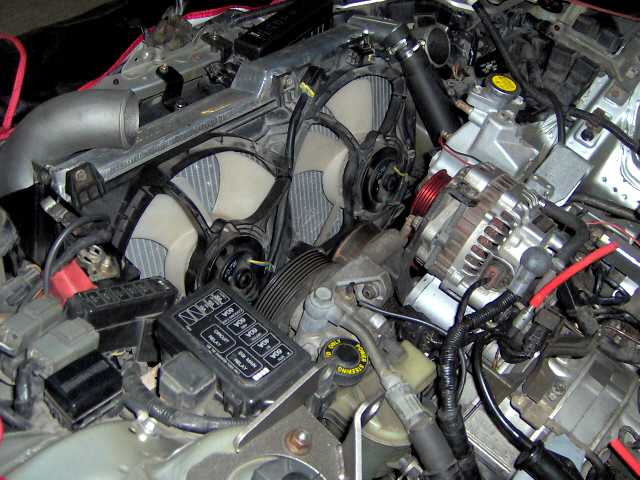

Photographs of Front Mount Intercooler Installation and Koyo Radiator & Fans Installed

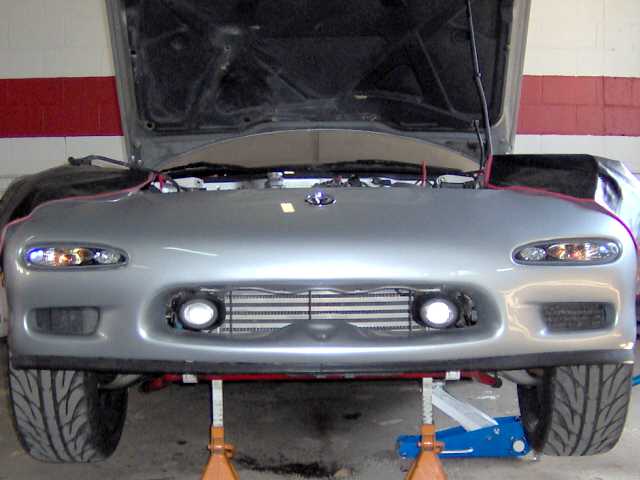

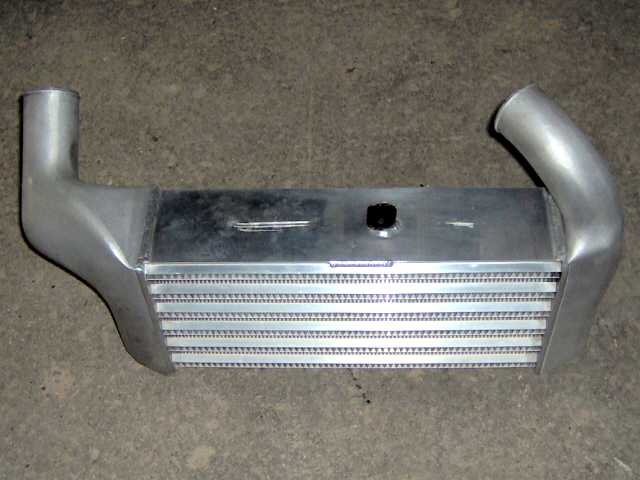

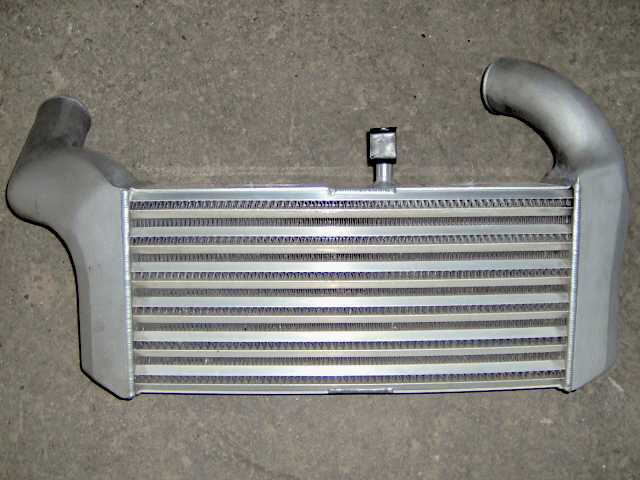

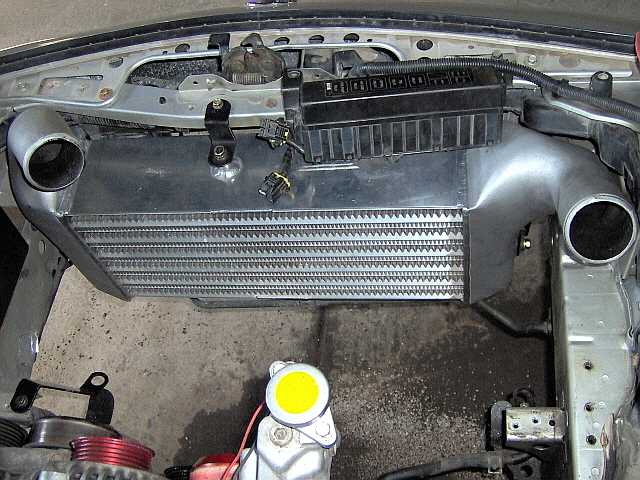

FMIC Front	FMIC Top	FMIC Installed Front	FMIC Installed Rear	Radiator Installed

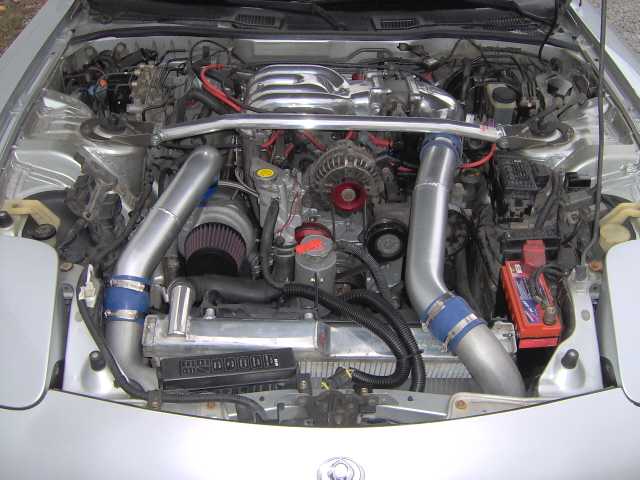

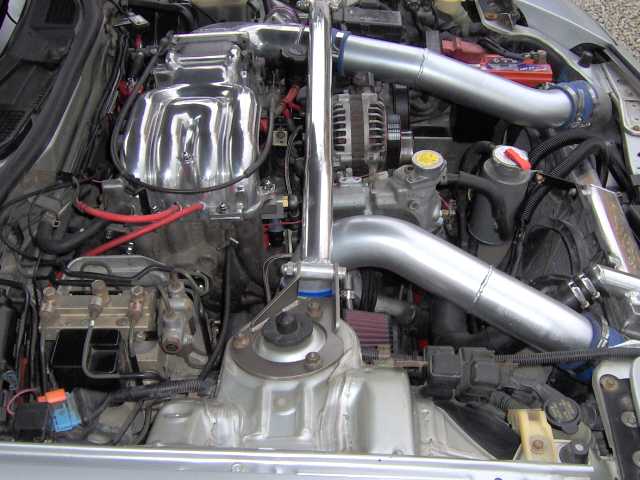

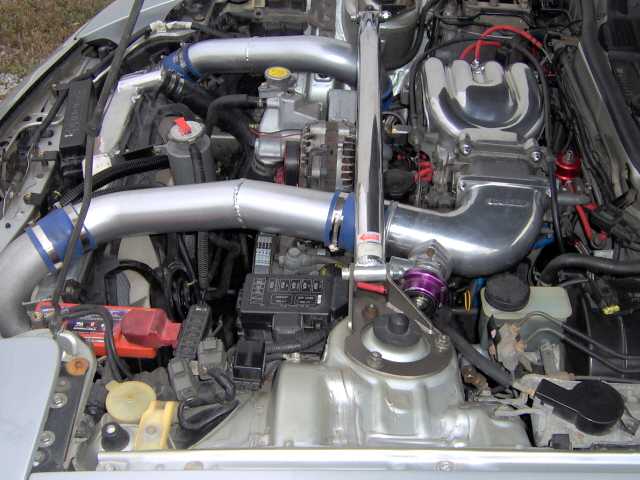

Final engine bay photographs 10-19-06


Passenger-Side View	Front View	Driver-Side View
