1991 S5 Vert TII 13B-RE Cosmo Conversion
Phase II: 13B-RE Engine Rebuild/Installation
Jan '05 Now that the TII conversion is complete, we will install a 13B-RE Cosmo Engine into our TII vert. Here are pics of the 13B-RE engine prior to breakdown.
 |
 |
 |
|
Cosmo
Long Block
|

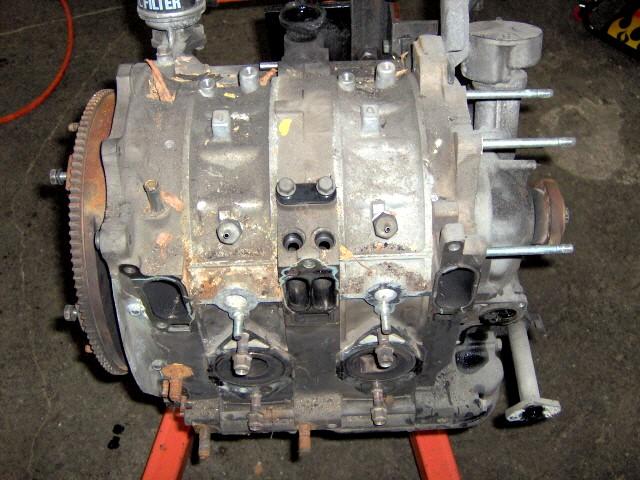

Cosmo
Short Block
|

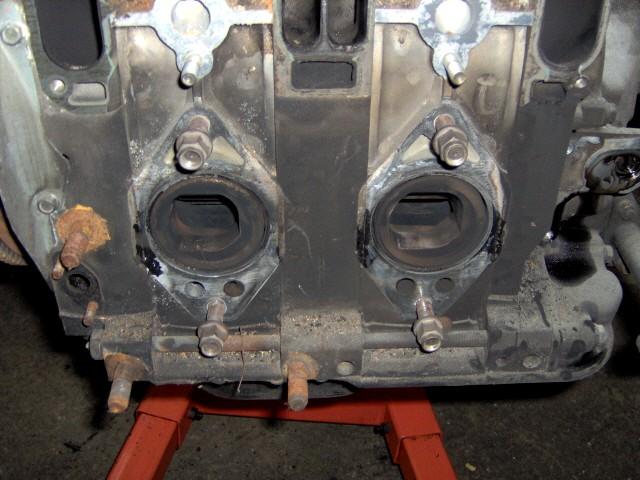

Exhaust
Ports
|

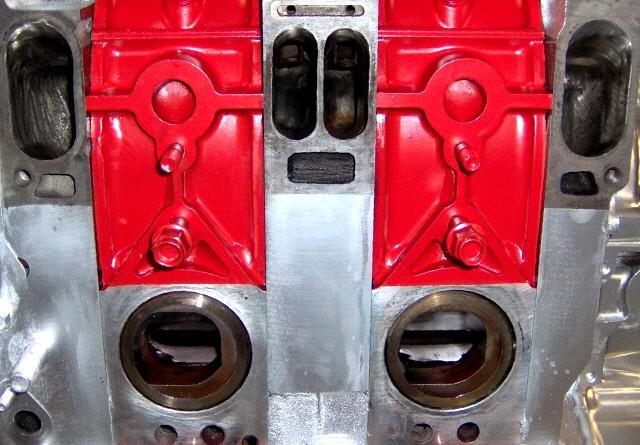

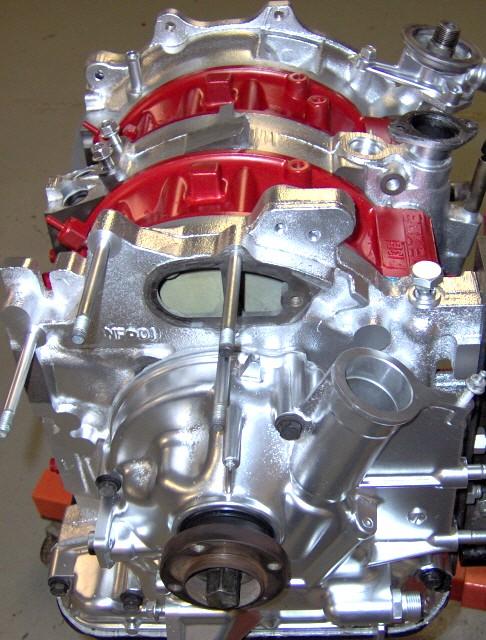

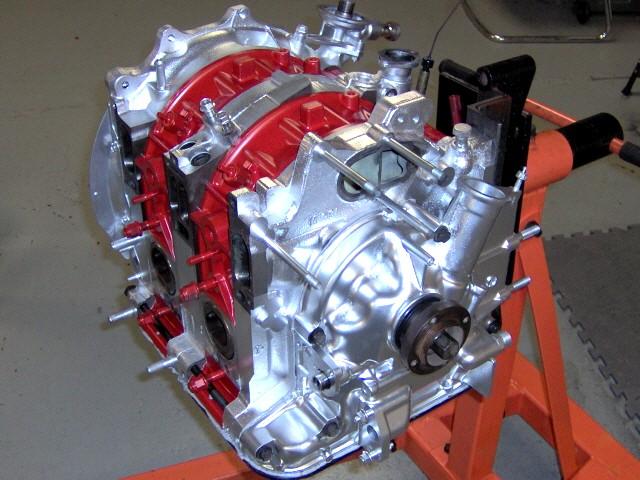

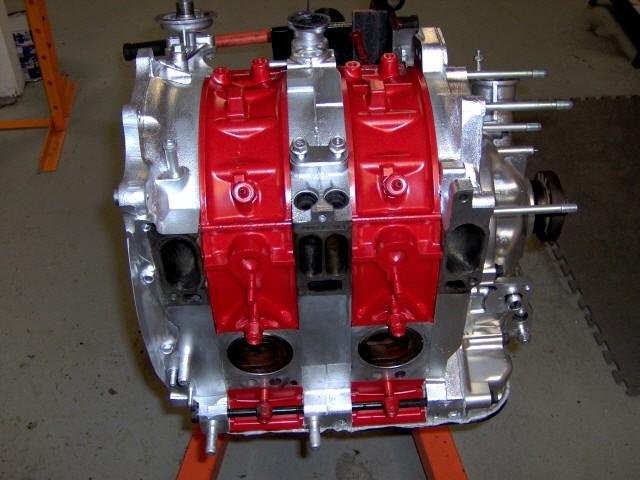

Jan '05 Pics of the 13B-RE engine after porting, painting and rebuild. We personally like the Red/Silver color scheme, so we repeated it for the Cosmo engine.
 |
 |
 |
 |
 |

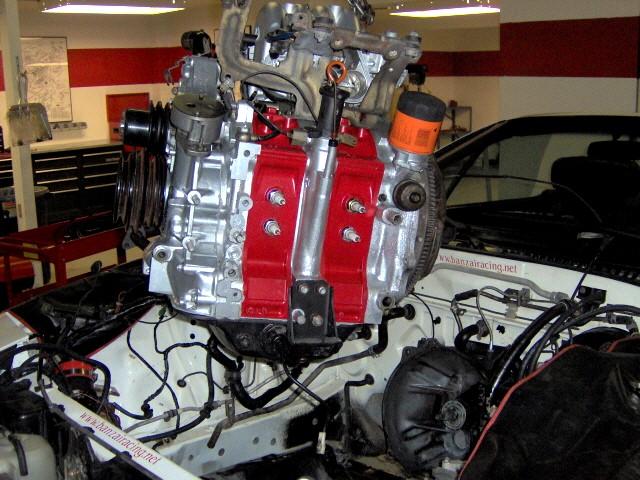

Jan '05 The previously rebuilt & installed 13-BT engine was removed from the engine bay ...
 |
 |
 |
|

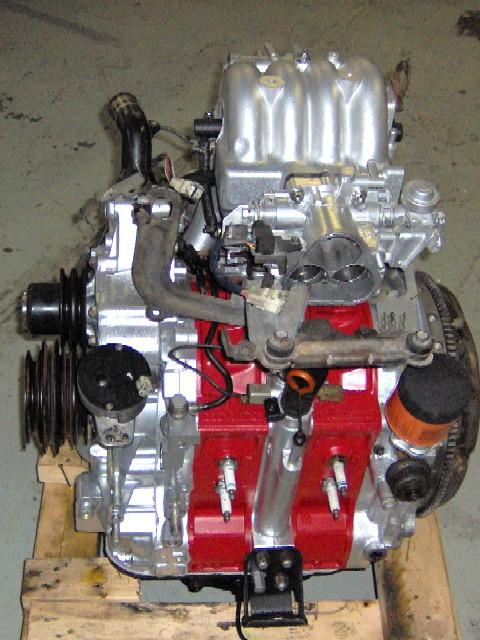

13BT
Engine Removed
|

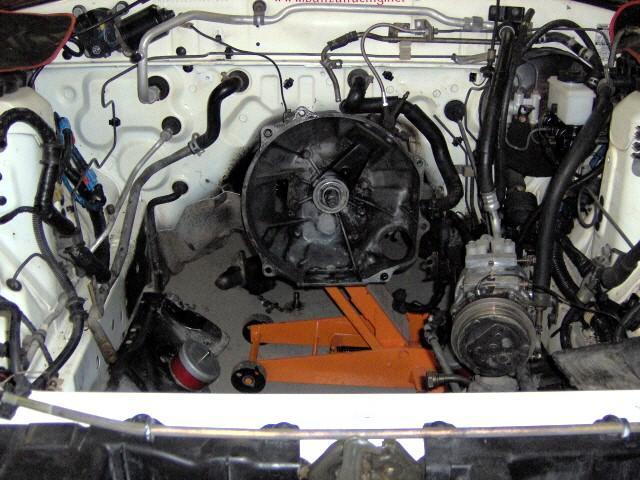

Empty
Engine Bay Again!
|

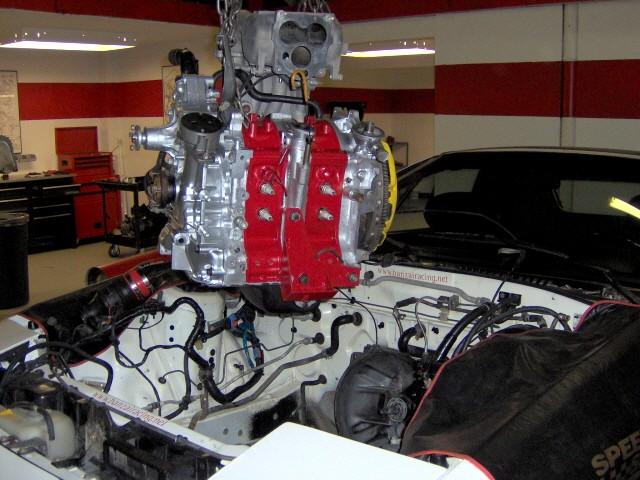

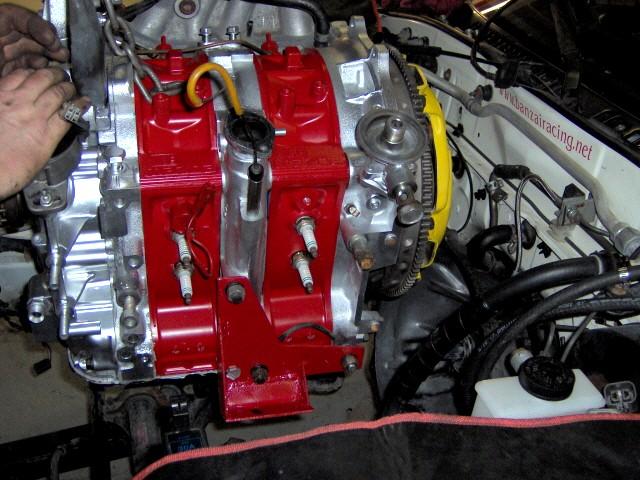

... and the rebuilt/streetported Cosmo engine installed using Banzai Racing 13B-RE / 20 B Engine Brackets and Polyurethane Motor Mounts.
 |
 |
 |
 |
|

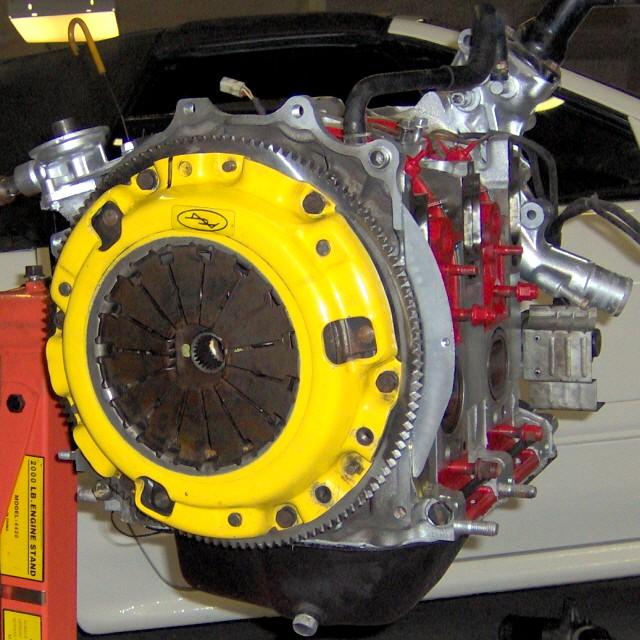

ACT
Extreme Clutch
|
Install
#1
|
Install
#2
|

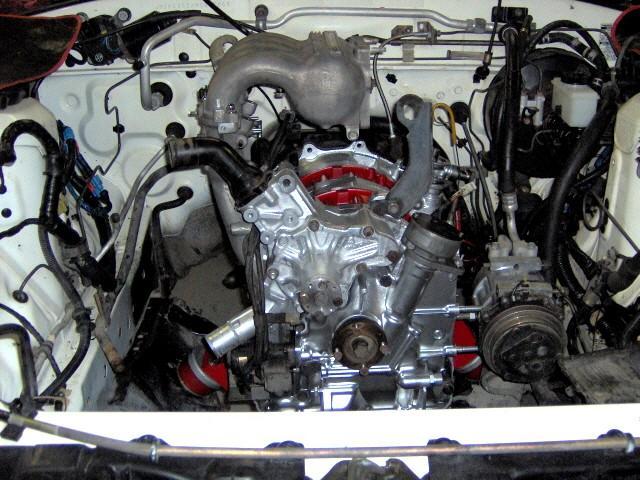

Engine
Installed
|
 |
 |
 |
 |
|

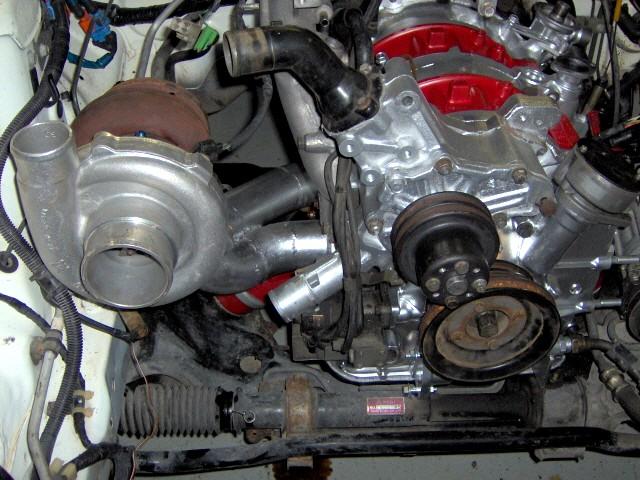

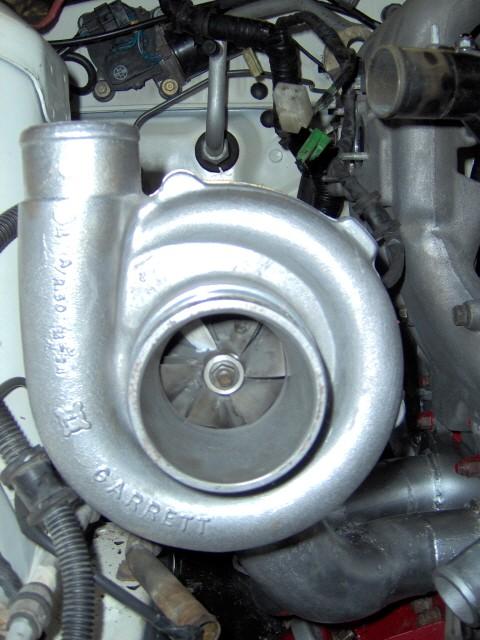

Garrett
T67
|
Turbo
Installed
|

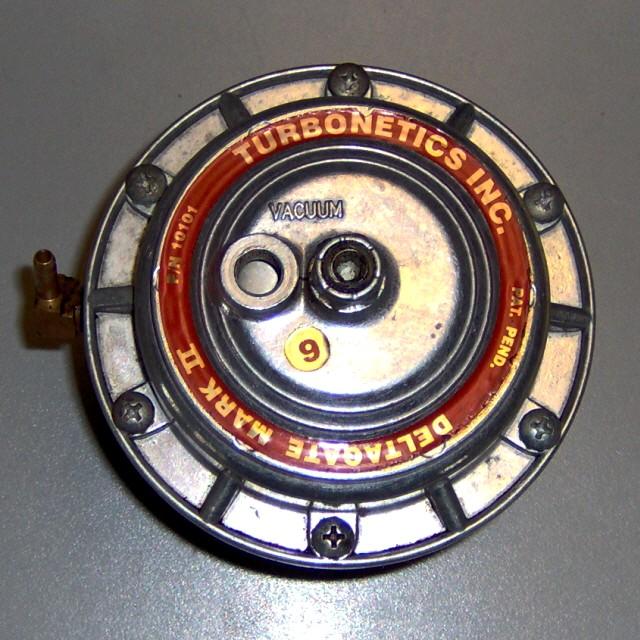

Turbonetics
Wastegate
|

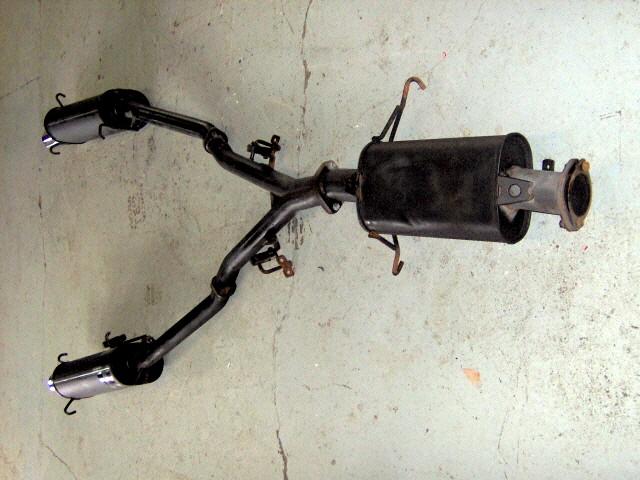

Racing
Beat Exhaust
|
 |
 |
 |
|
|

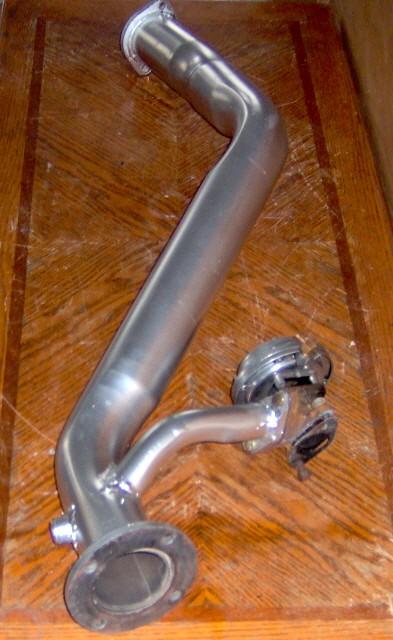

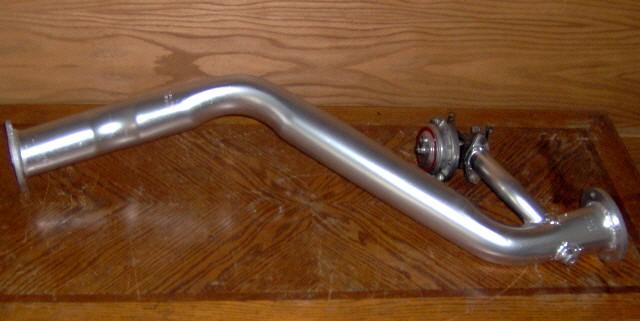

Custom
Downpipe
|

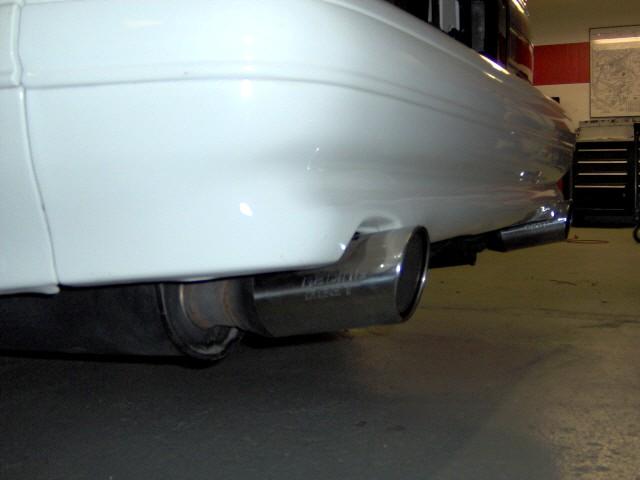

Exhaust
Installed
|
||
Phase III: Modifications
Feb '05 We are now in the modifications stage of this project. As seen in the above pics, we have already installed the Racing Beat Exhaust System, Garret T67 Turbo, Custom Downpipe, Turbonetics Wastegate & ACT Extreme Clutch. Please continue onto Page 3 for the next series of modifications.
