Daniel's RX-7 13B-REW Engine Installation & Modifications

Mazda OEM 13B-REW Engine

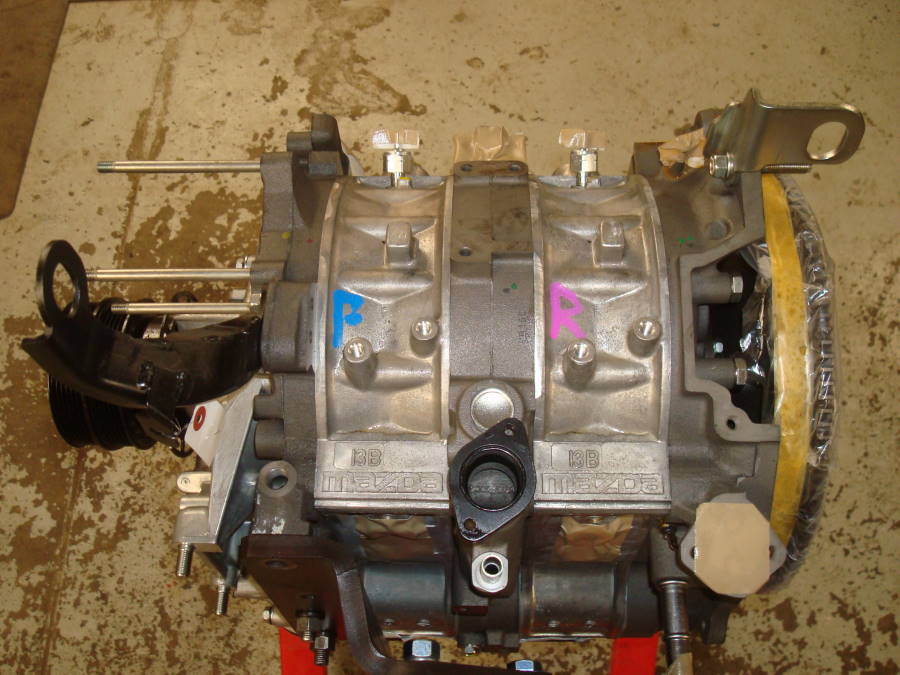

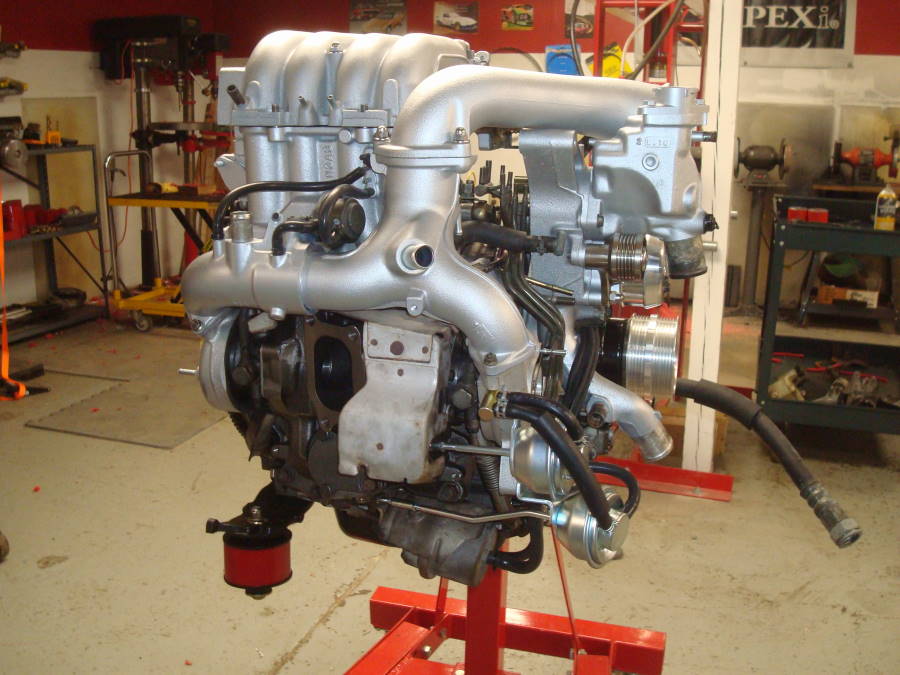

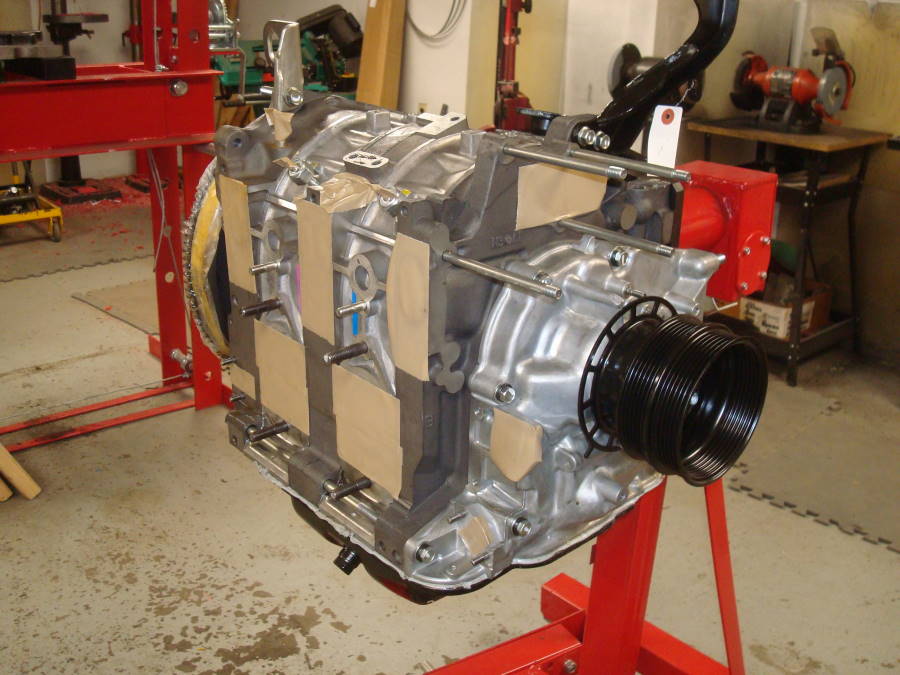

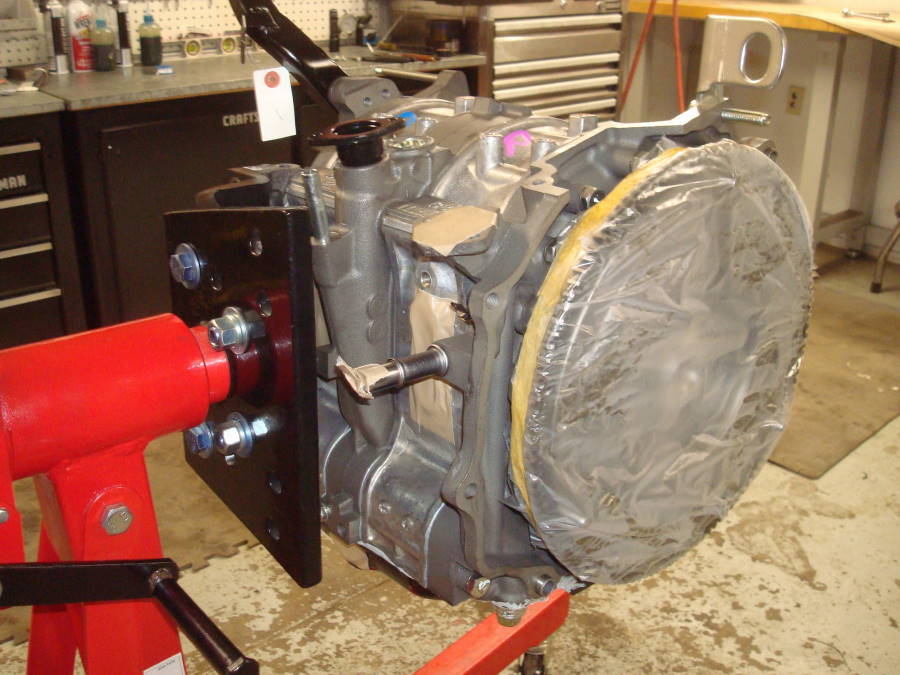

Engine Block #1	Engine Block #2	Engine Block #3

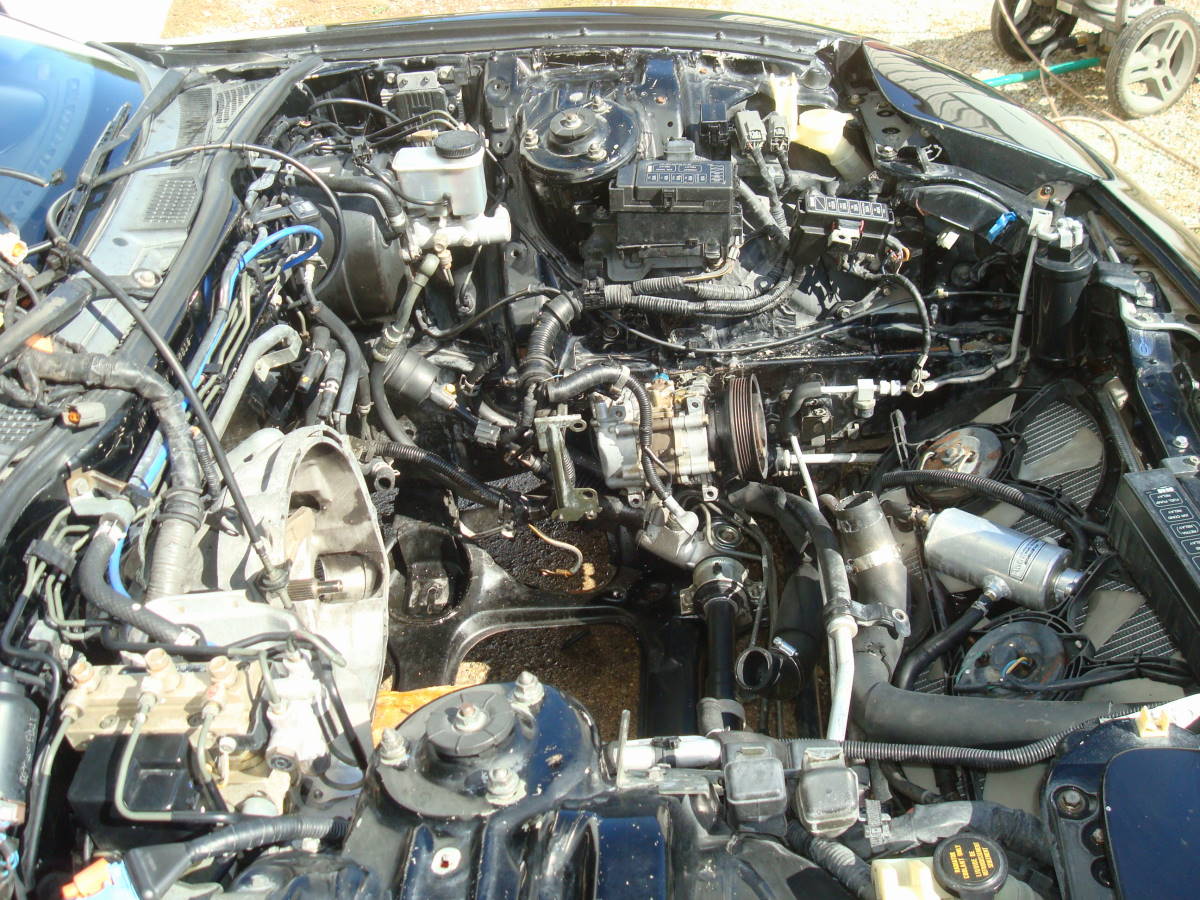

Photographs of Engine taken before & during installation

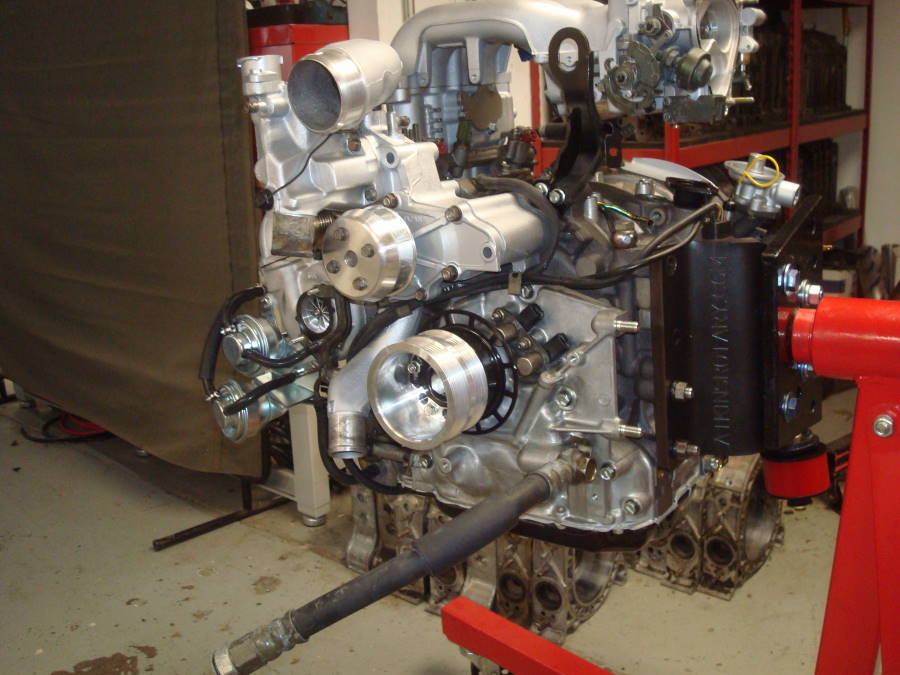

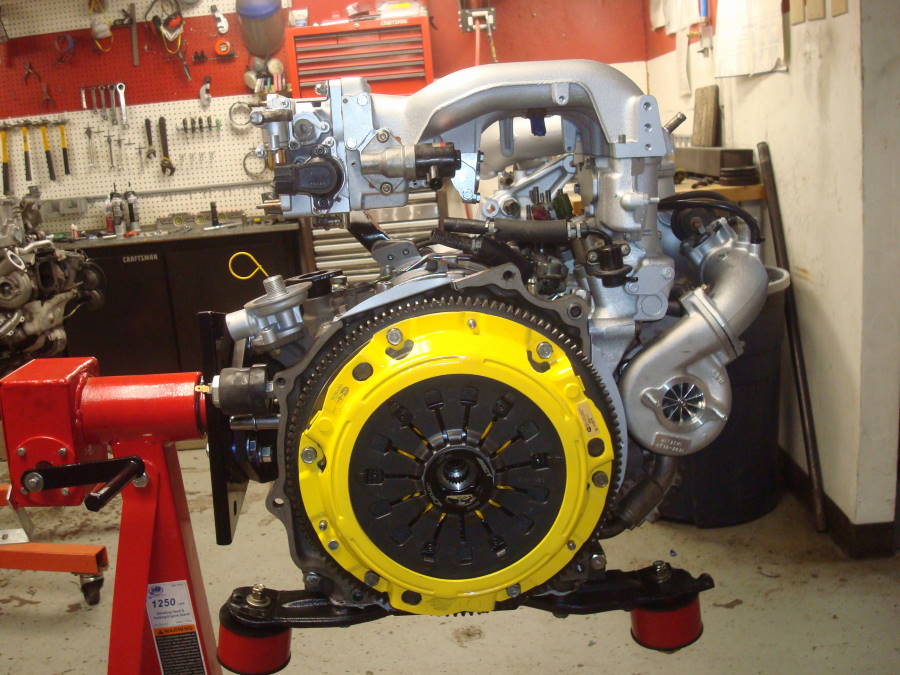

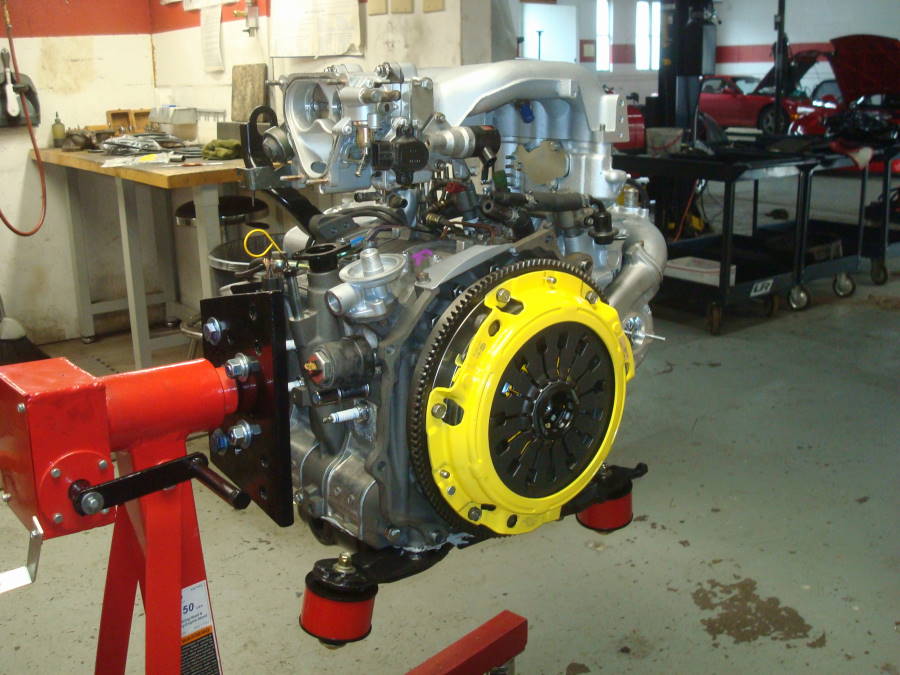

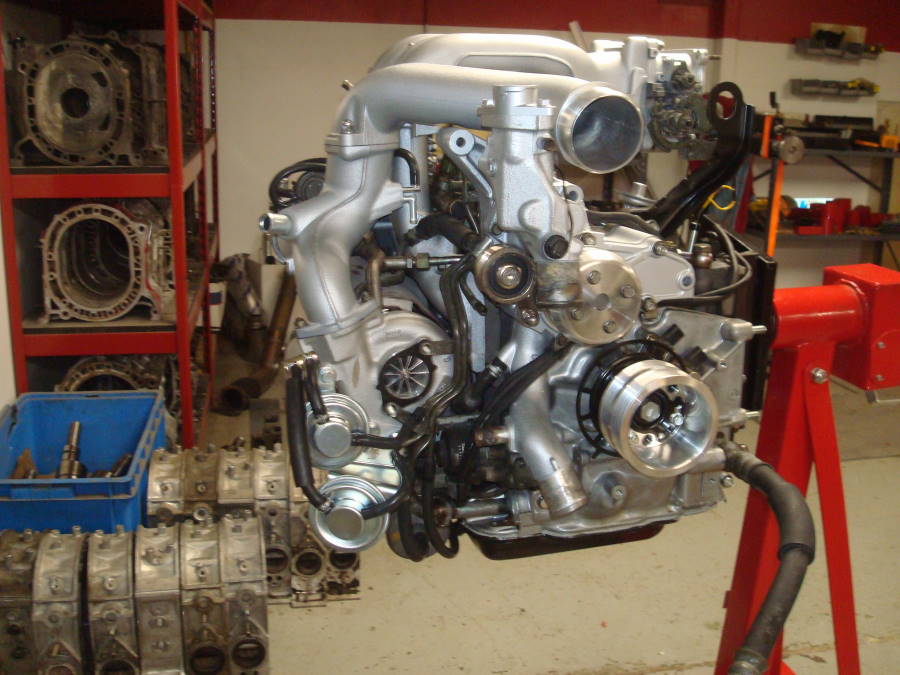

Engine Long Block #1	Engine Long Block #2	Engine Long Block #3	Engine Long Block #4	Engine Long Block #5

Photographs taken before & after Engine Bay Cleaning

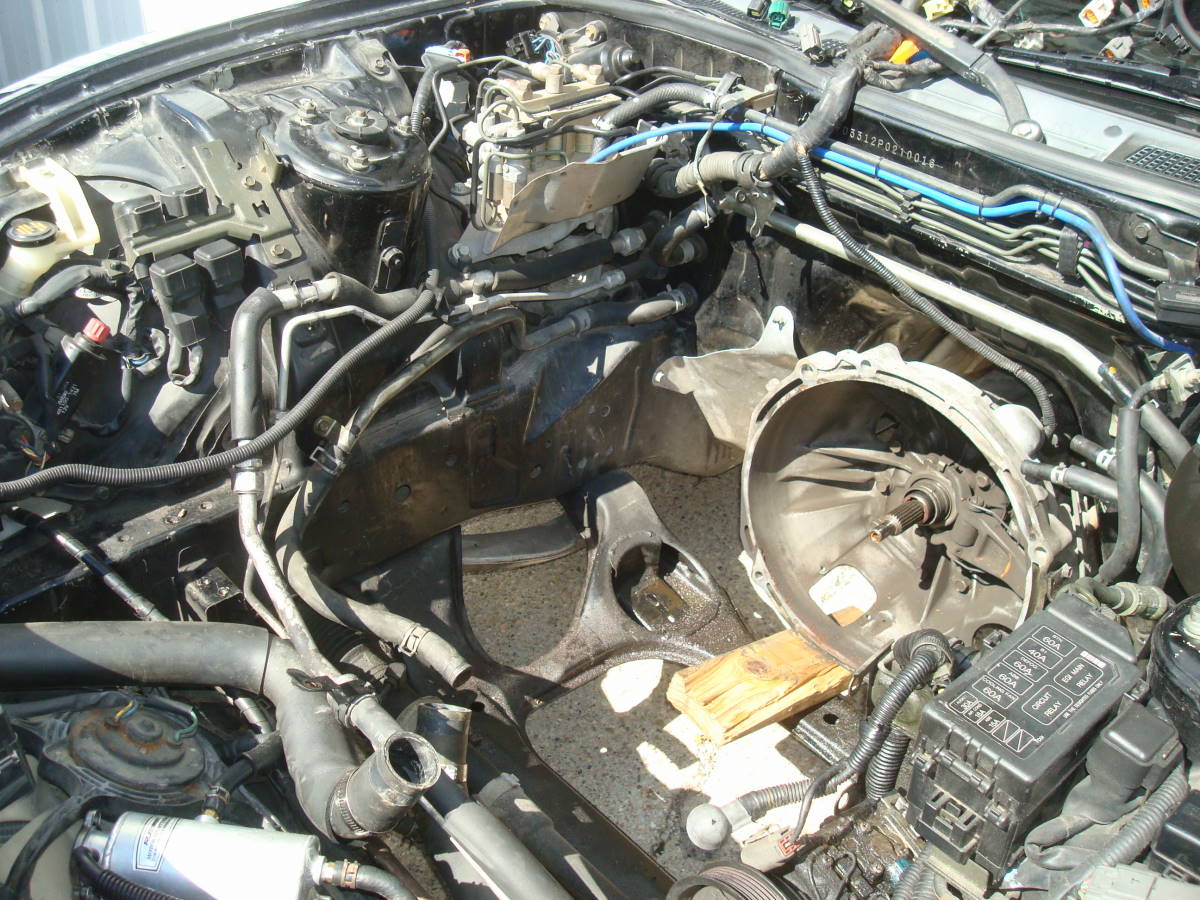

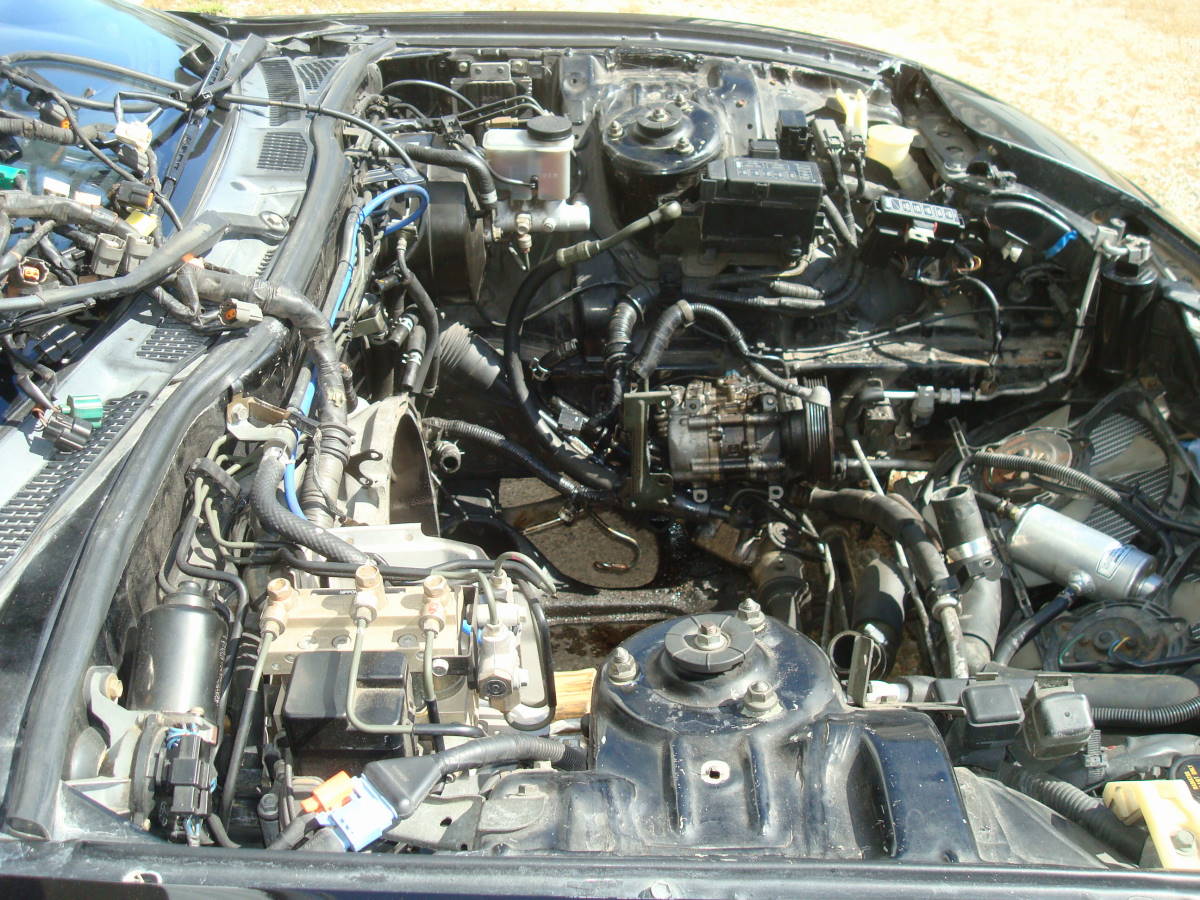

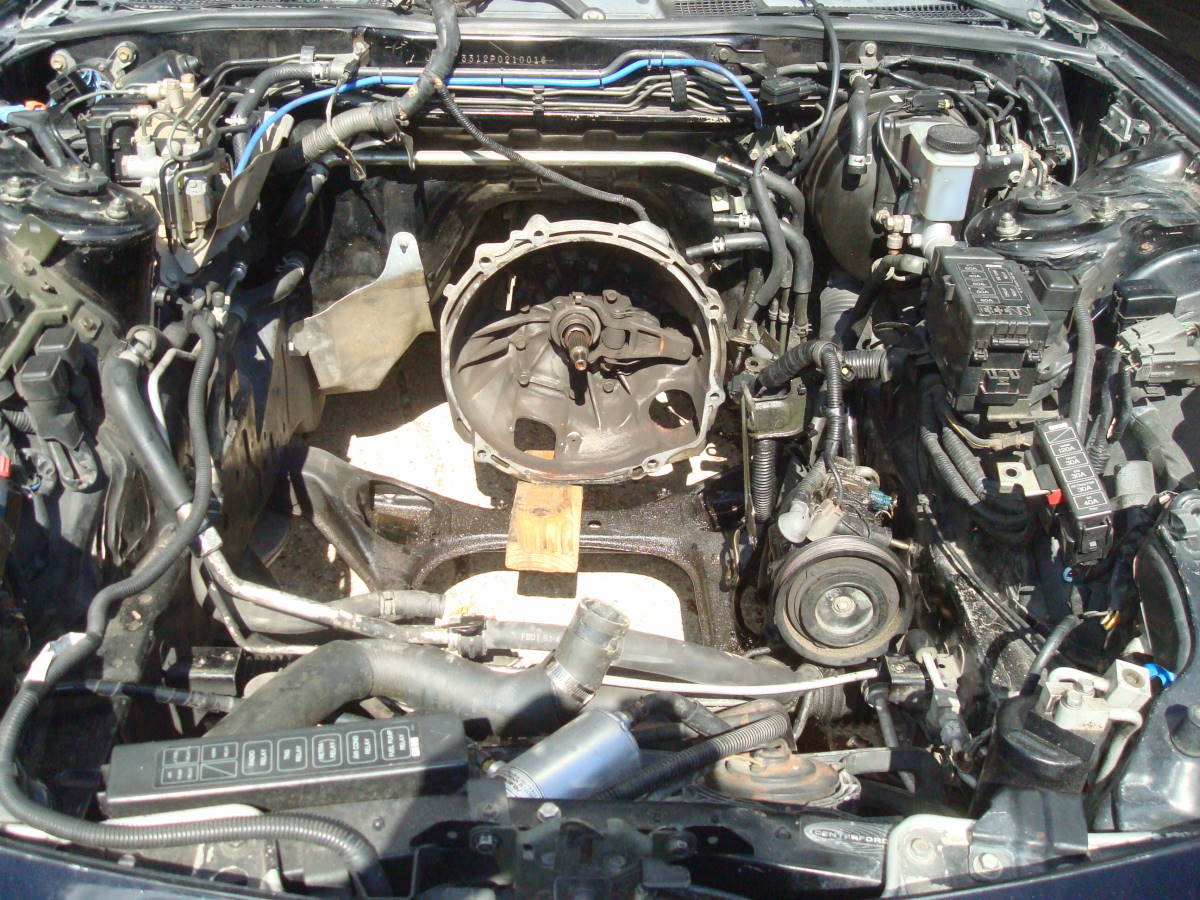

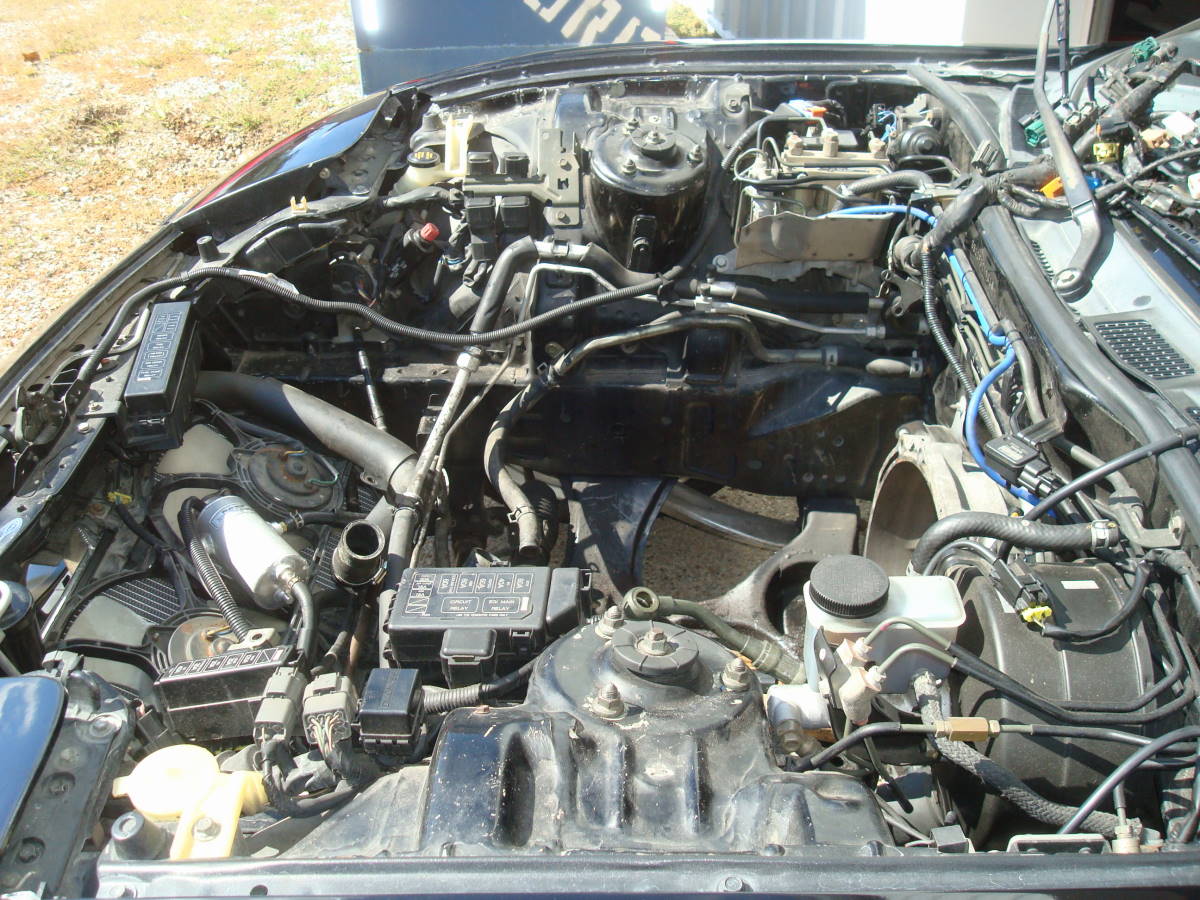

Passenger Side View Before	Passenger Side View Before	Front View Before	Driver Side View Before	Driver Side View Before
Passenger Side View After	Passenger Side View After	Front View After	Driver Side View After	Driver Side View After

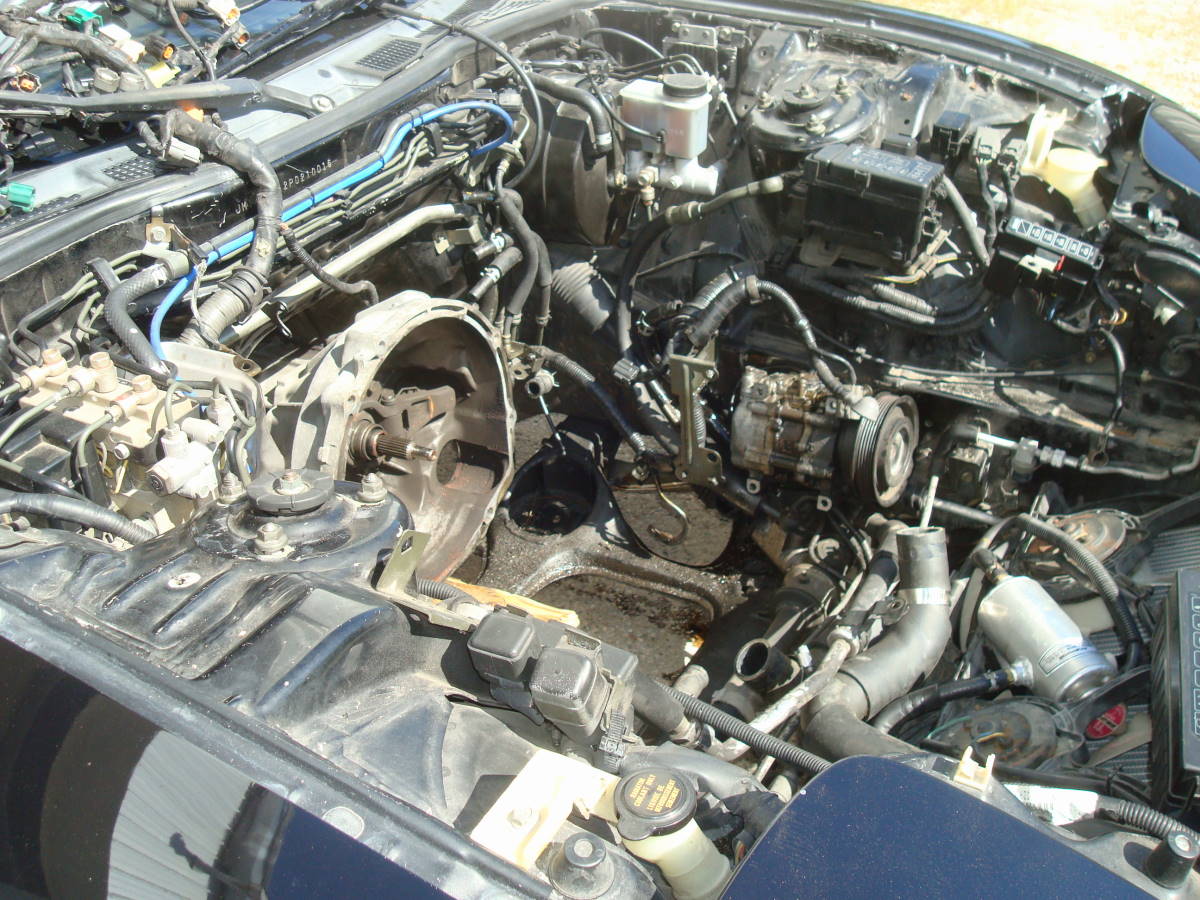

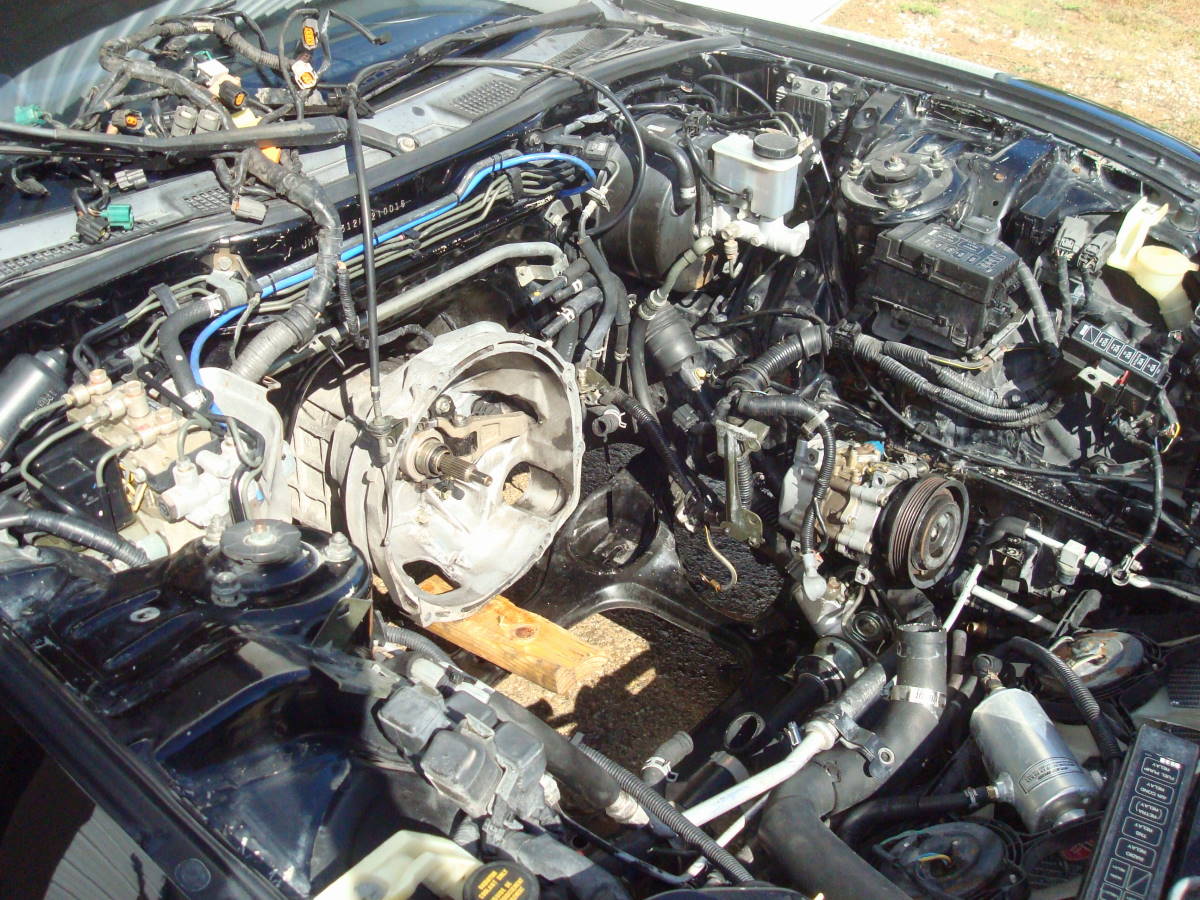

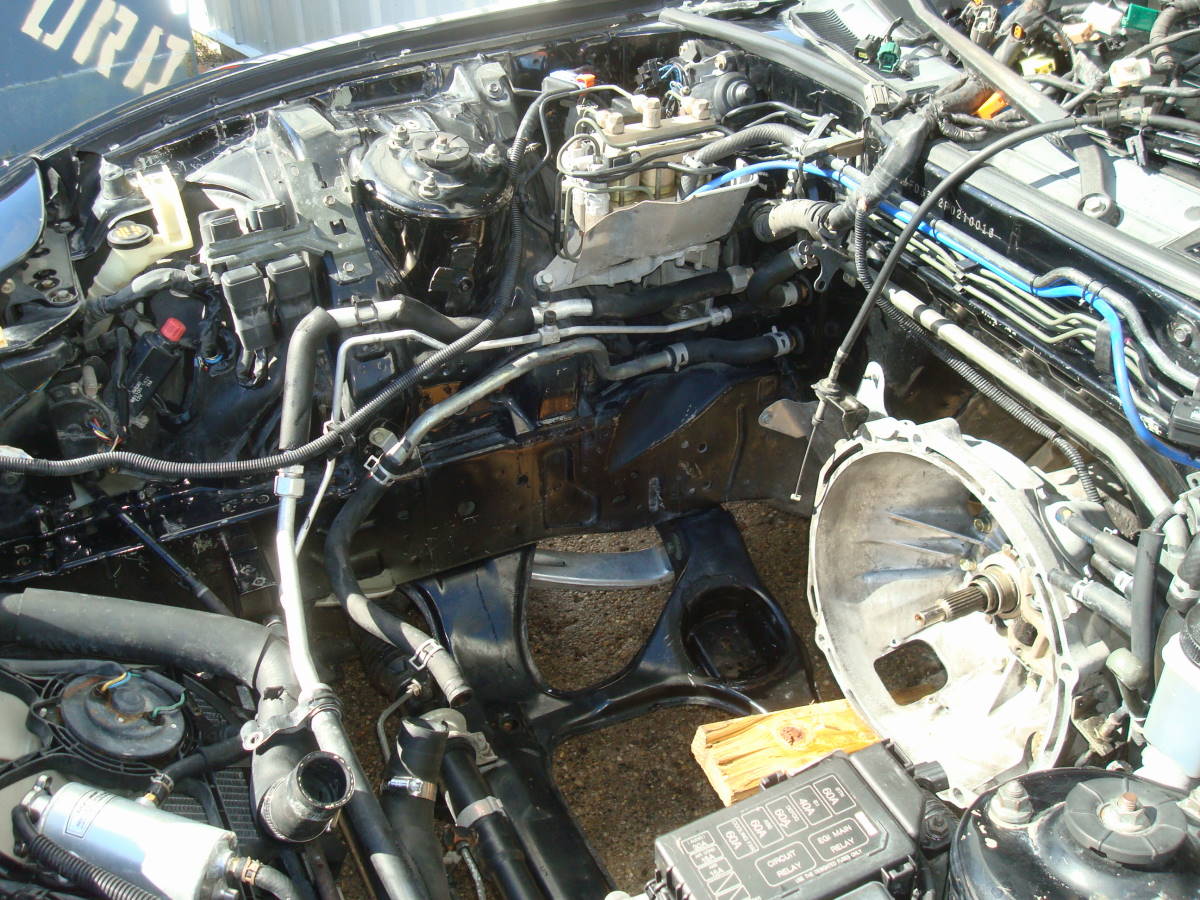

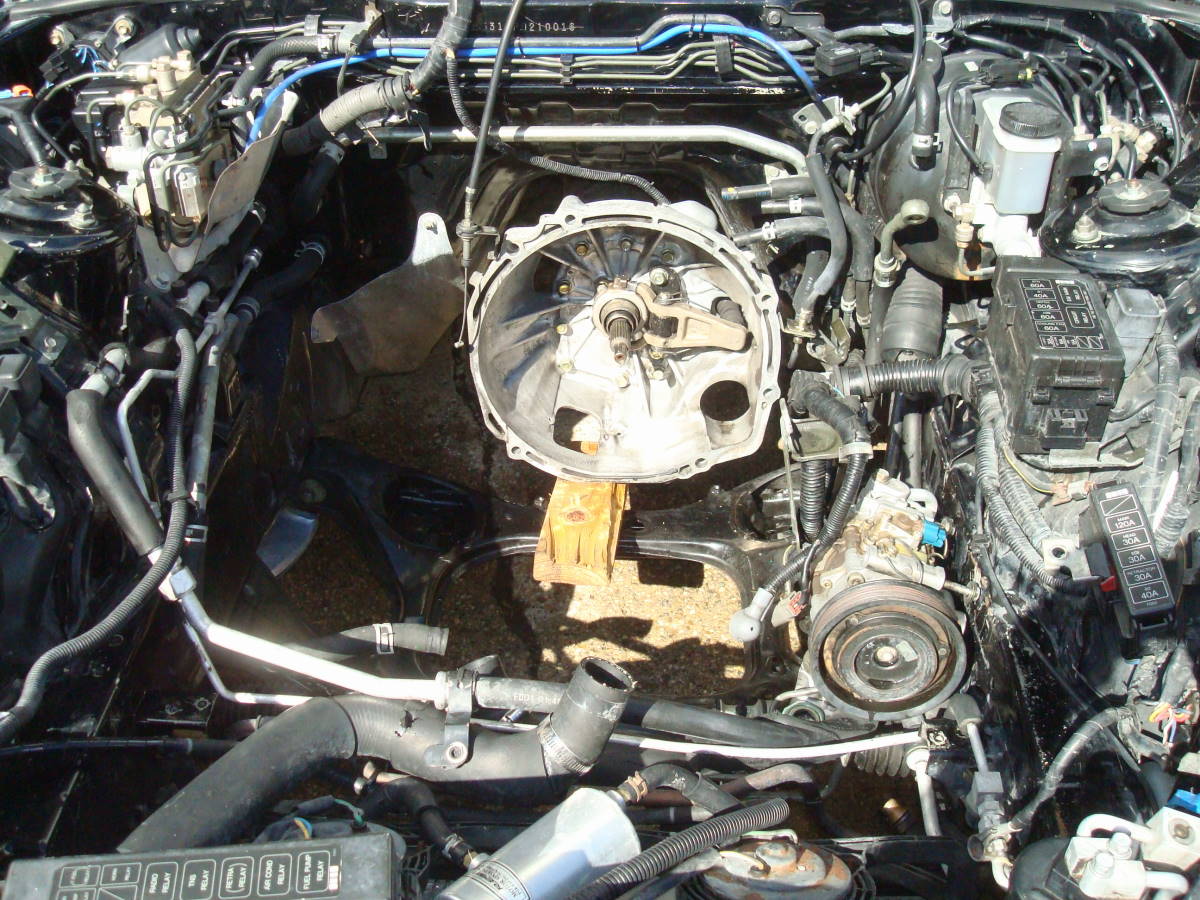

Photographs taken during engine installation

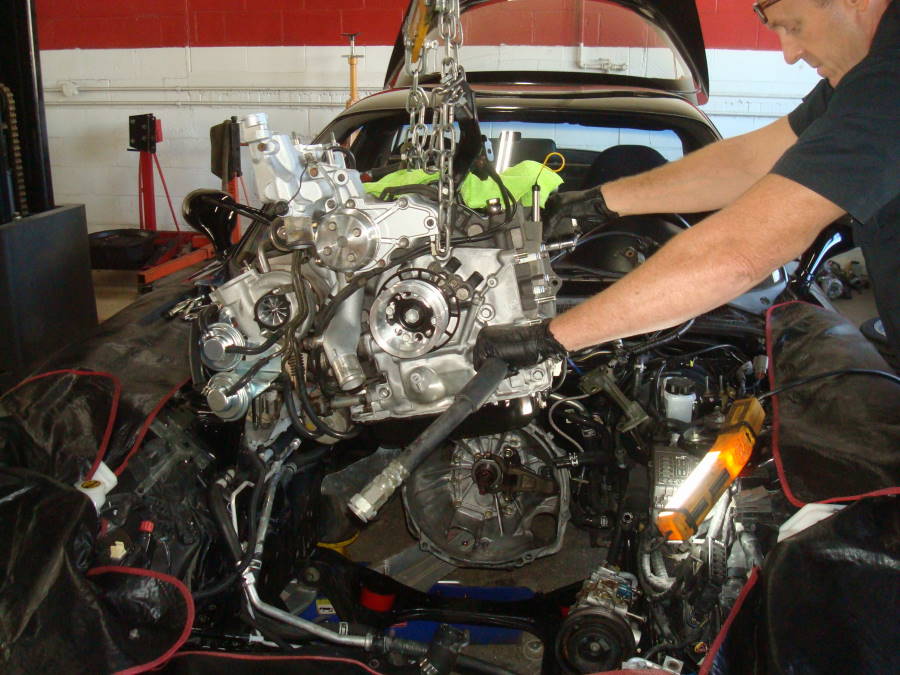

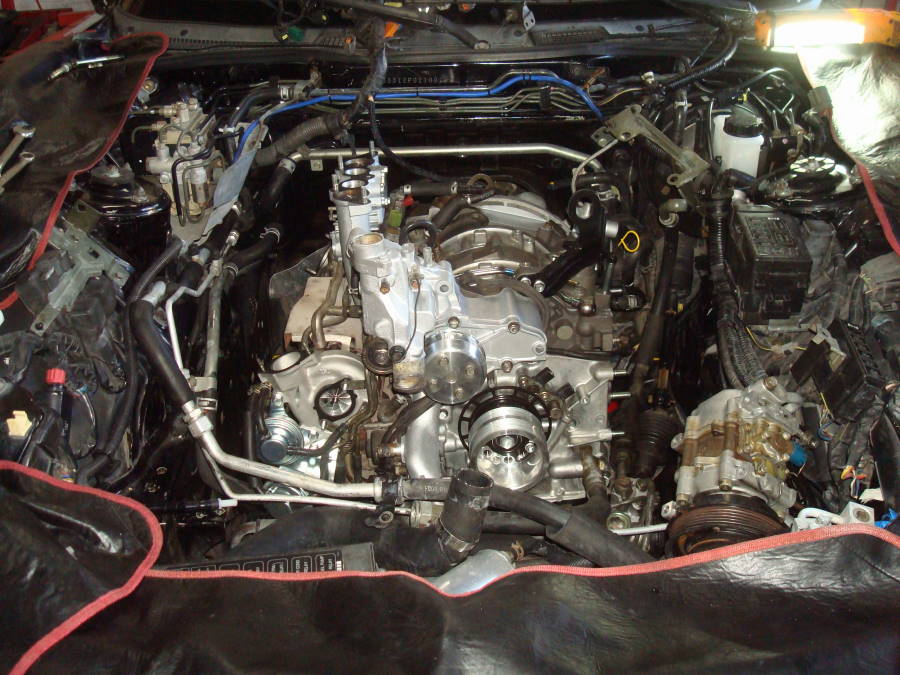

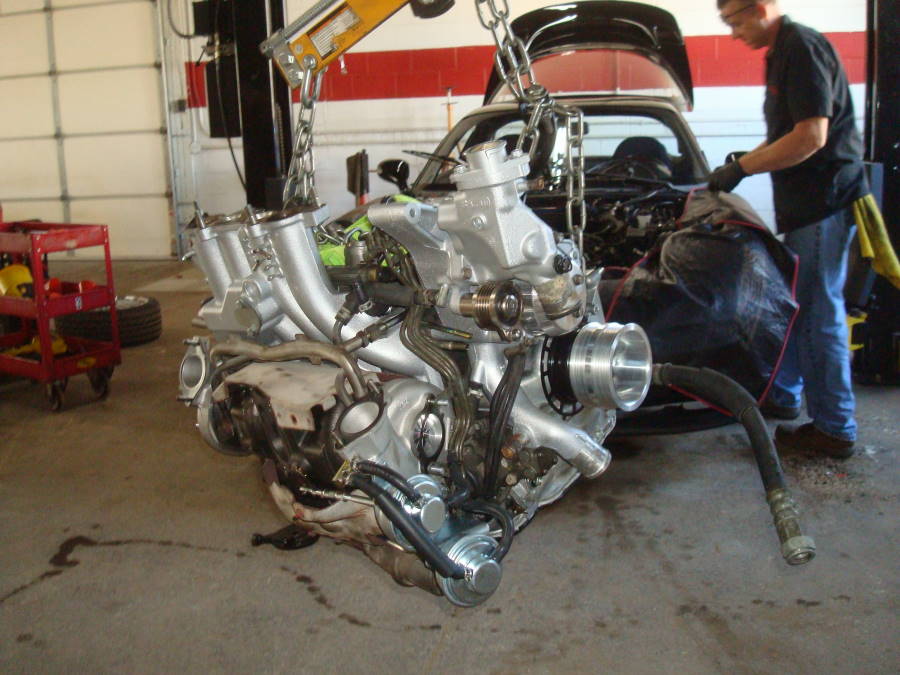

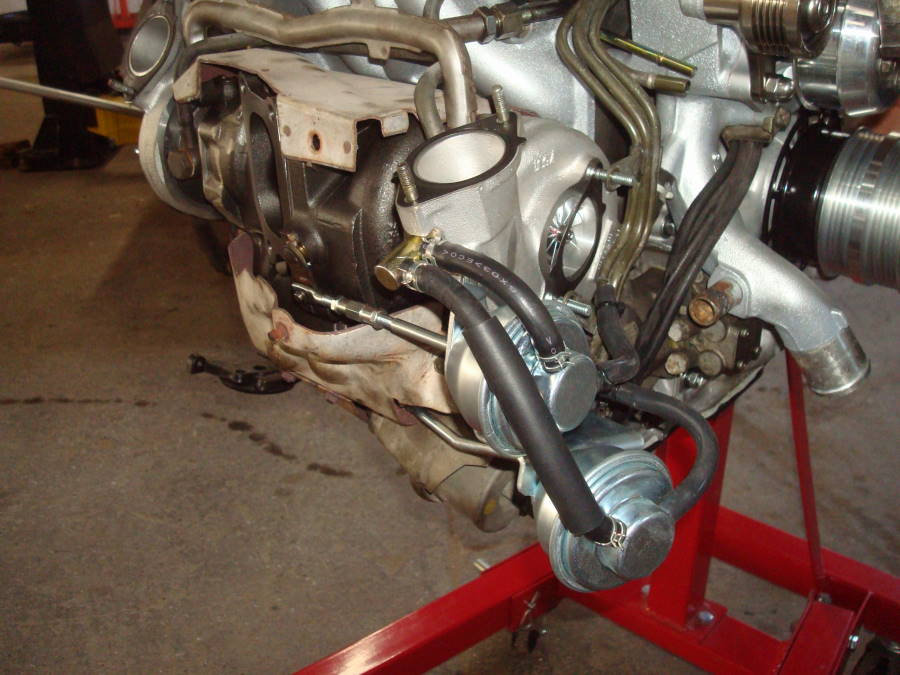

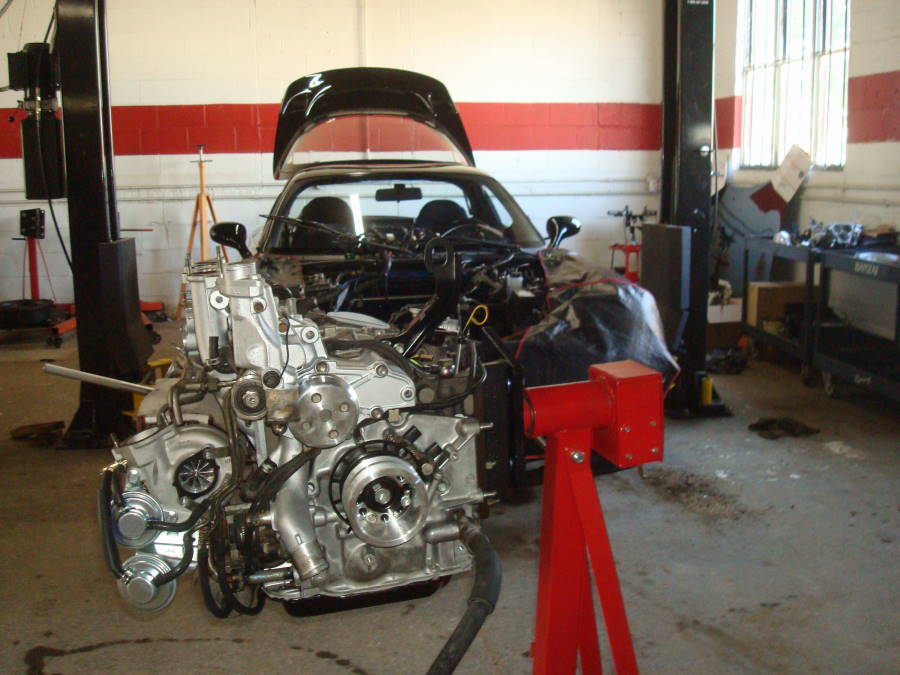

Installation #1	Installation #2	Installation #3	Installation #4	Installation #4

List of upgraded components & modifications;

• Mazda OEM 13B-REW Engine
• Banzai Racing FD Street Version Polyurethane Motor Mounts

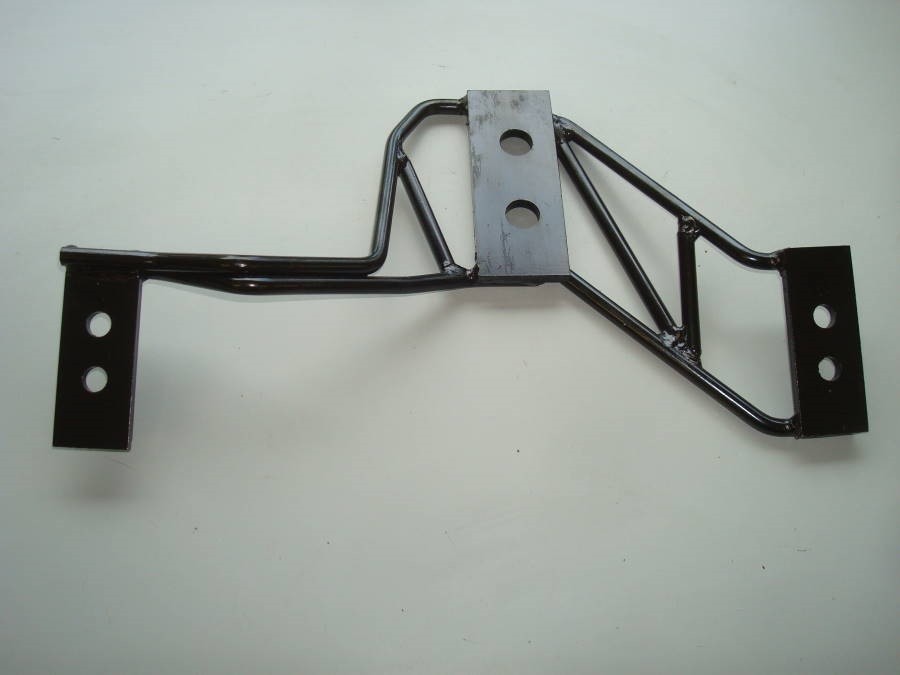

• Banzai Racing FD Differential Brace

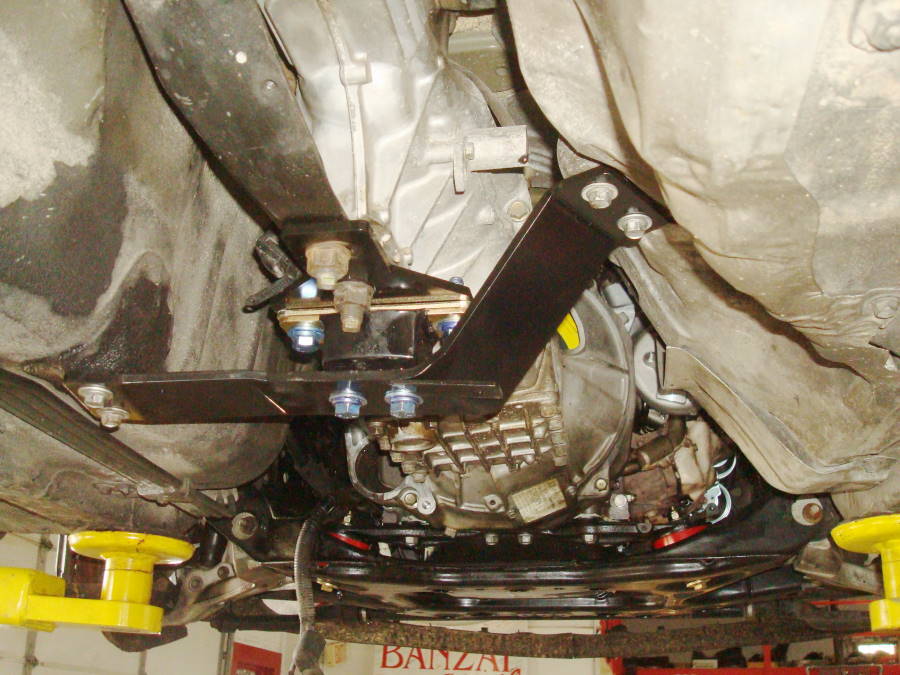

• Banzai Racing FD Transmission Crossmember

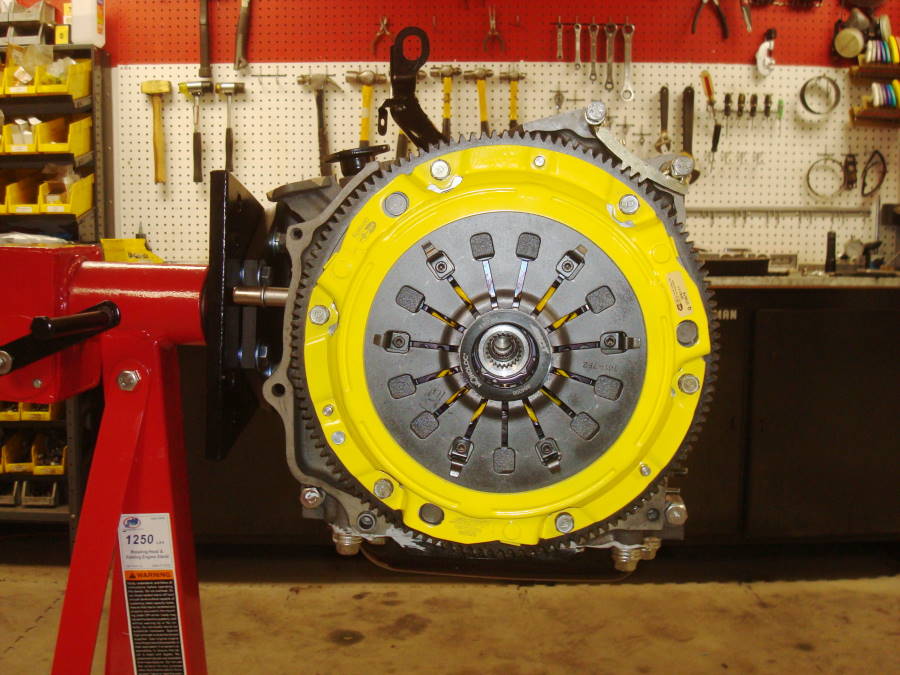

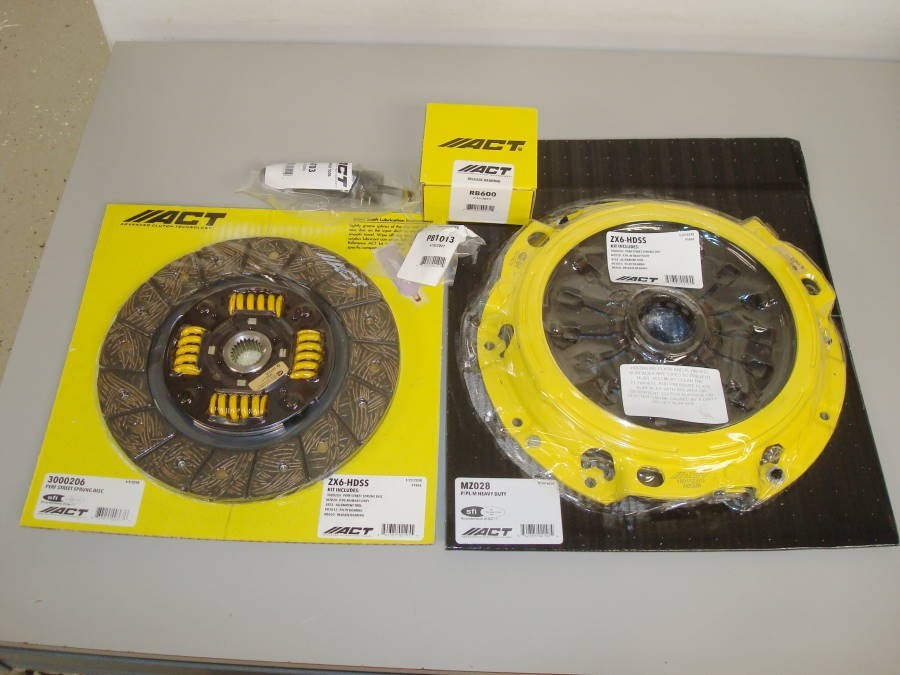

• Clutch ACT Heavy Duty Street Strip Clutch Kit
• SS Clutch Line
• Clutch Master & Clutch Slave Cylinders

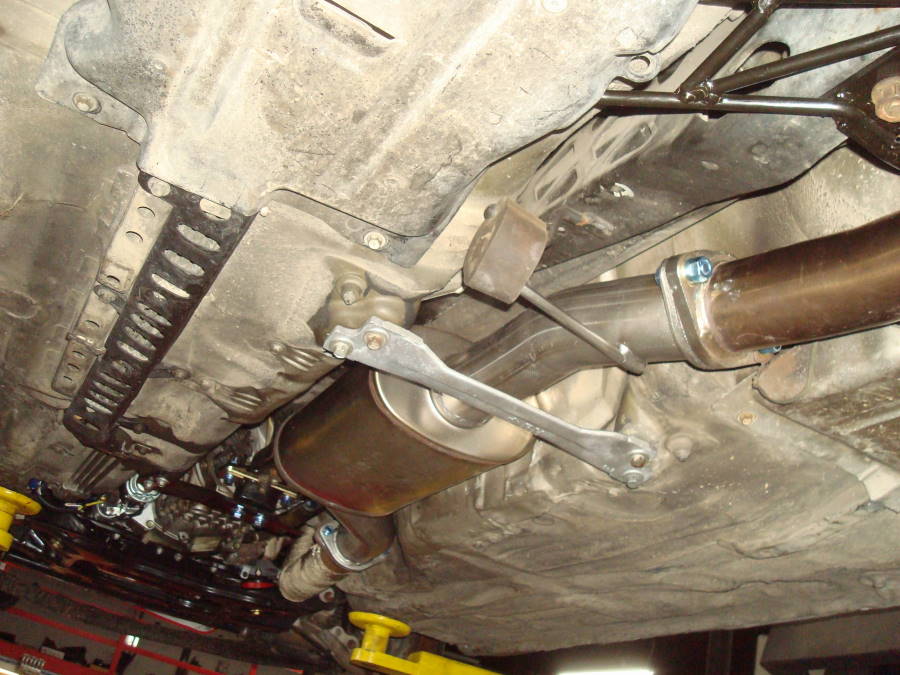

• SS Resonated Mid-Pipe
• HKS Suction Reloaded Intake Kit
• HKS Super SSQV4 Blow-Off Valve

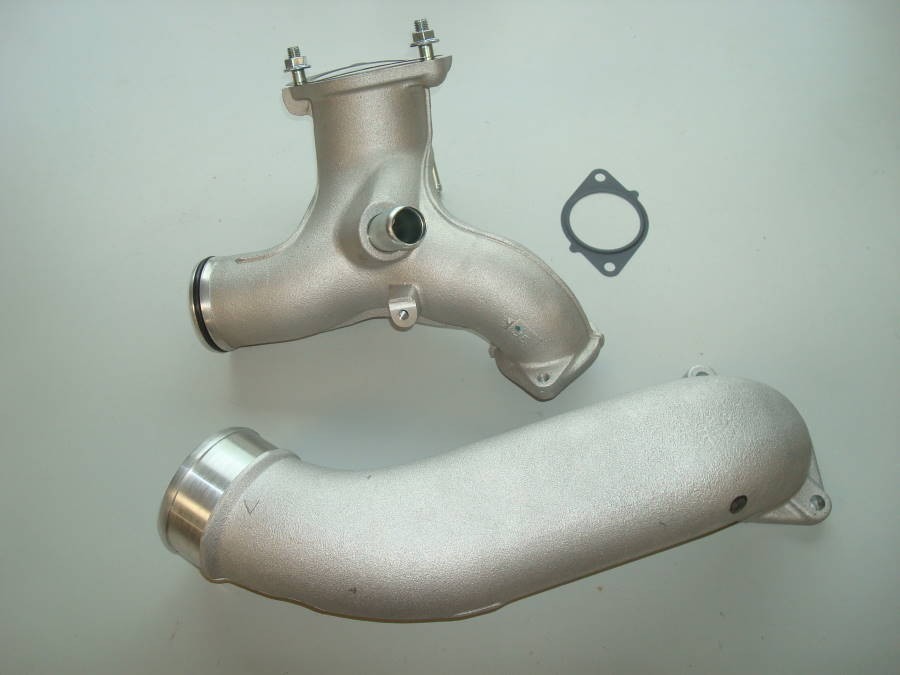

• Efini Y-Pipe Kit

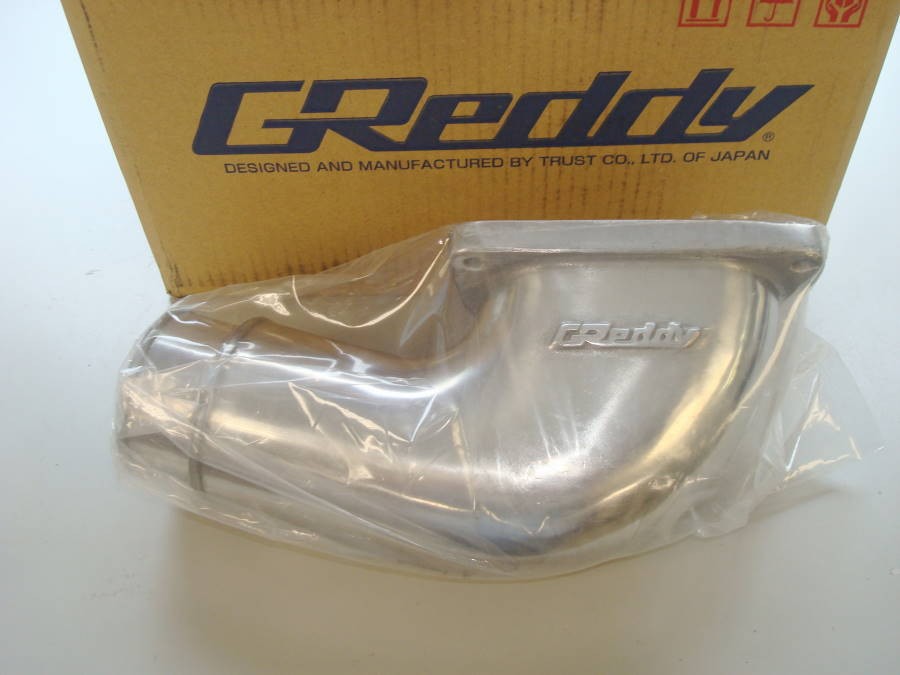

• GReddy Intake Elbow
• Efini 99 Spec SP Turbos

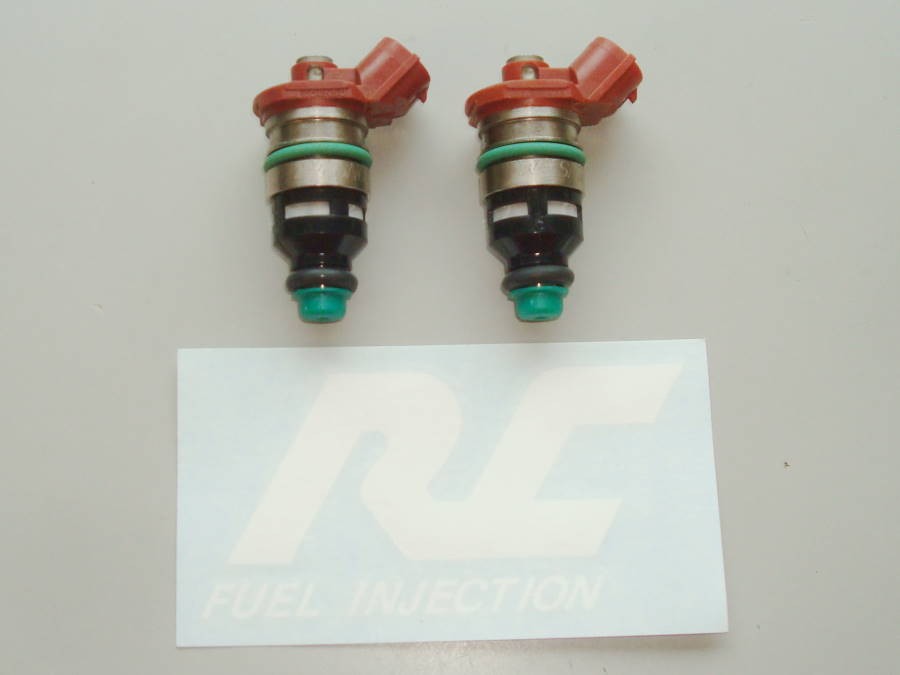

• 1300cc Injector Modification
• Vacuum Line Simplification
• Peripheral Paint & Engine Bay Cleaning
• PR Idler Pulley Kit w/ 41" Belt
• FD Aluminum Pulley Kit
• HKS Twin Power & Installation Harness
• NGK Plug Wires & Platinum Spark Plugs
• 2 KW High Torque Starter & Relay

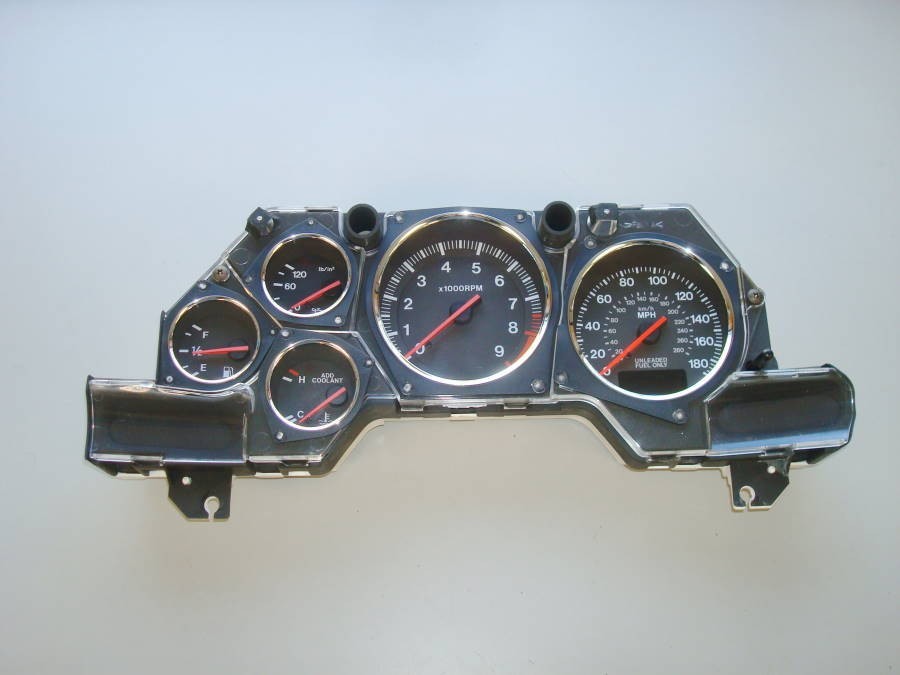

• OEM Window & Door Trim, Coolant Overflow Tank, Washer Fluid Reservoir, Instrument Cluster Lens, Speedometer, Fender Liners, Hose, Sensors, etc.
• Water Pump, Alternator, Battery, BBS Hub Centric Rings,
• 99 Spec Nardi Steering Wheel
• Centric Brake Master Cylinder

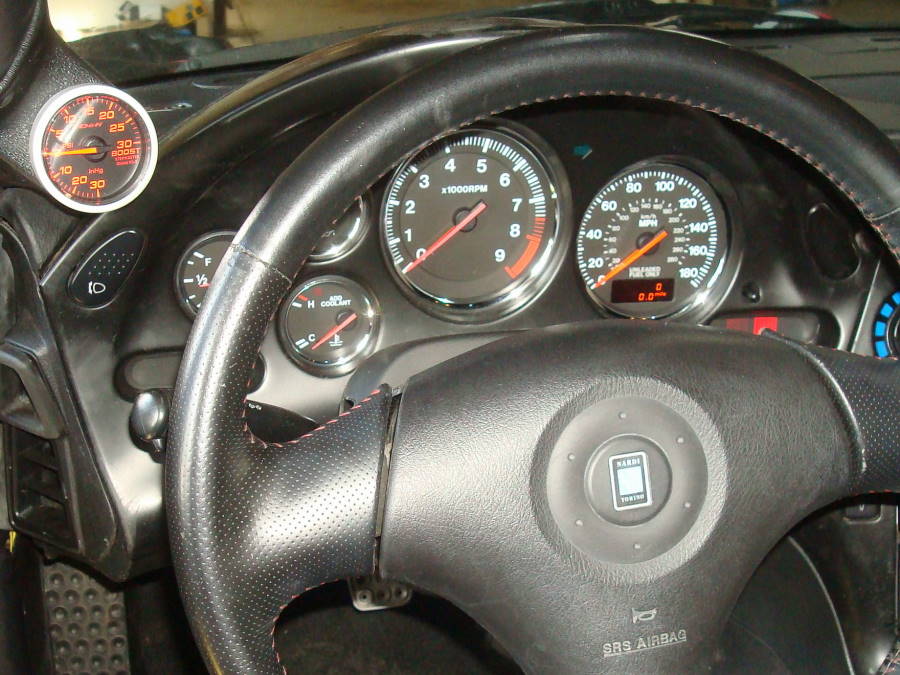

• DEFI Racer Boost Gauge & Autometer Pod

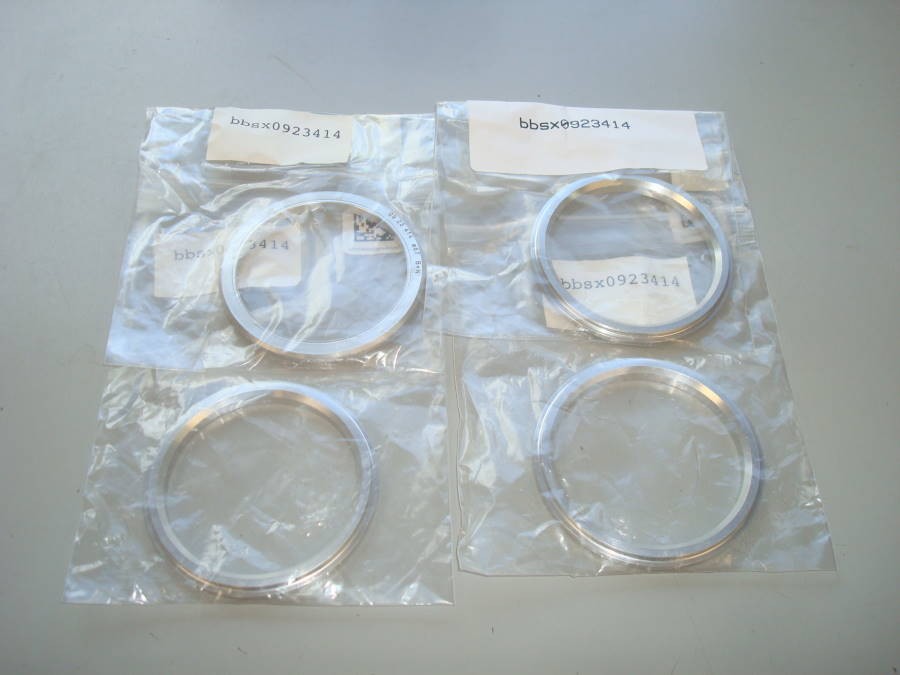

• Set BBS Hub Centric Rings - 82mm OD 67mm ID (x0923414)
• Currently at 315 RWHP prior to engine break-in
• Compression Test Results:
  • Rear: 7.1 x 7.1 x 7.0
  • Front: 7.1 x 7.2 x 7.1

Upgrades & Modifications Photographs

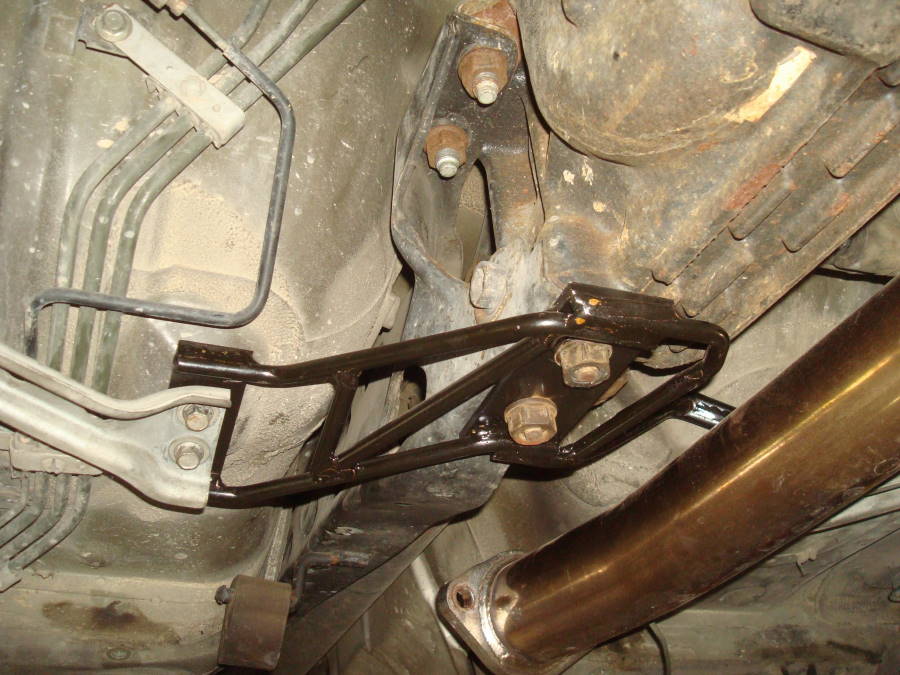

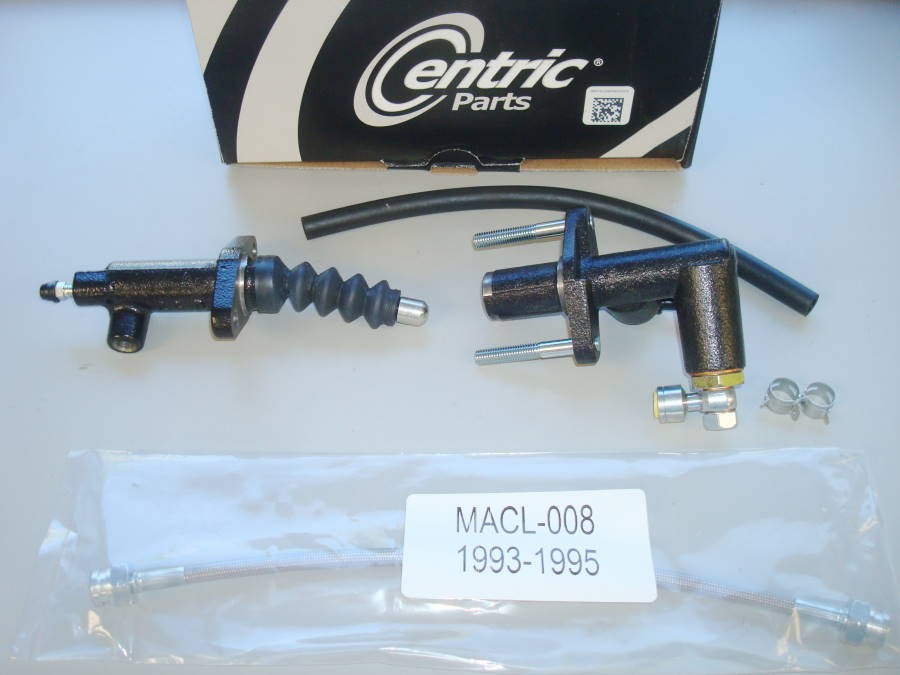

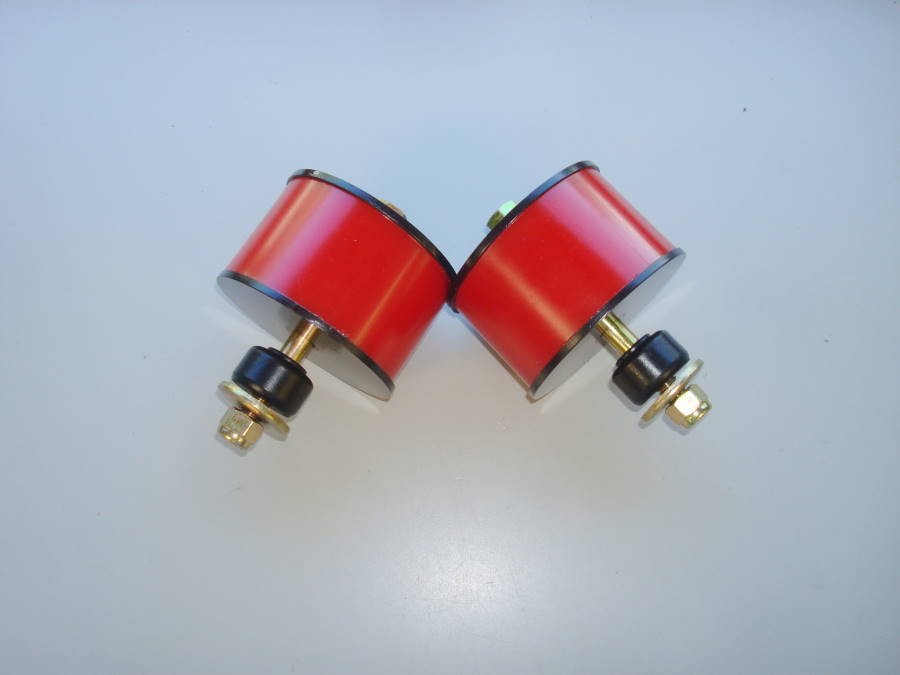

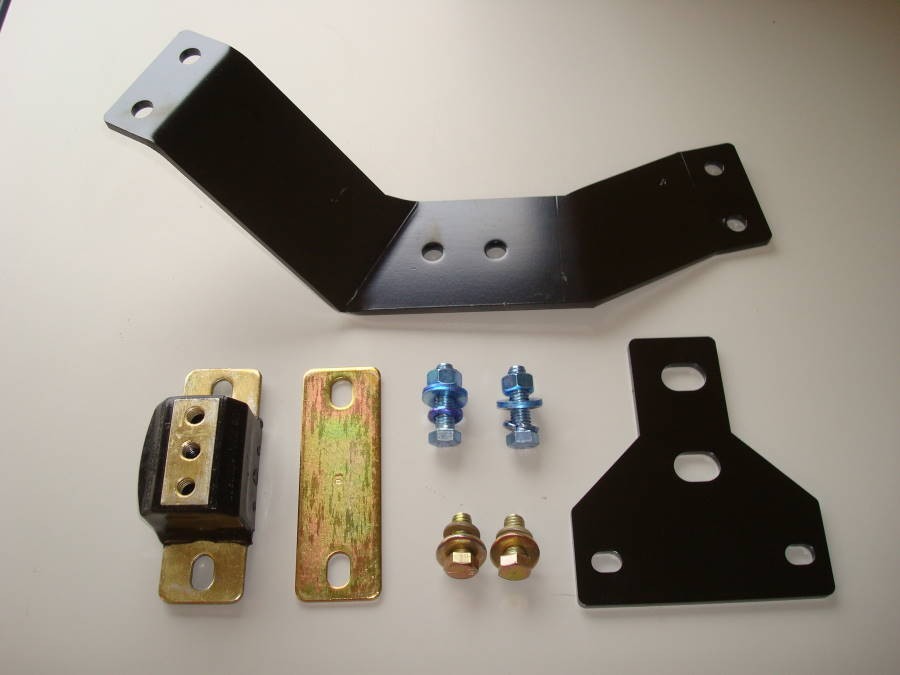

Crossmember	Diff Brace	Poly Mounts	Clutch Kit	Clutch Hydraulics

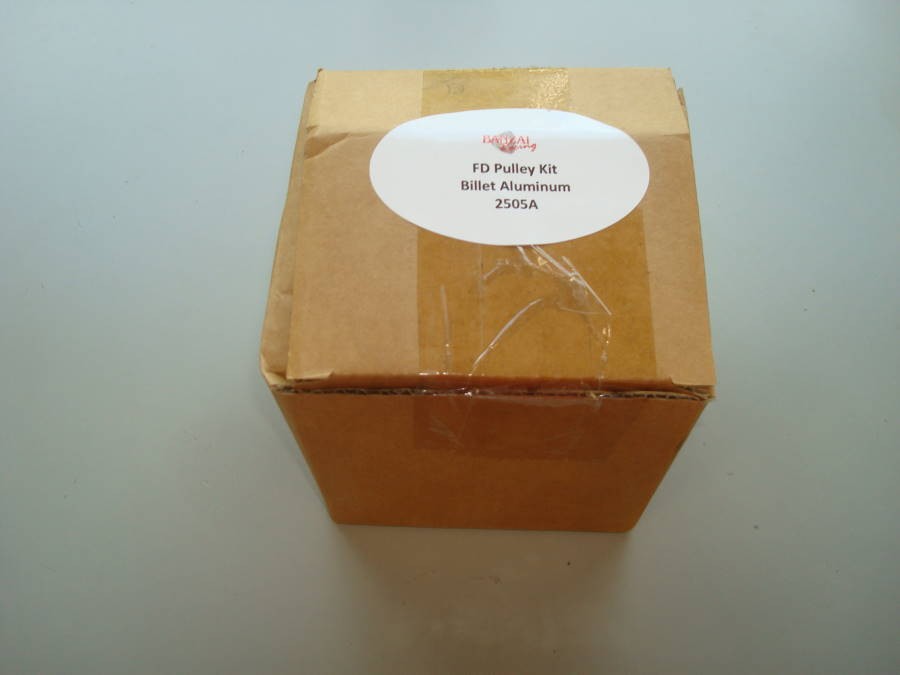

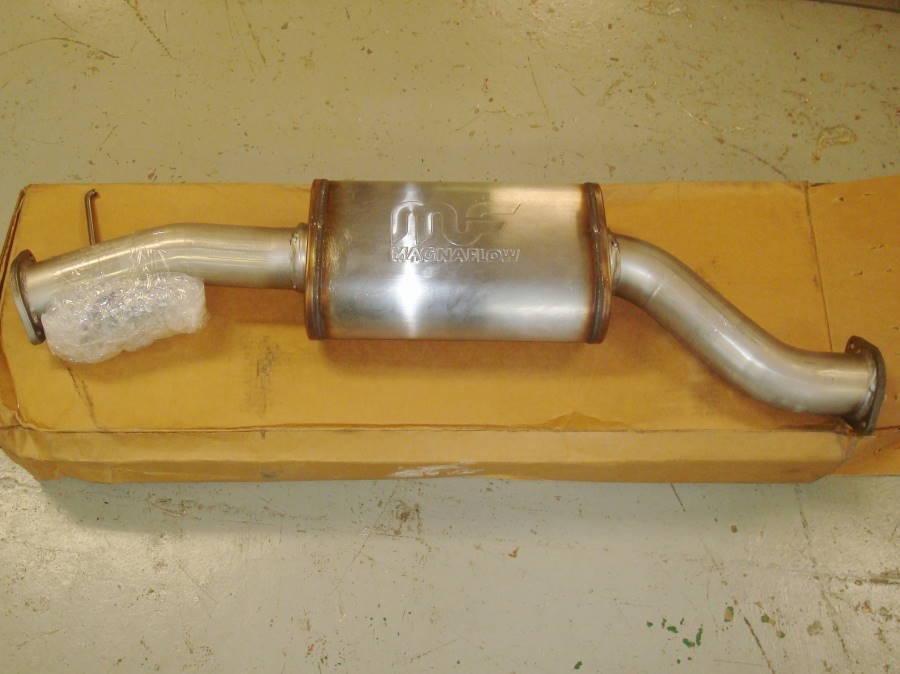

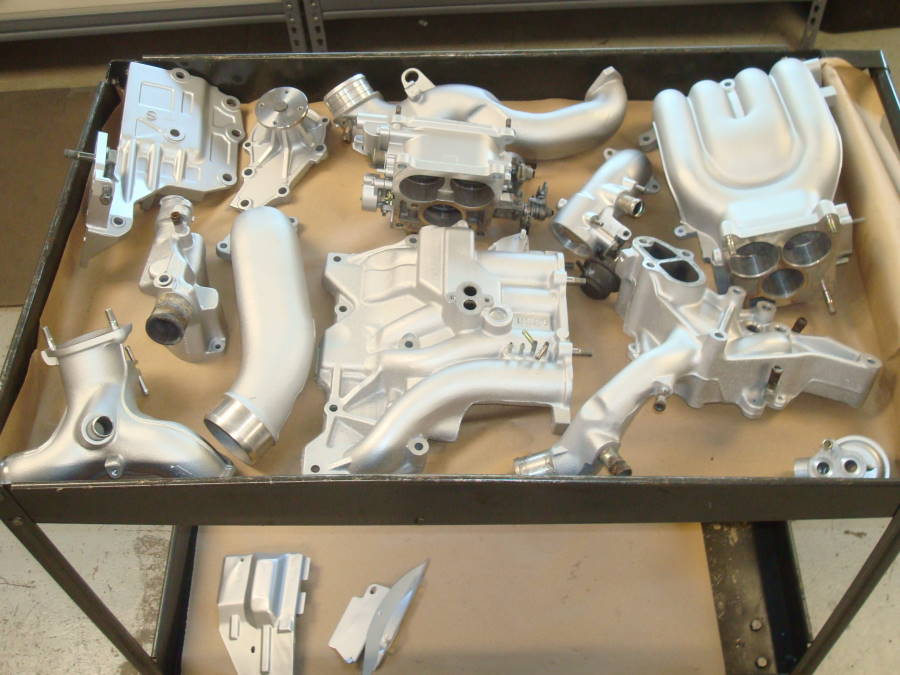

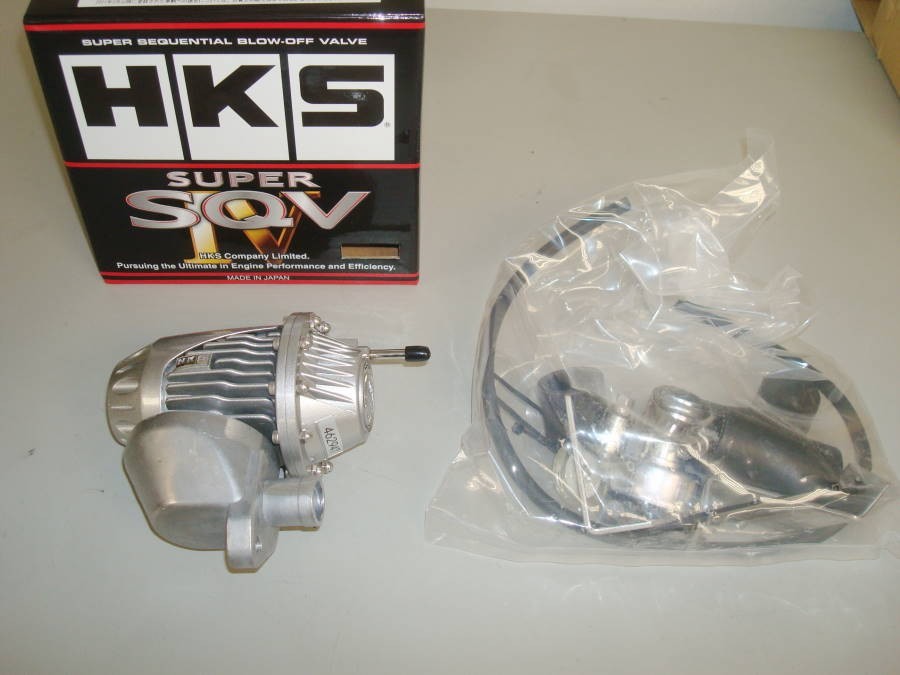

AL Pulley Kit	SS Resonated MP	Intake	HKS BOV	Painted Peripherals

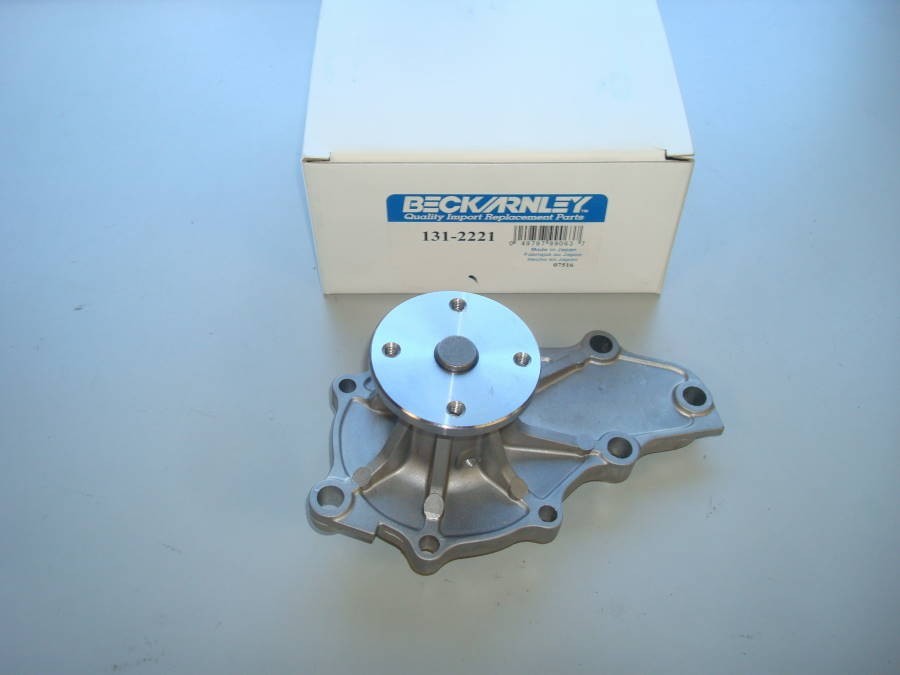

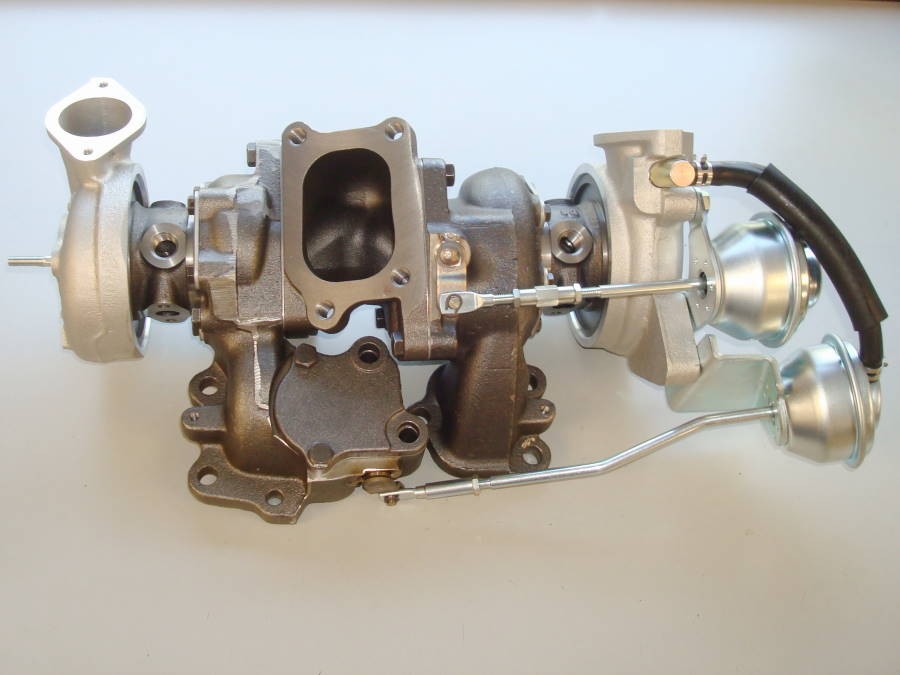

Efini Y-Pipe	Intake Elbow	Efini SP Turbos	Injectors	Water Pump

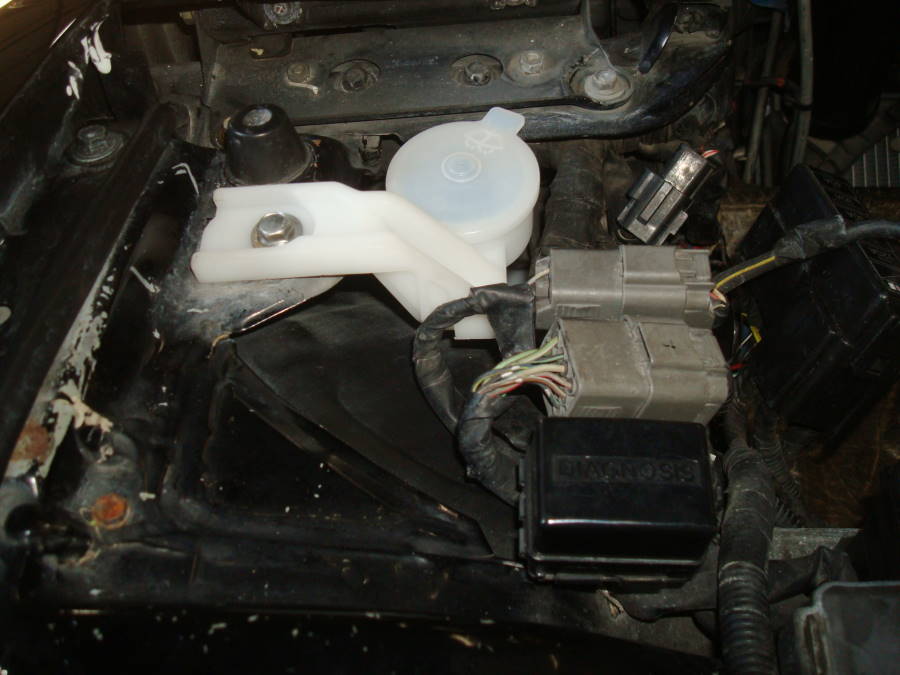

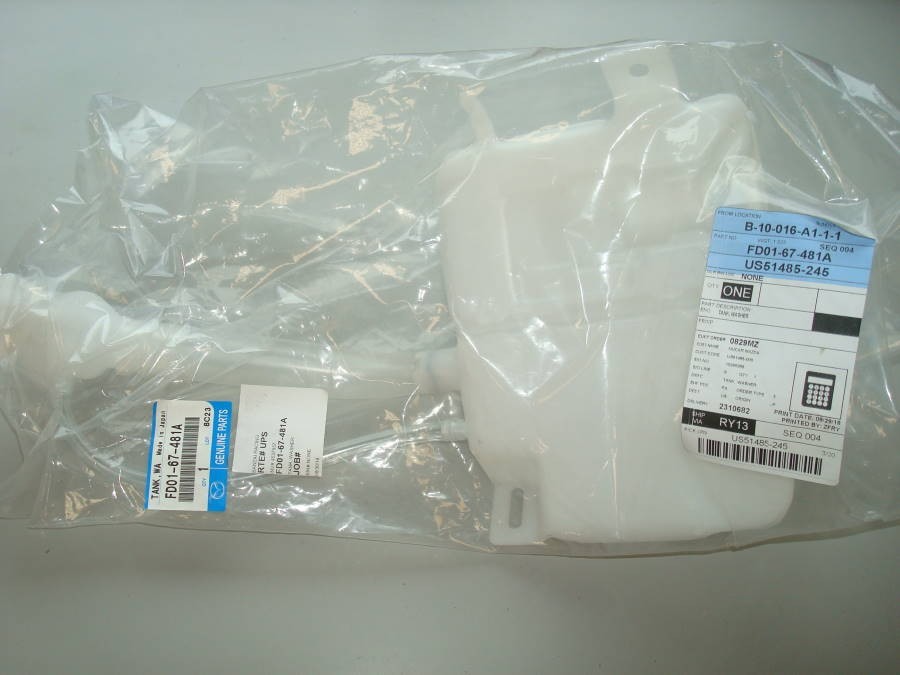

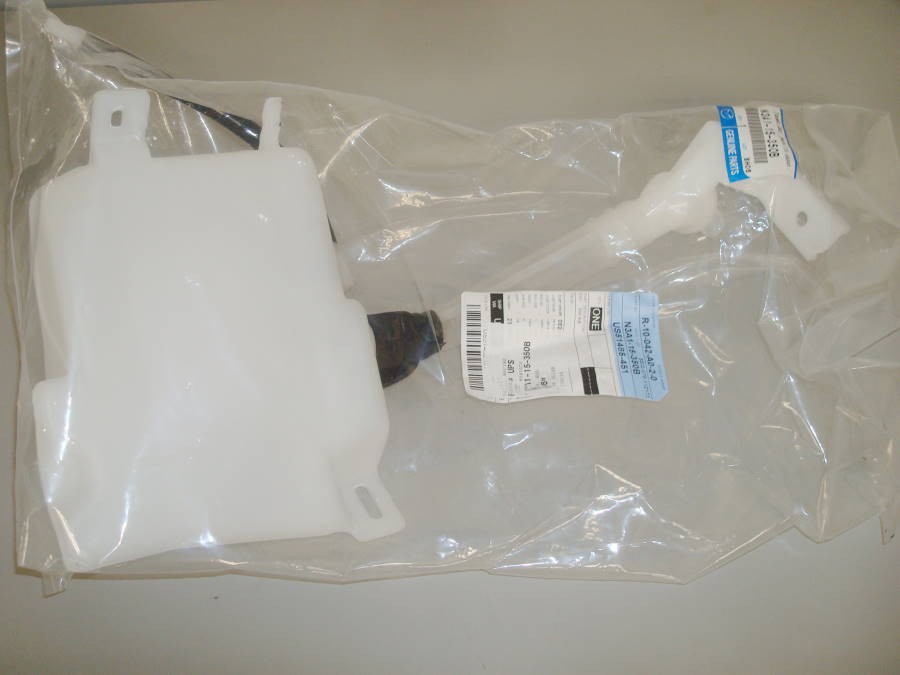

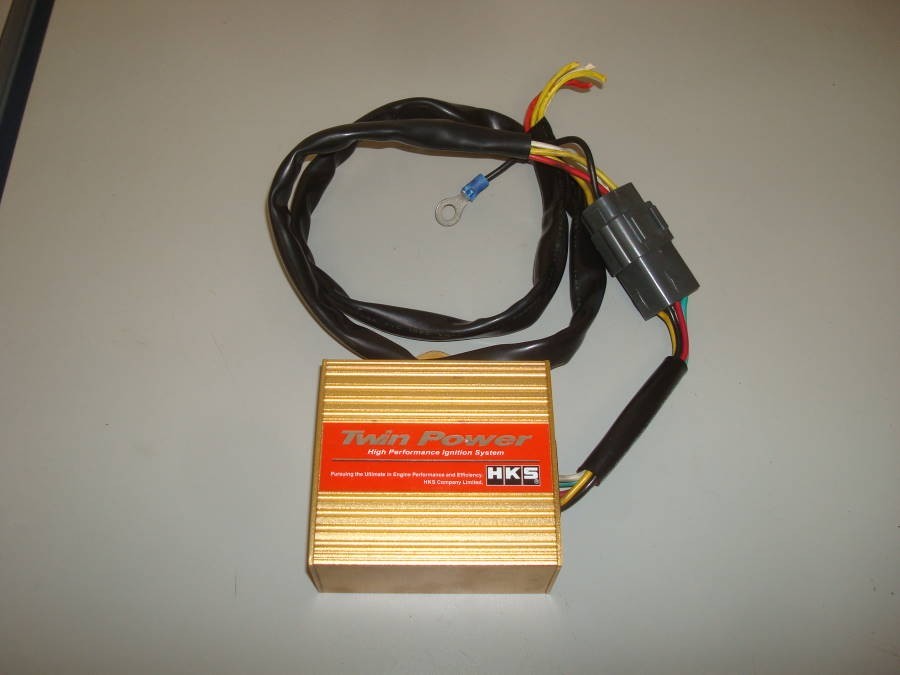

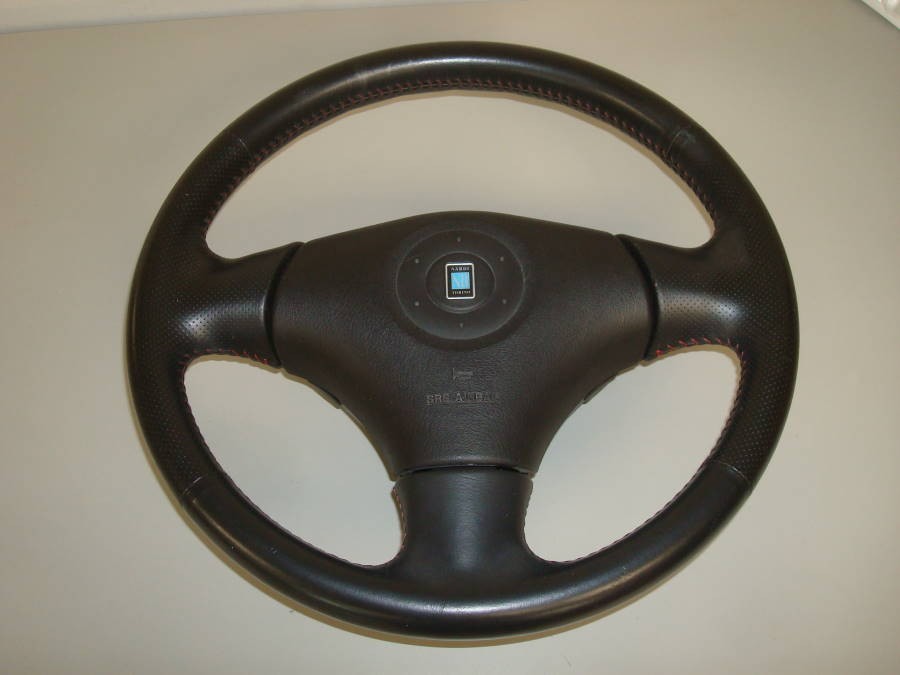

OF Tank	Washer Fluid Reservoir	HKS TP Harness	HKS Twinpower	Steering Wheel

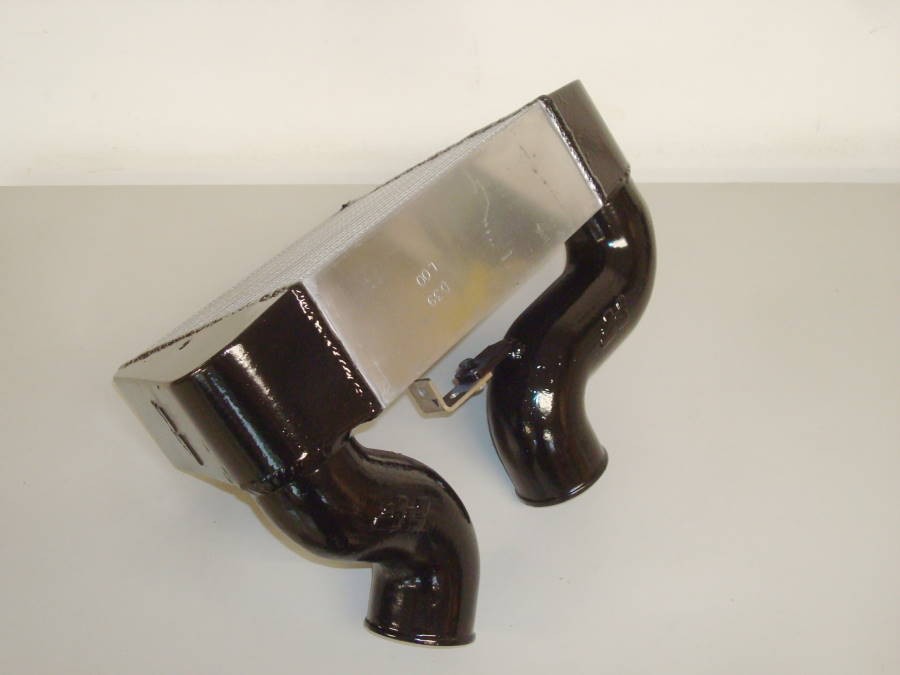

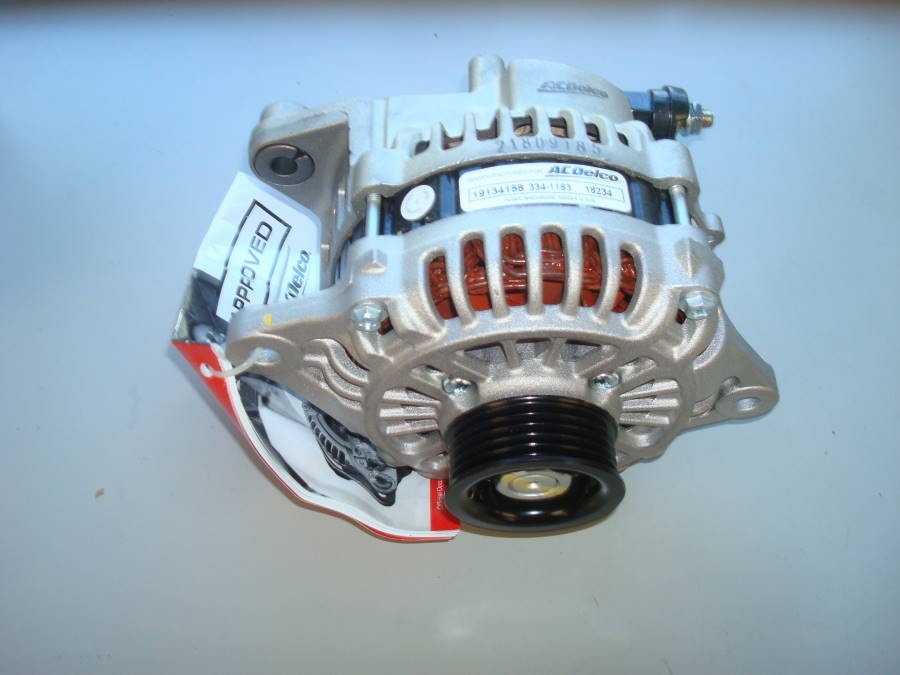

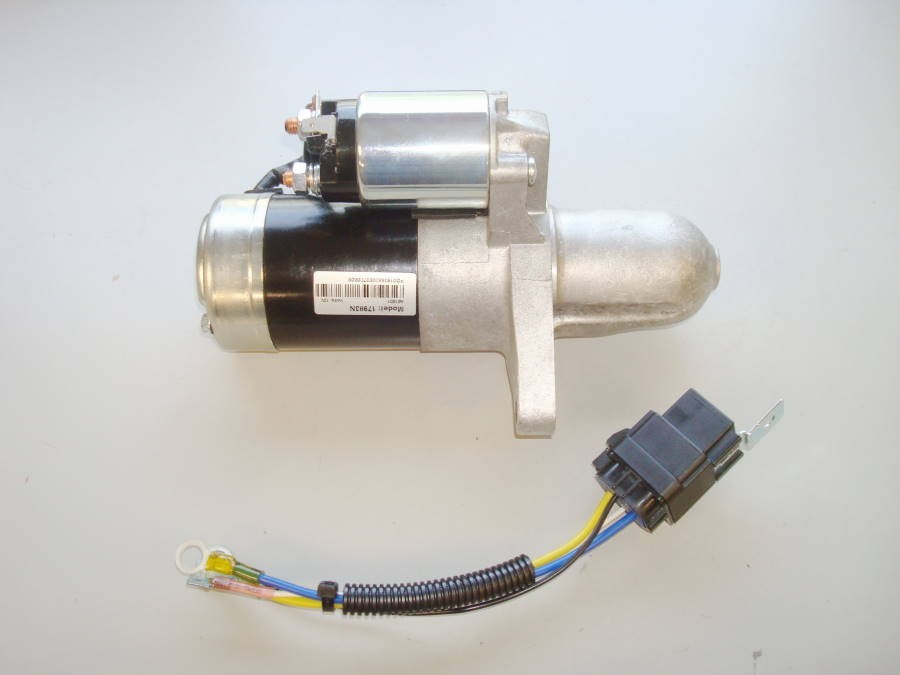

I/C	Water Pump	Alternator	HT Starter & Relay	Brake Master Cylinder

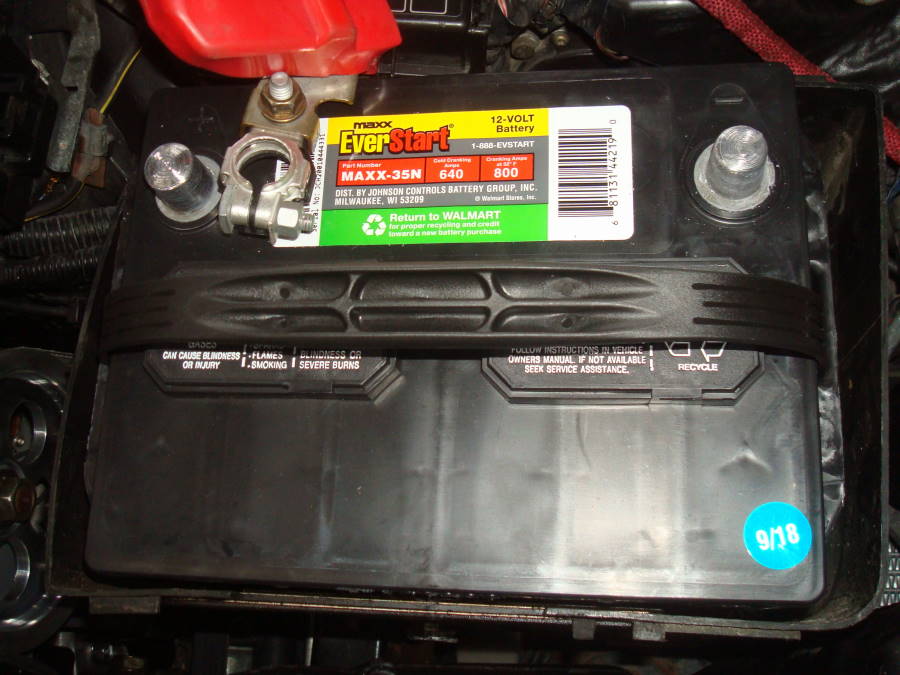

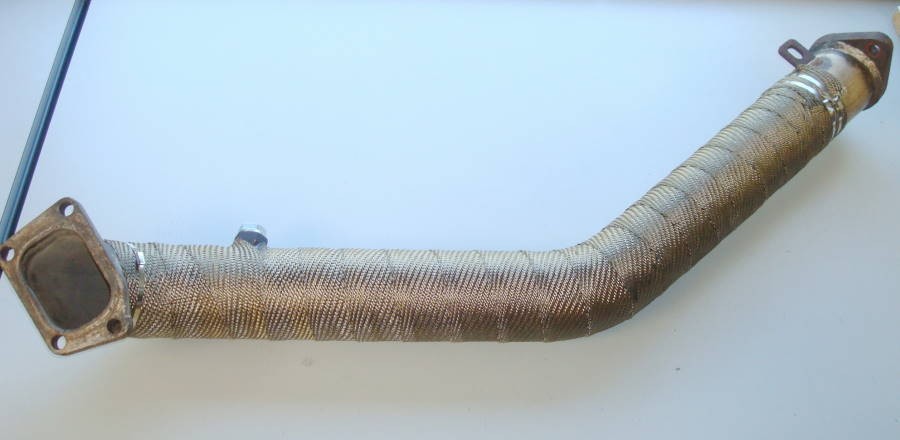

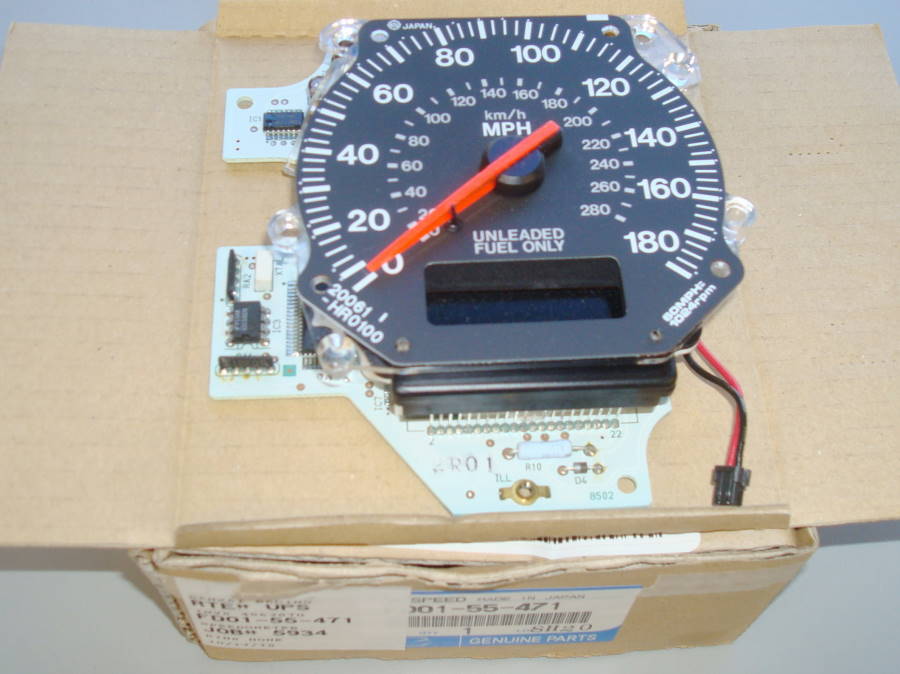

Wrapped DP	Cluster Lens	Speedometer	Fender Liners	Battery

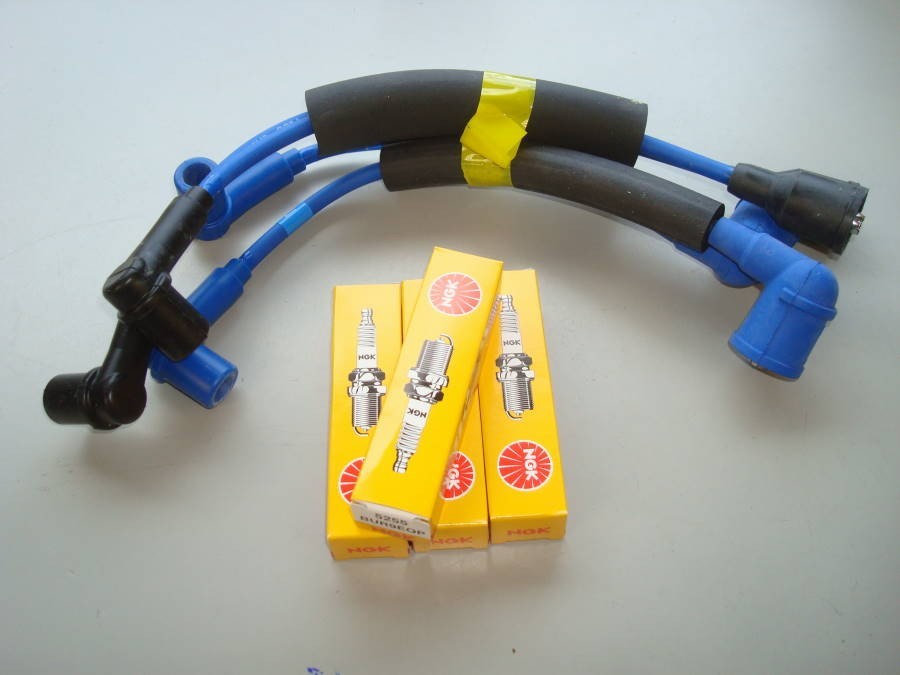

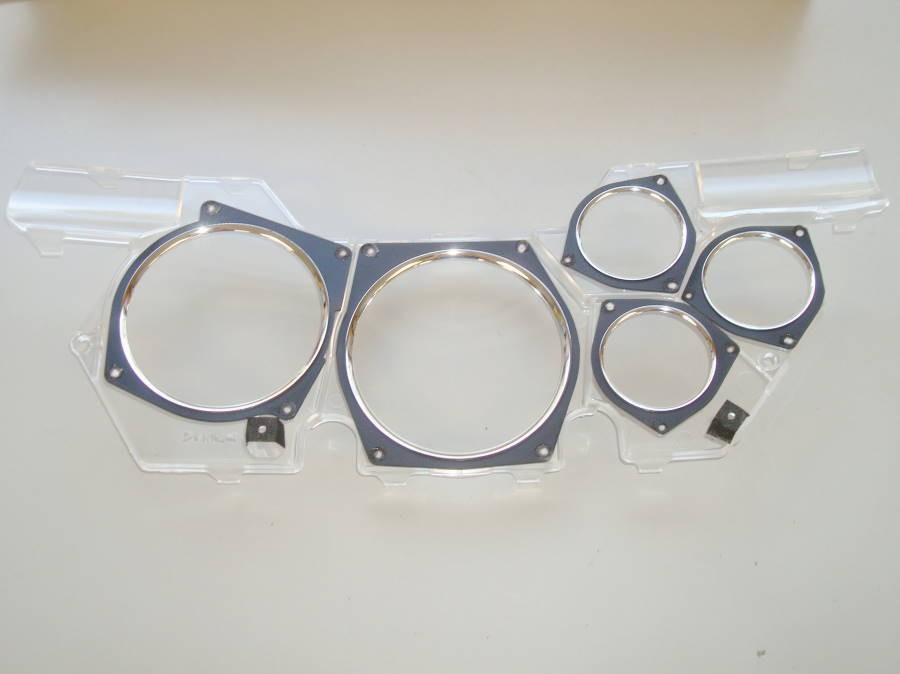

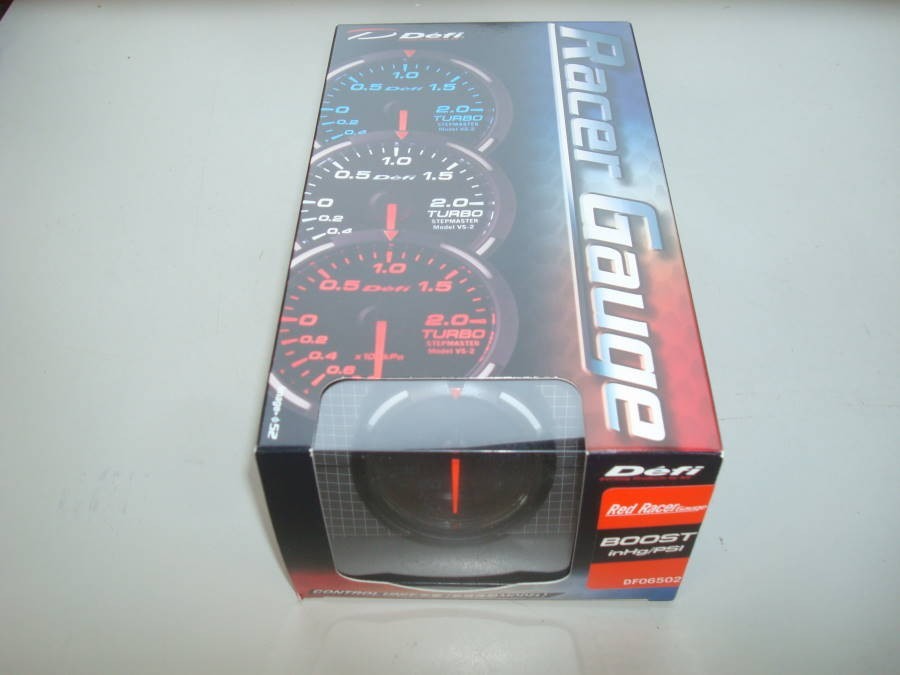

Plugs & Wires	OEM Trim	Hub Rings	DEFI Gauge	Gauge Pod

Photographs of Parts Installed

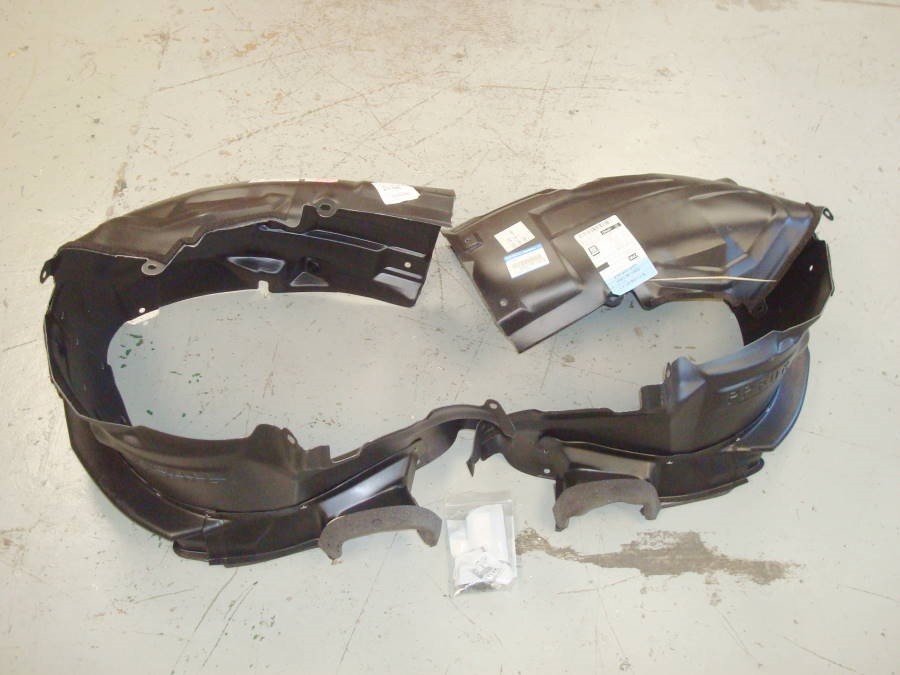

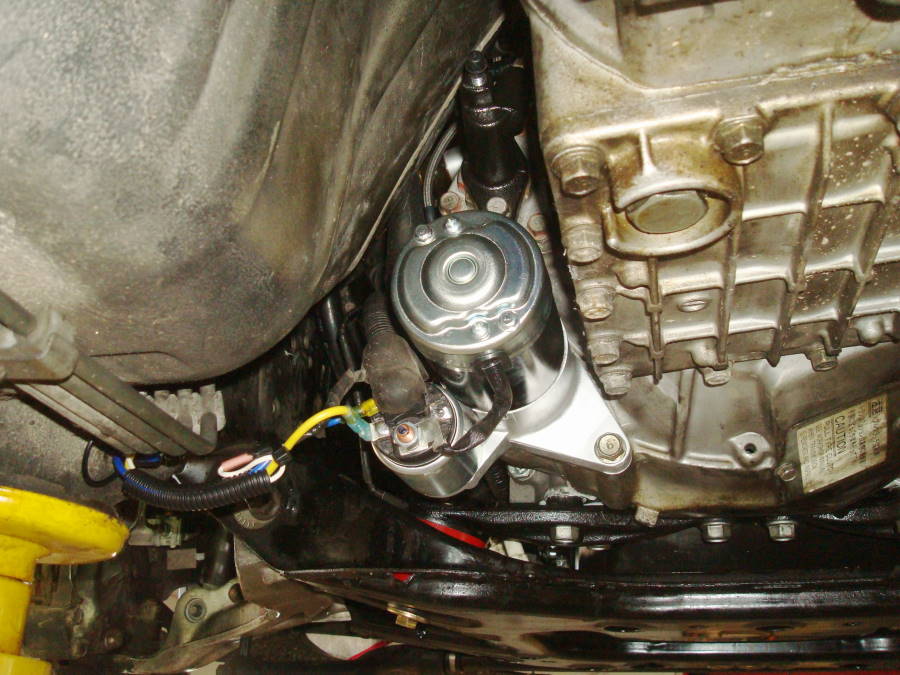

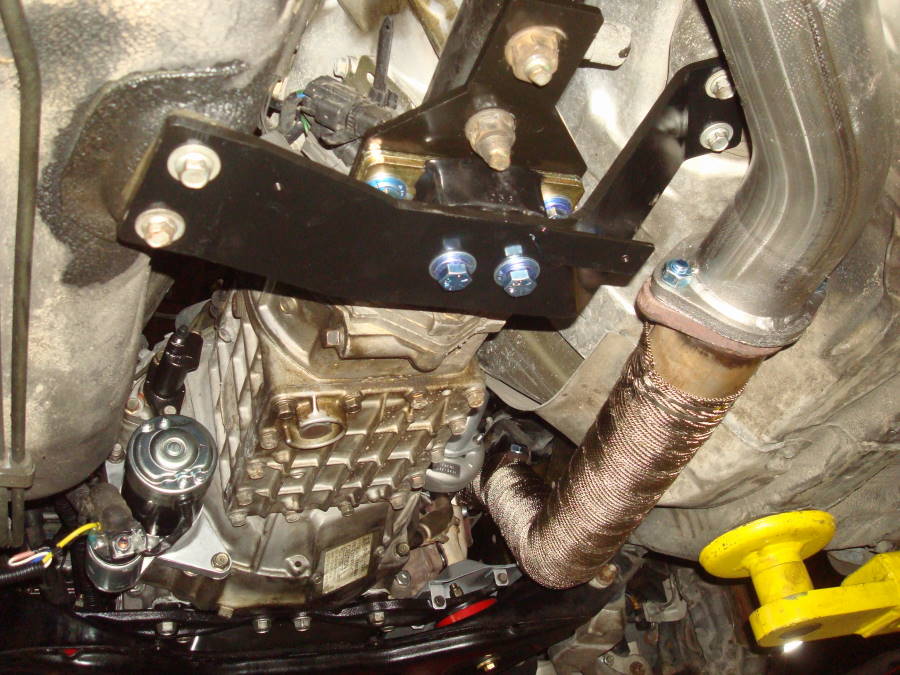

Clutch Kit	Crossmember	Diff Brace	HT Starter & Relay	Downpipe

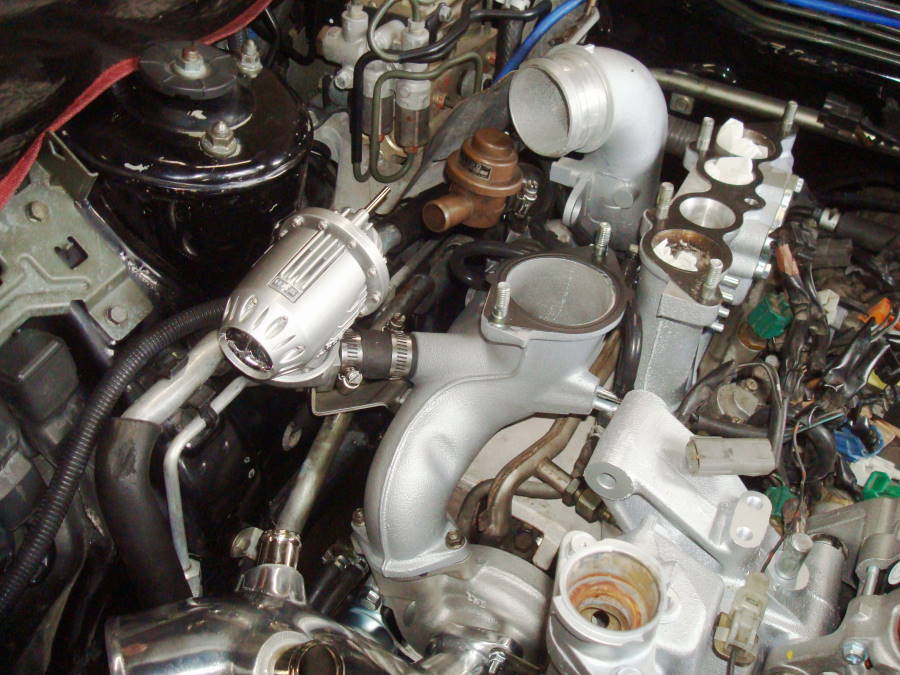

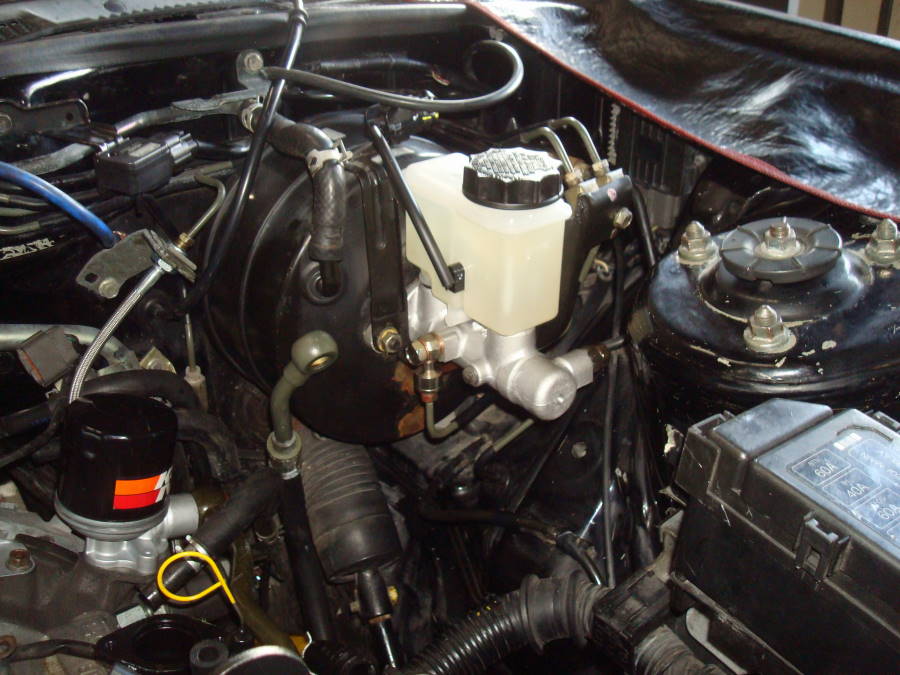

Midpipe	Brake Master Cylinder	Overflow Tank	Washer Fluid Reservoir	Blow Off Valve

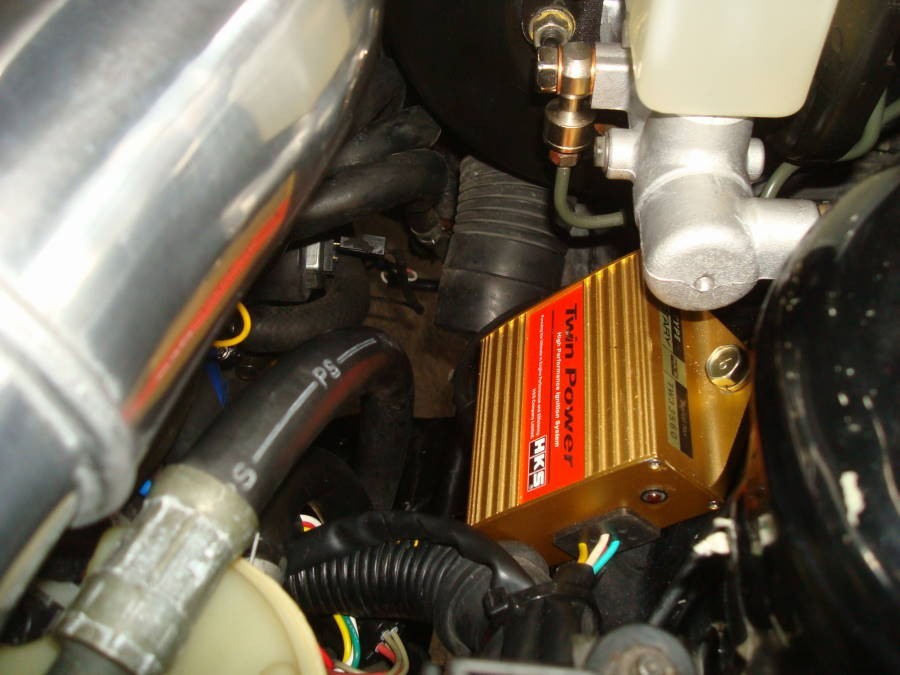

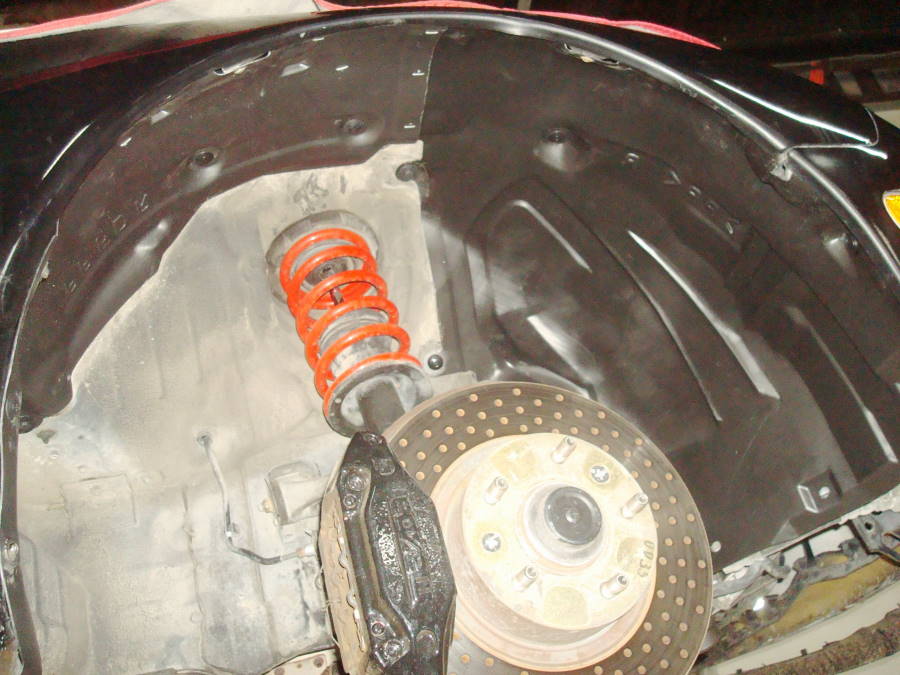

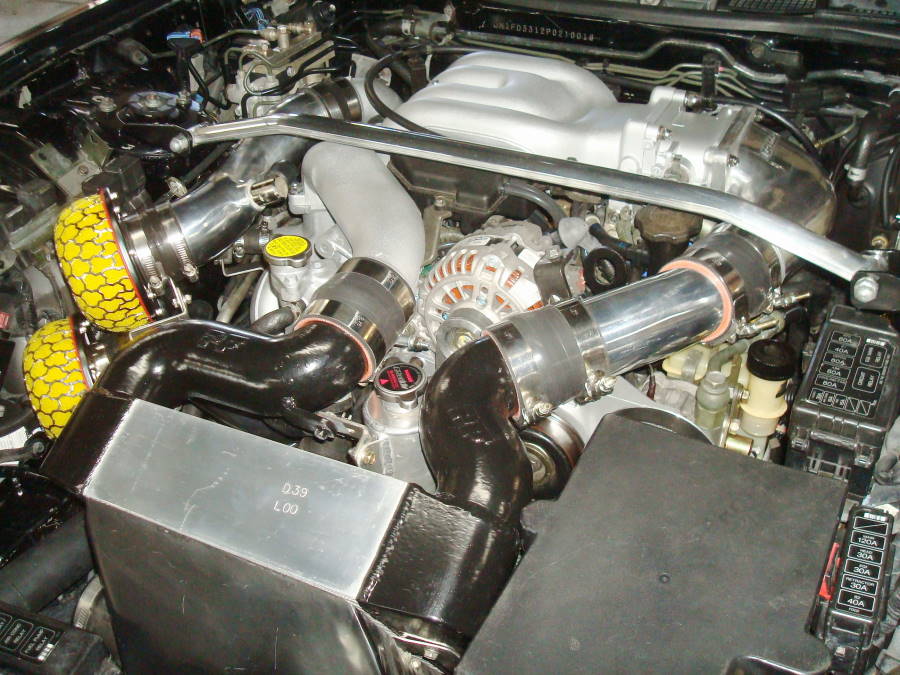

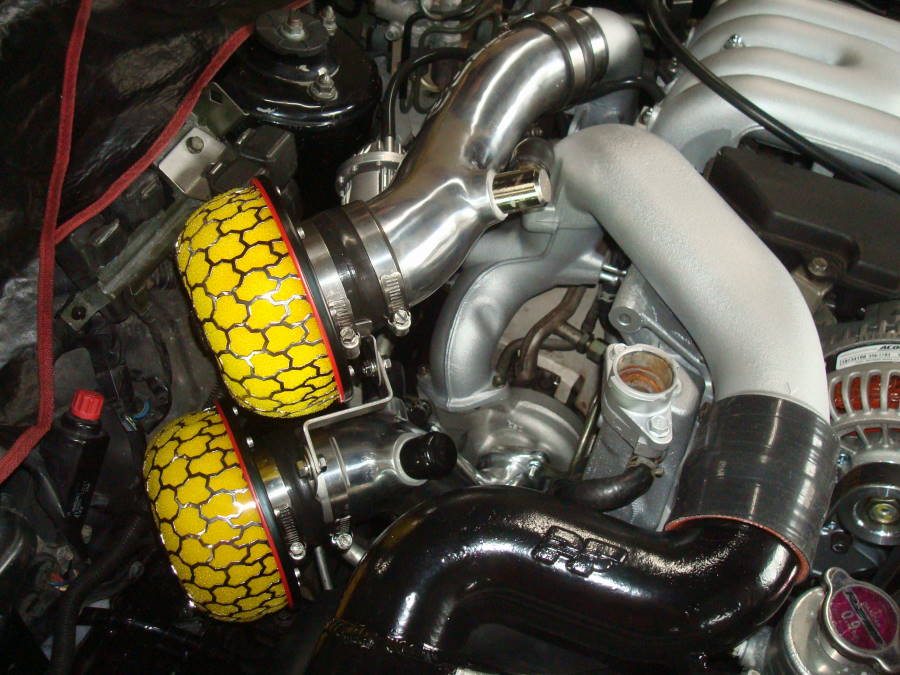

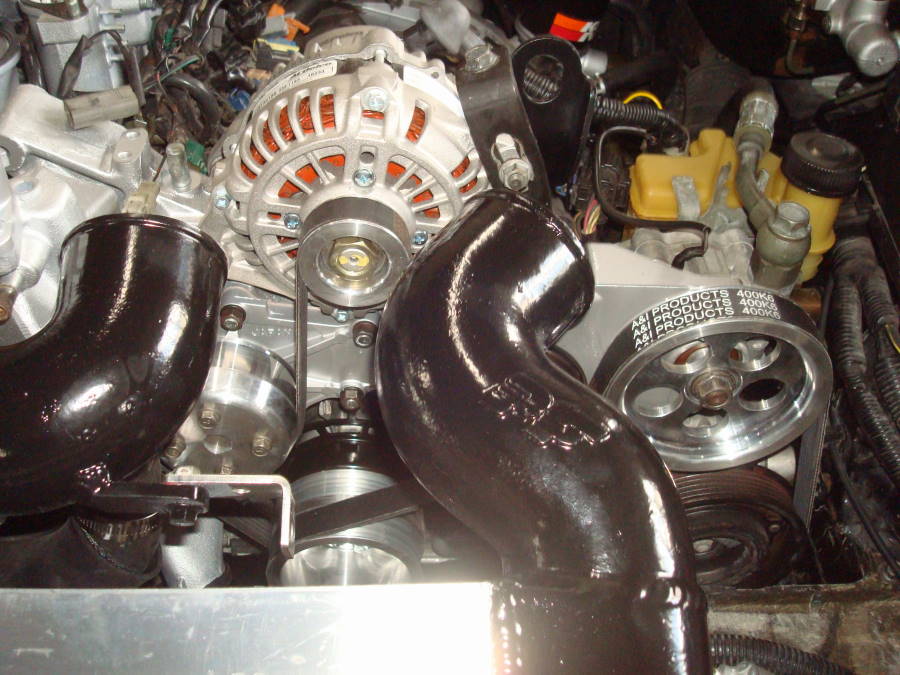

Pullies	Intake	Twinpower	Fender Liner	I/C

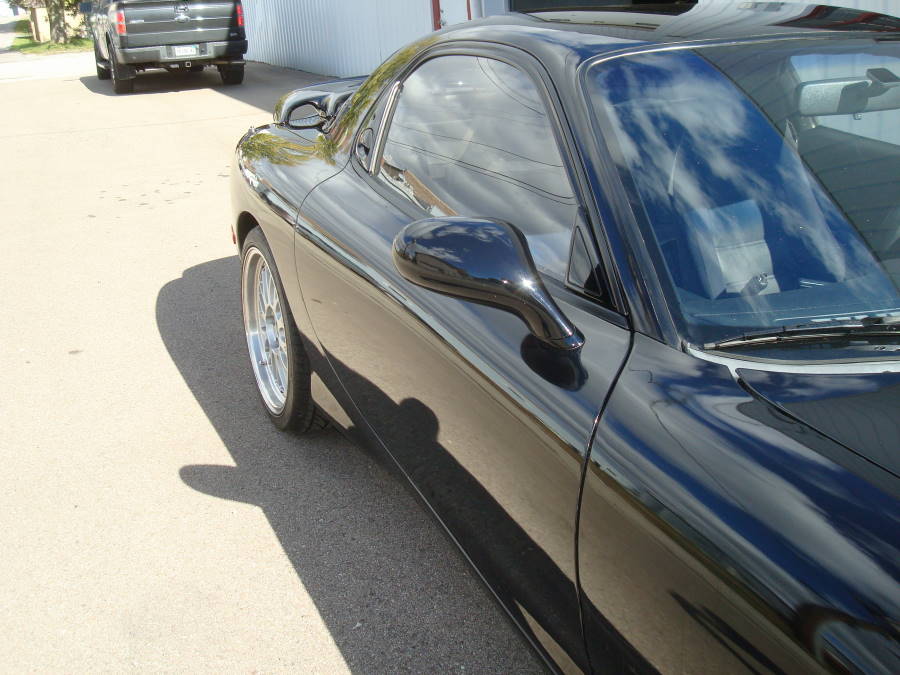

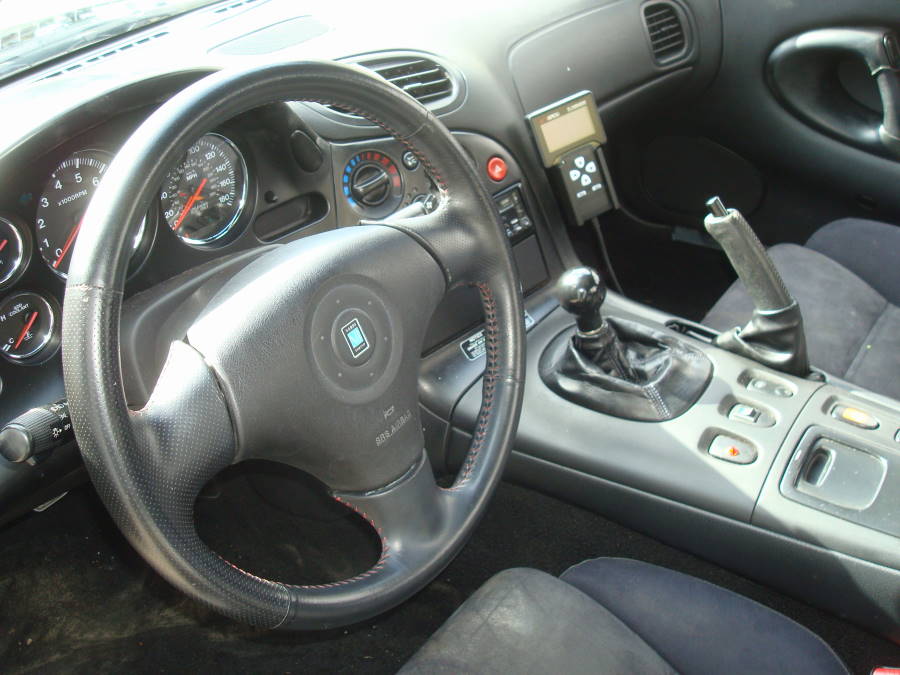

Cluster Lens	Gauge & Pod	Wheel	D-Side Trim	P-Side Trim

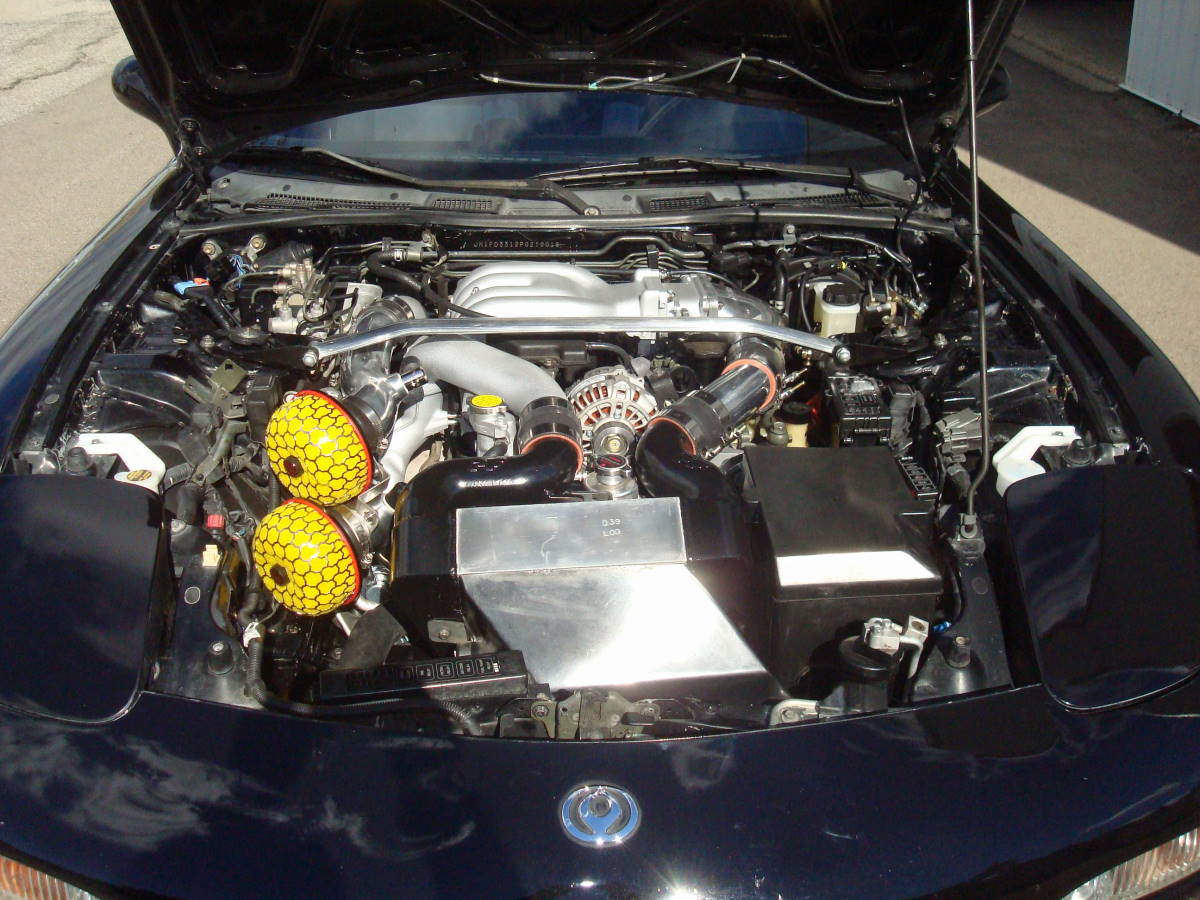

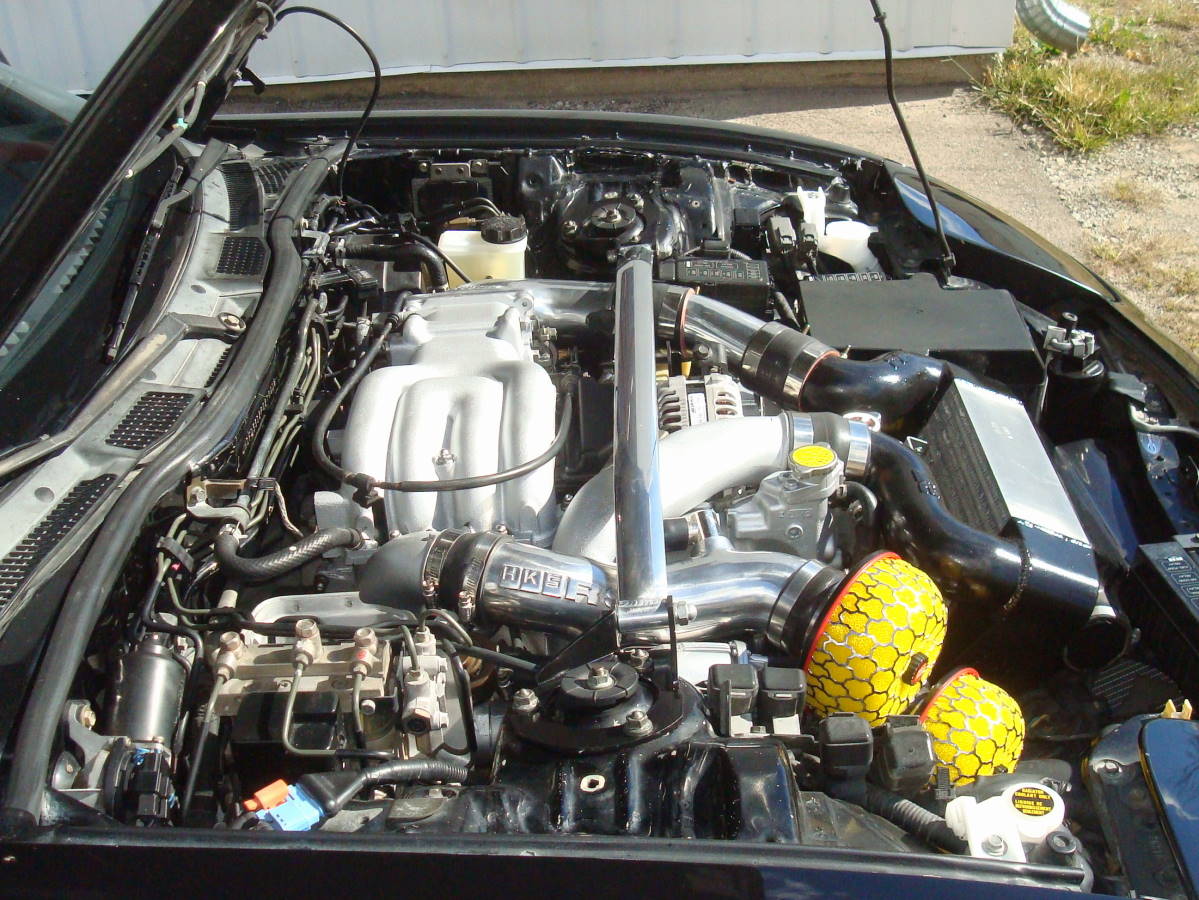

Engine Bay Photographs October 2018

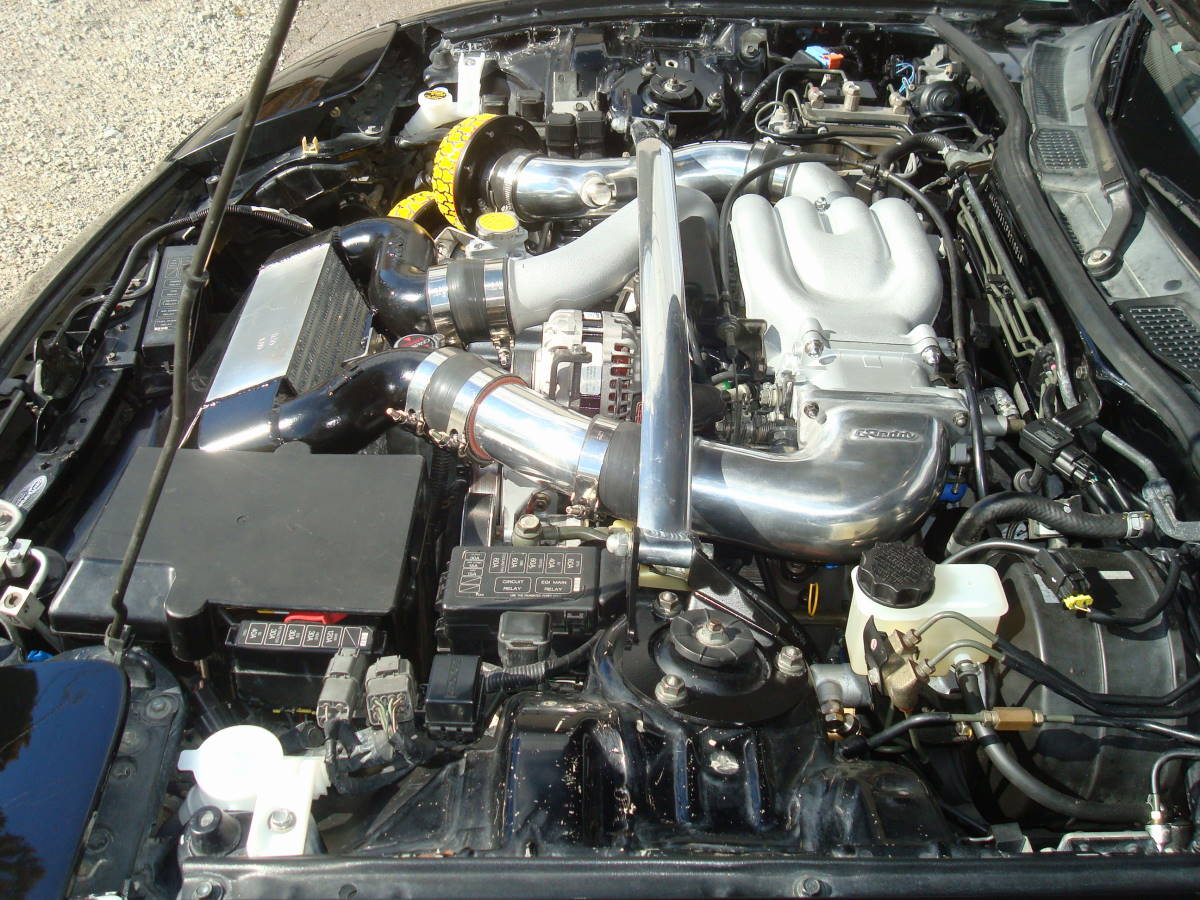

Passenger Side View	Front View	Driver Side View

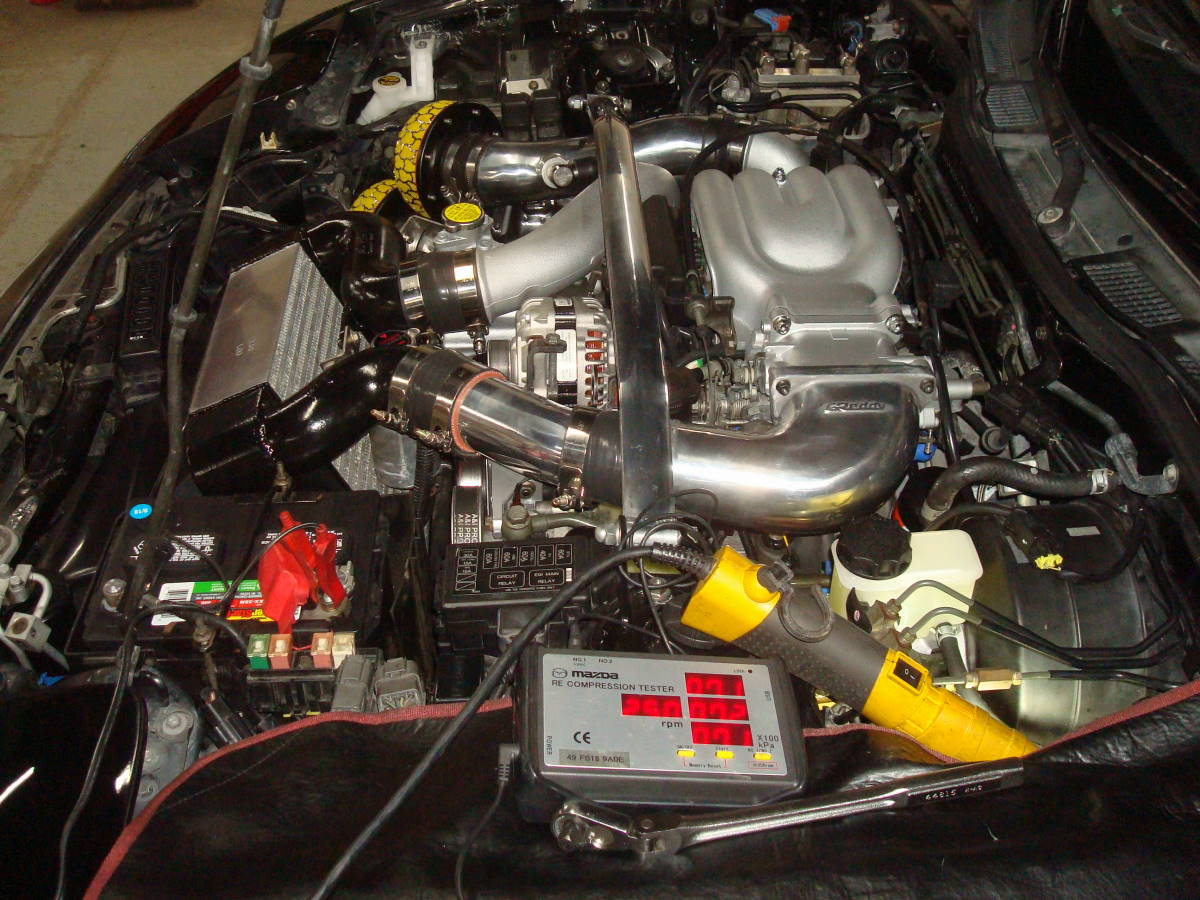

Compression & Dyno Results October 2018

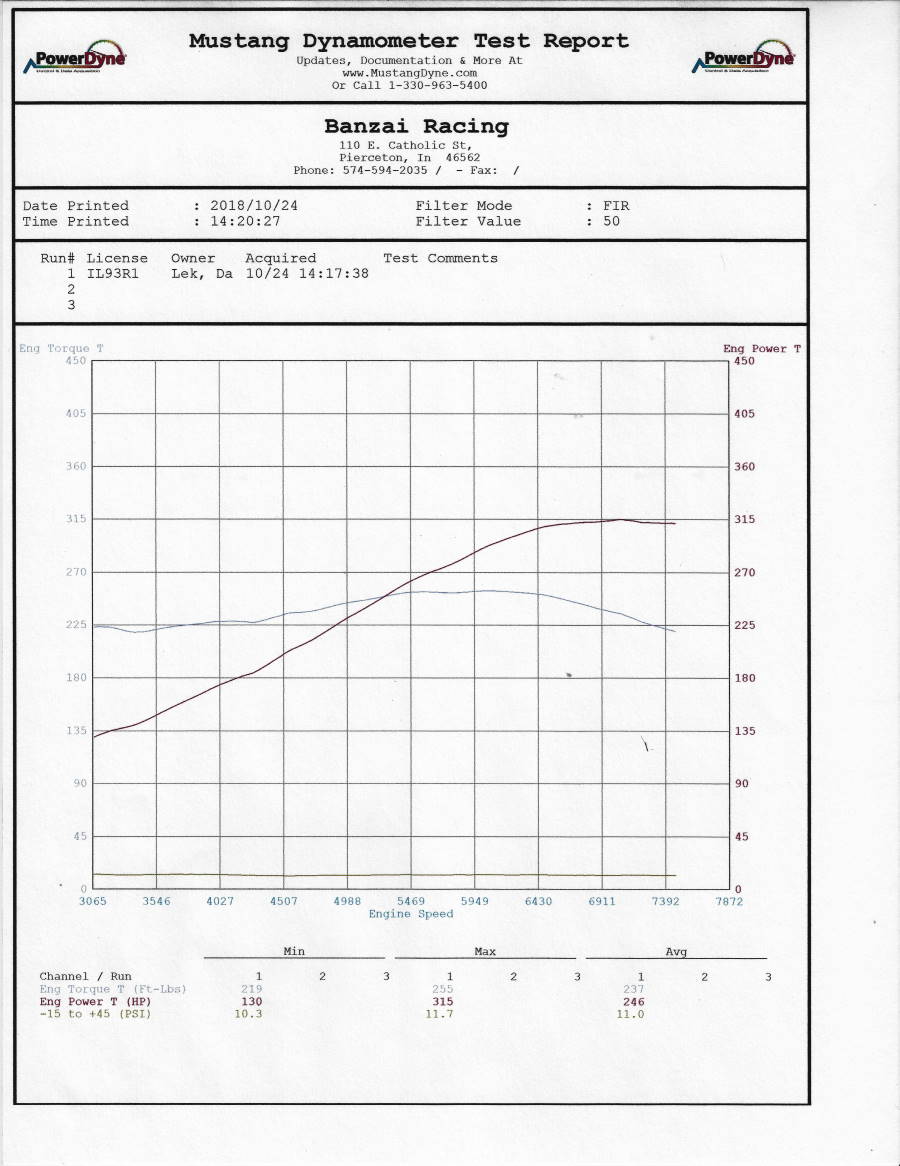

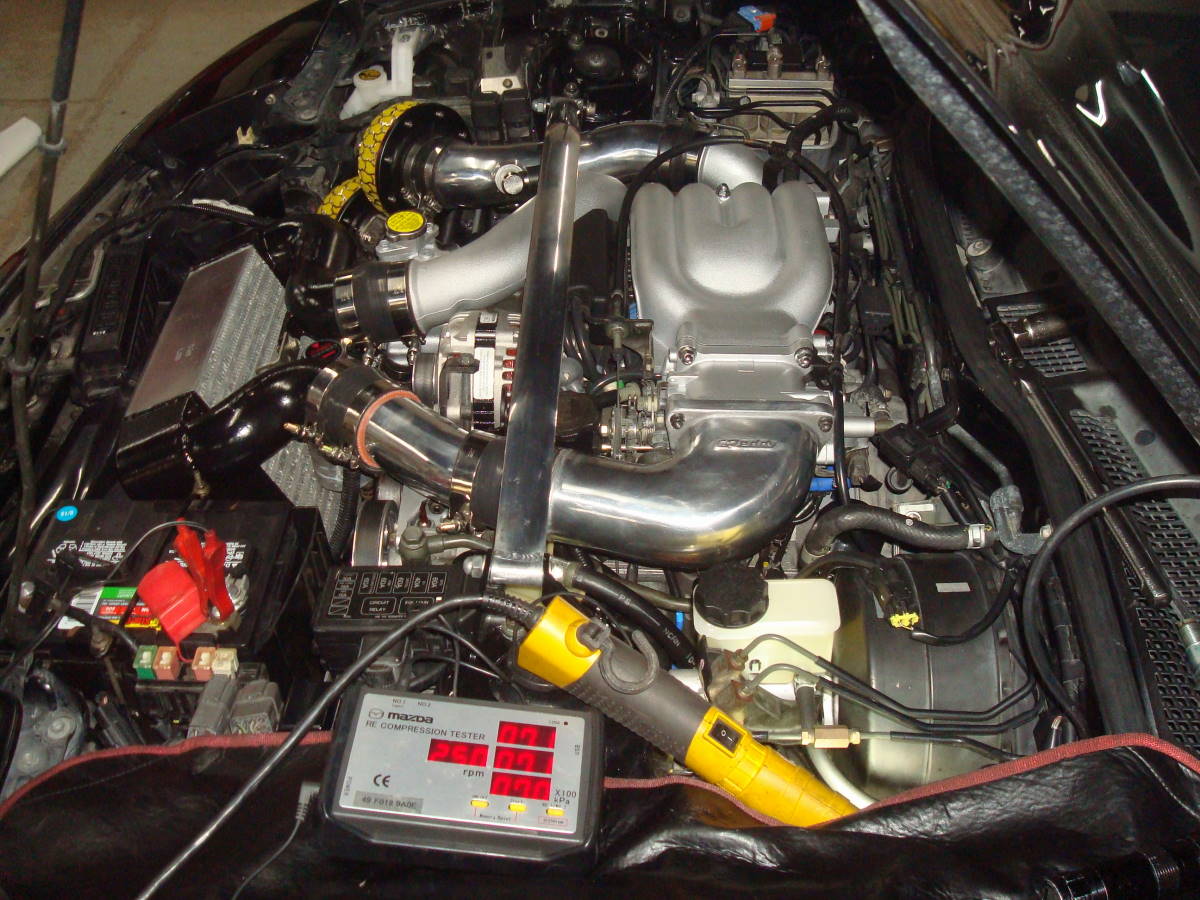

Dyno Sheet 10/24/18	Front Compression 10/25/18	Rear Compression 10/25/18

Compression & Dyno Results July 2019

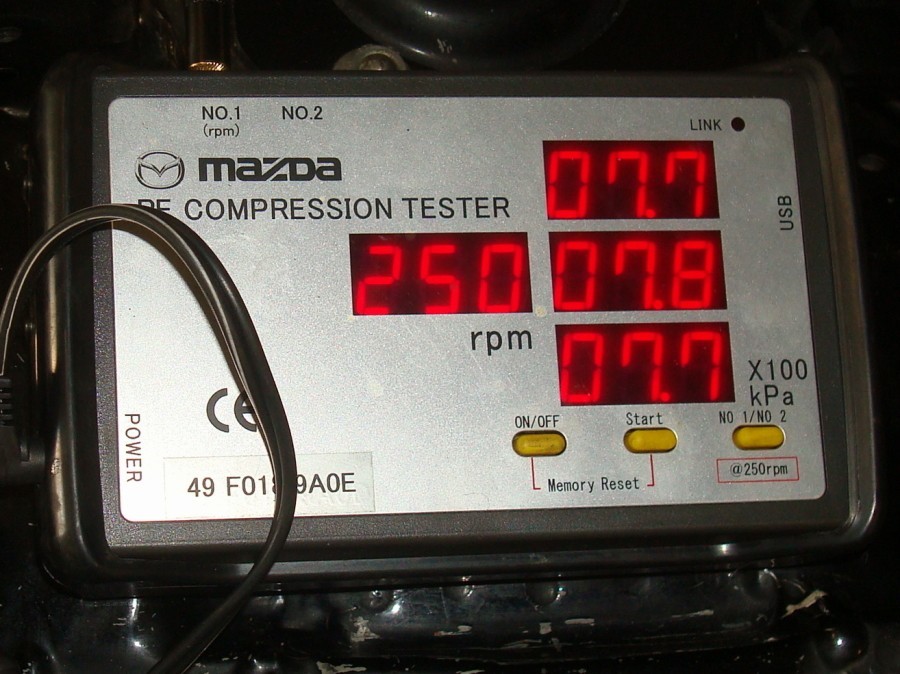

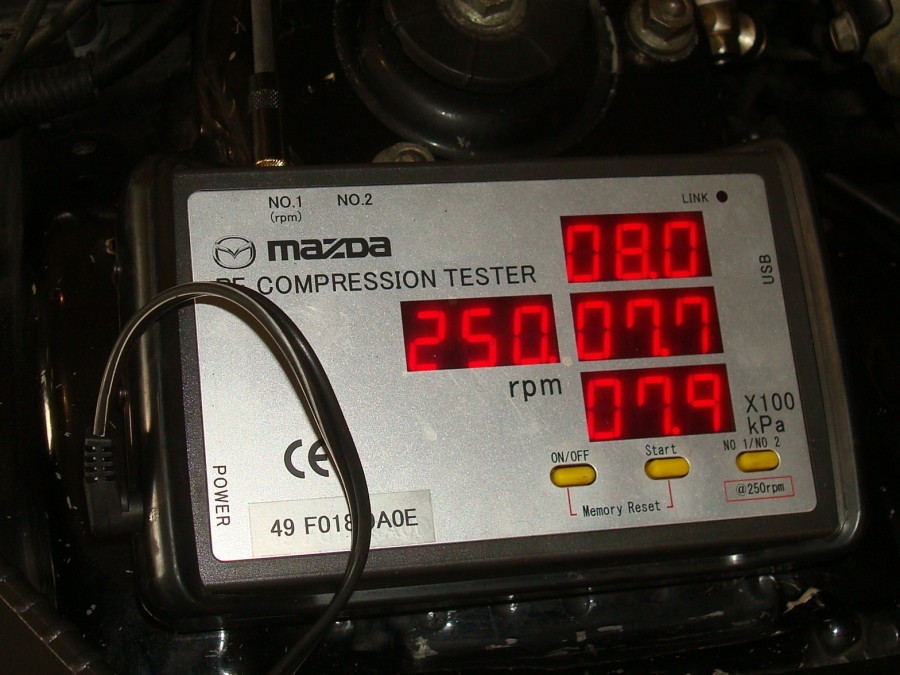

Dyno Sheet 07/25/19	Front Compression07/25/19	Rear Compression 07/25/19
