Jim's RX-7 Staged Modifications Plan
1993 Mazda RX-7 FD3s
September 2008 (OD 149634):- We performed the following work;
- Post Engine Break-In Tuning
- OEM Fan Assembly & Duct Installation
 |
 |
|

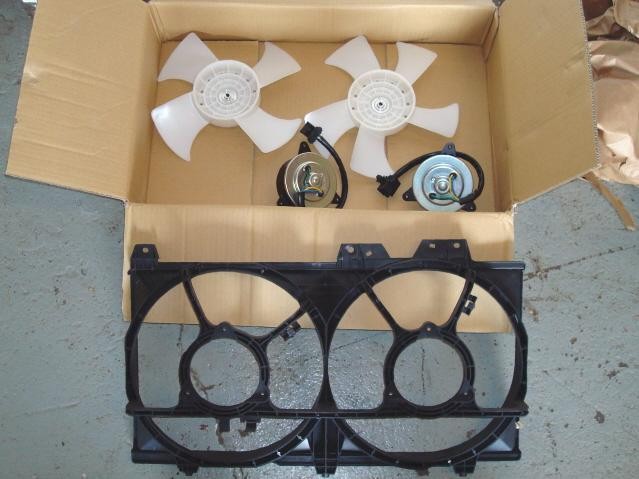

Fan
Assembly Parts
|

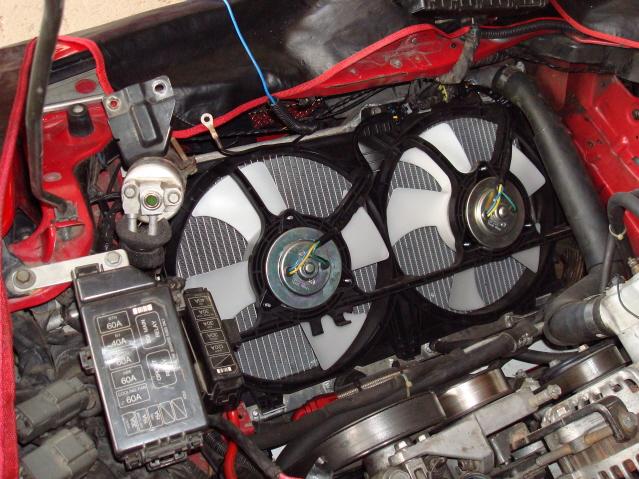

Fan
Assembly Installed
|

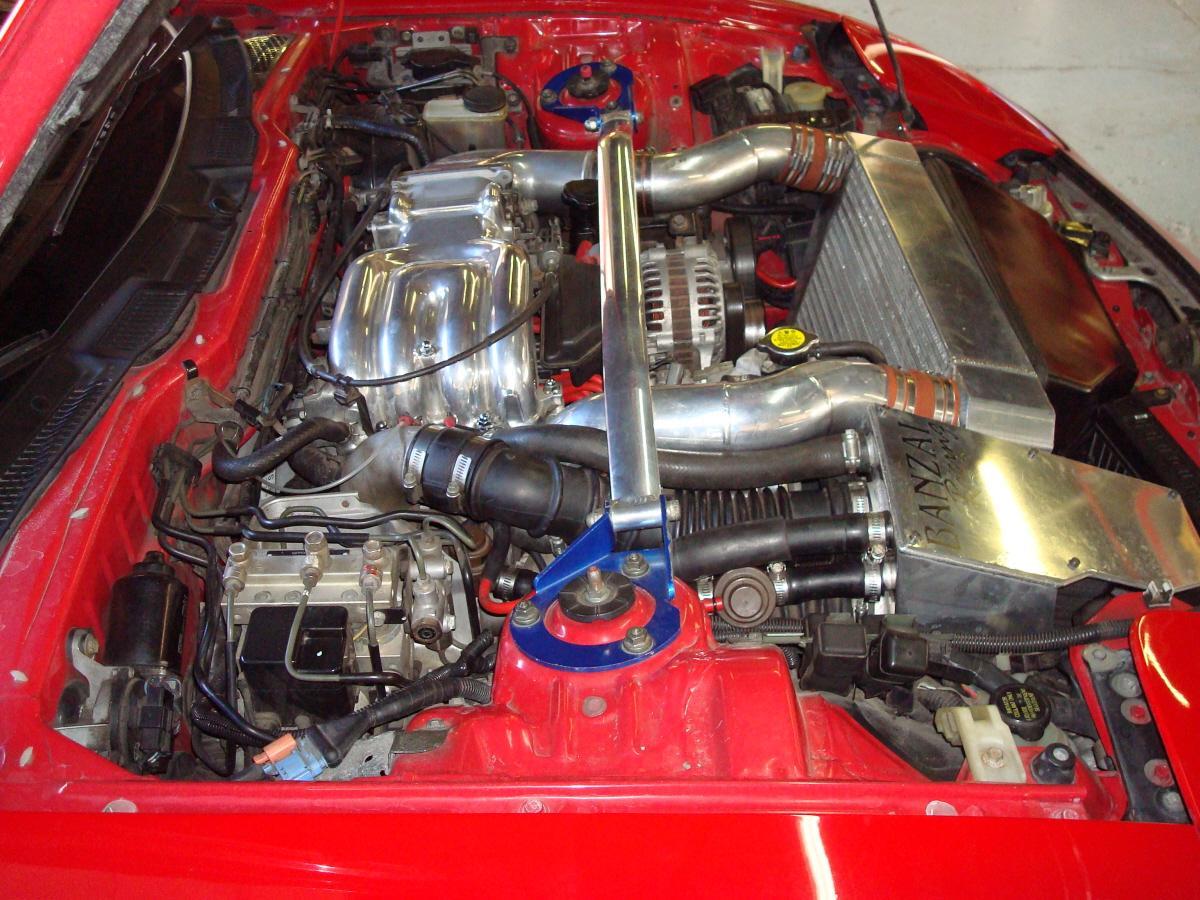

Photographs of engine bay September 2008
 |
 |
 |
|
Passenger
Side View
|

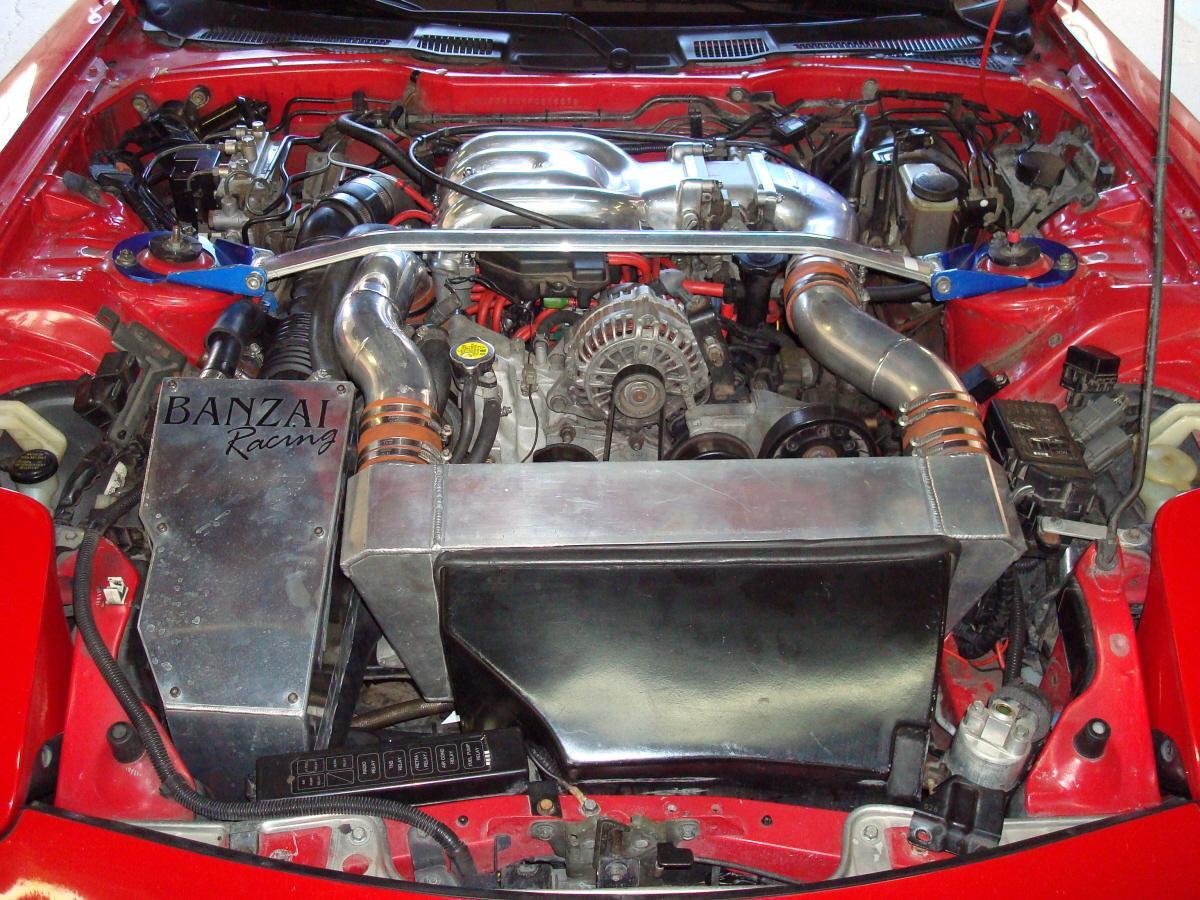

Front
View
|

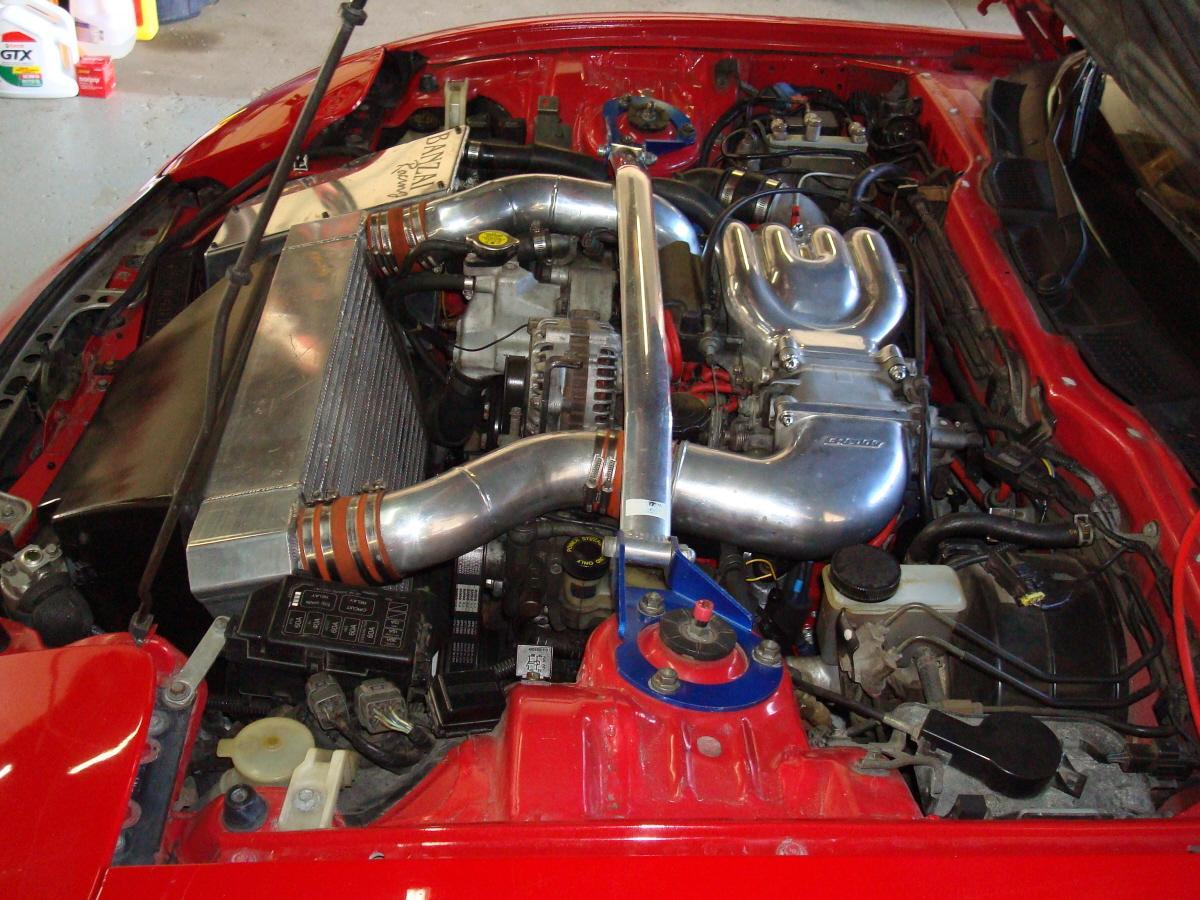

Driver Side View
|
November 2008 (OD 155859):- We performed the following work;
- Tri-Point Engineering Anti-Sway Bar Installation
- Gas Hood Shocks Installation
- 4-Ply Silicone Couplers & T-Bolt Clamps
- Oil Change & Tune-Up
Photographs of the parts installed
 |
 |
 |
 |
|

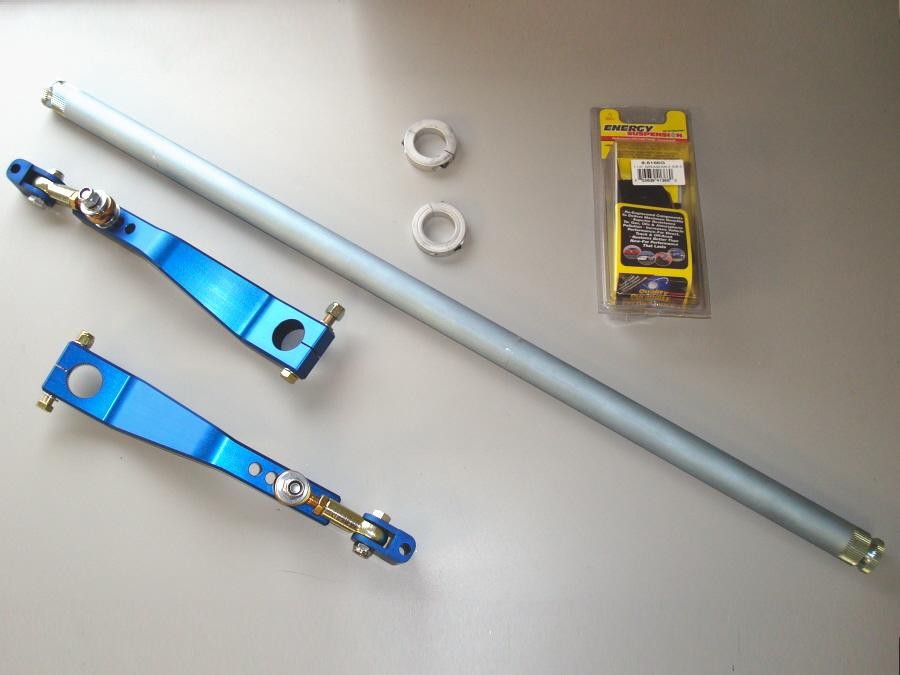

Anti-Sway
Bar Kit
|

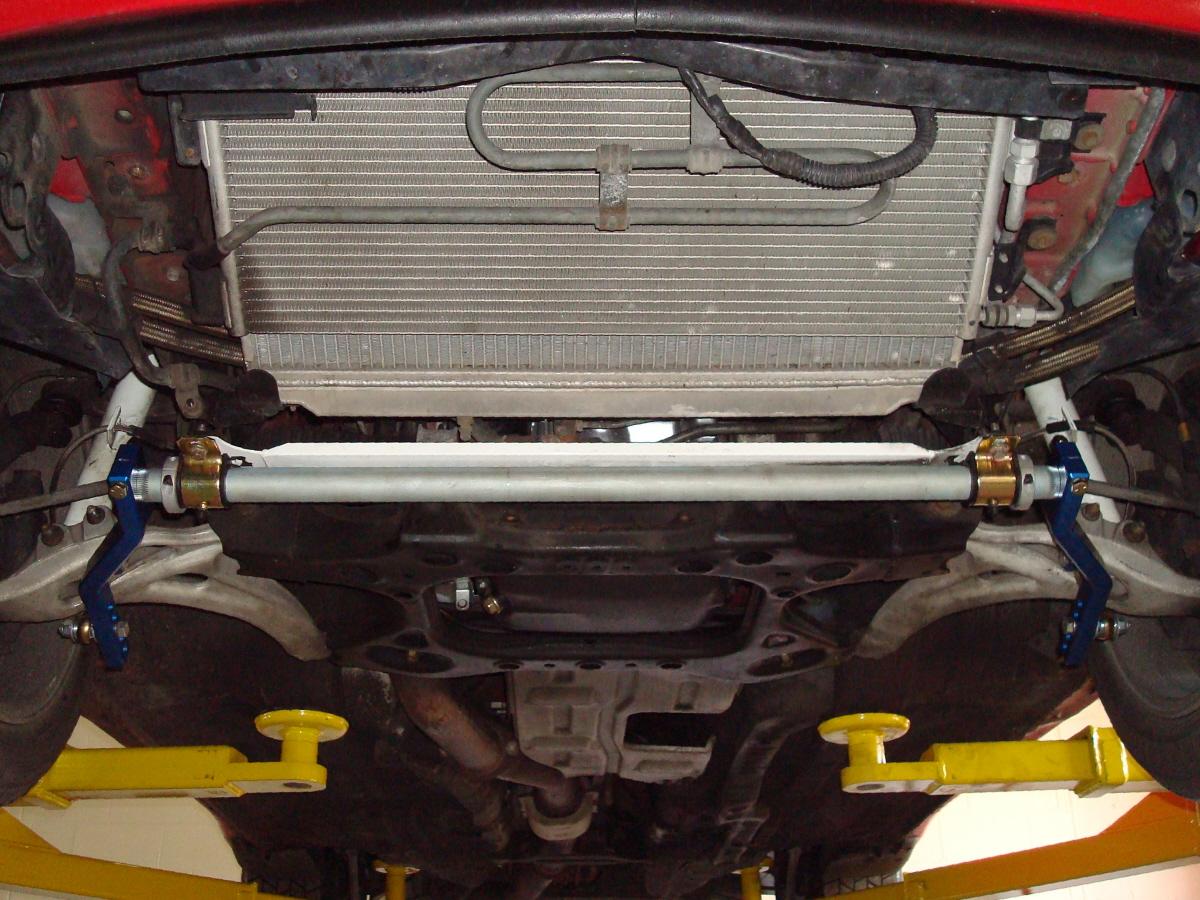

Anti-Sway
Bar Installed
|

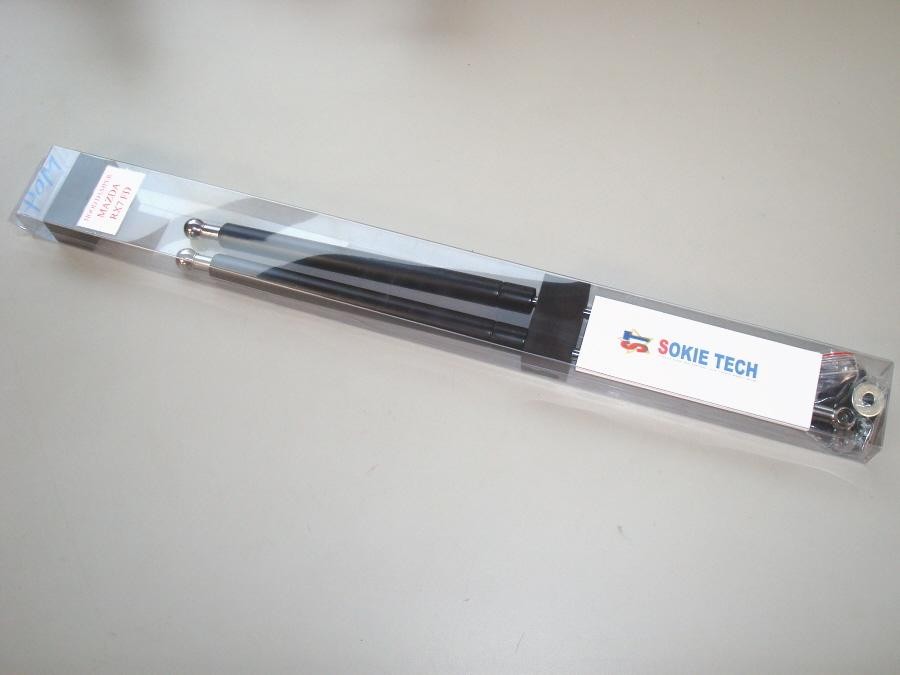

Hood
Shocks
|

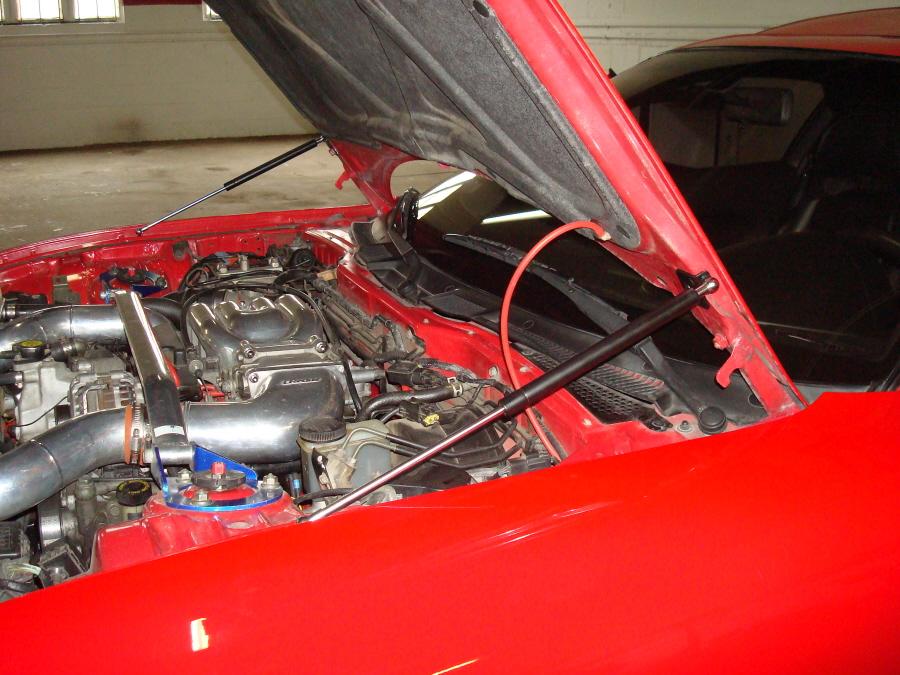

Hood
Shocks Installed
|

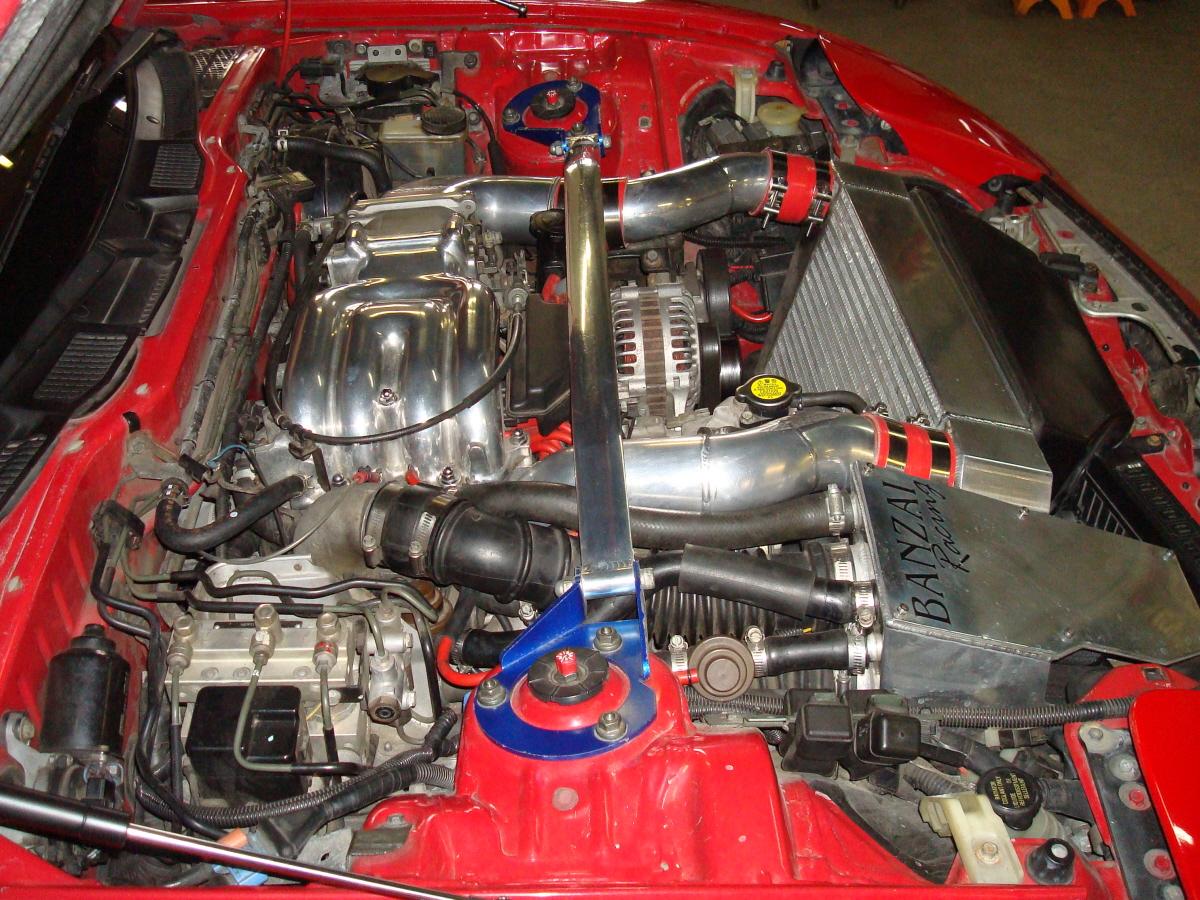

Photographs of the engine bay November 2009
 |
 |
 |
|
Passenger
Side View
|

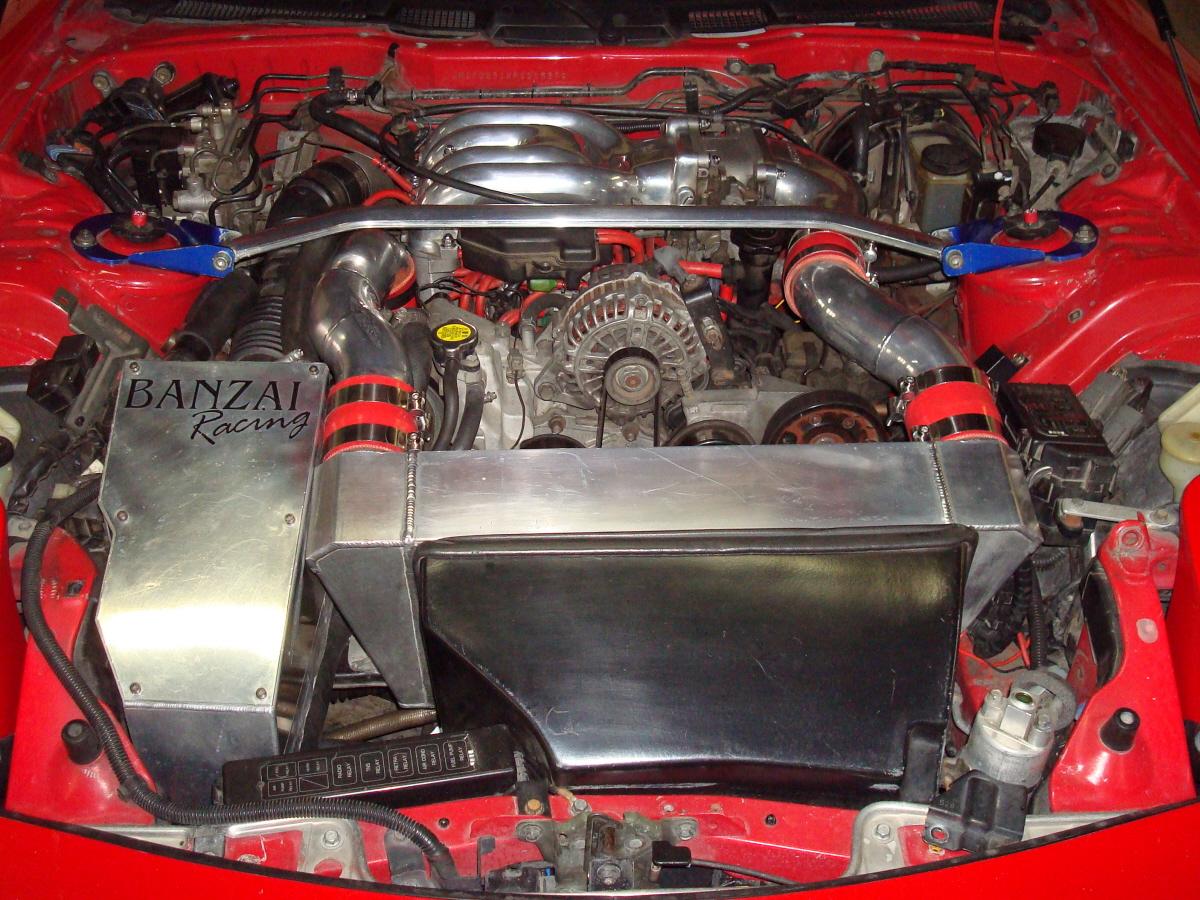

Front
View
|

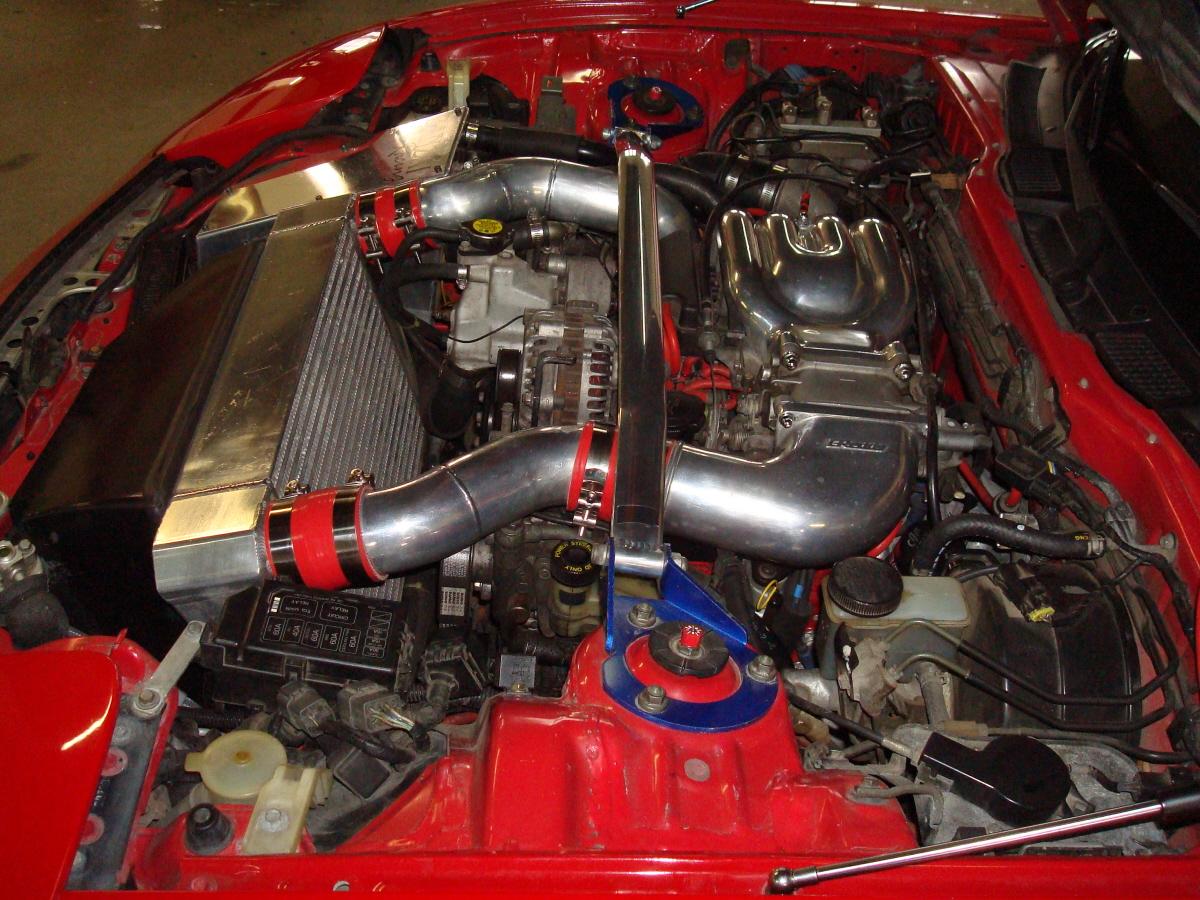

Driver
Side View
|
May 2010 (OD 158414):- We performed the following work;
- EBC Yellow Front Brake Pads
- EBC Green Rear Brake Pads
- Wilwood 600 Super High Temp Brake Fluid Flush & Fill
- Brake Master Cylinder Replacement
- Oil Change & Tune-Up
- 1300cc Injector Upgrade
- K&N Filters
- HKS Twinpower Ignition Amplification
- Hella Horns
- Mazdaspeed Hub Adapter
- Oil & Filter
- NGK Power Cables & Spark Plugs
- Dyno Tuning to 357 RWHP
Photographs of the parts installed
 |
 |
|

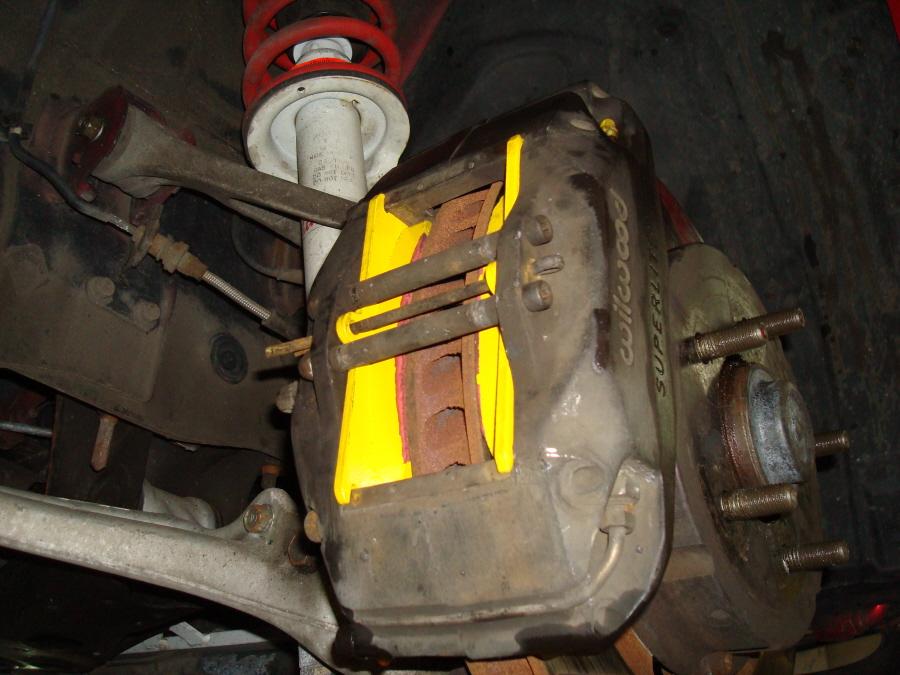

Front
Brakes
|

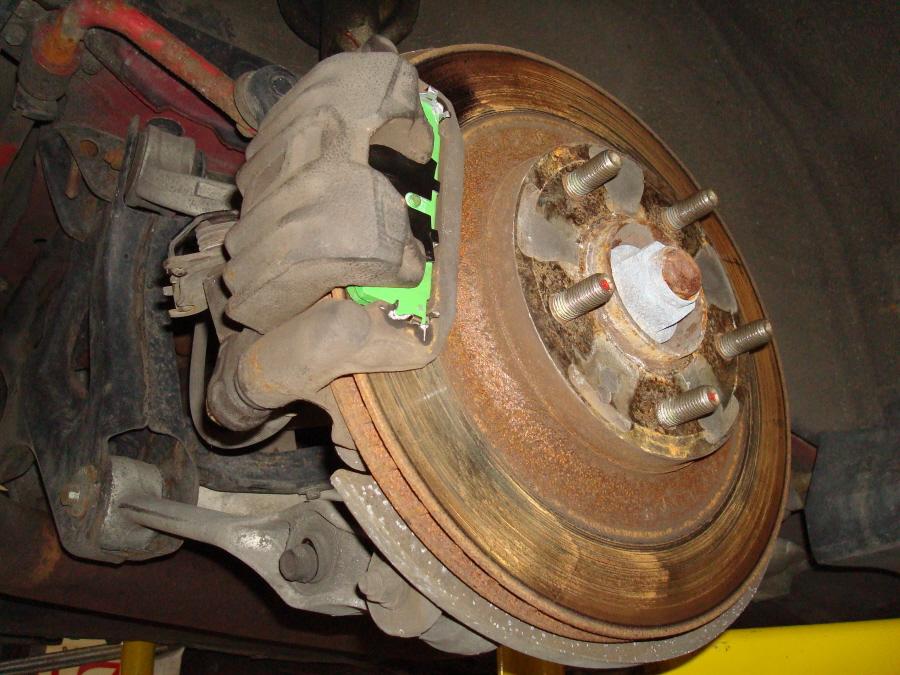

Rear
Brakes
|
March 2011 (OD 162800):- We performed the following work;
Photographs of Parts
 |
 |
 |
|

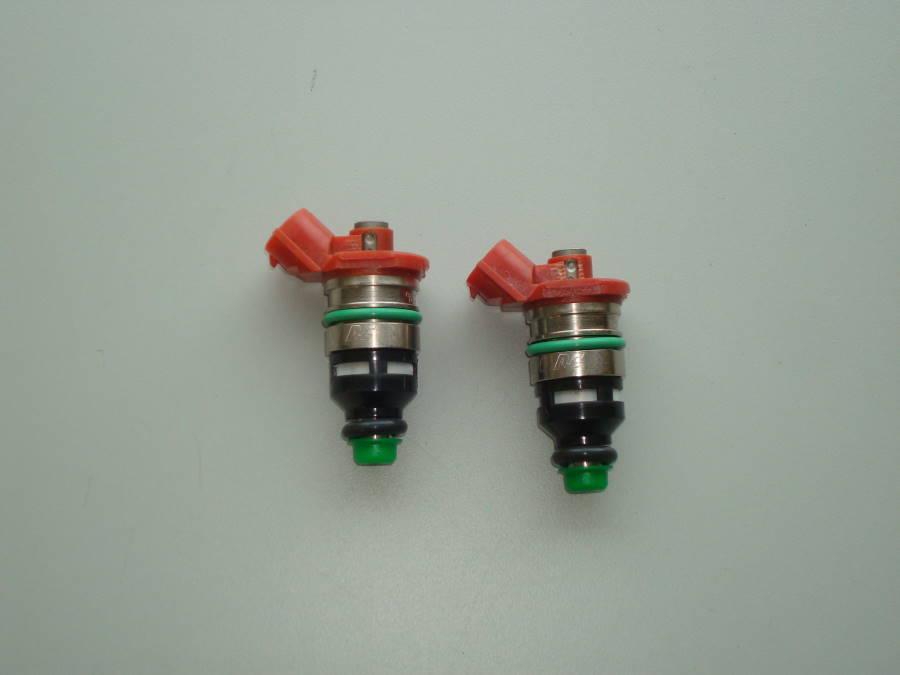

1300cc
Injectors
|

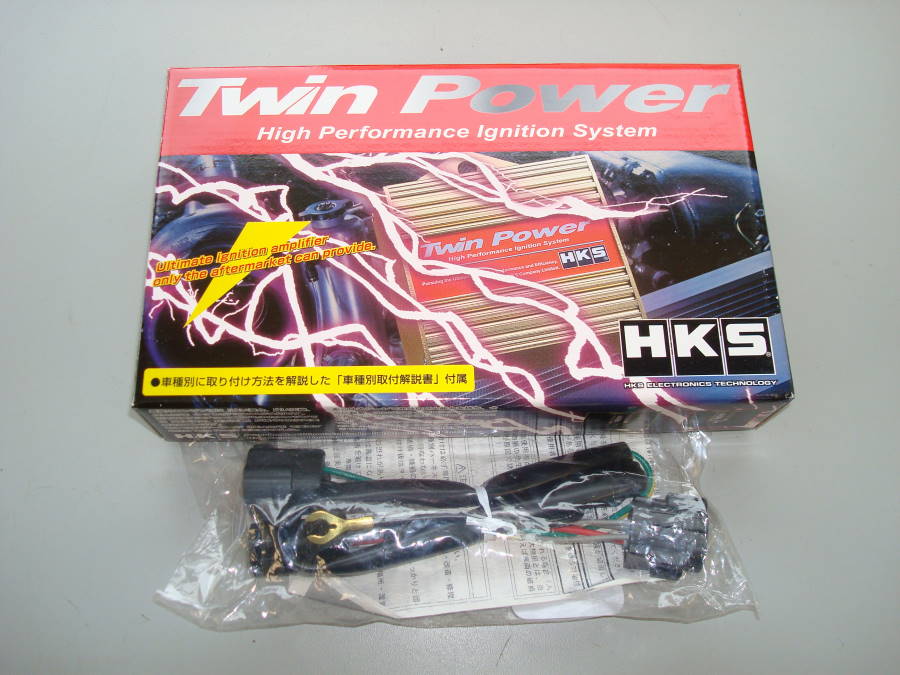

HKS
Twinpower
|

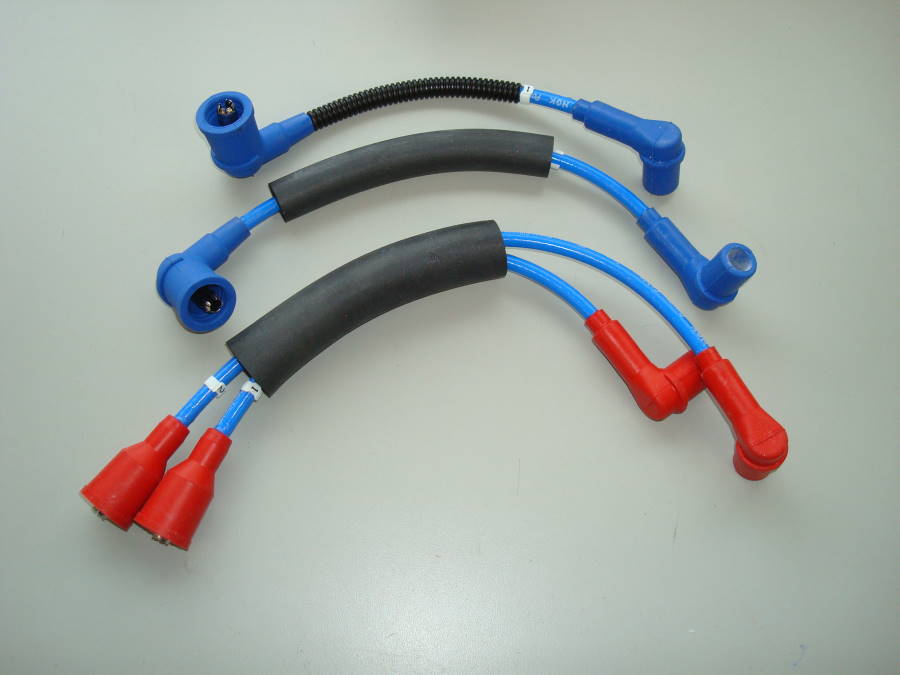

NGK
Power Cables
|
 |
 |
 |
|

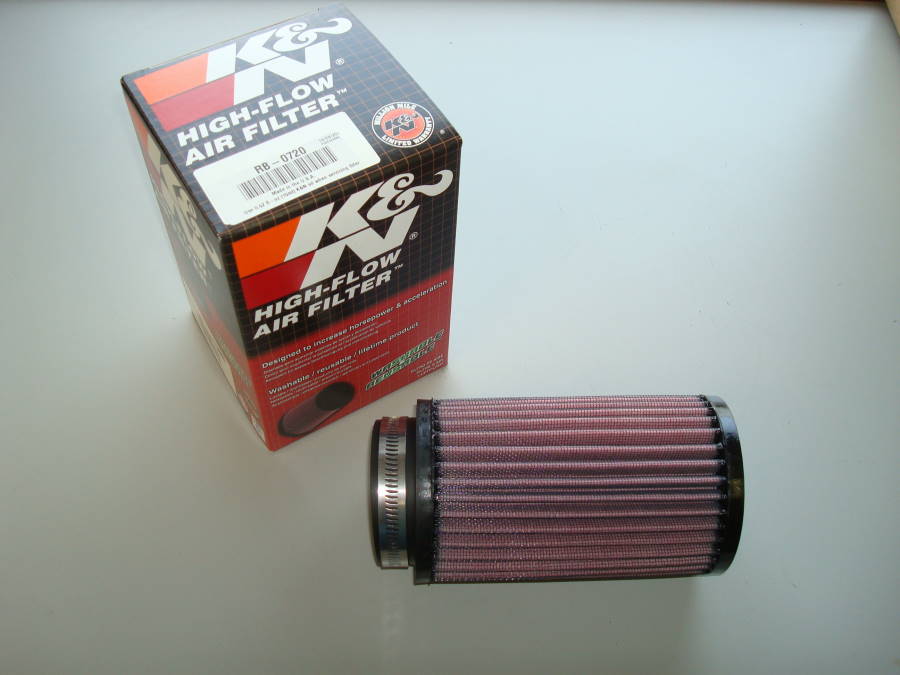

K&N
Filters
|

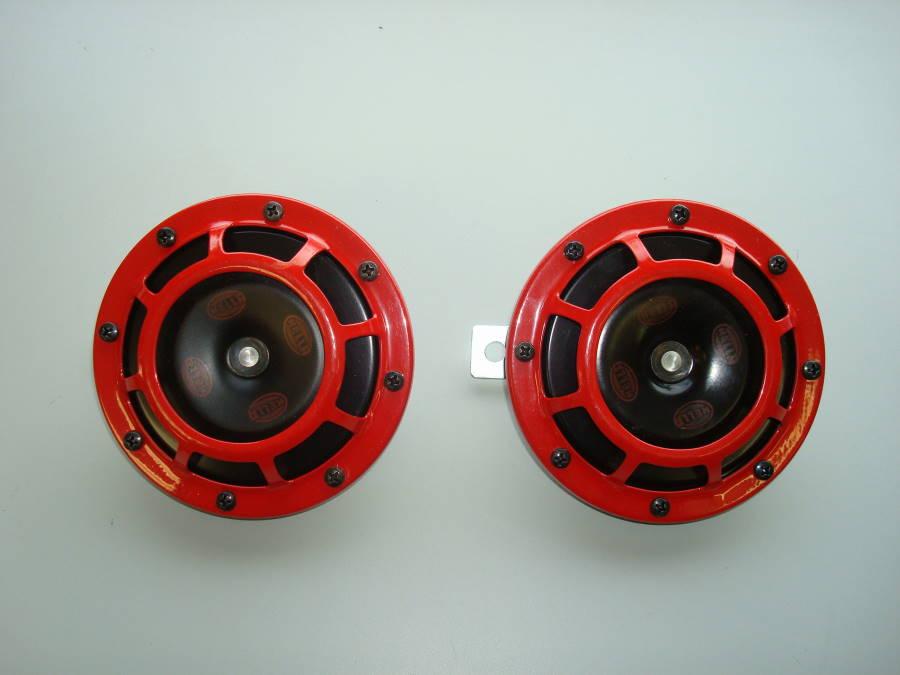

Hella
Horns
|

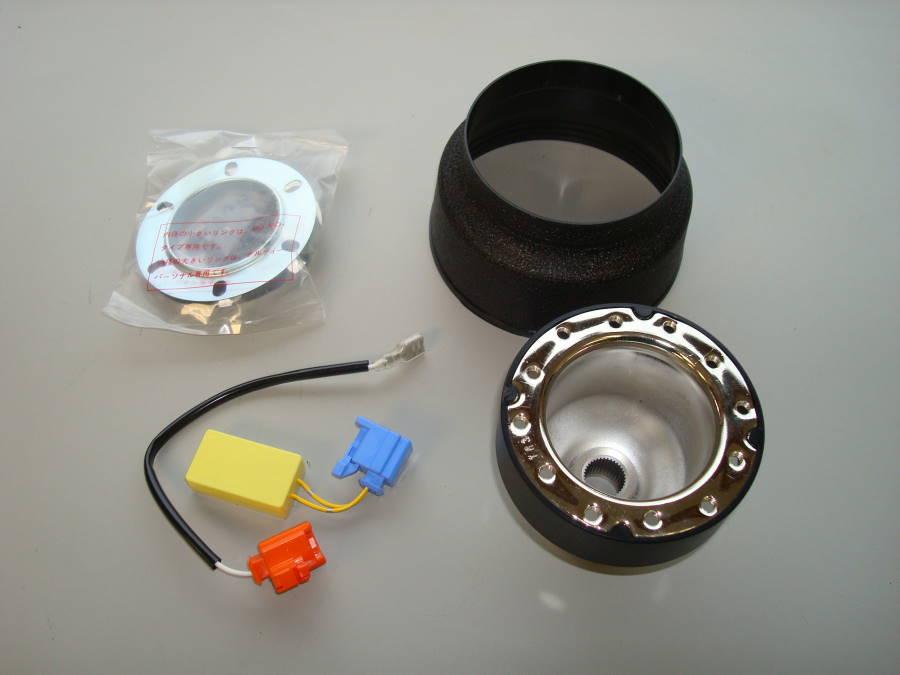

Mazdaspeed
Hub Adapter
|
Dyno Chart March 18th, 2011
 |
|
357
RWHP
|
Click on images for larger view
